2006 Dodge Charger 5.7 Serpentine Belt Routing Diagram and Maintenance Tips
To ensure smooth engine operation in your 2006 Dodge Charger with a 5.7L HEMI, it’s important to understand the serpentine belt layout. The serpentine belt drives several components, including the alternator, power steering pump, water pump, and air conditioning compressor. A precise understanding of the belt routing is critical to prevent issues like belt slippage or premature wear.
Here’s a quick overview of the 5.7L serpentine belt routing for the 2006 Dodge Charger: The belt starts from the crankshaft pulley, wraps around the tensioner, and continues through the alternator, power steering pump, water pump, and air conditioning compressor. The belt’s path is designed to keep all accessories running smoothly with optimal tension.
If you need to replace the serpentine belt, follow the correct routing to avoid any misalignment that can cause damage to the belt or components. The diagram will help you easily track each component’s location and the belt’s path. Make sure the tensioner is adjusted properly after installation to avoid unnecessary strain on the belt.

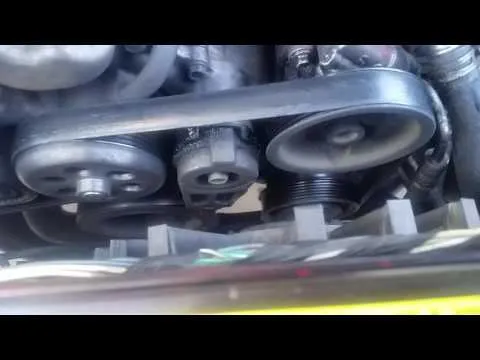

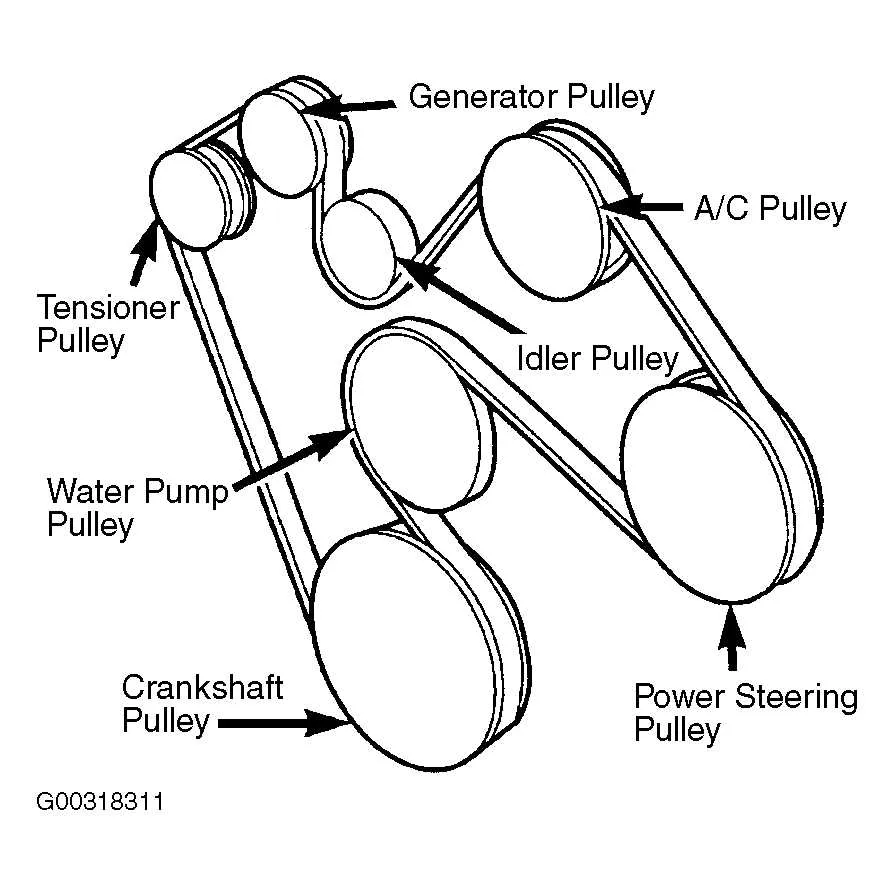

2006 Dodge Charger 5.7 Serpentine Belt Diagram
The serpentine belt routing on the 2006 Dodge Charger 5.7 is straightforward, but it’s important to follow the exact path to avoid damaging components. Start by positioning the belt around the crankshaft pulley, making sure it runs across the tensioner. Then, route it through the alternator and power steering pump pulleys, ensuring it’s snug. The belt should loop around the A/C compressor and the water pump pulleys next. Finally, finish by ensuring the belt is properly seated on the idler pulley. Double-check all the pulleys to make sure the belt has the correct tension.
For any replacements, remember to inspect the tensioner and pulleys for wear. A worn tensioner can cause the belt to slip or come off, leading to further damage. Also, ensure the belt is aligned properly before running the engine.
Here’s a simple layout of the serpentine belt diagram for the 2006 Dodge Charger 5.7:
Serpentine Belt Routing:
- Crankshaft Pulley → Tensioner Pulley → Alternator
- Alternator → Power Steering Pump → A/C Compressor
- A/C Compressor → Water Pump → Idler Pulley
Ensure the belt is positioned in the exact order and that it is aligned properly with all pulleys. This will help avoid misalignment and unnecessary wear.
How to Locate the Serpentine Belt Routing Diagram on a 2006 Dodge Charger 5.7
The serpentine belt routing diagram on a 2006 Dodge Charger 5.7 can be found in several places. First, check under the hood for a sticker or label attached to the engine bay. This is often placed near the front of the engine or on the radiator support. The diagram shows the exact path the serpentine belt follows around various components like the alternator, power steering pump, and water pump.
If you can’t find the diagram on the label, the vehicle’s owner manual is another reliable source. Look in the section that discusses maintenance or belt routing. This manual often includes clear, detailed illustrations of the serpentine belt system for reference.
Another option is to search online or visit automotive forums. Many resources provide downloadable service manuals or images of the belt routing diagram. These diagrams can be searched using the year, make, and model of your vehicle to ensure accuracy.
Finally, if you’re unsure about the diagram or need additional assistance, a visit to a professional mechanic can help. They can not only confirm the routing but also check if your serpentine belt needs replacement or adjustment.
Step-by-Step Guide for Replacing the Serpentine Belt on the 2006 Dodge Charger 5.7
To replace the serpentine belt on your 2006 Dodge Charger 5.7, follow these steps carefully.
- Gather Tools: Get a socket set, a 3/8-inch drive ratchet, a serpentine belt tool (or a breaker bar), and a new serpentine belt that matches the specifications for the 5.7L engine.
- Locate the Serpentine Belt: Open the hood and find the serpentine belt. On the 5.7L engine, it is on the front side of the engine block. Ensure the engine is off and cool before starting.
- Release Tension: Use the serpentine belt tool or a ratchet to rotate the tensioner pulley. This will release the tension from the belt. Be sure to do this slowly to avoid injury or damage.
- Remove the Old Belt: Once the tension is relieved, slip the belt off the pulleys. Pay attention to how the belt is routed, as you will need to install the new one the same way.
- Inspect the Pulleys: Before installing the new belt, check the condition of the pulleys. Look for any signs of wear, cracks, or damage. Replace any pulleys if necessary.
- Install the New Serpentine Belt: Begin routing the new serpentine belt over the pulleys according to the diagram. Make sure it is seated properly in the grooves of each pulley.
- Apply Tension: Rotate the tensioner pulley again to allow the new belt to fit snugly over the pulleys. Double-check that the belt is aligned properly and there are no twists.
- Test the Belt: Start the engine and observe the belt as it moves. It should run smoothly without any wobbling or slipping. If you notice any issues, turn off the engine and adjust the belt tension.
Once you’re confident the belt is securely in place and the system is functioning properly, you’re all set to go. Keep an eye on the belt every few thousand miles for wear signs to avoid any unexpected failures down the road.
Common Issues with the Serpentine Belt System in the 2006 Dodge Charger 5.7 and How to Address Them
The serpentine belt on the 2006 Dodge Charger 5.7 can wear out or fail due to a number of factors. One of the most frequent issues is belt slippage, often caused by improper tension. If the belt is too loose, it may slip, leading to squealing sounds and reduced performance of components like the alternator, power steering pump, and AC compressor. The solution here is to inspect the tensioner and replace it if it’s faulty, ensuring the belt stays properly tensioned.
Another common issue is belt cracking or fraying, which typically occurs with prolonged use. Heat, exposure to oil, and wear from the pulleys contribute to this problem. Replacing the serpentine belt every 60,000 to 100,000 miles is a good practice, depending on driving conditions. If you notice visible cracks or fraying, replace the belt immediately to prevent further damage.
The tensioner pulley can also become worn or damaged, causing it to lose its ability to maintain the correct tension on the belt. This leads to uneven wear on the serpentine belt, as well as poor performance of the accessories. If you notice any unusual noises coming from the tensioner or if the belt is not staying tight, it’s time to inspect or replace the tensioner pulley.
Misalignment of the pulleys is another potential issue. When pulleys are out of line, the serpentine belt may slip or even jump off. This can happen if a pulley bearing is damaged or if the pulleys are improperly installed. Regularly checking the alignment and condition of the pulleys can prevent this problem from occurring.
Lastly, moisture can cause slipping and reduced grip on the belt, especially in wet or snowy conditions. Using a belt dressing or a non-slip spray can help, but addressing the underlying issue, such as the condition of the tensioner and pulleys, is more important for long-term reliability.
