2001 Ford 7.3 Diesel Serpentine Belt Routing and Diagram Guide

The 2001 Ford 7.3 Diesel engine uses a serpentine belt to power multiple accessories such as the alternator, power steering pump, and air conditioning compressor. Correct belt routing ensures all components function properly without strain. A quick visual check can prevent potential failures, saving time and repair costs.

The serpentine belt diagram for the 7.3 Diesel is critical for anyone performing maintenance or repairs. Ensure the belt is routed around pulleys in the correct sequence to maintain tension and alignment. Incorrect routing or improper tension can lead to belt slippage or premature wear.

If replacing the serpentine belt, inspect the tensioner and pulleys. Damaged components can cause the new belt to wear unevenly. Keep the tensioner in good condition to maintain optimal tension, avoiding belt slack that could affect performance.

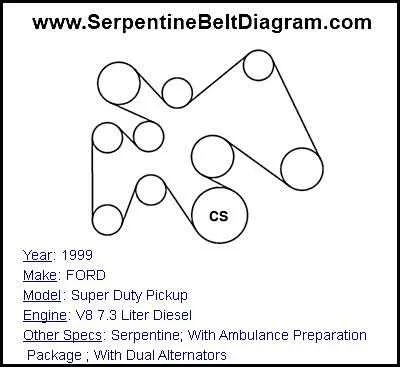

2001 Ford 7.3 Diesel Serpentine Belt Diagram

To install or replace the serpentine belt on a 2001 Ford 7.3 Diesel, refer to the specific routing diagram for proper belt alignment. This diagram will ensure the belt engages correctly with all pulleys, preventing damage to components and improving engine performance.

The diagram outlines the belt’s path around various pulleys, including the alternator, power steering pump, air conditioning compressor, and the tensioner. Ensure the belt fits snugly in place, with proper tension applied, to avoid slipping or excessive wear.

When replacing the serpentine belt, inspect the pulleys and tensioner for signs of wear. Worn-out components can lead to improper belt operation and may cause premature failure. Tighten the tensioner to the recommended specification after installing the new belt to maintain optimal performance.

Refer to the manufacturer’s manual for torque specifications and installation instructions to ensure correct belt tension and alignment. This will help maintain the long-term reliability of your engine’s drive system.

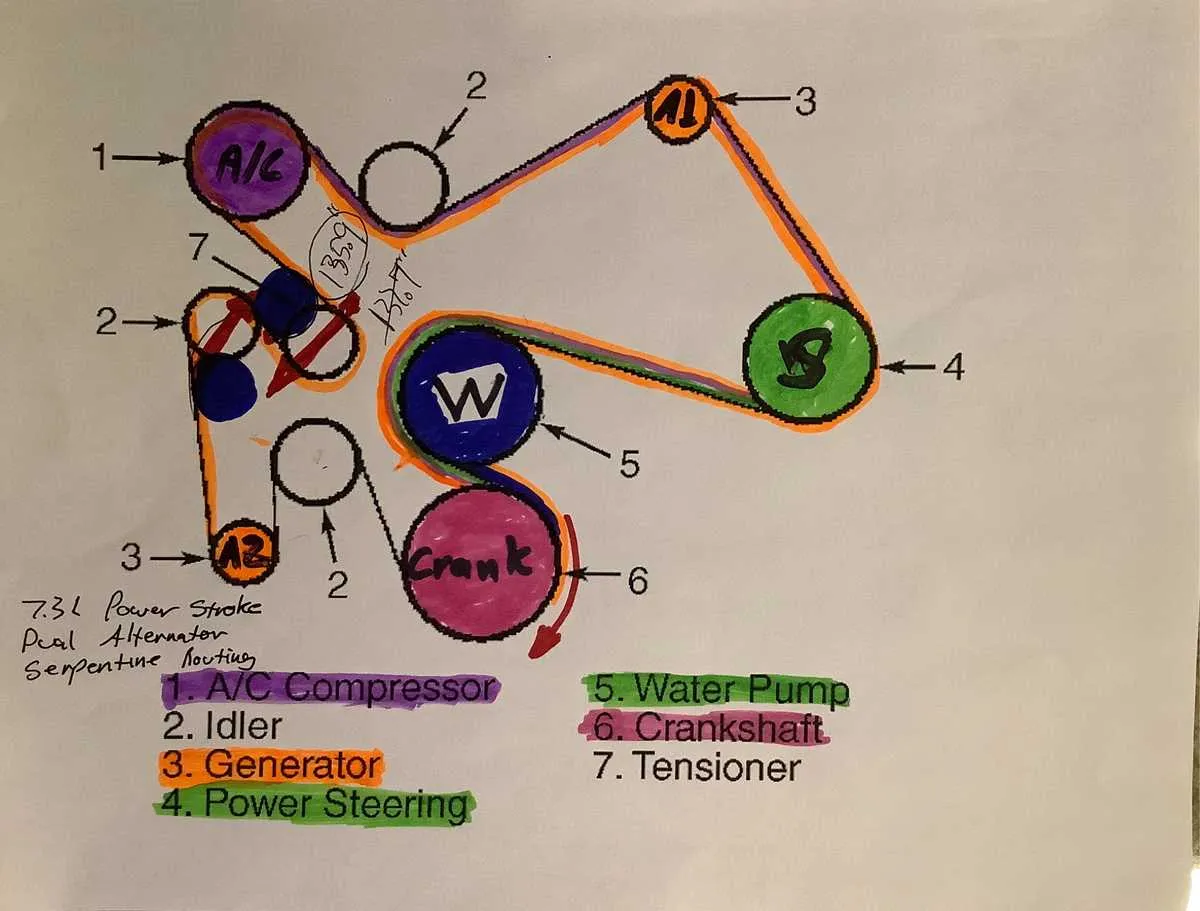

Understanding the Serpentine Belt Routing for 2001 Ford 7.3 Diesel

The serpentine belt routing for the 2001 Ford 7.3 Diesel follows a precise path to ensure the proper operation of critical components such as the alternator, power steering pump, water pump, and air conditioning compressor. The diagram for this engine is key for correctly installing or replacing the belt.

Start by positioning the belt so that it loops around the crankshaft pulley. From there, it moves up to the tensioner pulley, ensuring the belt is taut. The routing then continues over the water pump pulley, the alternator, and the power steering pump. The last part of the routing passes over the air conditioning compressor pulley before returning to the crankshaft pulley. Make sure the belt is aligned properly on each pulley to avoid misalignment or wear.

It’s crucial to confirm the belt’s tension after installation. An incorrectly installed belt can lead to excessive wear or even component damage. Use a tensioner tool to verify that the tension is within the recommended range, ensuring smooth operation of all engine accessories.

Regularly inspecting the belt for signs of wear, cracking, or glazing can prevent unexpected failures. If the belt shows significant signs of wear, replace it to maintain optimal engine performance.

Common Issues with Serpentine Belt and How to Diagnose Them

If your serpentine belt is slipping, check for visible signs of wear or misalignment. A worn or frayed belt may cause poor engine performance, especially in the 2001 Ford 7.3 Diesel. Inspect the belt for cracks, glazing, or tearing.

Noise from the serpentine belt, such as squealing, indicates it may be too loose, or a pulley is malfunctioning. Tighten or replace the belt if necessary. Listen for squeaks when the engine is idle to pinpoint the issue.

Misalignment of the belt can occur if the pulleys are not properly aligned. This can lead to belt wear and engine overheating. Use a straightedge to check the alignment of pulleys and replace any damaged components.

Another issue is the belt slipping off due to a faulty tensioner. If the tensioner is worn or damaged, it cannot keep the proper tension, leading to belt dislocation. Inspect the tensioner and replace it if it shows signs of wear.

Check the condition of the pulleys and other accessories driven by the serpentine belt. A failing alternator or water pump could put extra strain on the belt, leading to premature failure. Spin the pulleys by hand to check for smooth movement.

Step-by-Step Guide to Replacing the Serpentine Belt on 2001 Ford 7.3 Diesel

Start by disconnecting the vehicle’s battery to avoid any electrical issues. Use a socket wrench to remove the negative terminal first.

Locate the serpentine belt tensioner. Using a socket wrench, rotate the tensioner counterclockwise to relieve tension on the belt. This will allow you to remove the belt from the pulleys.

Remove the old serpentine belt from the engine by sliding it off the pulleys. Take note of the belt routing for correct installation of the new belt. You can consult the vehicle’s manual or a reference diagram to ensure the correct configuration.

Inspect the pulleys and the tensioner for any signs of wear or damage. If the pulleys are loose or noisy, replace them before installing the new belt.

Align the new serpentine belt with the pulleys according to the correct routing pattern. Ensure that the belt sits properly in the grooves of each pulley and that there are no twists.

Rotate the tensioner again with the socket wrench and slide the new belt onto the tensioner pulley. Release the tensioner slowly to apply tension to the new belt.

Double-check the belt alignment on all pulleys to ensure it is seated correctly. Start the engine and observe the belt in motion to ensure it runs smoothly without slipping or making noise.

If the belt is properly aligned and there are no unusual sounds, reconnect the vehicle’s battery.
