2014 Chevy Equinox Serpentine Belt Diagram and Installation Guide
If your 2014 Chevy Equinox is experiencing belt issues, it’s important to identify the correct serpentine belt routing. Start by checking the engine layout to determine which components the belt drives. The diagram will show you how to correctly install the serpentine belt to ensure all systems function smoothly.
The belt in the 2014 Equinox typically runs over the alternator, power steering pump, air conditioning compressor, and water pump. Follow the diagram closely to avoid errors, especially when routing around the tensioner. The belt tensioner should have the correct pressure for optimal performance, which helps avoid premature wear on the belt or other engine components.
If the belt has become damaged, the diagram will guide you in replacing it properly. Make sure to match the new belt’s length and width with the factory specifications. Once replaced, check the belt’s tension and ensure it is aligned with all pulleys. Regular inspections can prevent unexpected breakdowns and extend the life of your engine’s belt system.

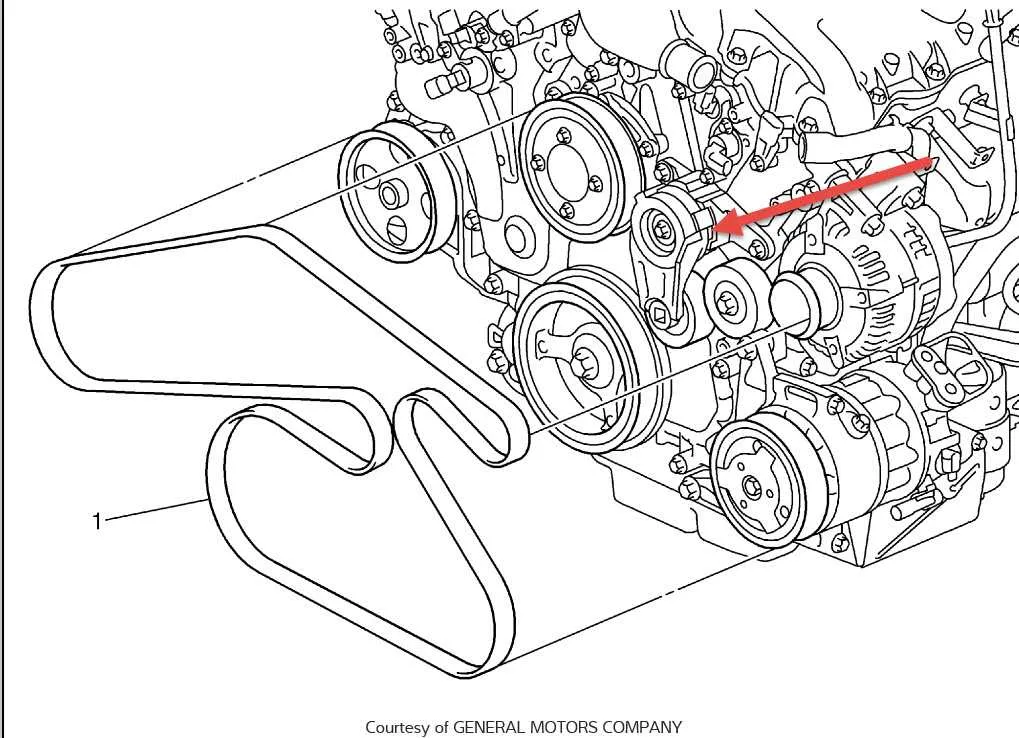

2014 Chevy Equinox Belt Diagram
The 2014 Chevy Equinox features a serpentine belt system that powers various components of the engine, including the alternator, power steering pump, air conditioning compressor, and the water pump. When replacing or inspecting the belt, ensure it is routed correctly according to the factory specifications to prevent damage to the engine components.
For the correct routing of the serpentine belt, refer to the diagram found in the engine bay. This diagram will outline the exact path the belt should follow around the pulleys. If the diagram is not visible or worn out, it is essential to consult the owner’s manual or service manual to get the accurate belt routing diagram. The belt tensioner, which is responsible for keeping proper tension on the belt, should be checked for wear and function during maintenance. A faulty tensioner can cause the belt to slip or wear prematurely.
When replacing the serpentine belt, make sure to use the right belt size and type. The 2014 Equinox typically uses a 6-rib serpentine belt, but always verify the part number based on the specific engine model (2.4L or 3.6L) and production year. Over time, belts can crack, fray, or become loose, leading to poor performance or failure of critical components. A worn belt should be replaced immediately to avoid further damage to the engine.
If you’re unsure about how to replace the serpentine belt, it’s recommended to seek assistance from a professional mechanic. The replacement process involves releasing the tension on the belt, removing the old belt, and installing the new one while ensuring proper tension and routing.
How to Identify the Correct Serpentine Belt for Your 2014 Chevy Equinox
To identify the right serpentine belt for your 2014 Chevy Equinox, begin by checking the vehicle’s specifications. You’ll need the exact engine model and year of manufacture, as these determine the belt length and configuration. For instance, the 2.4L and 3.6L engines may have different belt specifications.
Use the owner’s manual for the belt size or opt for a belt tensioner tool to measure the required length. Make sure to cross-reference this with the vehicle’s belt routing diagram. If you can’t locate the original diagram, online databases or parts stores like AutoZone often have diagrams based on engine type.
If you’re replacing a worn-out belt, inspect the old one for markings that indicate the manufacturer and part number. This number helps you find the correct replacement. If you can’t find this, provide the vehicle’s VIN (Vehicle Identification Number) to your auto parts supplier, and they can find the matching part for you.
When purchasing a new serpentine belt, ensure it matches the original specifications in terms of length, width, and material. Avoid buying universal belts, as these may not fit properly, leading to issues with tension and performance.
Lastly, double-check the routing diagram before installing the new belt to ensure proper alignment with all pulleys and accessories.
Step-by-Step Guide to Replacing the Serpentine Belt on a 2014 Chevy Equinox
Start by disconnecting the vehicle’s battery to avoid any electrical hazards. Use a 10mm socket wrench to remove the negative terminal.
Locate the serpentine belt routing diagram, which can be found on a sticker under the hood or in the vehicle’s manual. This will guide you during the removal and installation process.
Use a serpentine belt tool or a suitable socket wrench to relieve tension from the tensioner pulley. This will allow you to slide the belt off the pulleys. Keep track of how the belt is routed to ensure proper reinstallation.
Carefully remove the old serpentine belt, making sure not to damage the pulleys or surrounding components. Check the condition of the pulleys for any signs of wear, cracks, or misalignment before proceeding.
Install the new serpentine belt by following the same routing as the old one, ensuring it sits properly on each pulley. Work your way from the top pulleys down to the bottom.
Once the new belt is in place, use the serpentine belt tool to apply tension to the tensioner pulley. Ensure that the belt is taut and properly aligned on all pulleys.
Reconnect the vehicle’s battery. Start the engine and check the belt for any signs of slipping or misalignment. Listen for unusual sounds, and verify that all pulleys are rotating smoothly.
If everything looks good, you’ve successfully replaced the serpentine belt on your 2014 Chevy Equinox.
Common Issues with the 2014 Chevy Equinox Belt System and Troubleshooting Tips
Squealing or High-Pitched Noise: A common issue with the 2014 Chevy Equinox belt system is a squealing or high-pitched noise, especially when starting the engine or during acceleration. This sound usually indicates a worn or loose serpentine belt. Inspect the belt for signs of cracking, glazing, or fraying. If damaged, replace the belt immediately to prevent further wear on other components.
Slipping Belt: A slipping serpentine belt can cause poor performance, especially in the vehicle’s power steering, alternator, and air conditioning systems. If you notice reduced effectiveness in these systems, inspect the belt for tightness. A belt that is too loose should be adjusted using the tensioner. If tension is insufficient, the belt may need to be replaced.
Damaged or Broken Belt: Over time, the serpentine belt may become damaged or even break due to excessive wear, contamination from oil or coolant leaks, or poor maintenance. A broken belt will result in the loss of power to critical systems like the alternator or air conditioning. Inspect the belt regularly for damage and replace it as soon as you notice wear or cracking. Carrying out routine checks will help prevent unexpected breakdowns.
Misaligned Pulley: If the belt appears to be wearing unevenly or if you notice unusual sounds from the engine compartment, it could be due to a misaligned pulley. A misaligned pulley can cause the belt to wear prematurely or even jump off the pulley system. Check the pulleys for signs of damage or misalignment, and replace any faulty components to ensure proper belt operation.
Pulley Wear: The pulleys that guide the serpentine belt can become worn over time. Inspect each pulley for damage or wear. Pay special attention to the tensioner pulley and idler pulley, as these are responsible for maintaining the correct tension on the belt. Replacing a worn pulley can prevent further damage to the belt system.
Friction and Overheating: Excessive friction from a malfunctioning pulley or an overly tight belt can lead to overheating and premature belt wear. If you notice the engine temperature rising or a burning rubber smell, check the belt for signs of overheating. Ensure the belt is not too tight, and the pulleys are functioning smoothly. Lubrication or cleaning of the pulleys may be necessary.
