02 Ford Taurus Serpentine Belt Diagram and Routing Guide
The serpentine belt on your 2002 Ford Taurus plays a crucial role in driving multiple engine components such as the alternator, power steering pump, water pump, and air conditioning compressor. A visual diagram can help you understand its routing and how to replace or troubleshoot it. Make sure you refer to the diagram for accurate alignment and proper tension when handling the belt.
To replace or inspect the serpentine belt, start by loosening the tensioner pulley. Then, remove the belt and compare it to the new one, ensuring the grooves match up perfectly with each pulley. Pay attention to the direction of the belt’s routing and use the diagram for guidance if needed. An incorrectly installed belt can lead to slipping or premature wear.
Consult the diagram to identify the proper path for the serpentine belt, starting from the crankshaft pulley and extending to each accessory pulley in sequence. This ensures the belt is properly installed and avoids complications down the road.

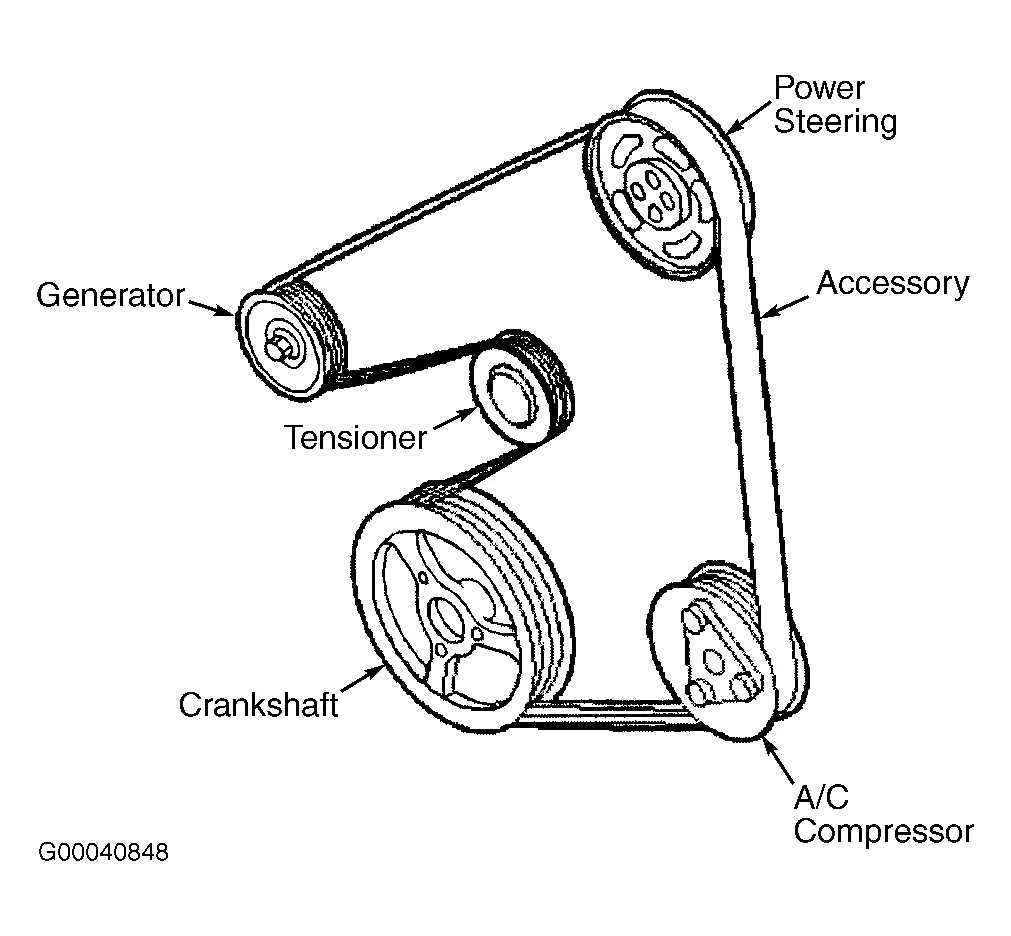

02 Ford Taurus Serpentine Belt Diagram
The serpentine belt system in the 2002 Ford Taurus is designed to power several critical engine components like the alternator, power steering pump, and air conditioning compressor. To ensure proper installation or replacement, it’s essential to understand the routing of the serpentine belt. Here’s a straightforward diagram and guide to help you install the belt correctly.
The serpentine belt wraps around various pulleys, including the crankshaft pulley, water pump, alternator, power steering pump, and air conditioning compressor. On the 2002 Ford Taurus, the tensioner pulley is responsible for maintaining proper tension. A typical configuration involves the belt passing over the crankshaft pulley first, followed by the alternator, water pump, power steering, and the air conditioning compressor. Ensure that the belt runs smoothly around all pulleys without any slack or twisting.
Before installing the new belt, inspect the tensioner. If the tensioner is weak or faulty, replace it, as it will affect the belt’s performance and lead to premature wear. It’s also a good idea to check each pulley for any signs of damage or wear before installation to avoid future issues.
Once the belt is in place, manually rotate the crankshaft to ensure the belt aligns properly. If everything looks good, tighten the tensioner pulley and double-check the belt’s routing against the diagram to confirm everything is in order. Regular maintenance, such as inspecting the belt every 50,000 miles, will prevent future breakdowns.

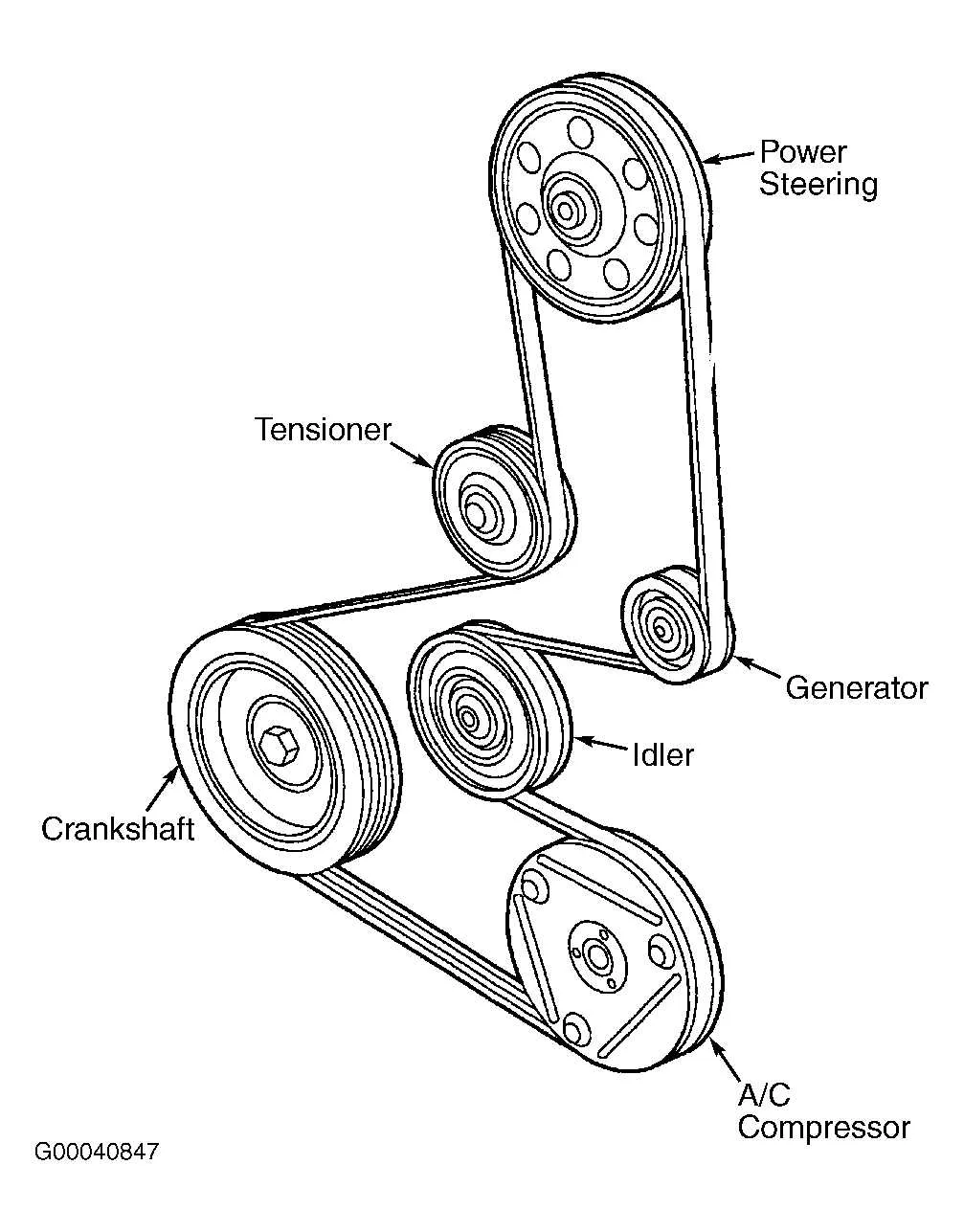

Understanding the Serpentine Belt Routing for 02 Ford Taurus
The serpentine belt on the 2002 Ford Taurus is critical for powering various engine accessories. To ensure proper function, follow this routing diagram closely. The belt starts from the crankshaft pulley and loops around the alternator, power steering pump, air conditioning compressor, and the water pump, before returning to the tensioner. Make sure the belt tensioner is correctly aligned and provides adequate tension. If the belt slips, misaligns, or shows signs of wear, replace it immediately to avoid potential engine issues.

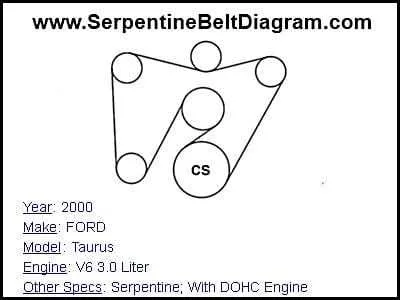

Check the diagram for your specific model, as the Taurus may have different configurations depending on engine type and accessories. The tensioner should be easily accessible for adjustment, but ensure that the belt is not overly tight or too loose, as this can affect the performance of the components it drives.
Ensure all pulleys are in good condition and rotate smoothly before installing a new serpentine belt. Any debris or rust buildup can cause friction, leading to belt wear and component failure. Regularly inspect the belt for cracks or fraying, especially near the edges, and replace it when necessary.
Correct belt routing and maintenance will keep your Taurus running smoothly, preventing costly repairs down the road.
Step-by-Step Guide to Replacing the Serpentine Belt in Your 02 Ford Taurus
Before you begin, make sure you have the correct replacement serpentine belt for your 2002 Ford Taurus. You’ll also need basic tools like a ratchet wrench, socket set, and a serpentine belt tool or breaker bar.
- Locate the Serpentine Belt
The serpentine belt runs across several components, including the alternator, power steering pump, and air conditioning compressor. You can easily identify it in the engine bay by its winding path around pulleys.
- Release Tension on the Belt
Use the serpentine belt tool or a breaker bar to rotate the tensioner pulley clockwise. This will loosen the belt enough to remove it from the pulleys. Be cautious to maintain control of the tool as the tensioner is spring-loaded.
- Remove the Old Belt
Carefully slide the belt off the pulleys. Note the belt’s routing before fully removing it; the pattern is critical for the correct installation of the new belt.
- Inspect Pulley Alignment and Condition
Check all pulleys for damage or misalignment. Spin each pulley by hand to ensure they rotate smoothly without any resistance or unusual noises.
- Install the New Belt
Begin by routing the new serpentine belt over the pulleys following the same path as the old one. Double-check the belt’s alignment with each pulley before moving forward.
- Apply Tension
Use the serpentine belt tool or breaker bar again to rotate the tensioner pulley and allow the belt to slide into place. Release the tool slowly to let the tensioner apply pressure to the new belt.
- Check Belt Alignment and Tension
Ensure the belt is properly seated on all pulleys. A misaligned belt can lead to premature wear or failure.
- Start the Engine
Start the engine and observe the belt in motion. Listen for any unusual noises and check the belt’s operation to confirm proper installation.
Once you’ve confirmed the new belt is functioning smoothly, your replacement is complete. Regularly inspect the serpentine belt for signs of wear to maintain the optimal performance of your vehicle.
Common Issues with Serpentine Belts in the 02 Ford Taurus and How to Address Them
One of the main issues with the serpentine belt on the 2002 Ford Taurus is excessive wear. If the belt becomes cracked, frayed, or has visible signs of damage, replacing it immediately can prevent further damage to the engine components. Check the belt’s condition during routine maintenance and replace it every 60,000 to 100,000 miles.
Another common problem is belt slippage, which can cause a loss of power to critical components like the alternator, power steering, and air conditioning. This can be caused by a worn-out tensioner or pulley. If you notice any strange noises or if the belt isn’t tight, inspect the tensioner and pulleys for wear and replace them if needed.
Misalignment of the serpentine belt is another issue, often resulting from a failing pulley or tensioner. This misalignment can lead to uneven wear on the belt, causing it to snap. Ensure that all pulleys are aligned properly and the tensioner is functioning as it should.
If you hear squealing or high-pitched noises, it could indicate a glazed belt, often caused by heat or oil contamination. Clean the pulleys and inspect the belt for damage. In some cases, replacing the belt is the only solution to restore proper function.
Check for debris or build-up around the serpentine belt and pulleys. Dirt, leaves, or other materials can interfere with the belt’s movement and cause premature wear. Clean the area around the belt during maintenance to prevent this issue.
Lastly, always use high-quality replacement belts and components to ensure the longevity and reliability of your 2002 Ford Taurus. Using inferior parts may lead to quicker wear and failure.
