01 Ford Taurus Serpentine Belt Diagram and Routing Guide

If you need a quick reference for the serpentine belt layout on the 2001 Ford Taurus, here’s the diagram you’re looking for. This visual guide will help you correctly route the serpentine belt around the pulleys and components, ensuring smooth operation of your engine accessories like the alternator, power steering pump, and air conditioning compressor.

The serpentine belt on the 01 Ford Taurus is designed to work with various engine accessories, making it crucial to understand the correct routing. Follow the steps outlined in the diagram for accurate installation. It’s essential to check the belt’s condition periodically and replace it if you notice cracks, fraying, or wear to avoid unexpected breakdowns.

Before replacing the serpentine belt, make sure the engine is off and cooled down. Also, keep in mind that a proper tensioner is key to keeping the belt at the right tension. If the tensioner is faulty, the belt may slip or wear prematurely. Double-check the belt alignment after installation to ensure it’s seated properly on all pulleys.

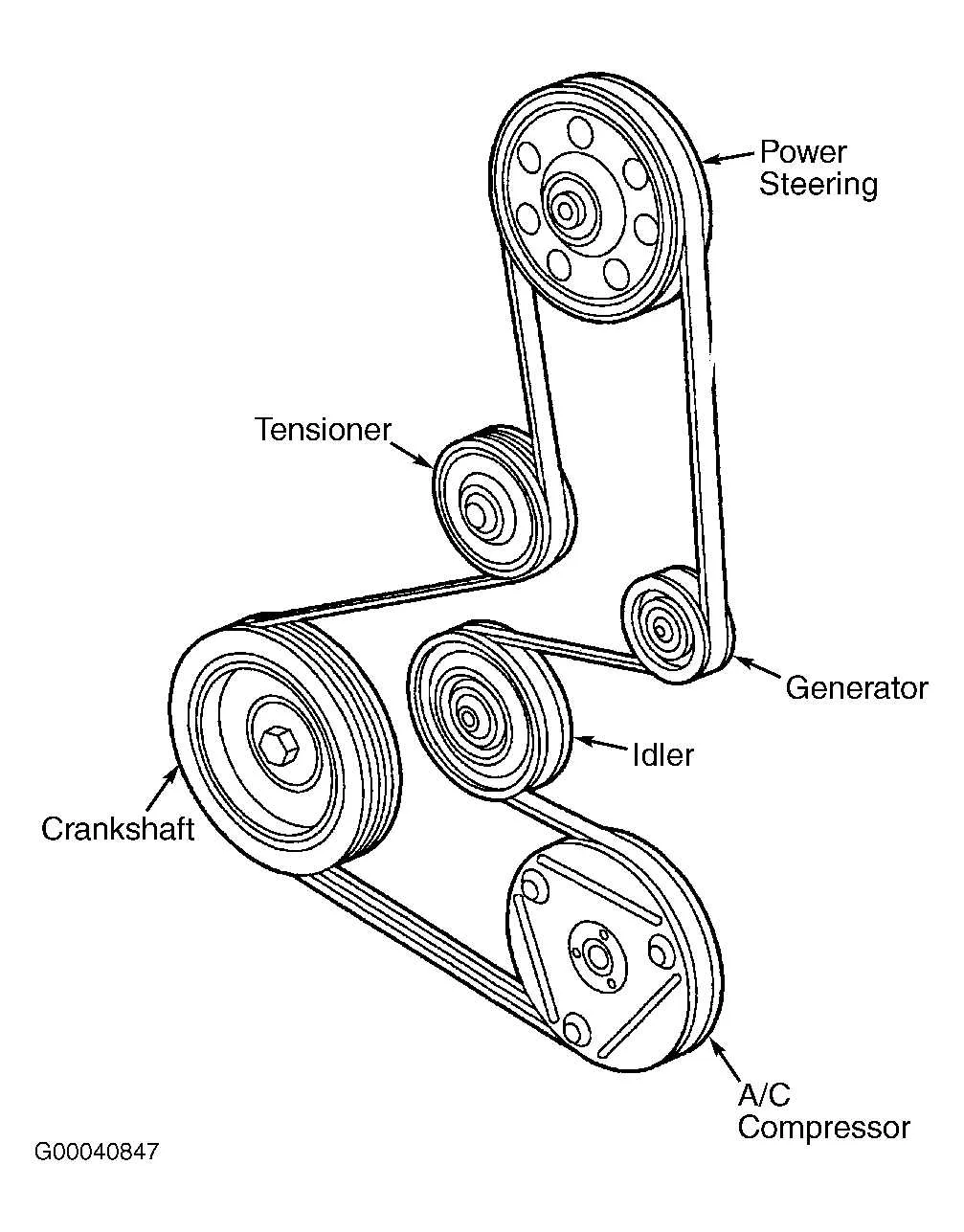

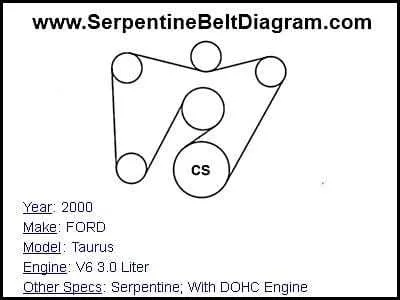

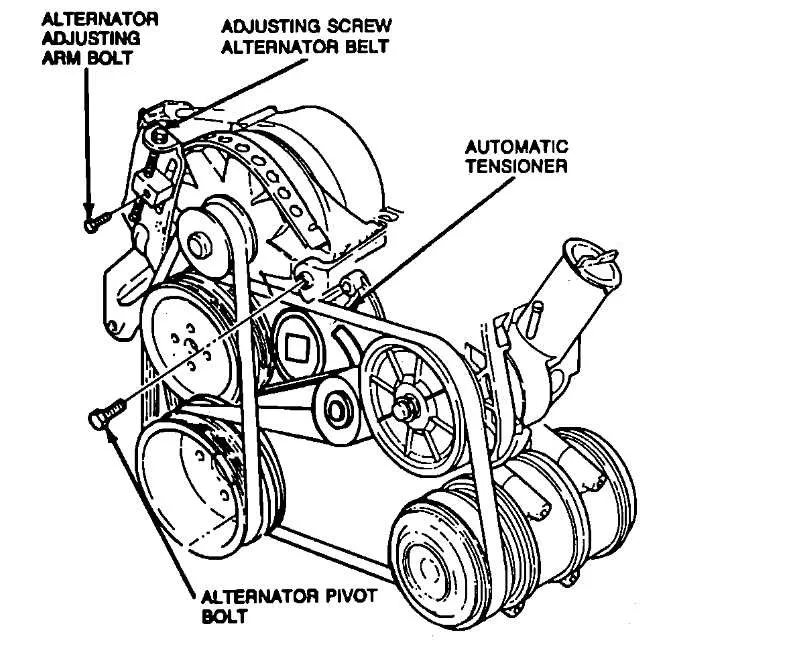

01 Ford Taurus Serpentine Belt Diagram

For replacing the serpentine belt on a 2001 Ford Taurus, refer to the diagram to ensure proper routing of the belt. The serpentine belt system drives essential engine components, including the alternator, power steering pump, air conditioning compressor, and water pump. Proper installation is key to avoid wear and malfunction.

Start by positioning the belt over the crankshaft pulley, then loop it over the alternator, power steering pump, and air conditioning compressor. Ensure the belt wraps around the tensioner pulley, making sure it’s properly aligned with all pulleys. The final step is to check the belt tension by using a tension gauge or applying manual force to see if there is any slack. If any component feels too loose or tight, make adjustments before completing the installation.

Use the diagram to confirm correct belt orientation. The routing should follow the same path as indicated on the diagram to prevent misalignment that can lead to premature wear or engine damage.

If the belt appears worn, cracked, or frayed, replace it immediately to avoid more serious damage to the engine components. Keep the diagram handy during the replacement process to ensure everything is set up correctly.

Step-by-Step Guide to Locating the Serpentine Belt on 01 Ford Taurus

To locate the serpentine belt on your 2001 Ford Taurus, begin by opening the hood and securing it. Stand on the driver’s side and look for the engine compartment layout. The serpentine belt is typically located on the front of the engine, looping around various pulleys and components.

Next, locate the alternator, power steering pump, air conditioning compressor, and water pump–these are usually driven by the serpentine belt. The belt itself will be positioned across these components. If you’re having trouble spotting it, use a flashlight to improve visibility, especially if the area is crowded with hoses or other engine parts.

If you need to identify the correct routing of the serpentine belt, refer to the diagram often found on the radiator support or the underside of the hood. This will show you the exact path the belt takes around the pulleys.

To get a clearer view, remove any objects or panels that may obstruct your line of sight. You may also need to move around the engine slightly to get a better angle. Once you can see the belt, check for any signs of wear, such as cracking or fraying, which could signal the need for replacement.

Finally, use a wrench or ratchet to relieve tension on the serpentine belt by rotating the tensioner pulley. This will allow you to remove the belt easily if needed for replacement or inspection.

How to Properly Tension the Serpentine Belt on 01 Ford Taurus

First, locate the tensioner pulley. You’ll need a 3/8-inch ratchet or a serpentine belt tool to rotate it. Turn the pulley counterclockwise to relieve tension on the belt. This will allow you to remove the belt from the pulleys.

Once the belt is off, inspect it for wear. If the belt looks damaged, replace it before proceeding with tensioning. Check the tensioner pulley for any signs of wear or damage as well. If it feels loose or doesn’t spring back when you release it, replace the tensioner assembly.

Now, re-route the new belt according to the diagram specific for the 2001 Ford Taurus. Make sure the belt follows the exact path over each pulley, ensuring it fits snugly on all grooves. The diagram can be found on the radiator support or inside the engine compartment.

To reapply the tension, rotate the tensioner pulley clockwise. While doing this, slide the belt over the tensioner pulley. Slowly release the tensioner to apply the proper amount of tension to the belt. Ensure the belt is not too tight or too loose. If the belt is too tight, it could strain the components, while a loose belt will slip and wear out quickly.

After the belt is properly tensioned, double-check that it is aligned correctly on all pulleys. The belt should sit straight and centered in the grooves. If the alignment is off, adjust the belt by loosening the tension slightly, repositioning the belt, and retightening.

Finally, test the system. Start the engine and observe the belt in motion. Listen for any unusual noises like squealing or slipping, and ensure the belt is running smoothly. If you notice any issues, repeat the tensioning process or check for other potential problems with the pulleys or the belt itself.

Common Issues with the Serpentine Belt on 01 Ford Taurus and How to Fix Them

Worn or damaged serpentine belts are common on the 2001 Ford Taurus. The most frequent issues include cracks, fraying, or excessive wear. These problems can lead to slipping, squealing, or complete failure of the belt, affecting engine performance.

Cracks and Fraying: The serpentine belt can develop cracks due to prolonged exposure to heat, cold, and friction. If you notice cracks along the belt’s surface, it’s a sign that the belt has started to deteriorate. Replace the belt immediately to avoid further damage. Inspect the belt closely, and replace it every 60,000 to 100,000 miles, depending on usage and climate conditions.

Belt Slippage: Slippage occurs when the belt doesn’t maintain proper tension, often caused by a worn-out tensioner or pulley. Slippage can result in poor performance of the alternator, air conditioning, and power steering. If you hear a squealing noise or experience any loss of power from accessories, inspect the tensioner and pulley for wear. Replacing a faulty tensioner can restore proper belt tension and prevent slippage.

Noisy Belt: A squealing or chirping sound from the serpentine belt typically signals that the belt is either loose or worn. If tightening the tensioner doesn’t eliminate the noise, it’s time to replace the belt. Use a high-quality replacement belt to ensure longer lifespan and reduce the chances of future noise.

Misalignment: If the serpentine belt doesn’t run straight or appears to be off-track, the pulleys may be misaligned. This can cause excessive wear on the belt and increase the risk of failure. Check the pulleys and idler bearings for wear or damage. Misalignment can often be fixed by replacing the faulty components and reinstalling the belt correctly.

Increased Friction: Friction between the belt and pulleys increases over time, causing the belt to wear out quicker. If you notice the belt appears shiny or glazed, it’s a sign of increased friction. Replacing the belt and ensuring the pulleys are free of debris will help reduce unnecessary friction and extend the life of the new belt.

To avoid these issues, regularly inspect the serpentine belt and components. Pay attention to any unusual noises or performance issues in the car. Taking care of these small problems early will prevent larger, more expensive repairs down the road.
