Poulan Pro 300EX Drive Belt Diagram and Maintenance Guide

If you’re experiencing issues with your Poulan Pro 300EX or need to replace the drive belt, having a clear diagram is essential for an easy repair process. The drive belt plays a key role in transferring power from the engine to the wheels, so understanding its routing is crucial to avoid further damage or malfunction.

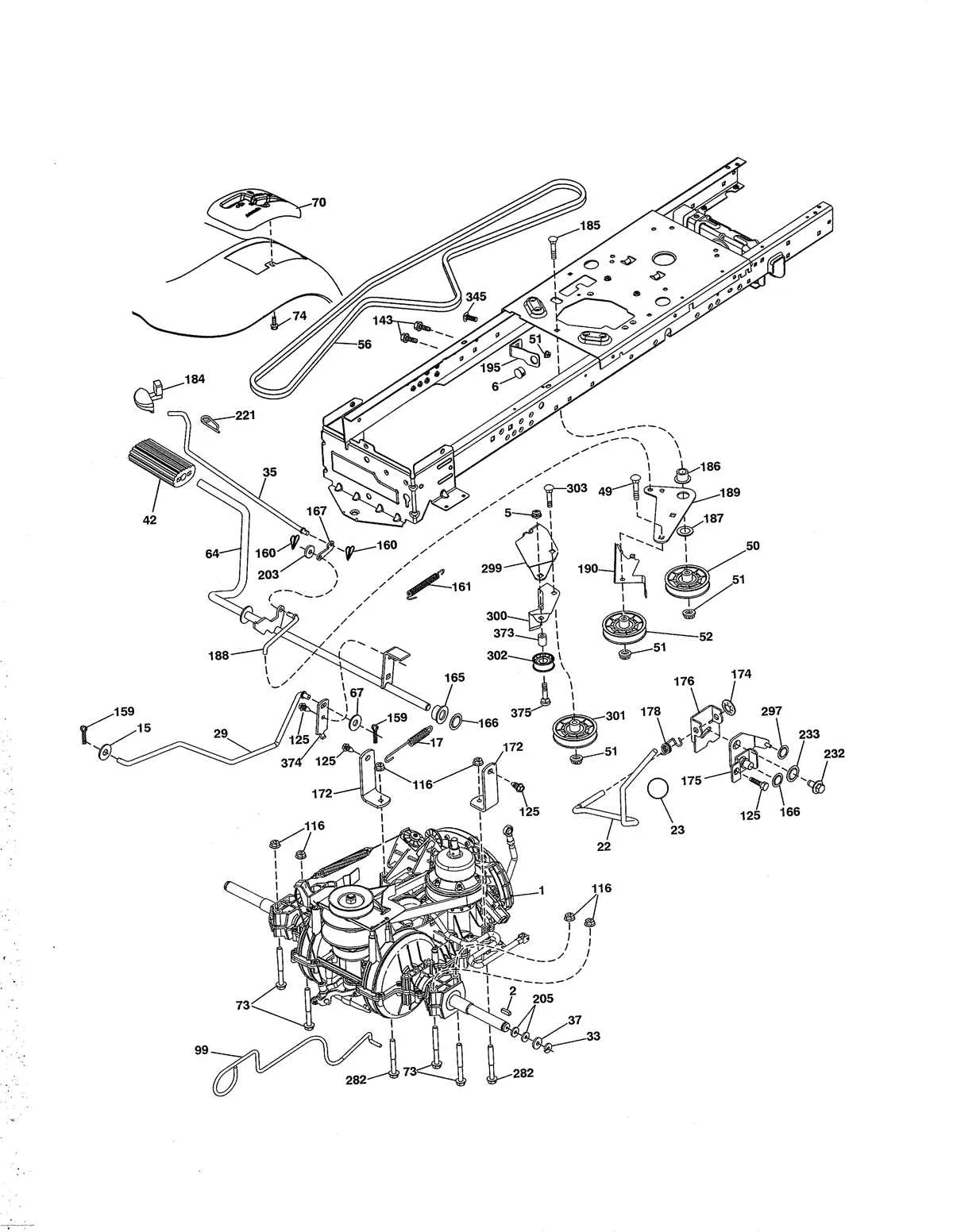

The diagram below shows the correct placement of the drive belt on your Poulan Pro 300EX, ensuring smooth operation. Pay close attention to the belt’s orientation and ensure that it’s properly aligned to avoid slipping or wear. If you’re unsure, refer to this diagram before proceeding with any adjustments or replacements.

Key steps to follow: Begin by checking the belt tension. A loose belt can cause slipping, while a tight belt may cause unnecessary strain on the engine. Use the diagram as a guide to reinstall the new belt, making sure it’s seated correctly in each pulley groove.

Poulan Pro 300EX Drive Belt Diagram

The Poulan Pro 300EX uses a specific drive belt setup. For correct installation, refer to the drive belt diagram for accurate guidance. The diagram illustrates the routing of the belt around pulleys, ensuring the proper tension and alignment for optimal performance.

The drive belt typically runs from the engine pulley to the transmission pulley. Make sure the belt is aligned with the grooves of the pulleys, avoiding any misalignment that could cause wear or slippage. If the belt seems loose or worn, replace it to maintain smooth operation. Regular inspection is key to preventing damage to other components.

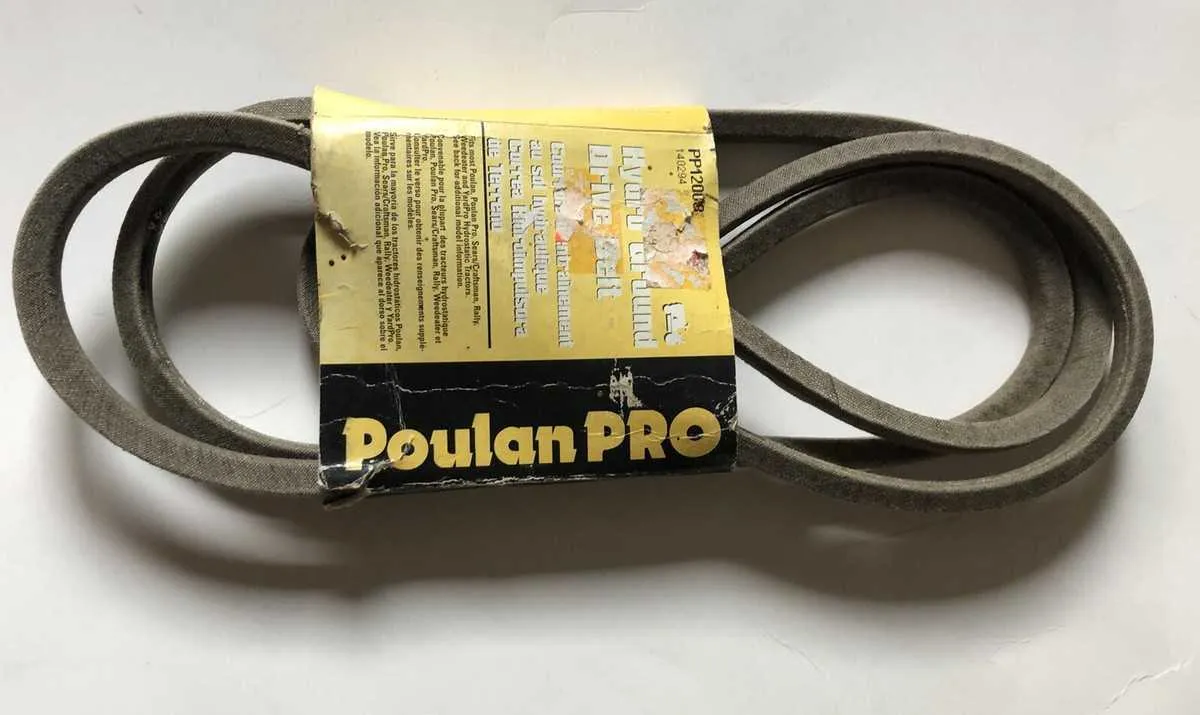

Use a high-quality replacement belt specifically designed for the Poulan Pro 300EX model to ensure proper fit and durability. Avoid using belts that do not match the required specifications, as this could lead to premature failure or inefficient performance.

If you are unsure about the installation process, consult the user manual for detailed instructions and illustrations that match your specific machine model. Always follow safety guidelines when working with the drive belt to avoid injury.

Understanding the Poulan Pro 300EX Drive Belt Configuration

The Poulan Pro 300EX drive belt system is designed for smooth power transmission between the engine and the wheels. Start by inspecting the belt path diagram for correct routing. The belt must be positioned over the pulleys in the exact sequence shown in the diagram for proper functionality.

Check that the drive belt is tightly secured around the main drive pulley, ensuring no slack or twisting. The tensioner pulley should maintain the correct belt tension to avoid slipping or premature wear. If the belt appears too loose, adjusting the tensioner is necessary to keep the belt taut without being overly tight.

In addition to proper routing, make sure the belt is aligned with the pulleys and not rubbing against any surfaces. Misalignment can lead to excessive wear and possible damage. Regularly inspect the belt for signs of fraying, cracks, or other damage, as these are indicators that replacement is needed.

After replacing or adjusting the belt, manually rotate the pulleys to verify the belt moves freely without any obstruction. If the belt doesn’t move smoothly, check for misalignment or debris in the system that may interfere with operation.

Step-by-Step Guide to Replacing the Drive Belt on Poulan Pro 300EX

Start by ensuring the engine is turned off, and disconnect the spark plug wire to avoid accidental starts. Put on gloves for safety and prepare your tools–usually, you’ll need a socket wrench, pliers, and a screwdriver.

Lift the deck of the Poulan Pro 300EX using the deck lift lever to gain access to the belt area. You may need to remove the deck cover or belt guard, depending on your model. Use the screwdriver or wrench to take off any fasteners securing the cover.

Locate the old drive belt. It’s typically positioned around the pulleys, with one end connected to the engine pulley and the other to the transmission pulley. Pay attention to the orientation of the belt, as you’ll need to replicate this setup with the new one.

Loosen the tension on the belt by adjusting the tensioner. Most models have an adjustable spring or lever for this purpose. If there’s a spring-loaded idler pulley, use your pliers to release the tension and remove the belt from the pulleys.

Remove the old drive belt carefully, noting its routing path around the pulleys for reference. It’s essential that the new belt follows the same routing to ensure proper operation.

Install the new belt by placing it over the engine and transmission pulleys. Ensure the belt sits properly in the grooves of the pulleys and isn’t twisted. Double-check the tensioner and pulleys for any signs of wear or damage while you’re at it.

Once the new belt is in place, adjust the tensioner to ensure the belt is tight but not over-stretched. A well-adjusted belt should have slight slack but should not feel loose.

Reattach the deck cover or belt guard, securing it with the screws or bolts you removed earlier. Lower the deck back to its normal position.

Reconnect the spark plug wire and test the mower to ensure the new drive belt is functioning correctly. Listen for any unusual noises and check if the mower operates smoothly.

Common Issues with the Drive Belt on Poulan Pro 300EX and How to Troubleshoot

Inspect the drive belt for cracks, frays, or visible wear. If any damage is found, replace the belt immediately to prevent further issues. A worn belt can lead to slipping, loss of power, or even complete failure.

If you notice the belt slipping, check the tension. A loose belt will struggle to transfer power effectively. Adjust the tension by tightening the belt according to the manufacturer’s guidelines. If adjusting doesn’t help, replace the belt, as wear or stretching may cause it to lose its original tension.

Listen for unusual sounds while the machine is running. A squealing noise could indicate that the belt is too tight or misaligned. Recheck the alignment and tension. If the noise persists after adjustment, inspect the pulleys for wear or obstruction.

Inspect the pulleys for smooth rotation. A damaged or misaligned pulley can cause uneven wear on the drive belt. Clean the pulleys if debris is present. If any pulleys appear damaged or worn, replace them promptly to avoid further strain on the belt.

Check for proper alignment between the drive belt and pulleys. Misalignment can cause uneven wear and affect performance. If necessary, adjust the pulley positions to ensure the belt runs smoothly and is not under unnecessary strain.

• Check for cracks, frays, or wear on the belt.
• Inspect and adjust the tension if the belt is loose or slipping.
• Listen for unusual sounds, which can indicate tension or alignment issues.
• Inspect the pulleys for smooth operation and clean them if necessary.
• Ensure the belt is aligned properly with the pulleys to prevent uneven wear.
