Bad Boy Mower Drive Belt Diagram and Troubleshooting Guide
To properly maintain your Bad Boy mower, understanding the drive belt diagram is crucial. This diagram shows the precise path and alignment of the drive belt, which is responsible for transferring power from the engine to the mower’s deck and wheels. A correctly installed belt ensures smooth operation and prevents damage to the components.
Start by examining the diagram to identify the correct belt routing. The path is typically outlined with clear markings, making it easy to follow. Pay close attention to the tensioner and idler pulleys, which play a key role in maintaining the proper belt tension. Improper tension can lead to premature wear or slippage, so adjusting these components as per the diagram is important for maintaining optimal performance.
It’s important to use the right belt size when replacing it. Refer to the manufacturer’s specifications to ensure you’re selecting the correct replacement. Once you have the right size, follow the diagram step-by-step to route the new belt correctly. Misalignment or improper installation can lead to the belt coming off or not functioning as intended, causing unnecessary wear and potential breakdowns.

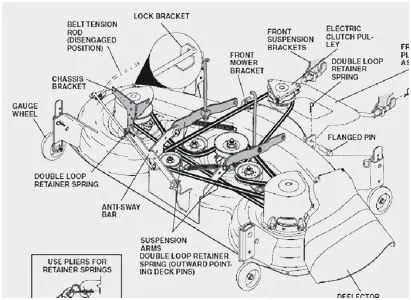

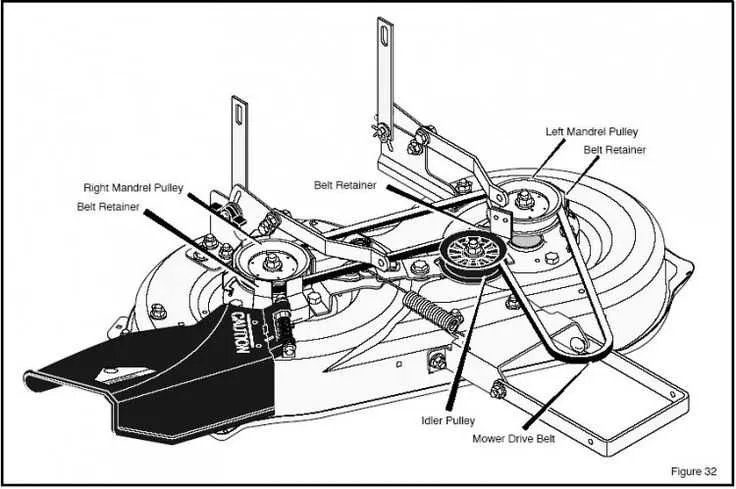

Bad Boy Mower Drive Belt Diagram
The drive belt on a Bad Boy mower is a critical component that transfers power from the engine to the cutting deck. Identifying the correct routing and belt size is key for smooth operation and preventing wear. Follow the diagram closely to avoid potential issues during installation or maintenance.
First, locate the drive belt routing diagram on the mower’s deck. This diagram provides the exact path the belt should follow, ensuring proper tension and alignment. If the diagram is not available, refer to the owner’s manual or online resources for an accurate representation.
When installing or replacing the drive belt, begin by removing any obstructions or components that may block access. Loosen the tension on the old belt by adjusting the spring or idler pulley. Carefully remove the old belt, ensuring you note its orientation for reinstallation of the new belt.
Ensure the new belt is the correct size. Use a measuring tape to compare the old belt’s length or check the manufacturer’s specifications for the proper dimensions. Install the new belt following the diagram, making sure it is routed around each pulley in the correct direction. Verify that the belt is seated properly on all pulleys and that it is not twisted.
After installation, check the tension of the belt. It should be taut but not too tight, as excessive tension can cause premature wear. Adjust the idler pulley or spring as needed to achieve the correct tension. Rotate the belt by hand to confirm smooth movement without any slack.
If you experience slippage or abnormal noise after installation, inspect the belt again for proper alignment or check for any wear on the pulleys. Keep an eye on belt condition, replacing it when signs of wear or fraying appear to ensure reliable mower performance.
Identifying the Correct Drive Belt Size for Your Bad Boy Mower
To find the right drive belt size for your Bad Boy mower, check the model number and the specifications of your mower. Mower models vary, and selecting the correct belt size is critical to ensuring smooth operation and durability of your mower. Always refer to the manufacturer’s guide for exact measurements.
The first step is to locate the model number of your Bad Boy mower, usually found on the frame or the engine. Once you have the model number, look it up in the owner’s manual or on the Bad Boy Mower website to identify the correct belt size. If you’re unable to access these resources, measure the old belt’s length and width carefully before purchasing a replacement.
| Model Number | Recommended Belt Size |
|---|---|
| Bad Boy ZT Elite 54 | 1/2″ x 103″ |
| Bad Boy Maverick 42 | 1/2″ x 94″ |
| Bad Boy Outlaw 60 | 1/2″ x 118″ |
When measuring your belt, ensure the following: The length should be measured from one end to the other, stretched along the mower’s path. The width should be measured at the widest part of the belt, where it will sit in the pulleys. If you’re unsure of the measurement, it’s always a good idea to take the old belt to your local dealer or mower repair shop for confirmation.
In case you’re unable to find the belt size or need to replace a damaged belt, check the condition of the pulleys as well. Worn-out pulleys can affect the belt’s performance, so replacing them alongside the belt may be necessary to maintain optimal performance.
Step-by-Step Guide for Installing the Drive Belt on a Bad Boy Mower
1. Begin by disconnecting the battery to avoid any accidental starts while working on the mower.
2. Lift the mower using a jack or a suitable lifting device to gain access to the underside of the machine.
3. Remove any existing drive belt by loosening the tensioner pulley. This will relieve the tension on the belt and allow you to slide it off the pulleys.
4. Inspect the pulleys for any debris or damage. Clean them if necessary to ensure smooth operation of the new belt.
5. Carefully route the new drive belt around the pulleys following the diagram specific to your Bad Boy mower model. Pay close attention to the direction the belt should follow for proper alignment.
6. Once the belt is in place, adjust the tensioner pulley to ensure the belt is tight but not overly stretched.
7. Double-check the belt’s alignment and tension before lowering the mower back to the ground.
8. Reconnect the battery and start the mower to test the belt’s functionality. Listen for any unusual sounds or vibrations, indicating the belt may need further adjustment.
Troubleshooting Common Drive Belt Issues on Bad Boy Mowers
If the drive belt on your Bad Boy mower is slipping or not functioning properly, first inspect the belt for visible wear or damage. Look for frays, cracks, or areas that appear stretched. Replace the belt if any damage is found.
Check the tension of the belt. If it’s too loose, it might not engage properly with the pulleys. Adjust the tensioner to ensure the belt is tight enough to engage without being overly strained. Refer to the manufacturer’s manual for proper tension specifications.
Examine the pulleys for any signs of misalignment or wear. Misaligned pulleys can cause the belt to slip or wear out prematurely. If the pulleys are not aligned properly, adjust them to correct the issue. Also, ensure that the pulleys rotate freely and aren’t obstructed by debris or dirt.
If the belt is making a squealing sound, it may indicate that the pulleys are not providing enough grip. This could be due to dirt, oil, or debris on the belt or pulleys. Clean both the belt and pulleys thoroughly to remove any buildup and prevent slipping.
Inspect the belt guide and any tensioning components for wear or damage. Worn or damaged guides can cause the belt to track incorrectly, leading to premature wear or slipping. Replace any faulty components to maintain proper belt alignment.
If the belt keeps coming off the pulleys, check that the pulleys are securely fastened and that there are no loose or missing parts. Loose hardware or parts can cause the belt to shift out of position. Tighten any loose bolts and ensure all components are securely in place.
