2013 Dodge Journey Serpentine Belt Routing and Diagram
The serpentine belt on the 2013 Dodge Journey plays a vital role in powering several key engine components. If you’re working on belt replacement or maintenance, knowing the precise routing of the serpentine belt is crucial. This guide will walk you through the belt layout and provide step-by-step instructions for an accurate belt replacement.
First, ensure the engine is off and the vehicle is securely parked. The diagram will show how the serpentine belt should be routed around various pulleys. Pay attention to any specific tensioner placement and how the belt interacts with each component like the alternator, power steering pump, and AC compressor.
Once you’re familiar with the diagram, proceed with removing the old belt, ensuring no damage occurs to the surrounding parts. You may need a tensioner tool to loosen the current belt before installation. When installing the new belt, ensure it aligns with the diagram exactly to avoid unnecessary wear on the engine’s components.

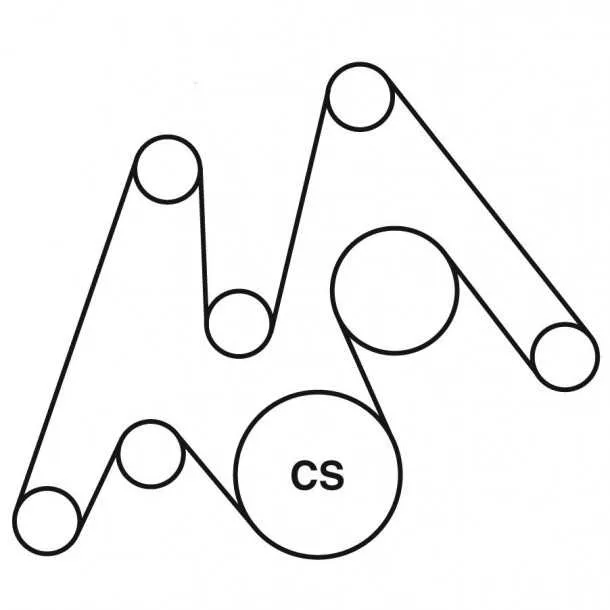

2013 Dodge Journey Serpentine Belt Diagram
To properly maintain the 2013 Dodge Journey, it’s important to understand the routing and configuration of the serpentine belt. This belt drives several components such as the alternator, power steering pump, and air conditioning compressor. Incorrect routing or wear can cause severe engine damage.
The serpentine belt on the 2013 Dodge Journey follows a precise path to ensure all components are powered correctly. If the belt becomes misaligned or damaged, it can result in a loss of power to critical systems, leading to potential breakdowns.
Belt Routing for 2013 Dodge Journey
Below is a step-by-step guide to the serpentine belt routing:
| Component | Location |
|---|---|
| Alternator | Upper right side of engine |
| Power Steering Pump | Lower right side of engine |
| Water Pump | Lower left side of engine |
| Air Conditioning Compressor | Lower left side of engine |
| Idler Pulley | Between power steering pump and water pump |
| Tensioner Pulley | Near the top center of engine |
It’s critical to inspect the belt for any signs of wear, such as cracks or fraying, especially at the pulleys. A damaged or misaligned belt can cause the engine to overheat, lose power, or cause unnecessary strain on other components.
To ensure the serpentine belt remains in good condition, replace it according to the manufacturer’s recommended service intervals or whenever signs of wear appear. Always check the belt’s tension to prevent slipping or loosening, which can lead to further damage.
Step-by-Step Guide for Routing the Serpentine Belt on 2013 Dodge Journey
1. Position the Vehicle
Ensure the vehicle is parked on a flat surface, the engine is off, and the key is removed. Lift the front of the car using a jack and secure it with jack stands for safety.
2. Locate the Serpentine Belt
Find the serpentine belt on the front of the engine. It is typically located near the alternator, power steering pump, and air conditioning compressor.
3. Identify the Belt Routing Diagram
Look for the belt routing diagram on the radiator support or the engine bay. This diagram will help you understand how the belt should be routed over pulleys and tensioners.
4. Release the Tension from the Belt
Use a serpentine belt tool or a ratchet wrench to rotate the tensioner pulley in the counter-clockwise direction. This will release the tension, allowing you to remove the belt.
5. Remove the Old Serpentine Belt
With the tension released, carefully slide the old serpentine belt off the pulleys. Take note of its routing for reference when installing the new belt.
6. Install the New Serpentine Belt
Begin by placing the new belt around the crankshaft pulley. Follow the belt routing diagram to ensure the belt fits correctly over each pulley. Make sure the belt is properly aligned and seated in each groove of the pulleys.
7. Apply Tension to the Belt
Use the tensioner tool to rotate the tensioner pulley back into position. This will apply the correct tension to the belt. Double-check the belt alignment to ensure it’s correctly positioned on all pulleys.
8. Inspect the Installation
Turn the engine over for a few seconds, watching the belt to ensure it’s operating smoothly and without any slippage. If the belt moves off track, repeat the installation steps to correct it.
9. Lower the Vehicle
Once the belt is properly routed and functioning, lower the vehicle back to the ground and remove the jack stands. Tighten any bolts that may have been loosened during the process.
10. Test the Engine
Start the engine and listen for any unusual noises. Ensure all systems powered by the serpentine belt, such as the alternator, power steering, and AC, are functioning properly.
Common Issues with the Serpentine Belt and How to Fix Them
One of the most frequent issues with the serpentine belt on the 2013 Dodge Journey is belt slippage. This occurs when the belt doesn’t maintain proper tension, often due to a worn-out tensioner or pulley. To fix this, inspect the tensioner for damage or wear, and replace it if necessary. A new tensioner will help the belt stay tight and prevent slipping.
Another common problem is belt wear and cracks. These signs indicate that the serpentine belt is nearing the end of its lifespan. If you notice any visible signs of damage, replacing the belt immediately is crucial. A worn belt can break at any time, leaving your vehicle stranded. Be sure to check the belt for fraying or splitting along the edges.
Misalignment of the serpentine belt is also a common issue. This can happen if one of the pulleys is misaligned or damaged. Misalignment causes the belt to run off-center, leading to uneven wear and potential damage to other engine components. To fix this, inspect the pulleys and replace any that are worn or misaligned. Ensure that all pulleys are aligned properly before reinstalling the belt.
Lastly, excessive noise, such as squealing or squeaking, can indicate that the serpentine belt is not running smoothly. This noise can be caused by either a worn belt or a malfunctioning pulley. If the noise persists after replacing the belt, check the pulleys and tensioner for issues. Replace any faulty parts to restore smooth operation.
Replacing the Serpentine Belt on a 2013 Dodge Journey: A Detailed Walkthrough
To replace the serpentine belt on a 2013 Dodge Journey, follow these steps carefully to ensure proper installation.
- Gather Required Tools and Parts: Ensure you have a replacement serpentine belt, a socket wrench, a serpentine belt tool, and a jack to lift the vehicle if necessary.
- Locate the Belt Tensioner: The serpentine belt is kept tight by a tensioner pulley. Find it on the engine’s front. You’ll need to release the tension to remove the belt.
- Release Tension: Use the serpentine belt tool to rotate the tensioner pulley in the direction indicated on the pulley. This will loosen the tension on the belt. Once the tension is released, carefully slide the belt off the pulleys.
- Remove the Old Belt: Take off the old serpentine belt, noting its routing path. This is crucial for installing the new belt correctly. If needed, take a picture or refer to the vehicle’s manual for the exact path.
- Install the New Belt: Place the new serpentine belt around the pulleys, following the same routing path. Ensure the belt fits snugly in each groove of the pulleys.
- Apply Tension: Rotate the tensioner pulley again using the serpentine belt tool to allow the belt to fit tightly into place. Double-check that the belt is aligned properly on all pulleys.
- Inspect the Installation: Before starting the engine, manually rotate the belt with your hand to ensure it moves smoothly. Look for any signs of misalignment or twisting.
- Test the Engine: Start the engine and observe the belt as it operates. Listen for any unusual noises, which could indicate improper installation.
By following these steps, you’ll replace the serpentine belt on your 2013 Dodge Journey with ease. Regularly check the belt for wear to avoid future issues.
