2013 Dodge Dart 2.0 Serpentine Belt Routing Diagram and Installation Guide
If you’re working on a 2013 Dodge Dart 2.0 and need to replace or inspect the serpentine belt, a clear diagram can save you time. The serpentine belt system in this model is crucial for driving multiple engine accessories, including the alternator, power steering pump, and air conditioning compressor. Without a proper diagram, it can be tricky to ensure the belt is installed correctly. Below, you’ll find the correct routing path and tension specifications to follow for your 2.0 engine.
The serpentine belt on the 2013 Dodge Dart 2.0 engine should run in a specific sequence through the various pulleys. The belt wraps around the crankshaft pulley, alternator, idler pulleys, and other components, maintaining tension through a spring-loaded tensioner. Refer to the diagram for exact placement to avoid misalignment or premature wear on the belt and pulleys.
For smooth operation, always replace the belt at recommended intervals or sooner if visible damage occurs. Improper belt tension or routing can lead to engine performance issues or cause the accessories to malfunction. Keep a close eye on the tensioner and pulleys during installation, as they play a significant role in the belt’s lifespan.

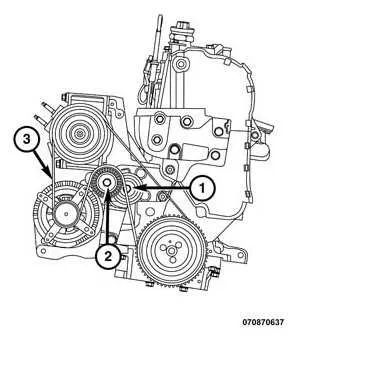

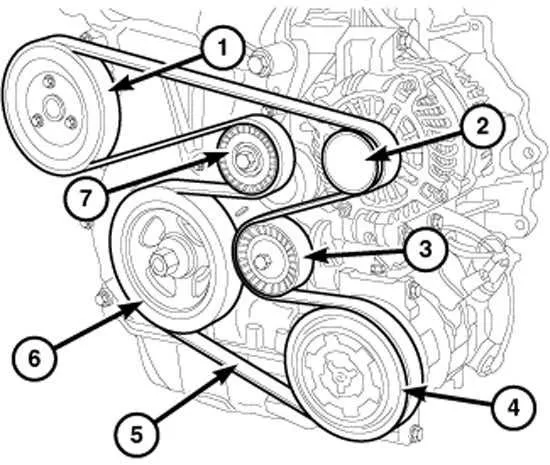

2013 Dodge Dart 2.0 Serpentine Belt Diagram
To replace the serpentine belt on a 2013 Dodge Dart 2.0, follow this step-by-step guide. The belt runs through several components, including the alternator, power steering pump, and air conditioning compressor. Make sure to inspect the belt for wear before installing a new one.
The serpentine belt diagram for the 2013 Dodge Dart 2.0 shows the belt routing around key engine components. Start by locating the belt tensioner, which adjusts the belt’s tension. Use a wrench or a serpentine belt tool to relieve the tension before removing the old belt.
Refer to the diagram for the correct routing path: it loops from the crankshaft pulley up to the alternator, then around the power steering pump, air conditioning compressor, and water pump. Ensure the belt passes over each pulley correctly to prevent slipping or misalignment.
Once you’ve installed the new belt, check the tension. The belt should be snug but not overly tight. A quick test by spinning the belt by hand will confirm it’s properly routed and tensioned.
Always replace the belt if you notice cracks or visible wear. A new serpentine belt ensures your engine components work efficiently and helps avoid breakdowns.
How to Identify the Correct Serpentine Belt Routing for 2013 Dodge Dart 2.0
To correctly route the serpentine belt on your 2013 Dodge Dart 2.0, locate the belt diagram. You can usually find it on the engine bay near the radiator or on the underside of the hood. If it’s missing or unclear, refer to the owner’s manual or check online resources for a detailed diagram.
Ensure the belt is properly aligned across all pulleys, starting from the alternator, the power steering pump, the water pump, and the A/C compressor. Pay attention to the tensioner and idler pulleys, as they guide the belt in the right direction and maintain proper tension. The belt should run smoothly along the pulleys without any twists or slack.
If the routing is incorrect, the belt might slip or wear out prematurely. Double-check each pulley for proper alignment and make sure the belt fits snugly without being too tight. When replacing the belt, always inspect the pulleys for any signs of damage or excessive wear that might affect the belt’s performance.
Steps to Replace the Serpentine Belt on 2013 Dodge Dart 2.0
First, locate the serpentine belt tensioner. Use a wrench or socket to relieve tension by rotating the tensioner pulley clockwise. This will loosen the belt and make it easy to remove.
Next, take note of the belt’s routing. You can refer to the diagram under the hood for guidance. Carefully remove the serpentine belt, ensuring you don’t damage other components along the way.
Before installing the new belt, compare it to the old one. Ensure they are of the same size and fit. Begin placing the new serpentine belt on the pulleys, following the same path as the previous belt.
Once the belt is positioned correctly, rotate the tensioner again to release tension and allow the new belt to fit snugly in place.
Finally, check the belt’s alignment and make sure it sits properly on each pulley. Start the engine and inspect for any unusual noises or slipping. If everything looks good, you’re done!
Troubleshooting Common Issues with Serpentine Belt on 2013 Dodge Dart 2.0
If you notice unusual noises or your engine performance is lacking, the serpentine belt could be the culprit. Here’s how to address the most common problems:
- Squealing or Chirping Noise: This often indicates a worn-out or loose serpentine belt. Inspect the belt for any visible signs of damage, such as cracks or fraying. If the belt looks fine, check the tensioner to ensure it’s providing adequate tension.
- Failure to Start or Engine Stalls: If the serpentine belt snaps or becomes detached, essential components like the alternator or power steering pump won’t function, which can lead to engine stalling. Replace the belt immediately, and check the pulleys for alignment issues.
- Power Steering Failure: A slipping or broken serpentine belt can cause the power steering pump to fail. If you experience difficulty steering, inspect the belt and pulley system to identify any issues that might prevent the belt from engaging properly.
- Overheating: The serpentine belt drives the water pump, and any issue with the belt could disrupt coolant circulation. Check for any signs of belt slippage or damage, and ensure that the water pump is operating correctly.
- Belt Misalignment: Misalignment can cause the serpentine belt to wear unevenly and lead to failure. Inspect the pulleys for any damage or wear, and ensure they are properly aligned. Adjust or replace any misaligned components as needed.
Regular inspection and timely replacement of the serpentine belt can prevent most issues. Keep an eye out for any unusual sounds or performance drops to catch problems early.
