Cub Cadet Enforcer 48 Belt Diagram and Configuration Guide

To replace the drive belt on your Cub Cadet Enforcer 48, refer to the belt diagram for a clear layout of how the components fit together. This guide simplifies the process by providing the exact steps and belt routing.

Step 1: Start by securing the mower on a flat surface and disconnect the battery to avoid any accidental startups. It’s crucial to maintain safety throughout the procedure.

Step 2: Identify the belt’s path by studying the diagram. Ensure you understand the routing and the location of each pulley to avoid mistakes when installing the new belt.

Step 3: Carefully remove the old belt, making sure to note how it is positioned. Use the diagram to assist with belt tension adjustments and ensure proper alignment during installation.

Replacing the belt can improve the performance of your Cub Cadet Enforcer 48 and prevent further wear or malfunction of the mower. Follow the diagram step-by-step for a smooth replacement.

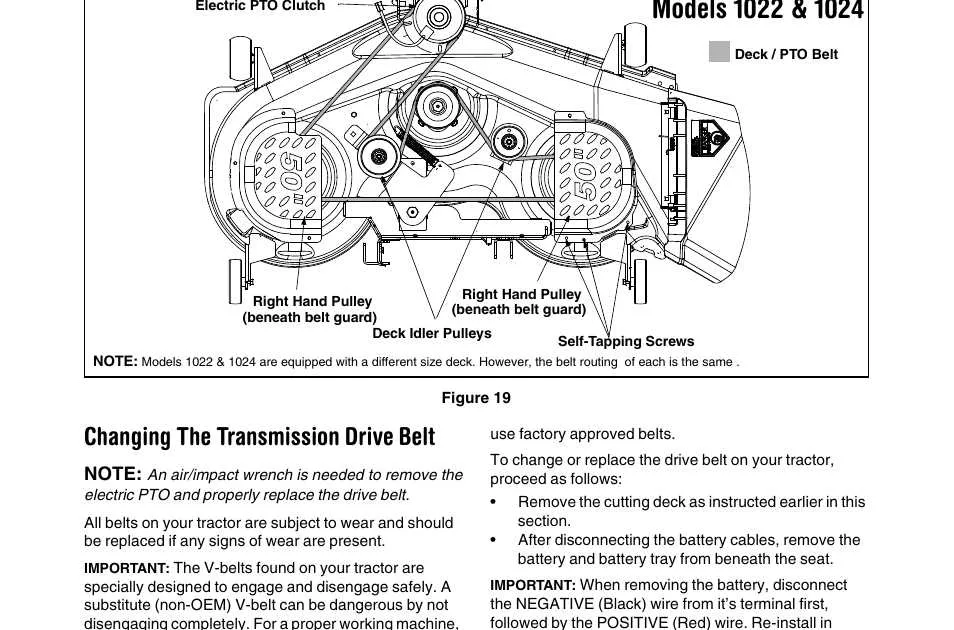

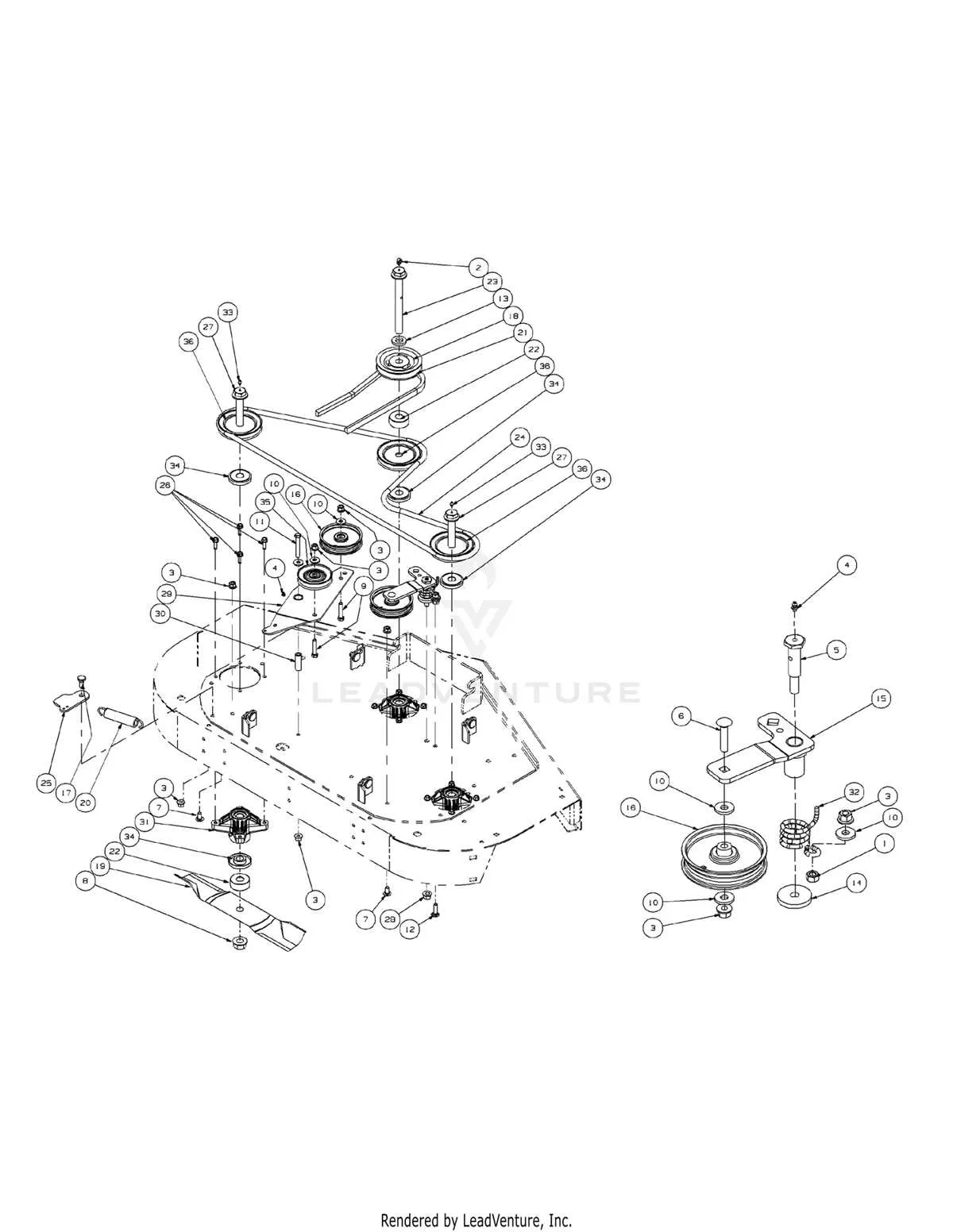

Cub Cadet Enforcer 48 Belt Diagram

For smooth operation of your Cub Cadet Enforcer 48, it is crucial to follow the belt diagram exactly. Proper belt routing ensures efficient power transfer and avoids unnecessary wear. Start by identifying the specific points where the drive belt passes through the pulleys. Ensure that the belt follows the path shown in the diagram without twists or misalignments.

The main drive belt is typically routed around several key pulleys, including the engine pulley, the transmission pulley, and the idler pulleys. Each component plays a vital role in the belt’s operation, so ensure they are in good condition before installation. If any pulley or part shows signs of damage, replace it immediately to avoid further complications.

When installing the new belt, apply tension as indicated by the manufacturer. This ensures the belt doesn’t slip or become too tight. Pay close attention to the belt’s position on the drive system; an incorrectly placed belt can cause slipping, overheating, or damage to other parts of the system.

If you notice the belt slipping or making noise, check the diagram again to verify proper routing. A loose or misaligned belt could result in poor performance, reduced efficiency, or even damage to the components over time.

How to Identify Key Components in the Belt Layout

Examine the belt routing carefully to pinpoint the crucial components in the Cub Cadet Enforcer 48 belt diagram. Focus on the drive pulleys, idler pulleys, and tensioners, as these elements play a significant role in the belt’s function. Start by identifying the main drive pulley connected to the engine, which provides power to the system.

The next key component is the idler pulley, which maintains proper tension on the belt. Look for the tensioner, usually located near the idler pulley. This component ensures the belt stays tight and avoids slipping or becoming loose during operation. Carefully trace the path of the belt around these pulleys to verify the correct routing.

Also, pay attention to any additional components like the electric clutch, which engages the blade system. This part is essential for proper functionality, as it connects the engine power to the blades. Identify the position of the clutch in relation to the belt layout to avoid confusion during reassembly.

Finally, verify the belt size and condition. An incorrect or worn belt can cause issues with performance and efficiency. Refer to the owner’s manual to cross-check the specifications for the belt to ensure proper fit and longevity.

Step-by-Step Guide to Replacing the Drive Belt on Cub Cadet Enforcer 48

Begin by disconnecting the battery to ensure safety during the replacement process. This prevents any accidental activation of the mower while you work on it.

Next, lift the deck to gain access to the belt area. Use a suitable jack or lift to raise the mower, then secure it properly to prevent any movement.

Locate the belt cover and remove any screws or fasteners that hold it in place. Carefully lift the cover off to expose the drive belt and its components.

Inspect the current belt for wear or damage. If it appears worn out or frayed, it is time to replace it. Take note of the routing path of the old belt before removing it, as this will be important for installing the new one.

Remove the old belt from the pulleys and any tensioners. It may help to relieve tension from the idler pulley by using a wrench or socket. This will allow you to remove the belt without much resistance.

Install the new belt by following the same path as the old one. Ensure it fits securely around the pulleys and idler pulley. Pay attention to the tensioner system, making sure the belt is tight enough to function correctly but not overly tight.

Reattach the belt cover and secure it with the screws or fasteners you previously removed.

Lower the deck back to its original position and reconnect the battery.

Test the mower by starting it up and engaging the drive system. Verify that the new belt runs smoothly without any slipping or misalignment.

Troubleshooting Common Belt Issues and Fixes for Cub Cadet Enforcer 48

If your Cub Cadet Enforcer 48 is experiencing belt-related issues, start by checking for signs of wear or damage. A cracked, frayed, or worn-out belt can cause performance problems. Examine the belt closely for any visible damage that might require a replacement.

Loose or misaligned belts are another common issue. If the belt slips or makes a high-pitched noise, it may not be tensioned correctly. Adjust the tension by following the manufacturer’s specifications to ensure the belt runs smoothly and doesn’t slip during use.

Another potential problem is a misaligned pulley. Over time, pulleys can become misaligned, causing the belt to wear unevenly. Inspect the pulleys for proper alignment and replace any that are damaged or showing excessive wear.

If the belt comes off frequently, it could be due to worn-out idler pulleys or a stretched belt. Replace these parts to prevent further slippage and ensure the belt remains in place while the mower operates.

For belts that are too tight, check the spring-loaded tensioner. If the spring is damaged or broken, it may cause the belt to over-tighten. Replacing the tensioner spring should solve this problem and restore the proper tension on the belt.

Lastly, ensure that the belt is properly routed according to the manufacturer’s diagram. Incorrect routing can lead to premature wear and malfunction. Double-check the belt layout and adjust as needed to avoid these issues.
