2005 Dodge Ram 1500 5.7 Hemi Serpentine Belt Routing Diagram and Maintenance Guide

If you’re working on a 2005 Dodge Ram 1500 with the 5.7 Hemi engine, understanding the belt system is key to maintaining optimal performance. The serpentine belt plays a critical role in driving the engine accessories, including the alternator, power steering pump, and air conditioning compressor. If your vehicle is experiencing issues like a squealing noise or loss of power steering, it might be time to inspect the belt and its alignment.

The 5.7 Hemi engine uses a specific serpentine belt layout. It’s crucial to know the correct path for the belt and ensure proper tension to avoid premature wear. Misalignment or a worn-out belt can cause serious engine component damage. A detailed belt diagram is a must-have tool for anyone attempting to replace or troubleshoot the serpentine belt on this model. Use the correct routing and replace any parts that show signs of wear to keep your truck running smoothly.

For easy reference, the diagram for the 2005 Dodge Ram 1500 5.7 Hemi outlines the route for the serpentine belt over pulleys and accessories. It’s typically located near the front of the engine bay or in your vehicle’s manual. If you’re replacing the belt, make sure to use the correct belt length and tension. A damaged or improperly installed belt can cause overheating, battery charging issues, or even engine failure.

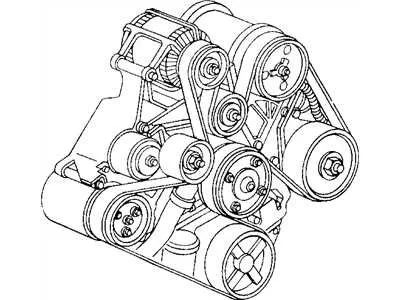

2005 Dodge Ram 1500 5.7 Hemi Belt Diagram

To properly install or replace the serpentine belt on a 2005 Dodge Ram 1500 with the 5.7 Hemi engine, it’s crucial to follow the correct belt routing. The diagram will show how the belt should wrap around each pulley. Make sure the belt goes over the alternator, power steering pump, and the air conditioning compressor, among other components.

The path for the serpentine belt is: it starts at the crankshaft pulley, moves upward around the water pump, then follows the alternator and power steering pump. From there, the belt moves to the air conditioning compressor and returns to the tensioner. The diagram includes the belt tensioner’s location, which should be relieved with a wrench or a special tool to remove tension and facilitate belt installation or removal.

Before installing a new belt, check the routing for proper alignment. An incorrect installation can lead to premature wear and damage to engine components. Ensure the belt is tight enough to avoid slippage, but not too tight to prevent strain on the pulleys.

If you’re unsure about the belt routing, refer to the vehicle’s owner’s manual or an engine compartment diagram. Following the factory belt routing is the best way to avoid potential issues with engine performance or component failures.

How to Identify the Correct Belt Routing for 2005 Dodge Ram 1500 5.7 Hemi

Check the belt routing diagram before removing or replacing the serpentine belt on your 2005 Dodge Ram 1500 5.7 Hemi. The routing diagram is often located on the radiator support or under the hood, near the engine. If the diagram is missing, follow these steps to ensure the belt is routed correctly.

• Inspect the pulley system for any misaligned or damaged pulleys that could impact belt routing.
• Identify the components driven by the belt: alternator, power steering pump, water pump, A/C compressor, and idler pulleys.
• Make sure the tensioner is in proper working condition. It should apply enough tension to prevent belt slippage but not over-tighten.
• Start from the crankshaft pulley (largest pulley) and route the belt according to the diagram, making sure the belt is correctly aligned with each pulley groove.
• Double-check the belt’s position around the tensioner pulley to avoid improper routing, as it can affect engine performance.

If you’re unsure or have trouble identifying the correct routing, use an online resource or repair manual for the specific year and model of your vehicle. Many repair manuals provide detailed diagrams that can help you visualize the proper configuration.

Ensure the belt is seated properly on each pulley and the tensioner holds the correct tension. After installation, rotate the crankshaft by hand to confirm that the belt moves smoothly and there’s no slippage or misalignment.

Step-by-Step Guide to Replacing the Serpentine Belt on a 2005 Dodge Ram 1500 5.7 Hemi

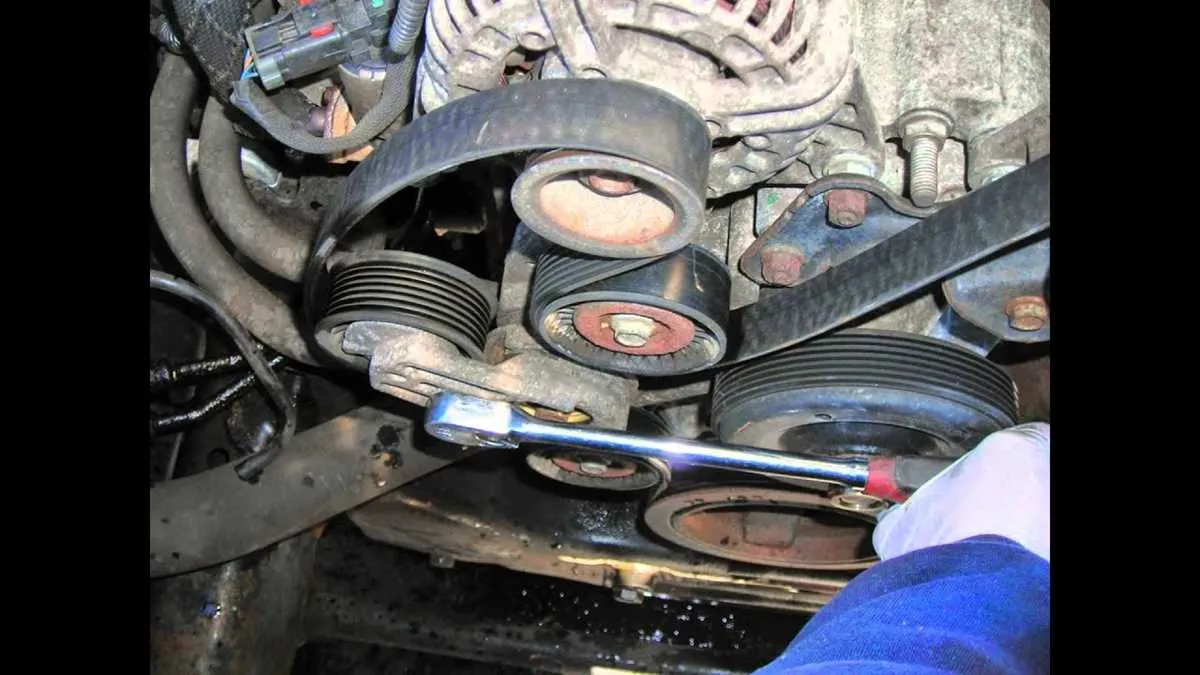

First, locate the tensioner pulley. This is where you’ll apply pressure to release the tension on the serpentine belt. Use a 3/8-inch ratchet or serpentine belt tool to turn the tensioner clockwise. This will allow you to remove the belt from the pulleys.

Next, take a photo of the current belt routing for reference. The diagram will help you install the new belt correctly. If you don’t have the diagram, you can search online for a 2005 Dodge Ram 1500 5.7 Hemi serpentine belt routing or check the engine bay for a label with this information.

Remove the old belt by gently sliding it off the pulleys once the tension is released. Check for any damage or wear on the old belt. This is a good time to inspect the pulleys and other components for any unusual noise or play. If anything seems off, it may need to be replaced as well.

Before installing the new serpentine belt, verify that the replacement matches the correct part number. Make sure the new belt is in good condition, with no visible cracks, fraying, or other signs of wear.

Install the new belt following the routing pattern from the photo you took earlier. Ensure the belt is properly aligned with all pulleys, especially the tensioner pulley, which should be under enough pressure to keep the belt secure.

Once the new belt is in place, use your ratchet or serpentine tool to release the tension on the tensioner pulley. This will allow the tensioner to hold the belt in place, making sure it’s tight and properly positioned on all pulleys.

Double-check the belt routing to confirm it’s correct. Turn the engine over by hand using a wrench on the crankshaft pulley to make sure the belt moves smoothly without slipping or misaligning.

If everything looks good, start the engine and observe the belt in motion. Listen for any unusual sounds and ensure the belt runs without any issues.

Once confirmed, you’re done. Recheck everything after a short drive to make sure the belt stays in place and functions properly.

Common Issues with the 2005 Dodge Ram 1500 5.7 Hemi Belt System and How to Fix Them

One of the most frequent issues with the 2005 Dodge Ram 1500 5.7 Hemi belt system is belt wear and cracking. The serpentine belt, which drives key components like the alternator, power steering pump, and air conditioning compressor, can become brittle over time. Check the belt for visible cracks, fraying, or signs of glazing. Replace it immediately if you notice any damage to prevent complete failure, which could leave you stranded.

Another common problem is improper belt tension. If the tensioner is worn or malfunctioning, it can lead to a loose belt, causing squealing noises or, worse, slipping. Inspect the tensioner for any signs of rust or damage. If the tensioner doesn’t maintain proper tension, replace it to avoid belt slippage and ensure smooth operation of the engine accessories.

Alignment issues also arise with the belt system. If any of the pulleys are misaligned due to a faulty bearing or a worn-out part, the belt will wear unevenly and might even come off during operation. Inspect all pulleys to ensure they’re spinning freely and that there’s no wobbling. Replace any defective pulleys and realign them properly to restore the system’s function.

Leaking power steering fluid or coolant can also affect the belt system. A leaking hose or faulty pump can drip fluid onto the belt, causing it to slip or wear prematurely. Regularly check for fluid leaks around the power steering and cooling systems. If you spot any leaks, repair the hoses or seals and clean the affected areas to avoid further damage.

Lastly, if you notice a persistent squealing noise when starting the engine, it could be due to a misaligned or damaged pulley, or an issue with the belt itself. To address this, inspect the belt’s alignment and replace any worn-out components. Use a high-quality replacement belt and pulleys to ensure long-lasting performance and avoid future headaches.
