John Deere 48C Mower Deck Belt Diagram and Repair Guide

Replacing or adjusting the belt on your John Deere 48C mower deck requires a clear understanding of the belt’s path. If you’re looking for a reliable belt diagram, this guide provides a straightforward solution. Knowing how to identify the components involved will make the task quicker and less frustrating.

The John Deere 48C mower deck belt diagram is designed to help you replace or adjust the mower’s belt with ease. The key to getting it right is following the precise belt routing, ensuring it sits correctly over the pulleys and around the spindles. Incorrect installation can lead to premature wear or even belt breakage.

To begin, locate the mower deck assembly on your machine, and carefully inspect the pulleys and spindles. You’ll find that the belt runs in a specific direction, passing over each pulley in a set sequence. Referencing the diagram while working will help avoid misplacement of the belt and ensure it’s tightened correctly.

Once you’ve positioned the belt according to the diagram, check the tension to ensure it’s properly aligned. A belt that’s too loose or too tight can cause operational issues. With the correct tension and alignment, your mower deck will perform efficiently, helping you keep your lawn in top condition.

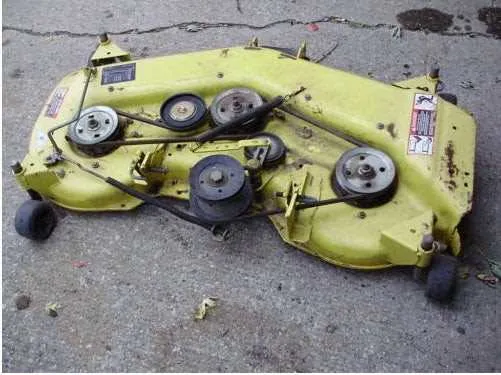

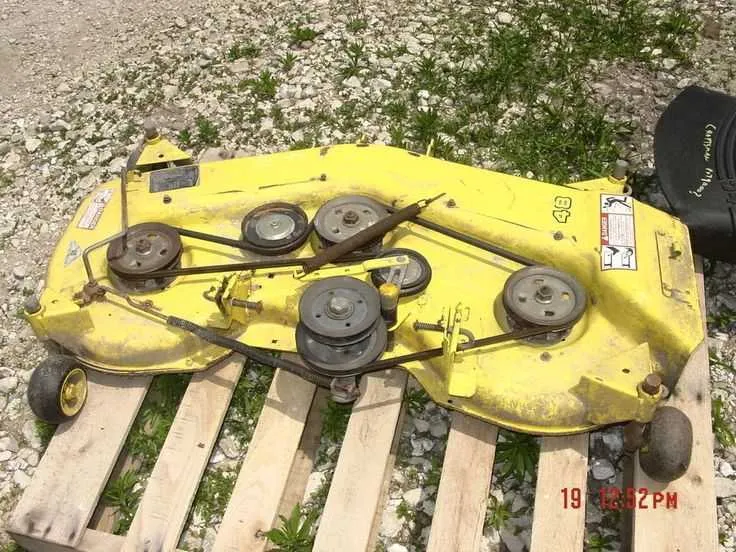

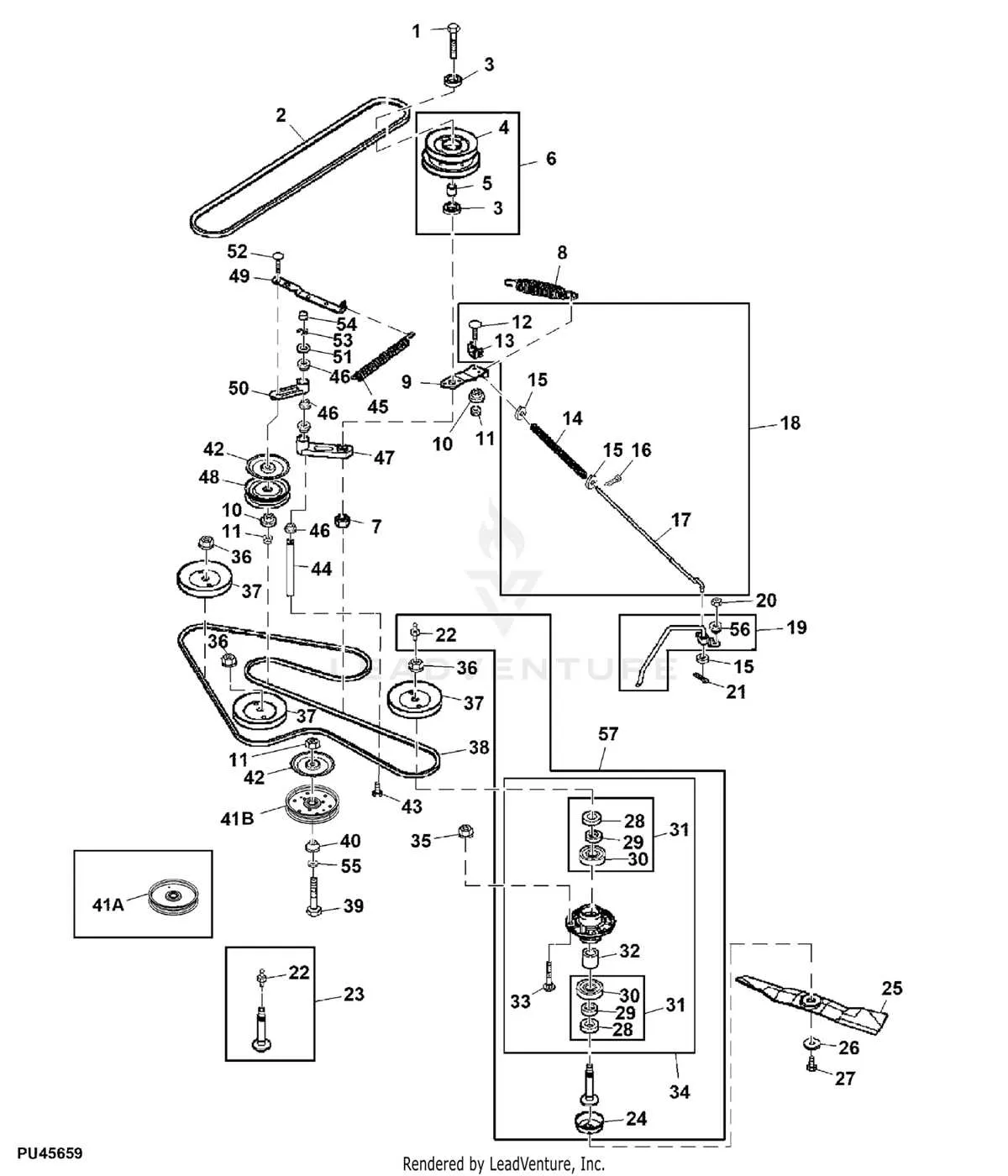

John Deere 48C Mower Deck Belt Diagram

To replace or troubleshoot the belt on your John Deere 48C mower deck, follow the specific routing shown in the diagram. The belt should loop around the pulleys in a particular order to ensure proper functionality.

Start by identifying the two main pulleys: the engine pulley and the idler pulley. The engine pulley is typically located on the right side of the deck, while the idler pulley sits towards the left. From the engine pulley, the belt should pass over the tensioning idler pulley before heading to the deck’s spindle pulleys.

The three spindle pulleys, located beneath the deck, drive the blades. The belt must wrap around each of these pulleys sequentially to transmit power to the blades. The correct order of routing is crucial for blade engagement and proper cutting performance.

Next, ensure that the belt runs through the idler arm. This keeps the tension properly adjusted. After passing through the arm, the belt should loop back toward the engine pulley. It’s important to check the belt’s tension once installed. Too tight or too loose can cause issues with the mower’s operation.

Double-check all connections and ensure that the belt is seated properly in all pulleys to avoid wear or slippage. If your belt appears worn or damaged, consider replacing it to prevent future breakdowns. Regular inspections will help you maintain peak performance of your John Deere mower deck.

How to Identify the Correct Belt for Your John Deere 48C Mower Deck

Check the model number of your mower first. The John Deere 48C Mower Deck typically requires a specific belt depending on the year of manufacture and the deck’s configuration. Look for the serial number plate on the frame of the mower, which provides detailed information on the model and part numbers.

Next, compare the belt length and width. The belt should match the original specifications listed in the owner’s manual. For the 48C deck, the standard belt is usually around 1/2 inch wide and can range from 101 inches to 105 inches in length, depending on the specific mower version.

Verify the belt type: most John Deere 48C decks use a “V” belt or a similar multi-ribbed belt. The number of ribs and the V-profile can vary. Ensure you choose a belt that fits the pulley system correctly–this is key to avoiding wear or slippage during operation.

Check the part number on the original belt. The part number can be found on the label or printed on the side of the belt itself. Cross-reference this number with the parts catalog or your dealer’s website to confirm the correct replacement.

If you can’t find the part number, you can measure the belt. Use a tape measure to determine the length from end to end and the width at its widest point. Keep in mind that replacing the belt with the wrong size can lead to malfunction, so accuracy is key.

When purchasing a new belt, always choose parts from a reliable source or directly from John Deere to ensure compatibility and durability. Avoid aftermarket options unless they are confirmed as suitable replacements by the manufacturer.

Finally, check the installation diagram for your mower deck. John Deere often provides detailed diagrams showing how to route the belt through the pulleys, which can simplify the installation process and prevent potential mistakes.

Step-by-Step Guide to Installing the Mower Deck Belt on a John Deere 48C

Ensure the mower is powered off and parked on a flat surface before starting. Wear gloves for safety.

1. Lift the Mower Deck: Using the deck lift lever, raise the mower deck to its highest position. This will provide adequate space to work on the components.

2. Remove the Deck Belt Guard: Locate the belt guard on the left side of the mower deck. Use a wrench to remove the screws or bolts securing it in place, and carefully take off the guard.

3. Loosen the Tension Pulley: Find the tension pulley that holds the mower deck belt under tension. Use a wrench or socket to loosen the bolt securing the pulley. This will allow the belt to be removed easily.

4. Remove the Old Belt: With the tension pulley loosened, slide the belt off the pulleys. Take note of the belt routing, as you will need to follow the same pattern when installing the new belt.

5. Install the New Belt: Position the new belt onto the pulleys following the original routing path. Make sure the belt fits snugly in place and that it runs smoothly over all pulleys.

6. Tighten the Tension Pulley: Reattach the tension pulley, ensuring the belt has the right amount of tension. The pulley should apply enough pressure to keep the belt in place without over-tightening it.

7. Reattach the Belt Guard: Once the belt is properly installed, replace the belt guard and secure it with the screws or bolts you removed earlier.

8. Test the Mower Deck: Lower the mower deck back into position and start the mower. Check that the belt runs smoothly and does not slip or make unusual noises. If everything seems in order, you’re good to go!

By following these steps, you’ll have the mower deck belt on your John Deere 48C installed and ready for use. Regularly check the belt for wear and tear to ensure optimal performance.

Troubleshooting Common Belt Issues on the John Deere 48C Mower Deck

If the belt on your John Deere 48C mower deck is slipping or not functioning properly, check for these common issues: wear and tear, improper tension, or misalignment.

Start by inspecting the belt for visible damage, such as cracks, fraying, or missing sections. A worn-out belt will lose its grip, leading to poor performance and potential damage to other components. If the belt shows signs of wear, it needs replacement.

Next, verify the belt tension. A loose belt can cause slippage, resulting in a lack of power to the blades. Check the tension by pressing down on the belt. If it feels too loose, adjust the tensioning pulley or replace any worn pulleys that might be causing inadequate tension.

Check for proper belt alignment. Misalignment can cause the belt to rub against surrounding parts, causing unnecessary friction and wear. Ensure that the belt is correctly routed according to the mower deck’s diagram. If the belt is misaligned, adjust the pulleys to restore proper positioning.

Inspect the pulleys for wear. Over time, pulleys can become worn or damaged, which may cause the belt to slip or not track correctly. Replace any worn or damaged pulleys to maintain proper belt function.

If the mower deck belt frequently comes off, check for any obstruction that could be interfering with the belt’s path. Remove debris or objects that may be blocking or catching the belt.

Finally, make sure that the spring-loaded idler pulley is functioning as expected. If it is stuck or weak, it will not provide the necessary tension, leading to belt slippage. Replace a faulty idler pulley to ensure proper tension and belt operation.
