2002 Dodge Ram 1500 Serpentine Belt Routing Diagram 5.9 Engine

If you’re looking to replace or check the serpentine belt on your 2002 Dodge Ram 1500 with the 5.9L engine, the diagram below will be your guide to ensure proper routing. A correctly installed belt is critical for the smooth operation of various engine components like the alternator, power steering pump, and air conditioning compressor.

Locate the tensioner pulley, as it’s the key component to adjust the belt’s tightness. For this engine, you’ll need to relieve the tension on the serpentine belt by rotating the tensioner counterclockwise. Once the belt is loosened, follow the diagram closely to avoid incorrect routing, which can lead to damage or failure of the engine accessories.

The routing on the 2002 Dodge Ram 1500 5.9L involves several pulleys and accessories. The belt starts at the crankshaft pulley, then goes around the tensioner, alternator, water pump, and other components in a specific order. Misplacing any section can lead to misalignment or premature wear of the belt and pulleys.

Make sure the belt sits properly in the grooves of each pulley. Check for any signs of damage like cracks, frays, or glazing before replacing the belt. A worn-out serpentine belt can cause the engine accessories to fail, leading to costly repairs down the road.

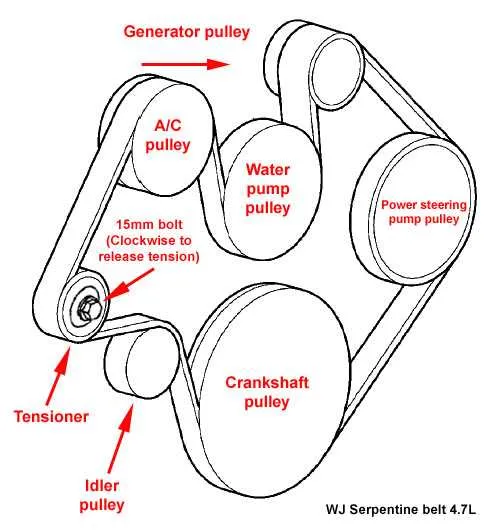

2002 Dodge Ram 1500 Serpentine Belt Diagram 5.9

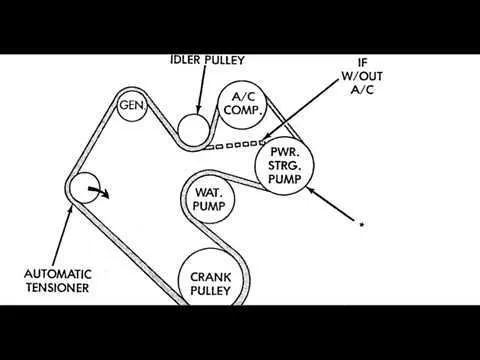

For the 2002 Dodge Ram 1500 with the 5.9L engine, it’s crucial to install the serpentine belt correctly to ensure all components function smoothly. Here’s a clear guide for the belt routing:

• The serpentine belt runs through the crankshaft pulley, the alternator, the power steering pump, the air conditioning compressor, and the water pump.
• The belt should loop over the crankshaft pulley, around the idler pulley, and then over the tensioner pulley to maintain the proper tension.
• Ensure the belt is properly aligned with all pulleys to prevent slipping or damage.

If you’re replacing the serpentine belt, check the condition of the pulleys and tensioner. A worn-out tensioner or misaligned pulley can cause premature belt failure. Always replace the belt if it shows signs of wear such as cracks, fraying, or stretching.

The diagram for the 2002 Dodge Ram 1500 5.9L serpentine belt is usually available in the engine bay or in the vehicle’s manual. If you’re unable to locate it, consult the service manual for detailed diagrams and tension specifications.

Step-by-Step Guide to Understanding the 2002 Dodge Ram 1500 Serpentine Belt Routing

To replace or inspect the serpentine belt on your 2002 Dodge Ram 1500, it’s crucial to follow the correct routing. The belt powers various components, including the alternator, power steering pump, and air conditioning compressor. Here’s how to route the serpentine belt properly.

1. Locate the Belt Routing Diagram
Start by finding the belt routing diagram. On the 2002 Dodge Ram 1500, this diagram is typically located on a sticker under the hood. It provides a clear map of how the belt should be routed around the pulleys. If you can’t find the sticker, a repair manual will have the diagram as well.

2. Identify the Components Driven by the Belt
Take note of all the components the serpentine belt drives, including the alternator, power steering pump, and air conditioning compressor. Understanding the belt’s function will help you identify the correct routing and tension.

3. Locate the Tensioner Pulley
The tensioner pulley is key to keeping the belt tight. It’s adjustable, allowing you to relieve tension and install or remove the belt. Locate the tensioner pulley and use a wrench or socket to rotate it and release tension before removing the belt.

4. Route the Belt
Using the diagram as a guide, carefully route the new serpentine belt around the pulleys. Start with the main drive pulley and work your way around. Make sure the belt is seated properly in all grooves, especially around the crankshaft pulley, alternator, and idler pulleys.

5. Verify Alignment
Once the belt is in place, double-check its alignment with the pulleys. Ensure there’s no slippage or misalignment. A correctly routed belt should sit evenly and run smoothly on all components.

6. Reapply Tension
Once you’ve confirmed proper routing, reapply tension to the belt by rotating the tensioner pulley. The belt should have the right amount of tension; it should not be too tight or too loose. Test the belt by pressing on it and checking for deflection.

7. Final Inspection
Before starting the engine, do a final inspection. Look for any signs of misalignment, fraying, or incorrect routing. If everything looks good, start the engine and check if the belt is running smoothly without any unusual noise.

How to Replace the Serpentine Belt on a 2002 Dodge Ram 1500 5.9 Engine

To replace the serpentine belt on a 2002 Dodge Ram 1500 with a 5.9 engine, follow these steps:

1. Gather the necessary tools: You’ll need a 3/8-inch drive ratchet, serpentine belt tool, and a new serpentine belt. Make sure the replacement belt matches the length and routing for the 5.9 engine.

2. Locate the tensioner pulley: The tensioner pulley keeps the belt tight. It’s typically near the front of the engine. Use a serpentine belt tool or ratchet to relieve tension on the belt. Position the tool in the square hole of the tensioner and rotate it clockwise to loosen the belt.

3. Remove the old belt: While holding the tensioner in the released position, slide the old belt off the pulleys. Make sure to note the belt’s routing or use a diagram to ensure proper installation of the new belt.

4. Install the new serpentine belt: Begin routing the new belt starting from the bottom and work your way around the pulleys, following the same path as the old belt. Make sure the belt fits snugly over each pulley without slipping off.

5. Apply tension: Use the serpentine belt tool or ratchet to rotate the tensioner back to its original position and ensure the belt is tight. Double-check that the belt is seated correctly on all pulleys.

6. Test the installation: Start the engine and check the belt for any slipping or unusual noise. If everything runs smoothly, the replacement is complete.

Replacing the serpentine belt on a 2002 Dodge Ram 1500 5.9 is straightforward with the right tools and attention to detail. Ensure the belt is routed correctly to avoid damage to the engine components.

Common Issues with the 2002 Dodge Ram 1500 Serpentine Belt and How to Troubleshoot Them

When the serpentine belt on your 2002 Dodge Ram 1500 starts to wear down, it can lead to issues with engine performance and accessory systems. One common problem is belt squealing, which usually happens due to excessive wear or misalignment. To fix this, inspect the belt for cracks or fraying, and check if it’s properly tensioned. If the belt is loose, consider replacing it or adjusting the tensioner. A misaligned belt can cause uneven wear, so make sure pulleys are aligned correctly and the tensioner is functioning.

If you notice your engine overheating, the serpentine belt may not be turning the water pump efficiently. This can result from a broken or slipping belt. Ensure the belt is intact, and verify that it’s in good contact with all pulleys. If the belt looks fine but the issue persists, inspect the water pump for damage or blockages that might be causing strain.

Another issue is a noisy alternator or power steering pump. If these components make grinding or whining noises, check if the belt is slipping. Sometimes, improper tension or a worn-out pulley can cause this problem. Replace the belt if it appears worn or replace the tensioner if it’s not keeping the correct tension.

When experiencing poor performance of the air conditioning system, check if the serpentine belt is properly driving the A/C compressor. A slipping or worn belt could prevent the compressor from running efficiently. Inspect the belt for wear and tear, and replace it if necessary. Also, ensure the compressor is functioning without excessive resistance.

Lastly, be aware of any dashboard warning lights or the battery not charging properly. This could indicate that the alternator isn’t turning as it should. Inspect the serpentine belt to make sure it’s driving the alternator smoothly. If the belt is intact and properly tensioned, but the issue remains, test the alternator itself for faults.
