John Deere LA145 Belt Diagram Guide for Accurate Installation and Maintenance
Check the belt routing on your John Deere LA145 mower before performing any adjustments. The main deck belt connects the engine pulley to the mower deck spindles, ensuring consistent blade rotation. Misalignment or incorrect installation can cause uneven cuts and premature wear.

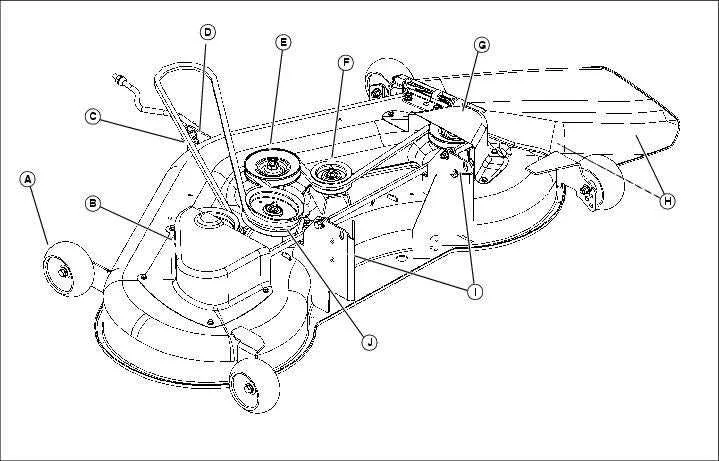

Identify each pulley on the deck using the diagram. The idler pulley maintains proper tension, while the drive pulley transmits engine power to the belt. Verify that all pulleys spin freely and are securely mounted to prevent slippage or belt damage.
Replace the belt when you notice cracking, fraying, or glazing on the surface. Use the exact replacement specified for the LA145 model to maintain proper tension and fit. Following the diagram closely during installation reduces the risk of improper routing that can lead to belt failure.
Regularly inspect the deck belt path for debris and accumulated grass. Cleaning the pulleys and ensuring smooth movement improves longevity and reduces strain on the engine. Proper maintenance guided by the belt diagram keeps your mower operating consistently throughout the season.
La145 John Deere Belt Diagram Practical Guide for Maintenance and Replacement
Inspect the belts regularly to avoid damage and ensure smooth operation. For proper maintenance, check for cracks, fraying, or signs of wear. If you notice any issues, replacing the belt immediately is recommended to prevent further damage to the mower’s system.
Before replacing the belt, make sure to disengage the mower blades and turn off the engine. Remove any objects around the area that might obstruct the belt replacement process. Start by loosening the belt tensioner and carefully remove the old belt. Be sure to check the pulleys for any damage or debris that could affect the new belt’s performance.
When installing the new belt, follow the belt diagram closely to ensure it is routed correctly through all pulleys. The belt should fit snugly without being too tight, as excessive tension can lead to premature wear. After installation, rotate the belt by hand to ensure it moves smoothly through the system before re-engaging the mower blades.
Always use a belt of the correct size and type as specified in the operator’s manual for your La145 model. Using a non-compatible belt may lead to malfunction or even permanent damage to the mower. Regularly lubricate the pulleys to maintain smooth operation and check belt tension every 25 hours of use.
By staying on top of regular maintenance and replacing worn-out belts promptly, you can extend the lifespan of your La145 John Deere mower and ensure it operates efficiently.
Locating and Identifying Each Belt on John Deere La145
Start by identifying the two main belts on the John Deere La145: the drive belt and the mower deck belt. The drive belt connects the engine to the transmission, powering the rear wheels. The mower deck belt, on the other hand, transfers power from the engine to the mower blades.
The drive belt runs from the engine’s pulley, located at the front of the mower, to the rear transmission. It’s essential to check for any visible wear, fraying, or cracks along the entire length of the belt. Make sure the belt is properly tensioned by observing the tensioner pulleys.

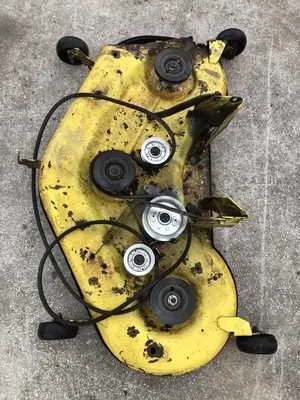

The mower deck belt is routed from the engine’s pulley to the pulleys on the deck. Inspect the belt carefully for damage or any misalignment of the pulleys. Ensure the deck belt is not too loose or tight, as this can affect the blade’s performance.
Both belts require periodic maintenance, including lubrication of pulleys to reduce friction. To ensure maximum performance, replace any worn-out or damaged belts promptly to avoid system failure.
Refer to the La145’s owner manual for exact belt routing diagrams to confirm correct placement during replacements. These diagrams will help you avoid any errors and ensure your mower operates as intended.
Step-by-Step Belt Removal and Installation Instructions
To remove and install the belt on your John Deere LA145, follow these steps carefully to ensure proper function and avoid damage to the components.
- Prepare the Lawn Mower: Disconnect the battery to ensure safety while working on the mower. Raise the deck to its highest position using the deck lift lever.
- Remove the Deck Belt: Begin by loosening the belt tension using the appropriate tools. Once the tension is released, carefully slide the belt off the pulleys and remove it from the deck.
- Access the Belt System: Remove any components obstructing access to the belt, such as the mower’s guard or the spindle housing. Use a wrench to detach any parts blocking the belt’s path.
- Inspect the Pulleys: Before installing the new belt, check the condition of the pulleys. If any pulleys show signs of wear or damage, replace them before proceeding with the belt installation.
- Install the New Belt: Carefully thread the new belt around the pulleys according to the diagram specific to the LA145. Ensure the belt is positioned correctly and not twisted.
- Reassemble the Components: Once the new belt is in place, reattach any components that were removed earlier. Tighten all fasteners securely to prevent parts from loosening during use.
- Check Belt Tension: Make sure the belt has proper tension. It should be tight enough to prevent slipping but not overly tight. Adjust as needed using the tensioning system.
- Test the Mower: Reconnect the battery and start the mower. Check that the belt runs smoothly without any unusual noise or slipping. Test all functions to ensure proper operation.
Troubleshooting Common Belt Wear and Alignment Problems
Inspect the belt for signs of wear such as cracks, fraying, or glazing. If the belt appears damaged, replace it immediately to avoid further damage to the system.
Check the belt tension. A loose belt can slip, causing uneven wear. Tighten it according to the manufacturer’s specifications to ensure optimal performance.
Inspect the pulleys and idlers for alignment. Misaligned components can lead to improper belt tracking and premature wear. Adjust the pulleys if necessary to align the belt properly.
Examine the belt routing. Incorrect routing can cause excessive wear or even breakage. Refer to the John Deere LA145 belt diagram to verify the correct installation path.
Look for debris or buildup on the belt or pulleys. Dirt, grass, or other materials can cause the belt to slip or wear out prematurely. Clean the area regularly to maintain proper function.
Monitor the condition of the bearings. Worn bearings can cause uneven tension and misalignment, leading to belt damage. Replace bearings that are damaged or worn out to prevent further issues.
