Belt Diagram for John Deere X300 Understanding Components and Maintenance
The belt diagram for the John Deere X300 is crucial for ensuring smooth operation and avoiding potential issues during maintenance. If you’re looking to replace or inspect the belts, start by understanding the precise layout and the correct positioning of each belt on the machine. This diagram serves as a reference for every step of the process, ensuring everything runs efficiently.
First, locate the drive belts that connect the engine, transmission, and mower deck. The X300 uses a combination of belts for various tasks, including powering the blades and wheels. Pay attention to the routing directions and the specific tension requirements for each belt. Incorrect installation or loose belts can lead to poor performance or even damage the mower.
Next, focus on the pulleys and their alignment with the belts. The belt diagram highlights the proper sequence for the belts, guiding you through the routing around pulleys. Misalignment can cause wear and reduce the lifespan of your belts. Ensure you check for any signs of fraying or excessive wear during inspection.
Lastly, always consult the user manual for specific tensioning instructions. The belt diagram includes visual cues to help you identify any potential issues that may arise during regular use or replacement. Regularly checking and replacing belts according to this diagram will keep your John Deere X300 running smoothly for years.

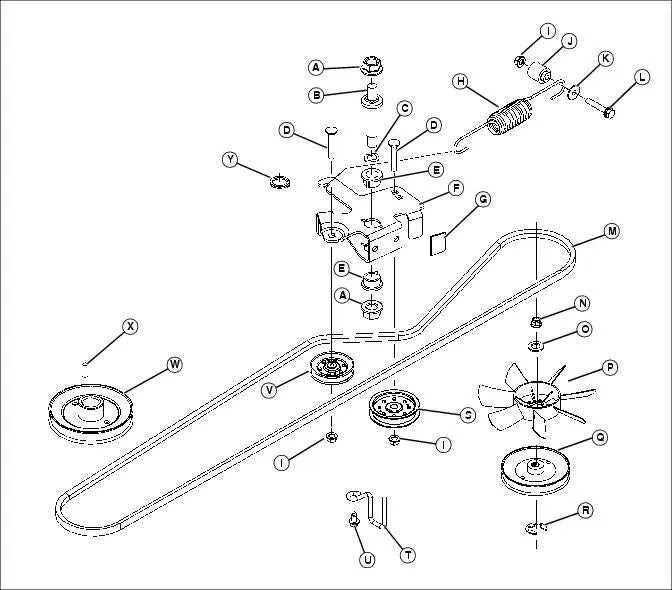

Belt Diagram John Deere X300
To replace or repair the belts on your John Deere X300, refer to the belt diagram for precise instructions. The primary drive belt is crucial for transmitting power from the engine to the cutting deck. Pay close attention to the routing to ensure the belts are installed properly, preventing slippage or wear.
The X300 model typically has two belts: the primary drive belt and the deck belt. Start by removing the mower deck to access the belts. The drive belt runs from the engine pulley to the transmission, and the deck belt connects the transmission to the mower blades. Double-check the diagram to ensure the routing is correct and the belts are tensioned correctly. Incorrect installation can lead to premature belt wear or even system failure.
The belt diagram clearly outlines the path for each belt. Ensure that the drive belt passes over the engine pulley, through the idler pulleys, and finally attaches to the transmission. The deck belt should route over the pulleys located on the mower deck, engaging the blade spindle pulleys. It’s important to make sure each pulley spins freely and the belt doesn’t come into contact with any surfaces other than the designated contact points.
If you’re replacing a worn belt, check the condition of the pulleys as well. Sometimes, damaged or misaligned pulleys can cause belts to wear out faster than usual. Regular maintenance can extend the life of the belts and keep your mower running smoothly.
After replacing the belts, run the mower briefly to ensure everything is functioning as expected. The diagram also serves as a great reference for reassembly, so consult it regularly during the process.

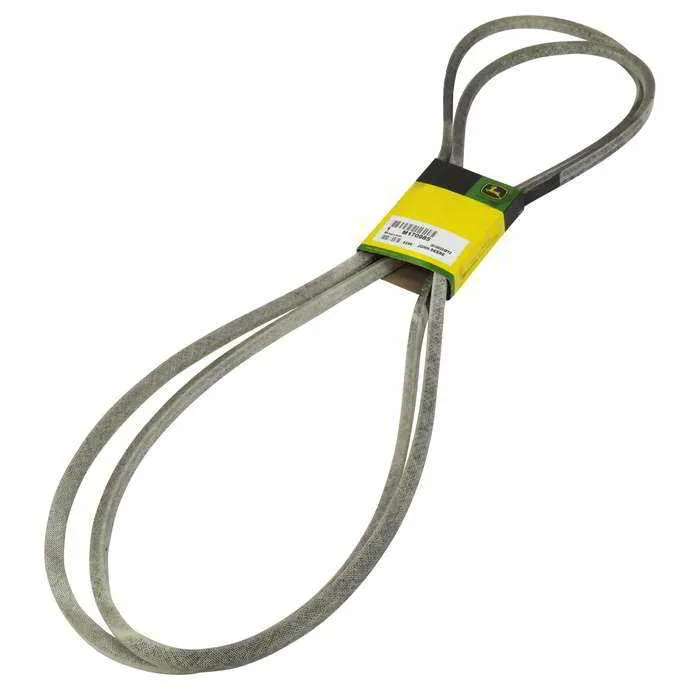

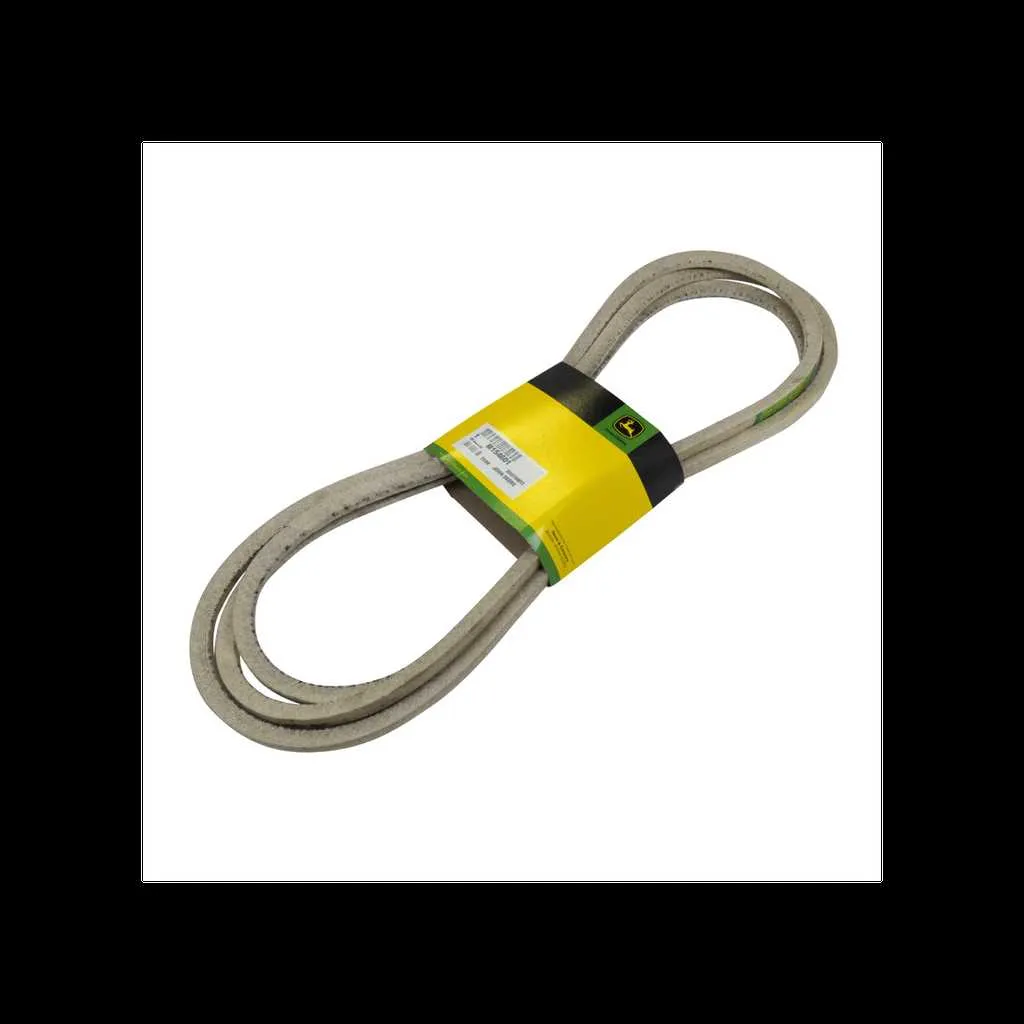

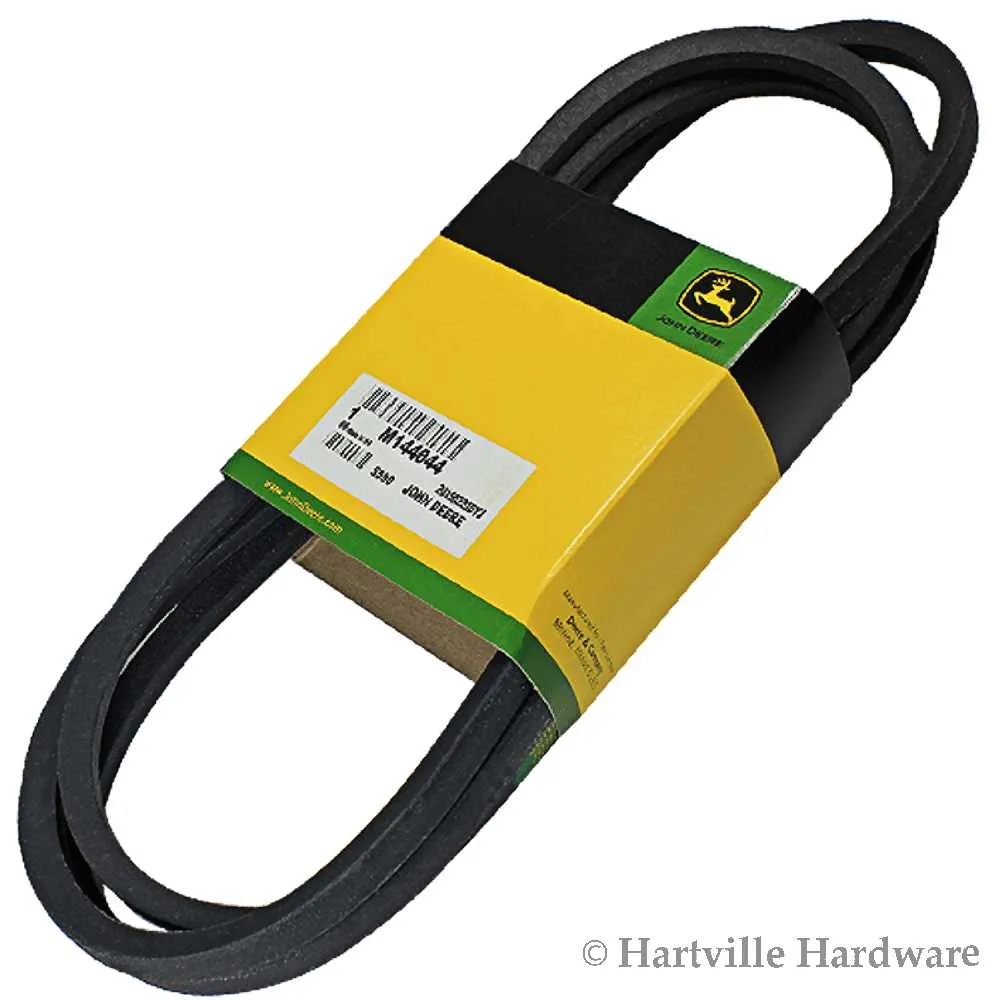

How to Identify the Correct Belt for John Deere X300
Check the model number of your John Deere X300 before selecting the replacement belt. For the X300, you will need the correct drive and deck belts to ensure proper function. The drive belt for this model is typically part number GX20072, while the deck belt is GX20250. Ensure you match the correct length and width to avoid issues with fitment.
Consult your owner’s manual for the exact specifications, as these will list belt lengths, widths, and part numbers specific to your machine’s configuration. If the manual is unavailable, measure the old belt’s length and width with a tape measure to determine the required replacement. Double-check the orientation of the belt to ensure it runs in the correct direction.
Pay attention to the quality and durability of the replacement belt. Opt for original John Deere belts or high-quality aftermarket options. Low-grade belts wear quickly, leading to poor performance and frequent replacements.
Check the belt routing diagram on your mower deck or in the manual. Incorrect routing can lead to belt slippage or damage, affecting the mower’s efficiency.
Step-by-Step Instructions for Replacing the Belt on John Deere X300
1. Lift the mower deck by positioning the tractor on a flat surface. Use the deck lift lever to raise the mower deck to its highest setting. This gives you clear access to the belt and pulleys.
2. Remove the mower deck by unscrewing the pins and bolts securing the deck. Pull the deck away from the tractor, ensuring that the drive belt stays free from the tensioners and pulleys.
3. Loosen the tension on the old belt by locating the tensioner pulley. Depending on the model, you may need a socket wrench or ratchet to loosen the tensioner. Once it’s free, the belt should come loose from the pulleys.
4. Remove the old belt by carefully sliding it off the pulleys and removing it from the deck. Pay attention to the path of the belt as you will need to follow the same route for the new one.
5. Position the new belt around the pulleys, following the same path as the old one. Start from the engine pulley and work your way to the deck. Make sure the belt fits properly on each pulley without twists or slack.
6. Tighten the tensioner pulley to apply the necessary tension to the new belt. You should be able to feel the resistance when the belt is properly tightened. Ensure the belt is seated correctly on all pulleys and that the tensioner is engaged.
7. Reinstall the mower deck by aligning it with the mounting points and securing it with the pins and bolts. Tighten them to prevent any shifting during operation.
8. Test the belt by starting the engine and engaging the mower deck. Listen for any unusual sounds that may indicate misalignment or improper tension. Ensure that the mower operates smoothly and that the belt runs without slippage.
Common Belt Issues and Troubleshooting Tips for John Deere X300
If your John Deere X300 mower is having trouble with the belt, inspect it for these common issues:
- Loose or worn-out belt – A belt that’s too loose or worn down can slip, causing the mower to lose power. Tighten or replace the belt if it’s frayed or cracked.
- Misaligned pulleys – Pulley misalignment can lead to uneven wear on the belt. Check the alignment of the pulleys and adjust them as needed to ensure they’re in line with each other.
- Belt jumping off pulleys – This may occur due to improper tension or faulty pulleys. Inspect for damaged pulleys and check the belt’s tension using the manufacturer’s specifications. Adjust as necessary.
- Belt slippage – A slipping belt causes a loss of power and inefficient operation. Ensure the belt is properly tensioned and that the pulleys are clean. Replace the belt if it’s stretched beyond repair.
To troubleshoot:
- Turn off the mower and disconnect the spark plug wire for safety.
- Inspect the belt’s condition. If the belt is cracked or frayed, it’s time to replace it.
- Check the tension. Refer to your user manual for the correct tension specifications.
- Inspect the pulleys for wear or damage. If a pulley is worn out, it may need to be replaced.
- After adjusting or replacing the belt, run the mower and observe if the issue persists.
Regular maintenance can help prevent most belt-related issues, ensuring smooth operation for your John Deere X300 mower. Stay proactive with inspections to avoid costly repairs down the line.
