John Deere X320 48 Deck Belt Routing and Diagram for Maintenance and Repair
Locate the belt routing quickly by referencing the X320 48-inch deck belt diagram. This diagram shows the exact path from the engine pulley to the deck spindles, eliminating trial-and-error adjustments and reducing wear on the belt and pulleys.
Check the tension points along the belt route. The diagram highlights the idler pulleys and spring positions, helping maintain consistent cutting performance and preventing belt slippage during operation. Adjustments are easier when you follow the visual guide precisely.
Identify the correct belt type and orientation using the diagram. X320 models require a specific 48-inch deck belt with reinforced edges for durability. Misalignment can cause uneven cutting and excessive noise, so follow the belt path exactly as indicated.
Use the diagram as a reference during maintenance. When removing the deck for cleaning or servicing spindles, keeping the diagram handy ensures you reinstall the belt without errors, saving time and preventing damage to the mower’s drive components.
Combine visual guidance with hands-on inspection by comparing the diagram to the actual deck layout. Look for signs of wear on pulleys and the belt itself, and rotate the pulleys manually to confirm the belt moves smoothly along the recommended path.

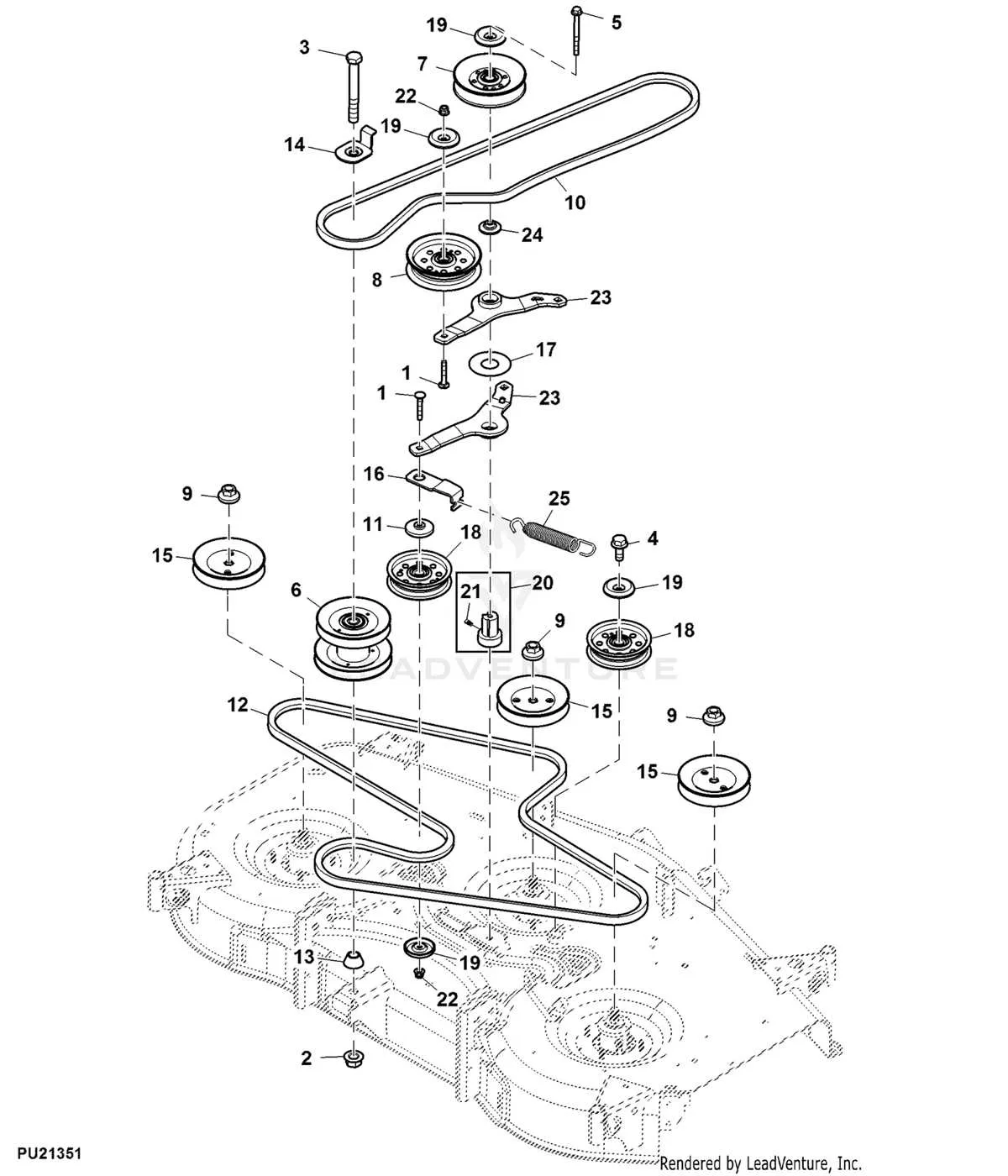

John Deere X320 48 Deck Belt Diagram Guide
Refer to the belt diagram whenever you replace or adjust the 48-inch deck belt on a John Deere X320. Proper routing prevents slippage and uneven wear. The deck uses a single belt that runs through multiple pulleys, including the engine drive pulley, deck idler pulleys, and spindle pulleys.
Follow these steps for correct belt installation:
- Park the mower on a level surface and engage the parking brake.
- Lower the deck to its lowest position and remove the belt from the engine pulley.
- Route the belt around the idler pulleys as shown in the official John Deere diagram, ensuring the ribbed side of the belt contacts the pulleys.
- Loop the belt around each spindle pulley, maintaining proper tension at the idler spring.
- Reinstall the belt on the engine drive pulley and double-check alignment across all pulleys.
Key points for maintenance:
- Inspect the belt for cracks, fraying, or glazing before reinstalling.
- Lubricate the idler pulleys and spindle bearings if they show signs of stiffness.
- Check belt tension periodically to prevent skipping or premature wear.
- Replace the belt immediately if it shows significant wear to avoid damage to the deck components.
Keeping a printed or digital copy of the X320 48 deck belt diagram near your mower simplifies belt replacement and ensures correct routing every time. Accurate alignment reduces strain on the engine and extends the lifespan of both the belt and pulleys.

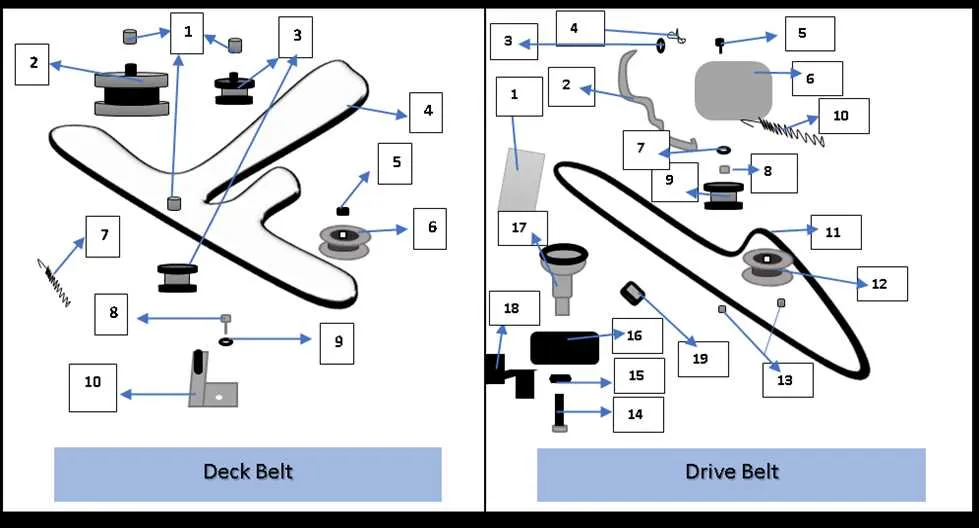

Locating and Identifying Each Belt on the X320 48 Deck
Begin by positioning yourself on the left side of the mower deck, where the main drive belt is visible. This belt connects the engine pulley to the deck pulleys and is flat with multiple grooves. Trace it from the engine to each spindle to confirm proper routing.
The deck lift belt runs along the right side of the frame. It loops around the idler pulleys and the lift lever mechanism. Check for tension and alignment as you follow its path to ensure smooth lifting and lowering of the deck.
The alternator belt, smaller and ribbed, sits at the front of the mower near the engine. It loops around the alternator and crankshaft pulley. Identify it by its narrower width and tighter routing compared to the deck belts.
Each idler pulley has a belt running through it to maintain tension. These are positioned near the center of the deck and along the frame edges. Note the direction of rotation indicated by the pulley markings to match each belt correctly.
Marking each belt with chalk or tape before removal helps maintain accurate routing. Keep a diagram of the X320 48 deck nearby to cross-check each belt’s path, ensuring you reconnect them without twists or slack.
Finally, verify all belts by manually rotating the pulleys. Smooth, even motion confirms correct installation, and any misalignment or slipping indicates a need to adjust tension or routing before operating the mower.
Step-by-Step Instructions for Removing and Installing the Deck Belt
Engage the parking brake and disconnect the spark plug to prevent accidental startup. Lower the deck to its lowest position and remove any debris around the pulleys and belt path.
Locate the belt tension spring on the idler pulley. Release tension by carefully sliding the spring off the bracket or using a wrench to move the idler away from the belt. Slowly slide the belt off the mower blades and pulleys, noting the routing for reinstallation.
Inspect all pulleys for wear, damage, or debris. Replace any worn pulleys before installing the new belt. Position the new belt around the mower blades and main drive pulley following the exact path of the old belt.
Reattach the belt to the idler pulley and reapply tension by reconnecting the spring or moving the idler into position. Rotate the pulleys by hand to ensure the belt sits correctly and moves smoothly without binding.
Reconnect the spark plug and engage the deck lift lever to test the belt operation under light power. Listen for unusual noises and observe proper tracking on all pulleys before mowing normally.
Troubleshooting Common Belt Wear and Alignment Issues
Inspect the X320 48-inch deck belt for fraying, cracking, or glazing at least every 50 hours of operation. Replace belts showing sidewall cracks exceeding 1/8 inch or wear that exposes the internal cords. Misalignment often causes uneven wear, so check the pulleys for wobble or bent spindle shafts. Rotate the deck by hand and observe belt tracking across pulleys; it should run centered without rubbing edges.
Tighten the idler pulleys to maintain 1/2 to 3/4 inch of deflection under moderate thumb pressure. If the belt drifts toward one side, adjust the deck spindles slightly until the belt runs straight. Clean debris and grass buildup from the belt path, especially around the spindle housings and tensioner arms, which can cause slippage and accelerated wear.
Replace any pulleys with grooves worn beyond 1/32 inch depth, as they prevent proper belt seating. Apply a light coating of silicone spray to the belt underside only if it squeals during operation; excessive lubrication can degrade the belt material. Keep a spare OEM belt on hand, as continuous use with a compromised belt can damage the mower’s deck bearings and spindle assemblies.
Check belt routing against the official John Deere X320 48 deck belt diagram whenever removing or reinstalling belts. Misrouting reduces cutting efficiency and increases stress on tensioners. For consistent performance, schedule belt inspections seasonally and log any replacements or adjustments to track recurring alignment problems.
