John Deere L120 48 Inch Deck Belt Diagram and Replacement Guide

The John Deere L120 lawn tractor uses a 48-inch deck belt that can wear out or become misaligned over time. If you notice that your mower is not cutting evenly or the belt is slipping, it’s time to check the belt’s condition. Replacing or adjusting the deck belt is a straightforward task if you have the correct diagram and step-by-step guidance.

Begin by referring to the belt diagram specific to the L120 48-inch deck. The diagram will show the correct path of the belt through the pulleys and around the deck spindles. This ensures proper tension and functionality. The key is to match the belt with the corresponding size, as even a small discrepancy can lead to poor performance.

When replacing the belt, carefully remove the old one and compare it to the new one. Follow the diagram closely, ensuring the belt is routed correctly and stays aligned with all pulleys. Check for any damage to the pulleys or tensioners before installing the new belt. A worn pulley can cause premature wear to the belt, so inspect these components regularly for signs of wear.

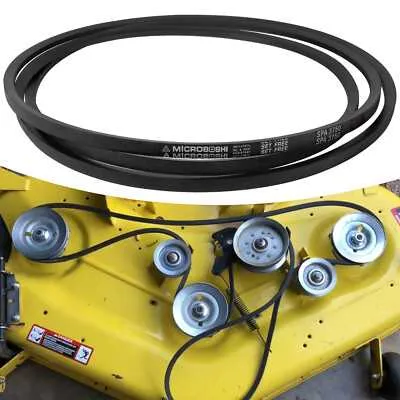

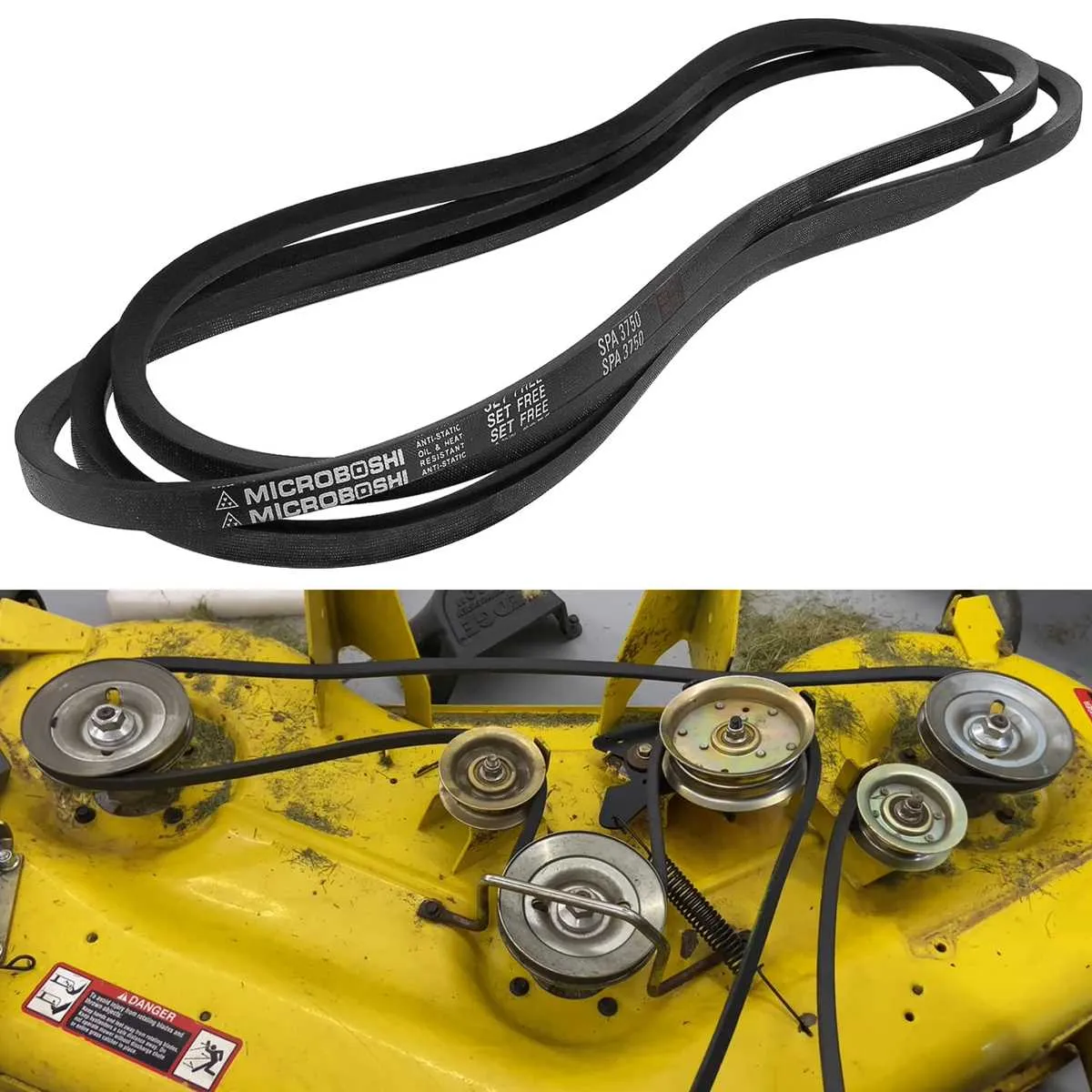

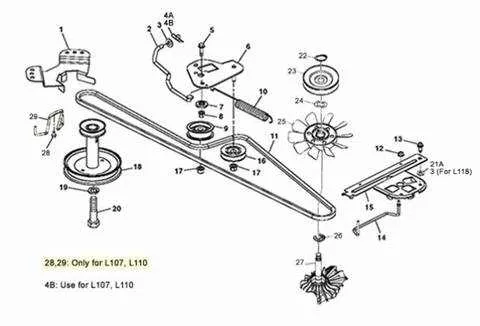

John Deere L120 48 Inch Deck Belt Diagram

To replace or repair the belt on your John Deere L120 with a 48-inch deck, start by identifying the correct belt size and understanding its routing. The belt used for this model is typically a 48-inch deck belt, which runs through several pulleys that control the mower blades and the tractor’s cutting system.

Before you begin, ensure the mower is on a flat surface with the engine turned off. Remove any grass or debris around the deck to avoid obstruction during the process. Once the area is clear, you can start by releasing the tension from the spring-loaded idler pulley to loosen the belt.

The belt routing for the L120 starts from the engine’s clutch pulley, goes through the main drive pulley, and around the idler pulleys. The diagram usually shows how the belt loops around the blades and the tensioner pulley, ensuring that the blades spin at the correct speed. Follow the diagram closely to avoid incorrect installation that could lead to damage or operational failure.

If the belt appears worn or cracked, it’s a good idea to replace it with a new one. Ensure the new belt matches the specifications listed in the John Deere manual for the L120. After installation, manually rotate the blades to ensure smooth operation before starting the engine. This will help confirm the belt is properly aligned and that the mower deck functions as expected.

Understanding the Belt Routing for the John Deere L120

To ensure proper functionality and avoid damage to the system, follow the exact belt routing for the John Deere L120 48-inch deck. Incorrect routing can lead to inefficient performance and premature wear on parts.

The belt routing consists of a series of pulleys, idlers, and the mower deck. Each component must be aligned correctly to maintain proper tension and function. Below are the key steps to ensure proper belt routing:

• Step 1: Position the belt – Begin by positioning the belt over the engine pulley. Make sure the belt wraps around the engine pulley smoothly without any twists.
• Step 2: Route the belt around the idlers – Pass the belt over the idler pulleys located on both sides of the deck. These pulleys help maintain the tension needed for proper operation.
• Step 3: Attach the belt to the spindle pulleys – After passing through the idlers, guide the belt toward the spindle pulleys. Ensure the belt is firmly seated in the grooves of each pulley to prevent slipping.
• Step 4: Final check of the tension – Once the belt is properly routed, check the belt tension. It should be tight enough to avoid slippage but not overly tight, as this could strain the components.

Before starting the mower, verify that the belt is securely routed and that all pulleys are properly aligned. Regular inspections of the belt and pulley system will help maintain the L120’s performance and extend the lifespan of the components.

Step-by-Step Guide to Replacing the 48 Inch Deck Belt

Begin by disconnecting the battery to ensure safety throughout the process.

Lift the mower deck to its highest position using the deck lift lever. This will provide more space to work with the belt system.

Locate the tension spring that holds the belt in place. Use a wrench or pliers to remove it carefully, allowing you to release the tension on the belt.

Next, remove the old belt by unhooking it from the pulleys. Start from the outermost pulley and work your way inwards. Keep track of the belt’s routing pattern for easy installation of the new belt.

Common Issues with the John Deere L120 Belt System and How to Fix Them

One common issue with the John Deere L120 belt system is belt slippage. If the belt is slipping, it may be due to wear or improper tension. Check the tensioner pulley and ensure the belt is routed correctly. If the belt shows signs of wear, replace it with a new one. Tension can be adjusted by tightening the spring on the tensioner pulley, but make sure it’s not too tight, as it can lead to premature wear on the belt and pulleys.

Another frequent problem is misalignment of the deck pulleys. Misalignment can cause uneven wear on the belt and lead to excessive friction. Inspect the pulleys for any damage or debris that might be preventing them from turning smoothly. If you find any issues, replace or clean the pulleys and ensure they are correctly aligned before reassembling the system.

Belt stretching is also a common issue over time. As the belt stretches, it can lose its ability to properly engage with the pulleys, affecting cutting performance. To fix this, replace the belt if it has become noticeably stretched or worn out. Always check the new belt for proper fit and tension to avoid similar issues in the future.

A clogged or worn-out idler pulley can cause the belt to wear out more quickly. If you notice noise coming from the idler pulley or the belt skipping, check the pulley for any signs of damage. Clean or replace the pulley as needed to keep the belt system working smoothly.

If the belt is consistently coming off, the root cause might be damaged or loose components. Check for any cracked or broken brackets, pulleys, or other parts in the system. Tighten or replace any faulty parts to keep the belt in place and prevent further issues.
