Ariens Ikon XD 60 Belt Diagram for Maintenance and Repair Guide
For smooth operation and durability of your Ariens Ikon XD 60, understanding the belt diagram is crucial. It ensures proper alignment and tension, preventing potential issues like premature wear or failure. Refer to the diagram regularly to keep your mower in top condition.
Locate the correct diagram: The first step is identifying the belt routing. The diagram for the Ariens Ikon XD 60 provides a clear visual of the belt paths, showing where each belt runs between pulleys. Make sure to follow the instructions precisely, as any misalignment can cause operational disruptions.
Check belt tension: Incorrect belt tension can lead to slipping, reducing the mower’s performance. After referencing the belt diagram, adjust the tension to the manufacturer’s specifications. This ensures the belts operate under optimal pressure, extending their lifespan and improving mower efficiency.
Replace worn belts: Over time, belts wear out and lose their effectiveness. If your belt shows signs of cracking or fraying, it’s time for a replacement. Always replace belts with genuine Ariens parts for the best fit and reliability.

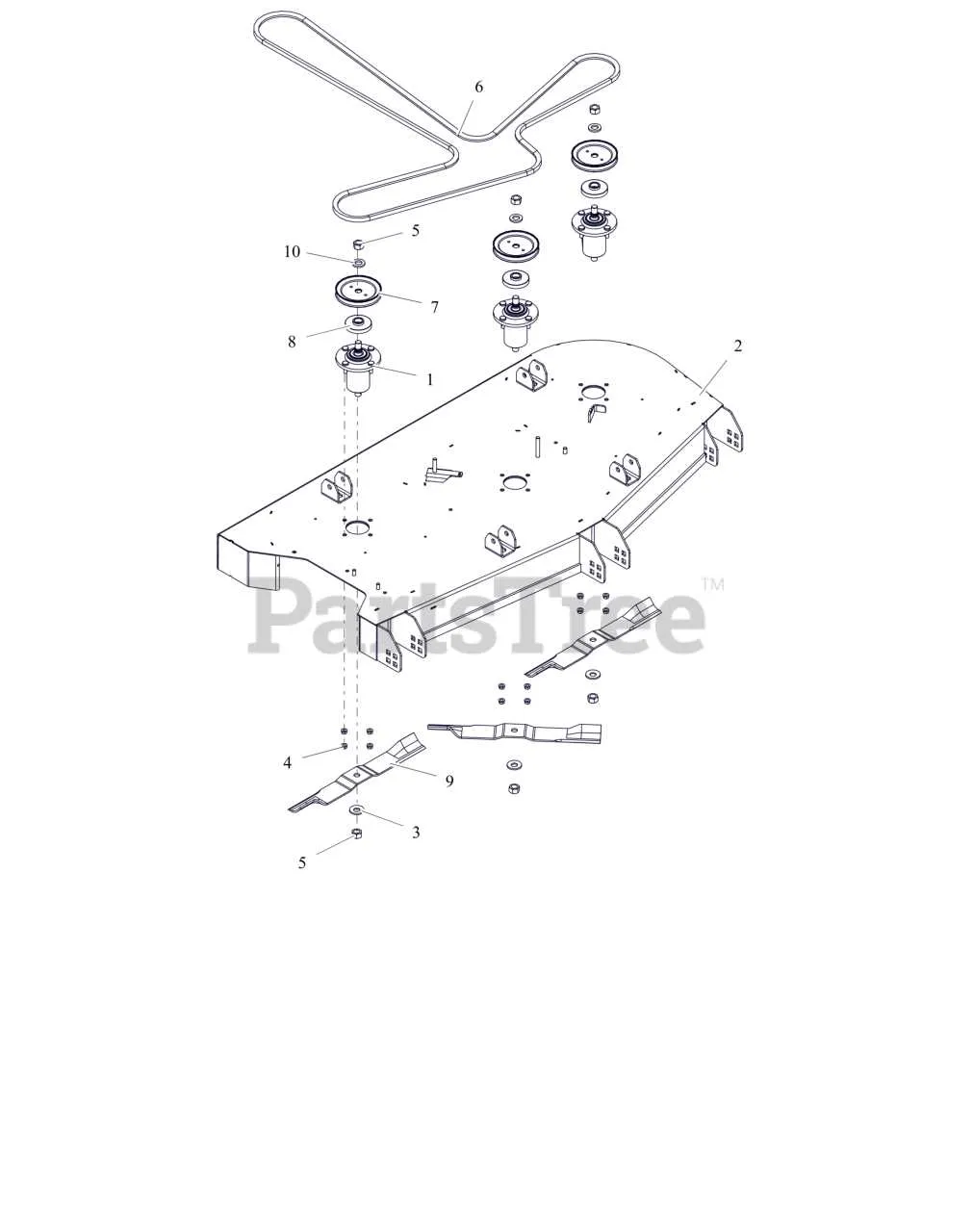

Ariens Ikon XD 60 Belt Diagram
To maintain your Ariens Ikon XD 60 mower in top condition, understanding the belt diagram is crucial. Follow these steps for proper belt routing and replacement:
1. Check Belt Condition: Before you begin, inspect the belts for wear and damage. Replace them if you notice any cracks or fraying.
2. Locate the Belt Routing Diagram: The belt routing diagram is usually found on a decal or the underside of the mower’s deck. This will provide a clear path for the belts around pulleys and components.
3. Belt Removal: To remove the belt, first disengage the mower’s deck and ensure the engine is off. Loosen the tension on the drive belt by adjusting the idler pulleys. Carefully slip the belt off the pulleys, starting from the engine side.
4. Install New Belt: Place the new belt following the routing diagram. Make sure it aligns properly with each pulley and tensioner. Adjust the tension as needed to prevent slipping, ensuring the belt is taut but not overly tight.
5. Test Operation: After installation, run the mower briefly to ensure smooth operation. Listen for any unusual noises that might indicate incorrect belt alignment or tension.
Refer to the Ariens Ikon XD 60 manual for detailed specifications and more troubleshooting tips to ensure proper maintenance of your machine.

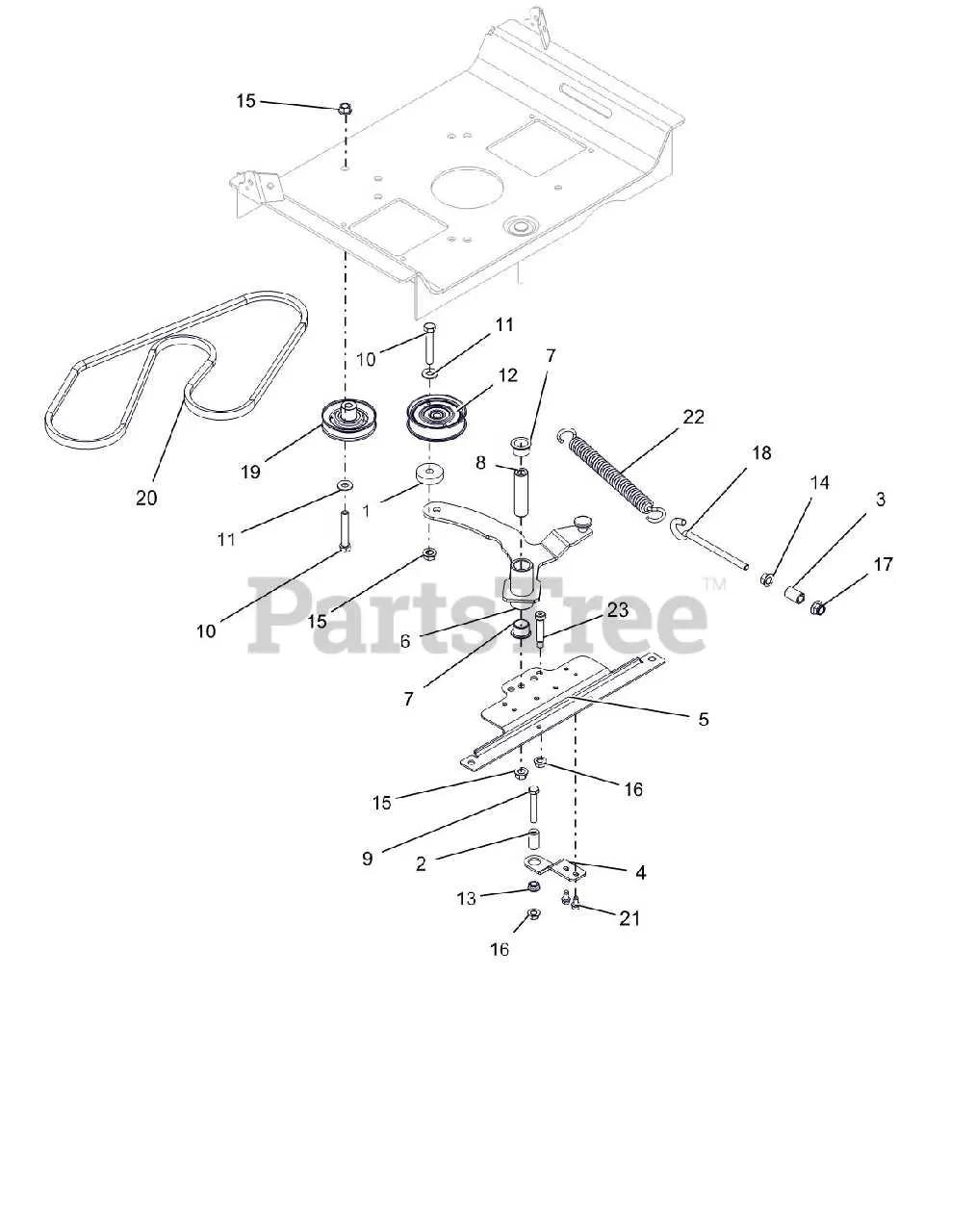

How to Identify the Belt Components in Ariens Ikon XD 60
Begin by locating the drive belt on the Ariens Ikon XD 60. This belt transfers power from the engine to the wheels, and it is typically found running between the engine pulley and the drive pulley. You’ll also spot the idler pulleys along the path of the belt, which maintain tension and help keep the belt in place.
Check the engine pulley at the front of the mower. It is usually larger and attached directly to the engine. Next, locate the drive pulley on the transmission. This pulley is typically smaller and helps transfer power to the wheels. Both of these pulleys should rotate freely when the mower is in operation.
Inspect the idler pulleys, which are positioned along the belt’s route to ensure the correct tension is maintained. These pulleys do not drive the belt but guide it in the correct direction. If any idler pulley appears misaligned or damaged, it could impact the performance of the entire system.
Lastly, examine the belt itself. Look for signs of wear such as cracks, fraying, or stretching. If the belt is damaged or loose, it may need replacement to avoid any loss of power or improper functioning.
Step-by-Step Guide to Replacing the Belt on Ariens Ikon XD 60
Before you start, make sure the mower is turned off and the key is removed from the ignition to avoid accidents. Wear safety gloves to protect your hands from sharp edges.
- Lift the Mower Deck: Use a jack or a suitable lift to raise the deck of your Ariens Ikon XD 60. This will give you access to the belt area.
- Remove the Deck Spindles: Locate the spindles that connect the mower deck to the frame. Use a wrench to loosen and remove the bolts. Keep track of all hardware for reassembly.
- Disconnect the Old Belt: Locate the belt that needs replacement. Carefully release the tension on the belt by adjusting the tensioner pulley. Slip the belt off the pulleys and remove it from the deck.
- Check the Pulleys: Inspect the pulleys for any signs of wear or damage. If they are worn, replace them before installing the new belt.
- Install the New Belt: Lay the new belt over the pulleys. Ensure it follows the correct routing path as shown in the Ariens Ikon XD 60 belt diagram.
- Reattach the Deck Spindles: Once the new belt is in place, reattach the spindles to the mower frame. Tighten all bolts securely to hold the deck in position.
- Test the Mower: Lower the mower deck and start the engine. Engage the blades to ensure the belt is functioning properly and there are no issues with movement.
Always double-check that everything is tight and secure before using the mower again. Regular maintenance will help extend the life of your equipment.
Common Issues with Ariens Ikon XD 60 Belt and How to Fix Them
If the belt on your Ariens Ikon XD 60 is slipping, check the tension first. Over time, the tension can weaken, causing the belt to slip during operation. Tighten the belt by adjusting the tension pulley to ensure it maintains proper pressure. Always refer to the user manual for the correct belt tension specifications.
A worn-out belt is another common problem. If you notice signs of fraying or cracks, replace the belt immediately. It’s crucial to use the recommended replacement part to maintain optimal performance. You can find the part number in your user manual or on Ariens’ official website.
Check for misalignment between the belt and pulleys. Misalignment can cause uneven wear and strain the belt, leading to premature failure. Ensure the pulleys are in their proper positions and aligned with the belt. If needed, adjust the pulleys or replace any that show excessive wear.
Debris build-up around the belt can cause it to overheat and wear out faster. Clean the area around the belt regularly to remove dirt, grass clippings, or other materials that may cause friction. A clean, well-maintained system helps prolong the life of the belt.
If the belt squeals or makes noise, it might be due to improper tension or misalignment. Inspect the belt and pulley system for any issues. Also, check the belt for any buildup of oil or grease, as these substances can cause slipping. Clean the affected areas before reassembling the components.
Lastly, if the belt doesn’t engage properly, it might be due to a faulty idler pulley or a defective clutch. Inspect the idler pulley for any damage or wear, and test the clutch for proper engagement. Replacing faulty components will restore the belt’s performance.
