John Deere Hydro 175 Belt Diagram and Maintenance Guide

When replacing or adjusting the drive belt on your John Deere Hydro 175, understanding the correct routing and installation process is crucial. A precise belt diagram is a key resource to ensure your equipment operates smoothly without unnecessary wear or damage. Start by identifying the belt size and routing based on the original equipment manufacturer (OEM) specifications.

Refer to the belt diagram for accurate placement of each component. Pay attention to the alignment of pulleys and tensioners, as misalignment can lead to premature belt wear and performance issues. Make sure to replace the belt when signs of cracking, fraying, or damage are visible, and always use the correct replacement part for optimal performance.

Check the tension regularly to ensure the belt isn’t too loose or tight, both of which can cause operational problems. It’s recommended to inspect the belt during routine maintenance to avoid unexpected breakdowns. Following the belt diagram precisely will save time and prevent costly repairs.

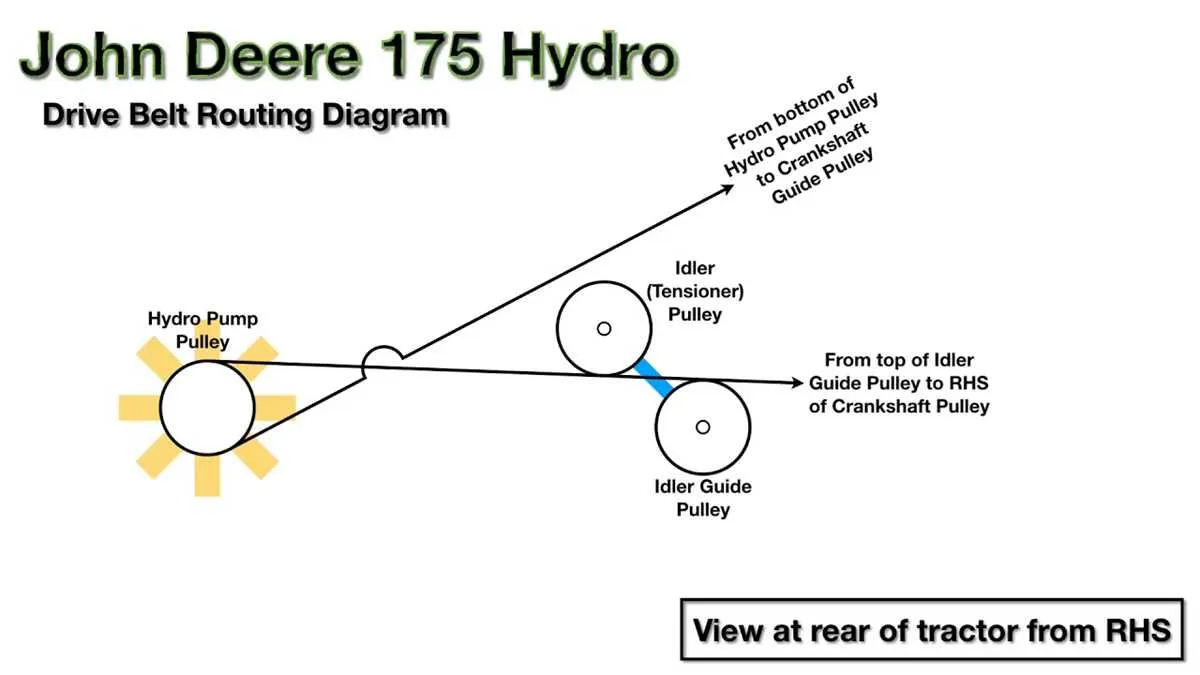

John Deere Hydro 175 Belt Diagram

To replace the drive belt on the John Deere Hydro 175, start by locating the belt routing diagram, usually found near the engine or on the frame. This diagram provides the exact path for the belt, ensuring correct installation. Follow the path closely to avoid any misalignment that could lead to premature wear or malfunction.

First, disengage the transmission and lift the seat for better access. Remove any obstacles or covers that may obstruct the belt area. Once clear, note the position of the tensioner pulley and how the belt interacts with it. You’ll need to release tension from the pulley before removing the old belt.

Next, carefully remove the worn belt, making sure to observe its routing and how it fits around various pulleys. Check for signs of wear or damage on the pulleys themselves. Before installing the new belt, inspect the area for debris or dirt that could interfere with the new belt’s function.

Install the new belt by following the diagram. Ensure it sits snugly on all pulleys, particularly around the tensioner. After installation, test the belt by manually rotating the pulleys to check for proper alignment and tension. Adjust the tensioner if necessary to ensure the belt is not too tight or too loose.

Finally, run the engine for a brief period to verify that the belt operates smoothly and quietly. If you notice any issues such as slipping or unusual sounds, recheck the alignment and tension before using the mower again.

How to Identify the Correct Belt Route for John Deere Hydro 175

To ensure the correct belt routing for your John Deere Hydro 175, first, gather the necessary tools: a socket wrench, screwdriver, and the proper replacement belt. Check the model number to confirm compatibility.

Start by disconnecting the battery to avoid any electrical mishaps. Then, lift the mower deck to access the belt system. You’ll see the main drive belt running from the engine to the transmission pulleys.

Examine the tension pulleys and idlers. These components keep the belt properly aligned. The belt should be routed over the engine pulley and through the tensioner system, without being twisted. The main drive belt must fit snugly around the pulleys to maintain proper function.

Refer to the owner’s manual for a detailed diagram, which will clearly show how the belt should pass through each pulley. Be sure to route the belt according to the instructions to avoid slipping or unnecessary wear.

After confirming the routing, check the condition of the belt. If it shows any signs of wear or cracking, replace it with a genuine John Deere part to ensure optimal performance.

Finally, reassemble the mower deck, reconnect the battery, and test the system by running the mower on low speed to confirm that the belt operates smoothly without slipping or making excessive noise.

Steps to Replace the Drive Belt in John Deere Hydro 175

First, ensure the engine is off and cool before beginning the replacement process. Disconnect the spark plug to avoid accidental starts.

Next, raise the front of the mower using a jack or lift to gain access to the underside. Secure the mower in place with blocks or jack stands to ensure stability.

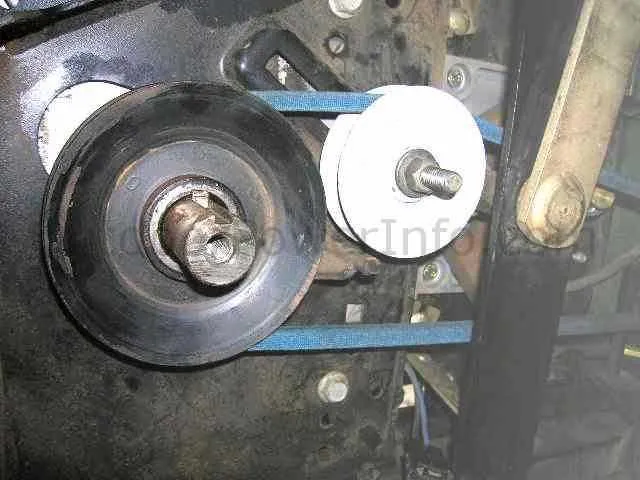

Locate the drive belt by inspecting the underside of the mower. You’ll find the belt running around several pulleys, including the drive and transmission pulleys.

Remove the old drive belt by releasing the tension from the idler pulley. This can be done by loosening the bolt or pin that holds the pulley in place. Carefully slide the belt off the pulleys, noting the route it follows for reinstallation.

Once the belt is removed, compare it with the new replacement belt to ensure the correct size. Install the new belt by routing it through the pulleys as per the diagram. Ensure it is properly aligned with all the pulleys and that it runs smoothly along the path.

After positioning the new belt, apply tension to the idler pulley by tightening the bolt or pin. Double-check the tension to ensure the belt is neither too tight nor too loose.

Lower the mower back down and reconnect the spark plug. Test the mower by starting it and running it briefly to check if the belt functions correctly without slipping or making excessive noise.

Common Belt Issues in John Deere Hydro 175 and How to Fix Them

Worn-out or damaged belts can affect the performance of your John Deere Hydro 175. Below are common belt issues and how to address them.

1. Belt Slippage

If the belt slips, it may be due to improper tension or wear. To fix this issue:

• Check the belt tension by pressing down in the center. It should not give more than ½ inch. If it does, adjust the tensioner to tighten the belt.
• Inspect the belt for wear or glazing. Replace the belt if it appears shiny or cracked.
• Ensure pulleys are aligned and not damaged. Misalignment can lead to uneven wear and slippage.

2. Belt Squealing or Noise

Noisy belts can be caused by misaligned pulleys or debris buildup. Follow these steps to resolve the issue:

• Inspect pulleys for any signs of wear or misalignment. Adjust or replace them if necessary.
• Clean the belt and pulleys to remove any dirt or debris that may be causing friction.
• Ensure the belt is properly seated in the pulleys. A misaligned belt can create noise during operation.

3. Broken or Frayed Belt

A broken or frayed belt will require immediate replacement. Here’s how to handle it:

• Turn off the mower and disconnect the battery before starting any repairs.
• Remove the damaged belt by releasing any tension using the tensioner.
• Install a new belt according to the manufacturer’s specifications, ensuring it follows the correct path through the pulleys.

4. Belt Getting Too Hot

If the belt overheats, it can cause premature wear. To fix this problem:

• Ensure proper belt tension. A loose belt can generate excessive heat due to slippage.
• Check the air intake and cooling system of the engine. Blocked vents or cooling fins can lead to overheating.
• Inspect for any friction points, such as misaligned pulleys, which may be causing additional strain on the belt.

5. Belt Coming Off

If the belt comes off the pulleys, the issue could be related to misalignment or excessive wear:

• Check all pulleys for proper alignment. Misaligned pulleys can push the belt off.
• Inspect the belt for signs of wear and replace it if necessary.
• Ensure the belt is routed correctly as per the John Deere Hydro 175 diagram.

Regular inspection and maintenance of the drive belt system will help prevent these issues from becoming major problems. Replace any worn parts promptly to keep your John Deere Hydro 175 running smoothly.
