Cub Cadet 44 Inch Deck Belt Diagram for Proper Installation and Maintenance

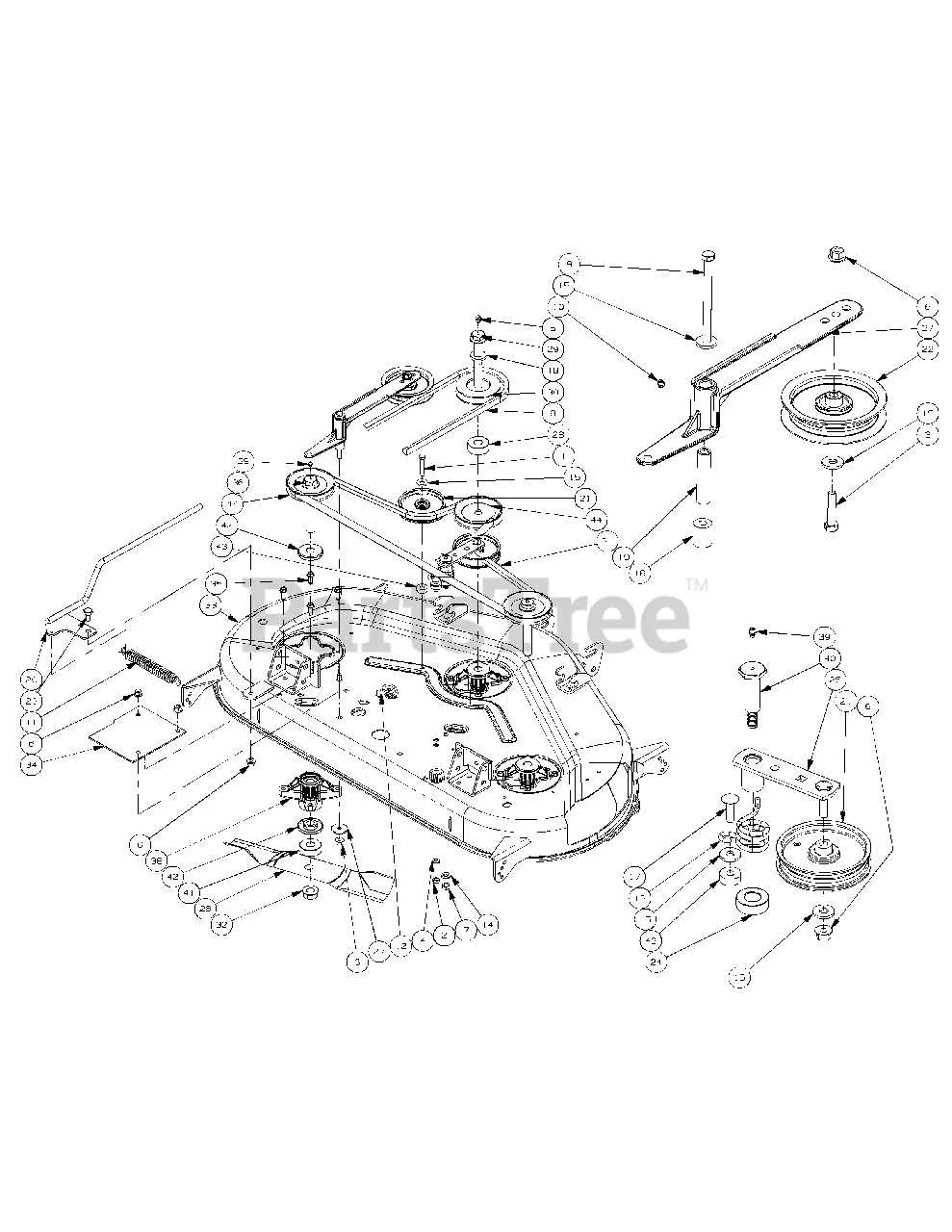

For quick and easy reference, the Cub Cadet 44-inch deck belt diagram provides a detailed visual guide to help you replace or repair the mower’s deck belt. The correct routing of the belt is key for smooth operation and optimal cutting performance.

First, identify the correct part number for your mower. Use the belt diagram to check the exact path the belt should take around the pulleys, ensuring that it’s correctly threaded through each one. Pay close attention to the direction of the pulley rotation and the tension required to keep the belt tight enough for proper function but not overly tight.

Next, make sure the deck belt is properly aligned on all pulleys. Misalignment can lead to premature wear and tear, or even damage to the deck and belt. Double-check that the belt rests snugly in the grooves of each pulley, without any slack or excess tension.

If you’re replacing the belt, remove the old one carefully and compare it with the new one to ensure they match in length and design. The diagram will help ensure everything is reassembled in the correct order.

Cub Cadet 44 Inch Deck Belt Diagram

Check the diagram for the correct installation path of the Cub Cadet 44-inch deck belt. It’s critical to follow the diagram to avoid unnecessary wear or damage to components. Make sure the belt routing aligns with the pulley positions as shown in the chart. Incorrect routing can cause the belt to slip, wear out faster, or even snap prematurely.

For a smooth replacement process, start by lifting the mower deck and removing the old belt. Pay attention to the path the old belt follows before removing it, as this will help guide the installation of the new one. Refer to the diagram and ensure the belt loops around each pulley in the right order. Take extra care when handling the tensioner spring, as it may be tight, but it needs to be properly adjusted to maintain the correct tension on the belt.

The diagram will also show the specific orientation of the belt to avoid twisting. Make sure the belt is positioned in a way that the grooves face the pulleys, not the outer side. This ensures the best performance and longevity of the belt.

If you are unsure about belt tension, use a belt tension gauge to check that the belt is properly tightened according to manufacturer guidelines. This helps ensure the belt operates efficiently, reducing the risk of slippage and excessive wear on the deck’s components.

After installation, test the mower by running it for a short period. Listen for any unusual noises, and check the belt’s movement to confirm it’s properly seated. Adjust as necessary if you notice any signs of improper tension or alignment.

Step-by-Step Guide to Identifying the Belt Path on a Cub Cadet 44 Inch Deck

Begin by ensuring the mower is powered off and the ignition key is removed. Position the deck so it’s easily accessible and raise it to its highest setting.

Next, locate the drive belt and inspect its current position. The belt typically runs from the engine pulley to the deck pulleys. Follow the belt’s path to ensure it is properly seated on all pulleys and idlers.

• Start by tracing the path from the engine’s drive pulley. The belt should wrap around the engine pulley, moving towards the tensioner pulley.
• From the tensioner pulley, the belt should continue to the deck’s left and right blade spindles.
• Verify the belt’s alignment around the pulleys. Ensure it is not twisted or misaligned, as this can cause uneven cutting.
• If necessary, refer to the Cub Cadet manual for the exact routing diagram to confirm the belt path. This diagram typically includes all necessary pulley and idler positions.

Make adjustments to the belt as needed. If it is loose, check the tensioner spring to ensure it’s properly engaging. Tighten the spring or replace it if it’s worn.

After verifying the path, check for any visible damage to the belt such as fraying, cracks, or missing teeth. If the belt is damaged, replace it with a new one of the correct size and model as specified by Cub Cadet.

Finally, manually rotate the deck’s pulleys to ensure smooth movement before reassembling the mower. Test the mower briefly to ensure proper belt operation before returning it to normal use.

Common Belt Installation Mistakes and How to Avoid Them

Incorrect belt routing is the most frequent mistake. Always double-check the belt diagram for your specific model. A single wrong loop can cause the belt to slip or wear out prematurely. Follow the path exactly as shown, paying attention to each pulley and the belt’s position relative to the mower deck.

Another common error is not loosening the tension properly before installation. If the tension on the old belt wasn’t released, it can make the new belt difficult to install. Make sure to relieve the tension by adjusting the spring or tensioner before replacing the belt.

Inserting the belt too quickly without checking for twists can lead to uneven wear. Before fitting, stretch the belt slightly to inspect for any twists. Installing a twisted belt can reduce its lifespan and affect the mower’s performance.

Forgetting to inspect the pulleys is another mistake. A pulley with worn bearings or built-up debris can cause the new belt to wear out faster. Clean all pulleys before installation, ensuring they move freely. Replace any damaged pulleys before installing the new belt.

Incorrect belt size is often overlooked. Ensure the belt you’re installing matches the model’s specifications. Using the wrong size can cause misalignment, poor performance, or failure to engage the mower deck properly.

Finally, ignoring the tension after installation leads to slippage. Adjust the tension according to the manufacturer’s instructions, ensuring the belt remains taut during operation. Too much slack can cause the belt to lose traction, while excessive tightness can cause unnecessary wear.

How to Properly Maintain and Replace the Cub Cadet 44 Inch Deck Belt

Inspect the deck belt every 25 hours of operation for wear and tear. Look for signs of fraying, cracking, or stretching, as these can cause the belt to slip or snap. If any damage is evident, it’s time for a replacement.

To replace the deck belt, first, lift the mower deck to access the belt. Make sure the mower is turned off and the ignition key is removed. Release the tension on the belt by loosening the idler pulley or removing the tension spring, depending on your model. Once the belt is loose, carefully slide it off the pulleys and remove it from the deck.

Before installing the new belt, compare it with the old one to ensure they match in length and width. Route the new belt around the pulleys according to the specific diagram for your Cub Cadet model. Ensure the belt sits correctly in the grooves of the pulleys to avoid unnecessary wear.

After installation, check the belt tension. It should be snug but not too tight. Reattach the idler pulley or spring to apply the correct tension. Rotate the deck by hand to ensure the belt moves smoothly and there are no obstructions.

Perform regular maintenance by cleaning the deck after each use to prevent grass build-up, which can affect belt performance. Keep the belt and pulleys free of debris to prolong their lifespan. If the belt starts to slip or squeak, inspect the tension and pulleys for proper alignment.
