ISX Cummins Belt Diagram and Engine Configuration Guide
Ensure your ISX Cummins engine runs smoothly by following the correct belt routing. A detailed belt diagram serves as a guide to avoid misalignment and ensure proper tensioning of the belts, ultimately preventing unnecessary wear and engine issues.
The belt system in an ISX Cummins engine plays a critical role in powering components like the alternator, water pump, and air conditioning compressor. Without a properly routed and tensioned belt, these systems can fail, leading to engine overheating or electrical malfunctions.
Refer to the specific ISX Cummins belt diagram for your model year, as variations exist across different engine configurations. Each diagram outlines the exact placement and order of belts, offering a clear visual to follow when replacing or adjusting them. Always check the belt’s condition, as even minor cracks or wear can affect engine performance.
For a smooth and reliable engine operation, replace the belts at the recommended intervals, and regularly inspect for signs of damage or excessive slack. A timely replacement is much more cost-effective than dealing with breakdowns or repairs from an improperly functioning belt system.

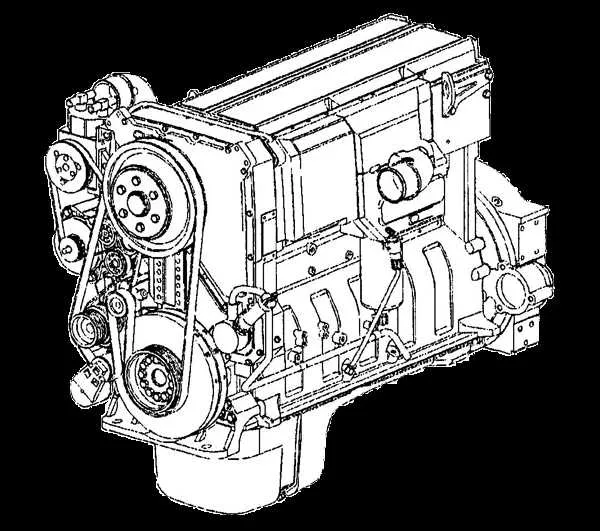

ISX Cummins Belt Diagram
The ISX Cummins belt diagram is crucial for proper maintenance and repair. Ensure all belts are aligned correctly and the tension is optimal to avoid unnecessary wear. Misalignment can cause engine vibrations, reduced performance, and premature belt failure.
The diagram clearly shows the routing of all belts, including the serpentine belt, fan belt, and accessories. It’s important to refer to the correct diagram for the engine model, as variations may exist between different configurations. Start by identifying the belt components: alternator, air conditioning compressor, power steering pump, and fan clutch. These components must be properly positioned to ensure the system operates smoothly.
Pay attention to the direction of the belt rotation and tension. If the belt is too tight, it could lead to premature bearing failure. If it’s too loose, slipping may occur, causing overheating or loss of power to critical components. It’s a good idea to inspect the belt for signs of wear, such as cracks, fraying, or glazing. Replace worn-out belts immediately to prevent damage to other engine parts.

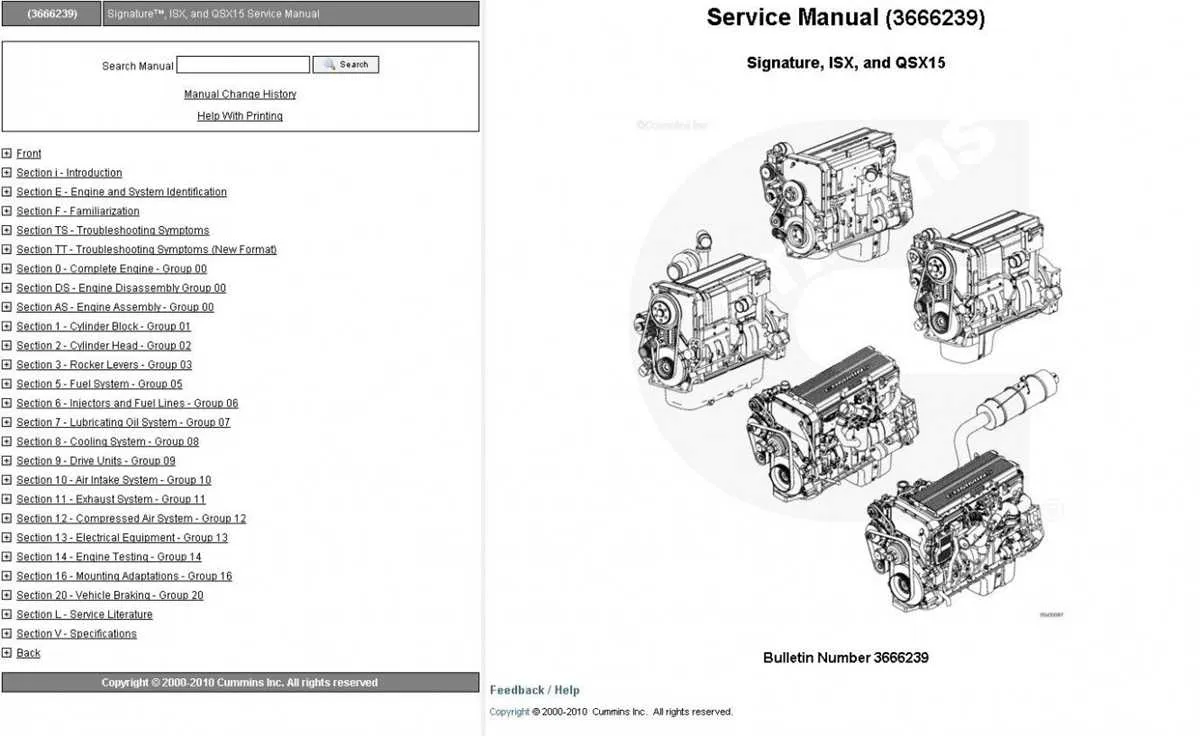

Refer to your engine’s service manual for specific torque values when re-tensioning or replacing belts. Accurate torque is necessary to maintain the right belt tension without damaging the components.
Finally, always use quality replacement belts recommended by Cummins. Subpar belts may not provide the required performance, leading to further complications. Regular checks and timely replacements will extend the life of your ISX Cummins engine and ensure optimal performance.
How to Read the Isx Cummins Belt Diagram for Accurate Installation

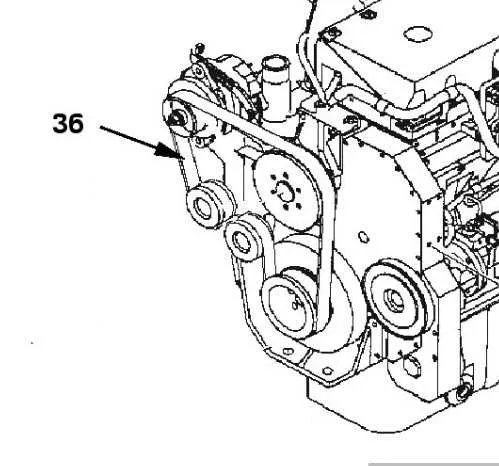

Begin by locating the main belt routing diagram specific to your engine model. This is usually found on the engine’s access cover or in the service manual. Pay close attention to the orientation of the pulleys and the path of the belt. The diagram shows how the belt interacts with the alternator, air compressor, and other accessories, indicating their correct alignment.
Next, observe the direction of the belt’s rotation, which is often indicated with arrows on the diagram. Align the belt according to the direction shown to ensure it moves smoothly without causing excessive wear. Check the specific tension requirements as outlined in the diagram–proper tension is critical to avoid premature wear on both the belt and pulleys.
Inspect each pulley to confirm it’s free from damage or debris. Ensure that each pulley’s grooves align with the belt’s teeth, preventing slippage. The tensioner pulley is a common source of issues; make sure it moves freely and applies the correct pressure to the belt.
If your diagram shows a sequence for installing the belt, follow it step by step. The diagram may specify which pulleys to engage first or which components should be removed to facilitate easier installation.
Lastly, double-check that the belt is seated properly in all grooves before tightening everything down. Once installed, rotate the belt by hand to make sure it runs smoothly along the entire path. A final inspection will help you catch any misalignments or irregularities that could lead to problems down the line.
Common Belt Issues and How to Identify Them Using the ISX Cummins Diagram
If you notice unusual sounds or performance issues in your Cummins ISX engine, it could be due to belt problems. The ISX Cummins diagram offers clear insight into belt routing, helping you identify these issues quickly.
Misalignment is one of the most common issues. If the belts appear to be off-center or unevenly worn, it may indicate that the pulleys are misaligned. Check the diagram for the proper positioning of each component. Misalignment can lead to premature belt wear and even cause the engine to overheat.
Another issue to watch for is belt tension. If the belts seem loose or too tight, the diagram will show you the correct tensioning specifications. Loose belts can slip, causing power loss, while overly tight belts can damage the pulleys or the belt itself.
Belt wear and cracking are signs that the belt needs replacing. The diagram provides a visual reference to ensure the belt is routed correctly and is in good condition. Check for any fraying or visible cracks, which indicate that the belt is no longer functioning properly.
Lastly, listen for squealing or chirping noises. These sounds often suggest belt slippage. Compare the belt’s alignment and condition with the diagram. If you detect these noises even with proper tension and alignment, it could mean the belt is no longer gripping effectively.
Regularly consult the ISX Cummins belt diagram during maintenance to ensure belts remain in top condition, helping prevent unexpected breakdowns and costly repairs.
Step-by-Step Guide for Replacing Belts Based on the ISX Cummins Diagram
To replace the belts in your ISX Cummins engine, follow these steps for a smooth and accurate replacement process.
- Gather Tools and Materials:
- New belts (verify the correct size from the ISX Cummins diagram)
- Socket set and wrenches
- Torque wrench
- Flathead screwdriver
- Belt tension gauge
- Turn off the Engine:
Before starting, ensure the engine is completely shut off. Disconnect the battery to prevent any electrical mishaps during the process.
- Locate the Existing Belts:
Using the ISX Cummins belt diagram, identify all the belts that need replacement. Take note of their routing and position to avoid confusion during installation.
- Release Tension:
Use the wrench or socket to loosen the tensioner pulley. This will make it easier to remove the old belts. Some engines have an automatic tensioner, which you can adjust using the proper tool.
- Remove the Old Belts:
Once the tension is released, slide the belts off the pulleys carefully. Be cautious not to damage other components while removing them.
- Inspect Pulley Alignment:
Before installing the new belts, check that the pulleys are aligned and in good condition. Any misalignment or wear could cause premature belt failure.
- Install the New Belts:
Using the ISX Cummins diagram, route the new belts exactly as shown. Start from the smallest pulley and work your way to the largest. Ensure each belt sits properly in its respective groove.
- Reapply Tension:
Adjust the tensioner pulley to apply the correct tension to the new belts. A belt tension gauge can help ensure proper tension, preventing over-tightening or slack.
- Double-Check Alignment and Tension:
Inspect the belts again to ensure they are seated properly and have the correct tension. Spin the pulleys by hand to check for smooth movement.
- Reconnect the Battery and Test:
Reconnect the battery and start the engine. Observe the belts as the engine runs, ensuring they move smoothly without any noise or slippage. If everything runs smoothly, you’ve successfully replaced the belts!
