Cub Cadet GT1554 Drive Belt Diagram and Maintenance Guide

The Cub Cadet GT1554 is a reliable lawn tractor, but keeping its drive belt system in optimal condition requires understanding its layout and maintenance. The drive belt connects various engine components to power the wheels and mower deck. If you notice any issues with your mower’s performance, the drive belt could be the culprit.

Refer to the drive belt diagram to accurately replace or adjust the belt. The diagram provides a clear visual of the routing, ensuring proper installation and tension. For best results, ensure that the belt is aligned correctly and free of any debris that might affect performance.

Inspect the belt regularly for signs of wear, such as cracks, fraying, or looseness. If any of these issues are found, replace the belt immediately to prevent further damage to the mower’s drive system. Follow the diagram carefully during installation to avoid misalignment, which could lead to premature wear or failure.

Cub Cadet GT1554 Drive Belt Diagram

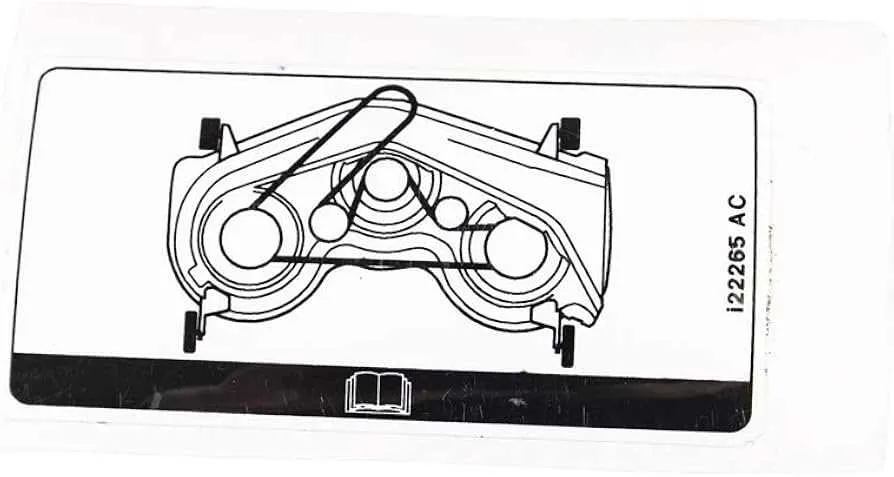

The drive belt diagram for the Cub Cadet GT1554 provides a clear representation of how the various components interact within the mower’s drive system. Follow the diagram to ensure proper belt routing and avoid operational issues. The key parts involved include the engine pulley, transaxle pulley, and idler pulleys.

Start by identifying the engine pulley. The belt should loop around it, passing over the tensioner and idler pulleys before connecting to the transaxle pulley. It’s essential to maintain correct tension on the belt to prevent slippage, which can cause the mower to lose power or functionality.

Ensure the belt is routed through all pulleys as shown in the diagram. Incorrect installation can lead to premature wear or failure. Periodically check the belt for signs of fraying or stretching. If the belt shows wear, replace it promptly to maintain smooth operation.

When replacing the belt, consider the manufacturer’s recommendations on belt type and size. Incorrect dimensions or a low-quality belt may lead to improper functioning of the mower.

Understanding the Routing of the Drive Belt on Cub Cadet GT1554

The drive belt on the Cub Cadet GT1554 is routed in a specific path to ensure optimal functionality and performance. Here’s how to follow the belt’s correct routing:

• The belt starts at the engine’s drive pulley and moves toward the transmission pulley.
• It loops around the tensioner pulley to maintain the proper tightness for smooth operation.
• The belt then continues toward the mower deck, passing through the various pulleys to transfer power effectively.
• It completes its circuit around the idler pulleys before returning to the engine, maintaining continuous motion.

Ensure the routing is precise to prevent issues like belt slippage or wear. Any deviation from the specified path can result in malfunction or reduced efficiency. Always refer to the manufacturer’s diagram for the most accurate route.

When replacing the belt, double-check the routing against the diagram before tightening the pulleys. Incorrect routing can damage both the belt and surrounding components.

Identifying Common Issues with the Drive Belt on Cub Cadet GT1554

If you experience slipping or a decrease in power transfer, the drive belt could be worn or misaligned. Inspect the belt for visible signs of wear, such as cracks or fraying. These are early indicators that the belt may need replacement.

A common issue is improper tension. If the belt is too loose, it won’t engage the pulleys properly, leading to inefficient power delivery. Use a tension gauge to verify if the belt is under tension. Tighten or replace it if necessary.

Another issue arises when the belt is misrouted. Double-check the belt diagram to ensure the routing is correct. Misrouted belts can cause friction, heat buildup, and premature wear.

Friction can also be caused by faulty pulleys. If the pulleys are worn or damaged, they may not allow the belt to move smoothly, leading to noise or inefficiency. Inspect pulleys for any signs of wear or misalignment, and replace them if needed.

Finally, check for any debris lodged in the belt path. Foreign objects can obstruct the belt’s movement, leading to overheating and potential damage. Clean the area around the belt regularly to prevent such issues.

Step-by-Step Guide for Replacing the Drive Belt on Cub Cadet GT1554

To replace the drive belt on your Cub Cadet GT1554, begin by securing the mower on a flat surface. Make sure the engine is off, the ignition is in the “off” position, and the key is removed. This ensures safety throughout the process.

Next, raise the mower deck to its highest setting. This will provide enough space to access the components. Use a wrench to remove the retaining bolts securing the deck. Carefully slide the deck out from under the mower.

Now, locate the drive belt. It will be positioned around the pulleys and should be examined for wear or damage before removal. To remove the old belt, release the tension by loosening the tension spring. Use a wrench to detach the spring from its hook.

With the tension spring detached, slide the belt off the pulleys. Pay attention to the routing of the belt, as it must be replaced in the exact same path. Use a diagram if needed to ensure proper routing.

Take the new drive belt and route it around the pulleys exactly as the old one was positioned. Start with the largest pulley, ensuring the belt is seated correctly in each pulley groove. Ensure the belt isn’t twisted or out of alignment.

After routing the belt, reattach the tension spring to restore the correct tension on the belt. Tighten it securely to avoid slippage.

Reinstall the mower deck, securing it with the bolts removed earlier. Double-check the position of the deck and make sure everything is tightly fastened.

Finally, test the mower by starting the engine and engaging the drive system. Check the belt’s operation to ensure smooth engagement without any slipping or unusual noise.
