6.7 Cummins Serpentine Belt Routing and Diagram Guide

The serpentine belt on a 6.7 Cummins engine plays a critical role in powering several engine accessories, such as the alternator, power steering pump, and air conditioning compressor. Ensuring correct routing of the belt is crucial for proper engine function and to avoid premature wear or damage to the belt and pulleys. If you’re replacing or inspecting the belt, refer to the specific diagram for your engine model to guarantee everything is properly aligned.

Begin by confirming the correct belt length and part number. A mismatched belt can cause tension issues, leading to slipping, premature wear, or even complete failure. Use the diagram to verify the belt routing, paying close attention to the direction of the grooves on the pulleys, as they must align with the corresponding grooves on the belt.

Once the belt is correctly routed, make sure the tensioner is in the proper position and maintaining the required tension. A loose belt can result in poor performance of the accessories, while an overly tight belt may strain the engine components. Regularly inspect the belt for signs of wear such as cracks, fraying, or glazing, and replace it when necessary to avoid costly repairs.

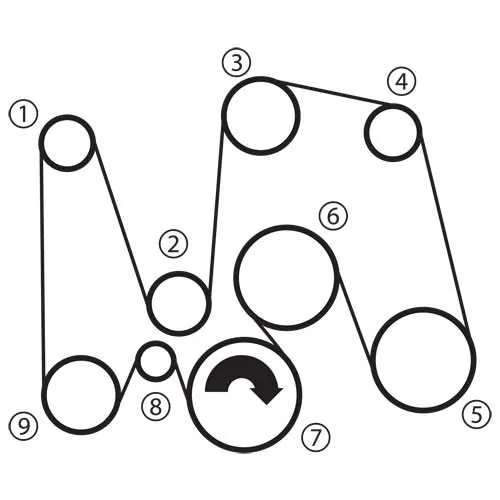

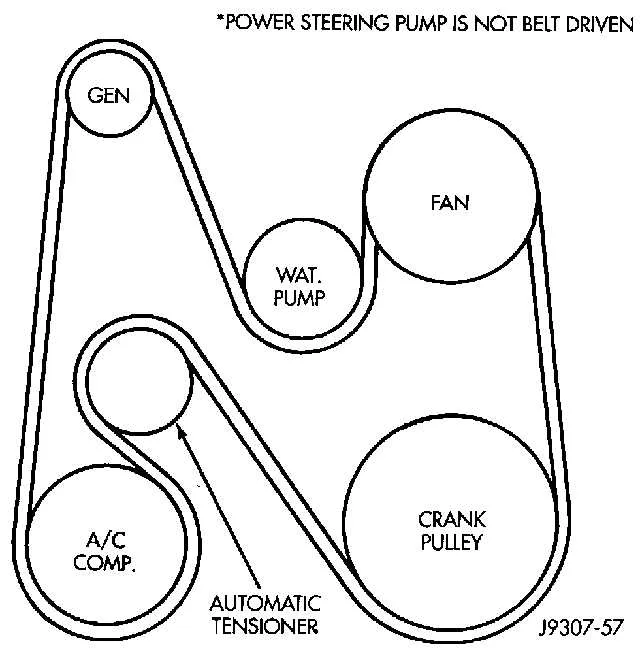

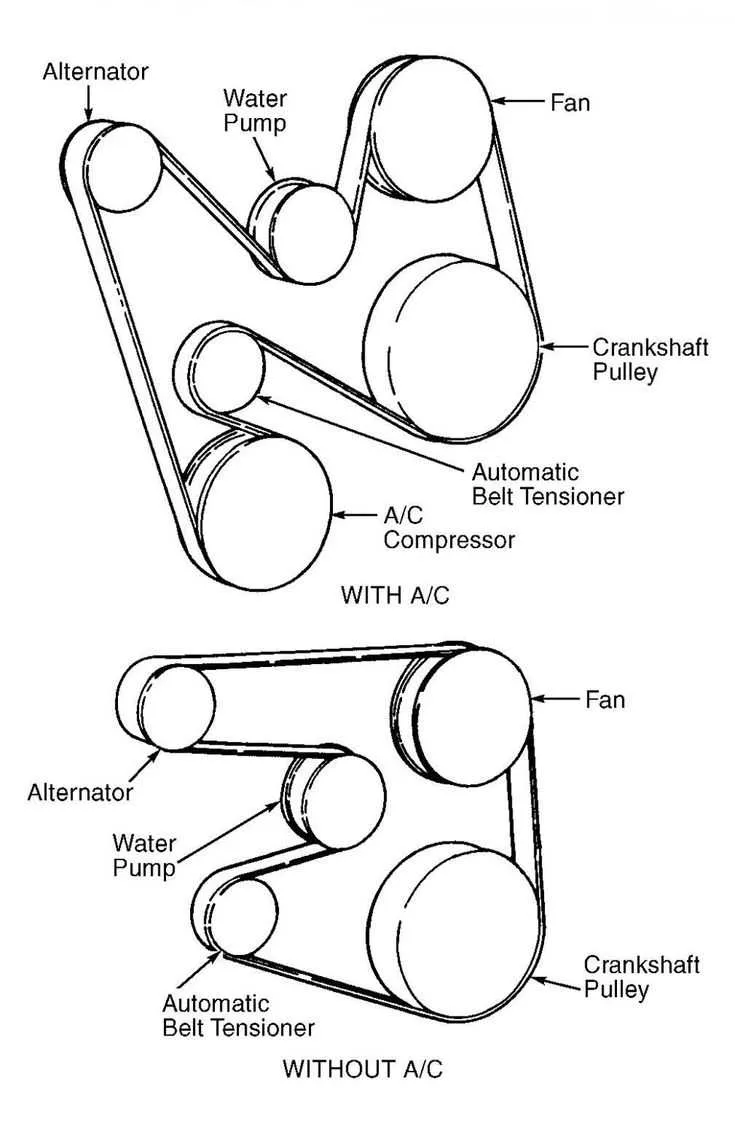

Cummins Serpentine Belt Diagram Routing

To ensure the proper functioning of the 6.7 Cummins engine, it’s important to follow the serpentine belt routing carefully. Start by locating the belt tensioner, which plays a crucial role in keeping the belt tight. The belt should be routed in such a way that it fits over the alternator, power steering pump, air conditioning compressor, and water pump. Make sure the belt runs in the proper sequence to avoid misalignment.

First, position the belt over the alternator pulley. Next, it should pass over the power steering pump pulley, followed by the air conditioning compressor pulley. Ensure that the belt then loops over the crankshaft pulley. Finally, the belt should return to the tensioner, securing a snug fit. Double-check the tensioner’s position and make sure the belt is fully seated in all pulleys without any slack.

It’s important to inspect the diagram to match the specific routing sequence for your vehicle model. Using the incorrect routing can lead to belt slippage or even premature wear. Keep the belt properly aligned and check for any signs of wear and tear, such as fraying or cracks, during regular maintenance.

Understanding the 6.7 Cummins Serpentine Belt Layout

The 6.7 Cummins serpentine belt routing is designed to provide optimal power transfer between the engine components. Start by locating the tensioner pulley, which is key to adjusting the belt’s tightness. The serpentine belt should be routed over the crankshaft pulley, up to the water pump, and across the alternator, ensuring the belt remains tight and in place to avoid slippage.

The most important part of the layout is the alignment. Ensure that the belt loops over the pulleys without twisting, as misalignment can lead to wear and damage. The correct tension is necessary to avoid excessive wear on the bearings of components like the alternator and power steering pump.

When working on the 6.7 Cummins engine, always verify the belt’s direction, as some pulleys are directional. For example, the idler pulley must be positioned correctly to maintain the right alignment and keep the belt from slipping off. Pay close attention to the routing diagram available on the engine compartment label to avoid common mistakes.

If you are replacing the serpentine belt, make sure it matches the exact specifications of the original. Incorrect belt sizes or improper routing can cause premature failure or inefficient engine performance. Regular inspection of the belt is also advised to ensure no visible cracks or wear signs appear.

For those performing maintenance, remember to check the condition of all pulleys and tensioners. Any damaged or worn components should be replaced to maintain the proper belt tension and ensure smooth operation.

How to Properly Route the Serpentine Belt on a 6.7 Cummins

Start by ensuring the engine is off and the belt tensioner is released. Use a serpentine belt tool to loosen the tensioner and remove the old belt if necessary.

Inspect the belt for wear or damage before installing a new one. Lay the new serpentine belt on the engine, aligning it with the pulleys according to the 6.7 Cummins routing diagram. Ensure it fits properly in the grooves of each pulley, especially around the crankshaft and water pump pulleys.

Begin routing the belt from the crankshaft pulley, passing it over the alternator, AC compressor, and other components as shown in the diagram. Ensure the belt is properly positioned on each pulley without any twists or misalignments.

Once the belt is routed, check that it aligns correctly with the pulleys. Then, use the serpentine belt tool to re-engage the tensioner, securing the belt in place. Double-check the belt’s position on all pulleys before starting the engine to verify it is properly routed.

Start the engine and observe the belt’s operation to ensure there is no slipping or noise. If the belt runs smoothly, the installation is complete.

Troubleshooting Common Serpentine Belt Routing Issues

If the serpentine belt is not routed correctly, it can lead to poor engine performance and potential damage. Follow these steps to troubleshoot common issues.

• Misalignment of Pulley: Check if the belt runs smoothly over all pulleys. A misaligned pulley could cause the belt to slip or wear out quickly. Ensure that each pulley is properly positioned and free of debris.
• Incorrect Routing Path: Verify that the belt follows the correct path as per the 6.7 Cummins diagram. Incorrect routing can cause the belt to bypass essential components like the alternator or water pump, leading to mechanical failures.
• Belt Tension: Inspect the tension of the belt. Too loose or too tight can both lead to performance issues. Use a belt tension gauge to ensure it is within the recommended range.
• Worn or Damaged Belt: Check the belt for any signs of cracking, fraying, or glazing. A worn belt may slip off or fail to transmit power efficiently. Replace any damaged belt immediately.
• Obstructions or Foreign Objects: Ensure that there are no foreign objects obstructing the belt’s path. Even small debris can prevent the belt from routing correctly, leading to potential damage or failure.
• Failed Tensioner or Pulley: Inspect the tensioner and pulleys for wear. A faulty tensioner can cause the belt to lose tension, resulting in slippage or misalignment. If any of these components are worn out, replace them to restore proper functionality.

Addressing these issues promptly will ensure the serpentine belt operates correctly, preventing potential damage to your engine components.
