Complete Craftsman T240 Belt Diagram for Accurate Installation and Maintenance
Follow the Craftsman T240 belt diagram to ensure correct routing for both the mower deck and transmission belts. Misaligned belts can cause slipping, uneven blade rotation, and accelerated wear on pulleys.
Verify the tension of each belt before operation. The main drive belt should have firm contact across all pulleys without sagging, while the deck belt must maintain consistent tension on all idlers to prevent vibration and noise during mowing.
Use the diagram to locate every pulley, idler, and belt path. Inspect pulleys for damage or debris before fitting a new belt. Mark the routing with a temporary guide if needed to simplify installation and maintain smooth, reliable mower performance.
Comprehensive Craftsman T240 Belt Diagram and Installation Guide
Refer to the Craftsman T240 belt diagram to identify each pulley, idler, and tensioner before beginning installation. Correct routing prevents slippage and premature wear.
Follow these steps for precise installation:
- Ensure the engine is off and the spark plug wire is disconnected.
- Remove the mower deck to access the belt path clearly.

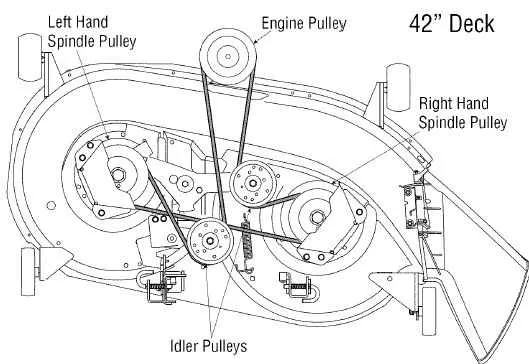

- Locate the crankshaft pulley, deck pulleys, and idler pulleys as shown in the diagram.
- Route the belt around the pulleys according to the diagram, keeping the ribbed side against ribbed pulleys.
- Check that the belt sits properly in all pulley grooves and passes under the correct tensioners.
- Reconnect the deck and adjust the belt tension by moving the idler pulley arm to the correct position.
- Rotate the pulleys by hand to confirm smooth movement without interference.
- Reconnect the spark plug wire and start the engine to verify proper engagement of the belt with all components.
Maintain the belt regularly by inspecting for cracks, fraying, and glazing. Replace immediately if any damage appears. Proper tension is achieved when the belt deflects about 1/2 inch under moderate thumb pressure on the longest span.
- Do not twist or flip the belt during installation.
- Ensure all pulleys rotate freely and bearings are lubricated.
- Keep the deck clean to avoid debris interfering with belt operation.
Following the diagram accurately reduces vibration, prevents slippage, and extends the life of both the belt and pulleys.
Identifying All Belts and Pulleys on Craftsman T240
Locate the main engine belt first; it runs from the crankshaft pulley to the alternator and mower deck engagement pulley. Check for the tensioner pulley on the right side of the engine, which maintains proper belt tension. Identify the mower deck belt, looping around the deck spindles and connecting to the engine pulley via the idler pulley. Observe the steering pump pulley if equipped; it sits at the front of the engine and connects with the small accessory belt. Inspect the idler pulleys along the belt path, noting their positions relative to the tensioner and deck spindles. Verify the condition of each pulley, ensuring bearings rotate smoothly and alignment matches the belt routing diagram. Trace the routing visually and confirm that each belt follows the designated path without twisting or rubbing against frame components.
Step-by-Step Belt Routing for Accurate Replacement
Begin by placing the Craftsman T240 on a flat surface and engaging the parking brake. Remove the mower deck to access all pulleys and belt paths. Identify the deck drive belt, engine crankshaft pulley, tensioner pulley, and idler pulleys before starting installation.
Route the new belt around the engine crankshaft pulley first, ensuring it sits fully in the groove. Next, loop the belt around the tensioner pulley, keeping the tensioner in the released position. Confirm the belt aligns with the correct side of the pulley to prevent slipping.
Guide the belt along the idler pulleys, following the factory diagram for the correct path. Make sure the belt wraps around each pulley with proper contact and no twists. Pay attention to the mower deck pulleys, ensuring the belt forms the correct angles for smooth rotation.
Once the belt is fully routed, slowly release the tensioner, allowing it to apply pressure to maintain proper tension. Rotate the engine crankshaft pulley by hand to verify the belt moves smoothly across all pulleys. Check alignment and adjust as needed before lowering the deck and testing under power.
Maintain clean pulley surfaces and inspect the belt for any damage during installation. Proper routing ensures longer belt life, prevents slipping, and maintains consistent deck performance.
Troubleshooting Common Belt Alignment and Tension Issues
Check the belt for proper seating on all pulleys; misalignment often causes uneven wear and squealing. Use a straightedge along the pulley faces to confirm alignment and adjust the idler or tensioner pulleys as needed.
Inspect the tension by pressing the belt at the midpoint of the longest span. For the Craftsman T240, the belt should deflect approximately 1/2 inch under moderate thumb pressure. Adjust the tensioner or reposition the belt to maintain this specification.
Look for fraying, cracks, or glazing on the belt surface. Replace any belt showing significant wear, as compromised belts can slip or damage pulleys.
Ensure pulleys rotate freely without wobbling. Tighten loose bolts and check bearings, as pulley misalignment can mimic belt tension issues.
After adjustments, run the mower and observe the belt while engaged. Listen for squealing and watch for lateral movement. Recheck tension after a short test to confirm stability.
