Chrysler 3.6 Belt Diagram and Engine Layout Explained

To ensure proper operation of your Chrysler 3.6 engine, understanding the belt routing diagram is key. It shows how each belt is connected to various engine components like the alternator, power steering pump, and air conditioning compressor. For accurate replacement or inspection, it’s important to follow the exact layout as specified in the diagram.

The Chrysler 3.6 belt diagram typically includes two main belts: the serpentine belt and the timing belt. The serpentine belt powers multiple accessories and runs around various pulleys. The timing belt controls the timing of the engine’s internal components. If one of these belts becomes misaligned or worn out, it could lead to serious engine damage or failure.

When replacing the belts, double-check their routing by using the diagram to avoid mistakes. Ensure the tension is just right to prevent slippage, which can cause premature wear or damage to components. This diagram is crucial for any DIY repairs or maintenance tasks, helping to keep the engine running smoothly and efficiently.

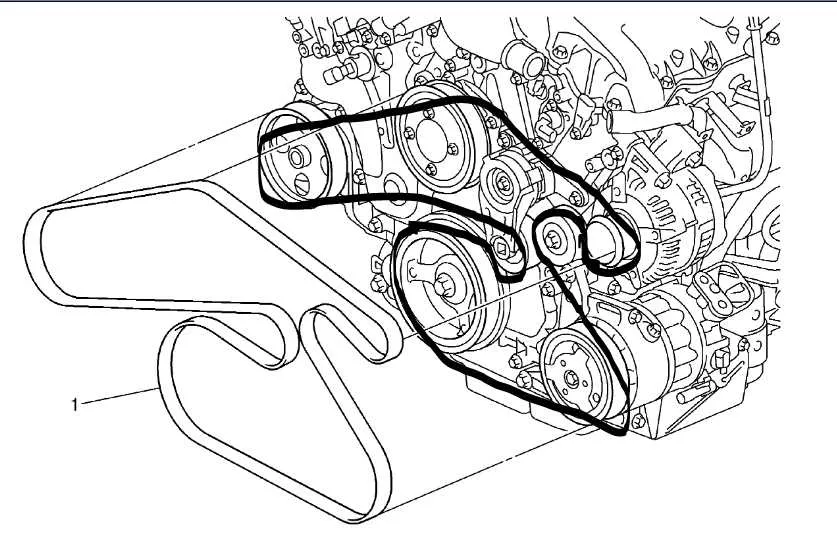

Chrysler 3.6 Belt Diagram

The Chrysler 3.6 engine uses a serpentine belt system that powers various components, including the alternator, power steering pump, air conditioning compressor, and water pump. It’s important to follow the correct routing to avoid damage or failure of the engine’s systems. Here’s how to ensure the belt is routed correctly:

• Locate the Belt Tensioner: The tensioner is spring-loaded and is responsible for keeping the belt tight. You’ll need a wrench or ratchet to move the tensioner and release tension before replacing or adjusting the belt.
• Observe the Belt Routing: The serpentine belt should loop around key components. Start at the crankshaft pulley, route the belt over the water pump, and around the alternator. Ensure it goes over the idler pulley and around the power steering pump and air conditioning compressor.
• Check the Belt’s Direction: Make sure the ribs of the belt face the grooves of the pulleys. If installed incorrectly, the belt could slip off or wear down faster.
• Verify Proper Tension: After routing the belt, ensure it’s properly tensioned. If the belt is too loose, it could lead to slipping and component damage. If it’s too tight, it could cause strain on the pulleys and the tensioner.
• Inspect for Wear: Regularly check the belt for cracks, fraying, or glazing. A worn belt should be replaced to avoid further engine damage.

Make sure to refer to the Chrysler 3.6 service manual for specific belt routing diagrams and tension specifications for your model year. This will help you avoid any missteps during replacement or adjustment.

Step-by-Step Guide to Understanding the Chrysler 3.6 Serpentine Belt Layout

Inspect the serpentine belt layout by locating the belt routing diagram on the engine cover or in the owner’s manual. The diagram shows the path the belt follows around the pulleys.

Start at the crankshaft pulley. The belt loops around this first, passing toward the alternator and power steering pump. Ensure the belt sits properly on each pulley, following the specific route as indicated in the diagram.

Check the position of the tensioner. Release tension from the belt by using a wrench or socket on the tensioner pulley. This will allow you to remove the belt safely.

When installing the new belt, make sure the belt is aligned with all the pulleys and is correctly positioned in each groove. The tensioner should hold the belt tight once it’s back in place. Double-check that everything aligns as per the routing diagram to avoid misplacement.

After installation, manually rotate the engine or check the belt’s movement to ensure smooth operation. The belt should run evenly and without slippage.

Inspect the belt regularly for signs of wear, such as cracking or fraying. Replace the belt as needed, typically between 60,000 and 100,000 miles, depending on usage.

Common Issues with Chrysler 3.6 Belt and How to Diagnose Them

If you hear a squealing noise coming from the engine or notice the engine running rough, it may indicate a problem with the serpentine belt or its components. First, inspect the belt for wear. Cracks, fraying, or glazing are signs that the belt needs replacement. If the belt is intact but still causing noise, the issue could be a misaligned pulley or a faulty tensioner.

Another common issue is belt slippage. This occurs when the belt fails to grip the pulleys properly, often due to improper tension. You can check the tensioner by manually applying pressure to it. If it doesn’t move smoothly or returns slowly, it may need to be replaced. Sometimes, the issue lies with the pulleys themselves. Inspect them for damage or unusual wear, especially on the harmonic balancer and idler pulleys.

Engine overheating can also be related to a failing serpentine belt. The belt drives the water pump, so if the belt is loose or broken, the pump may stop working, leading to cooling issues. Check the water pump’s function and confirm the belt is securely driving the component.

To diagnose a loose belt, check for any visible play or tension loss by pressing down on the belt. There should be minimal movement. If the belt moves excessively, the tensioner or pulley system may be faulty. For pulley misalignment, use a laser tool or a straightedge to verify that all pulleys are in line.

Regularly inspect the entire system to avoid these issues. Replacing the belt at regular intervals is a good preventative measure, but also monitor the belt’s performance. If you notice any unusual sounds or vibrations, don’t wait–address the problem immediately to avoid further engine damage.

Replacing the Serpentine Belt on a Chrysler 3.6: A Practical Approach

Before beginning, gather all necessary tools: a new serpentine belt, a wrench set, a socket set, and a serpentine belt tool or a long-handled ratchet. Double-check the routing diagram for your model year to avoid any confusion during installation.

Start by relieving tension from the serpentine belt. Use the serpentine belt tool or a ratchet with the correct socket to rotate the tensioner pulley counterclockwise. Once the tension is released, slide the belt off the pulleys.

Inspect the old belt for wear, cracks, or fraying. This will give you an idea of what to look out for when replacing the belt. Compare the new belt with the old one to ensure they match in size and shape.

Route the new belt according to the diagram. Pay attention to pulley alignment and ensure the belt is seated correctly in each groove. Once the belt is in place, rotate the tensioner pulley again to allow the belt to slip over it. Ensure the belt has proper tension by pressing down on it with your thumb; it should give slightly but not feel loose.

Double-check the belt routing before starting the engine. Start the engine and observe the belt’s operation. Listen for any unusual sounds, and visually inspect the belt for proper tracking. If everything looks good, you’re done.
