Cub Cadet ZT1 54 Drive Belt Diagram and Installation Guide
Replacing or repairing the drive belt on your Cub Cadet ZT1 54 can be a straightforward task if you have the correct diagram. This guide will provide the exact layout of the drive belt system, making it easier to troubleshoot and replace the belt efficiently. Use this diagram as your go-to reference to save time and avoid unnecessary mistakes during the replacement process.
Understanding the belt routing is key to a successful installation. The Cub Cadet ZT1 54 features a unique setup, where the belt must be routed through various pulleys to ensure proper tension and functionality. Following the diagram precisely ensures your mower operates as intended, preventing further mechanical issues down the line.
Take note of the specific pulley orientations and belt placement as shown in the diagram. Missing any step can lead to belt slippage or damage. By adhering to the recommended routing, you can extend the lifespan of both the belt and other critical components of your mower.
Whether you’re replacing a worn-out belt or performing regular maintenance, this diagram will guide you through the process, ensuring that your mower is back to optimal performance quickly.
Cub Cadet ZT1 54 Drive Belt Diagram
The Cub Cadet ZT1 54 uses a specific drive belt setup to ensure smooth operation of the mower. If you’re looking to replace or adjust the belt, refer to the diagram below for accurate routing.
To properly install the drive belt, follow these steps:
- Lift the mower deck using the lift lever to access the drive components.
- Remove the deck by loosening the bolts and sliding it out from beneath the mower.
- Locate the tensioner and idler pulleys. These components keep the belt under the correct tension.
- Unhook the belt from the pulleys and remove it carefully. Note the direction and path for reinstalling.
- Place the new belt around the pulleys, ensuring it follows the exact routing shown in the diagram. The belt must be positioned correctly to avoid slippage or premature wear.
- Reattach the mower deck and adjust the tension as necessary by checking the belt’s alignment.
- Test the mower by running it for a few minutes, ensuring the belt operates smoothly and does not slip.
For reference, the belt’s path generally includes the following components:
- Main drive pulley on the engine
- Idler pulleys for maintaining belt tension
- Deck spindles that connect to the cutting blades
Double-check the belt’s routing and tension before starting the mower to avoid damaging the components or reducing the belt’s lifespan.
Understanding the Drive Belt Layout for Cub Cadet ZT1 54
To replace or inspect the drive belt on a Cub Cadet ZT1 54, it’s vital to understand the belt layout. The drive belt powers the mower’s transmission system, ensuring smooth movement of the mower deck and wheels. The belt routing for this model involves several key components that must be in their correct positions for the mower to function properly.

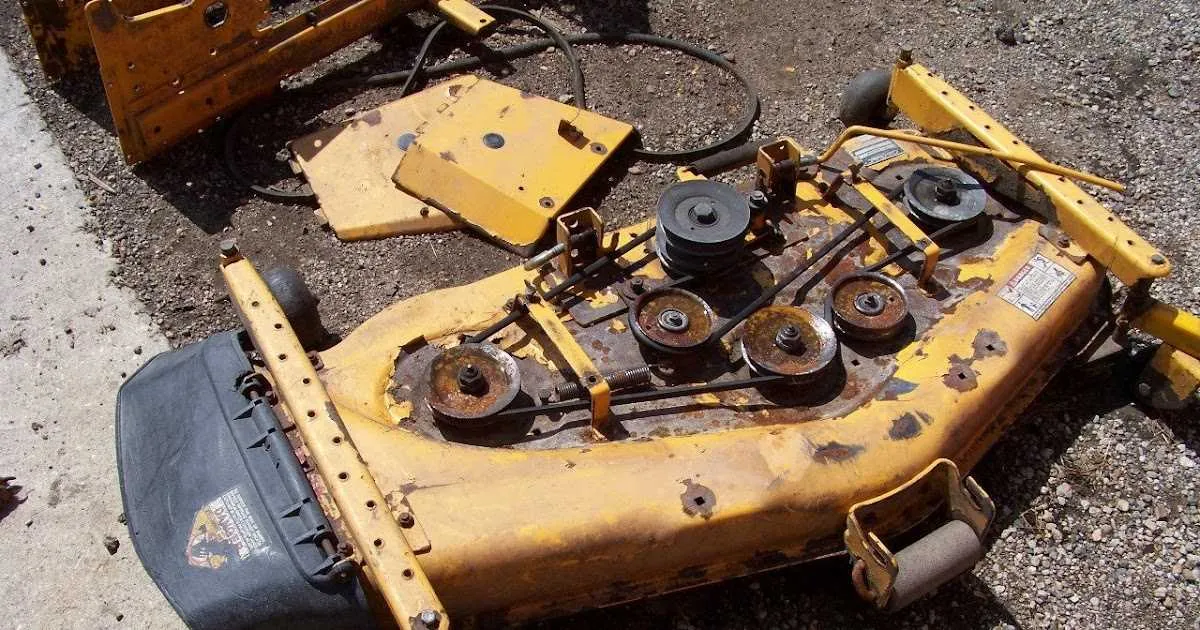

The belt begins at the engine pulley, travels along a series of idler pulleys, and loops around the deck pulleys. The path ensures that power is delivered to both the transmission and the cutting deck. Pay close attention to the routing diagram found in the owner’s manual to avoid any missteps during reassembly. The drive belt needs to maintain consistent tension across all pulleys to operate smoothly.
It’s crucial to ensure the belt is correctly positioned on the tensioner pulley. Misalignment can lead to slipping, causing the belt to wear out prematurely. Check for any signs of wear, such as fraying or cracking, which could indicate the belt needs replacement. A loose or damaged belt will affect the mower’s performance, causing it to struggle with speed or cut quality.
When reinstalling the belt, make sure it runs freely without binding or twisting. Each pulley should rotate without obstruction to avoid strain on the belt and other components. Regular maintenance, including cleaning the pulleys of any debris, will also extend the life of the drive belt and ensure the system remains in top condition.
Steps to Replace the Drive Belt on Cub Cadet ZT1 54
1. Lift the Mower – Use a jack to raise the mower securely. Ensure the front wheels are off the ground to provide easy access to the belt area.
2. Disconnect the Battery – Disconnect the negative terminal to prevent any accidental starts while working on the machine.
3. Remove the Deck – Remove the deck to access the drive belt. This typically involves detaching the belt from the pulleys and removing the deck pins. Make sure to note the position of the belt for reinstallation.
4. Release Tension on the Belt – Locate the tensioner pulley and relieve its pressure by either loosening the bolt or sliding the pulley off its track. This will allow you to remove the belt without resistance.
5. Remove the Old Belt – Once the tension is released, remove the old belt from the pulleys. Take note of its routing and the specific pulleys it connects to for correct installation of the new one.
6. Install the New Belt – Install the new belt following the exact routing of the old one. Make sure it sits properly on all pulleys and the tensioner pulley is in the correct position.
7. Reassemble the Mower – Reattach the mower deck, ensuring the belt is properly aligned. Tighten any bolts and secure all pins that were removed earlier.
8. Test the Mower – Reconnect the battery and test the mower. Engage the drive system and ensure the belt operates smoothly without slipping or making excessive noise.
Common Issues with Drive Belts on Cub Cadet ZT1 54 and How to Fix Them
If the drive belt on your Cub Cadet ZT1 54 is slipping, breaking, or causing irregular mower performance, it’s likely one of these common issues. Let’s go through the most frequent problems and their solutions.
1. Belt Slipping
Belt slippage is a frequent problem, especially if the belt is loose or improperly tensioned. Inspect the tensioner spring and ensure it’s functioning correctly. If the spring is worn or damaged, replace it. Also, check for any debris on the pulleys and remove it. A clean, well-tensioned belt will function more effectively and prevent slipping.
2. Frayed or Worn Belt
A frayed or cracked belt often results from consistent wear and tear or running the mower with debris caught in the system. Examine the belt for visible damage like cuts or fraying. If you find any, replace the belt. Make sure you use the correct replacement, as an incorrect belt size or type will not fit properly and can lead to more issues down the line.
3. Misaligned Pulleys
Misalignment of the pulleys can lead to uneven wear and cause the belt to move off-track. Inspect the pulleys to ensure they are aligned properly. Use a level to check the pulley shafts and correct any misalignment by adjusting the mounting bolts. If a pulley is worn out, replace it before reinstalling the belt.
4. Incorrect Installation
Improper installation of the belt can cause it to slip or wear out prematurely. Always refer to the manufacturer’s manual for proper routing and tension. Pay attention to the direction of the pulleys and make sure the belt is threaded correctly. If unsure, reinstall the belt following the exact path and ensure it’s seated properly on each pulley.
5. Debris and Dirt
Accumulated dirt and debris on the belt or pulleys can hinder the belt’s performance. Clean the area around the belt regularly to prevent build-up. Also, check for any foreign objects caught between the belt and pulleys, which can cause friction and wear.
Maintaining your Cub Cadet ZT1 54’s drive belt involves regular inspections and cleaning. Addressing issues like slippage, misalignment, or wear early can prevent more significant problems, saving you time and money on repairs.
