2014 Chrysler 300 5.7 Belt Routing and Diagram Guide
When replacing or inspecting the serpentine belt on your 2014 Chrysler 300 5.7, follow the exact routing specified for optimal engine performance. The belt plays a key role in driving the alternator, power steering pump, air conditioning compressor, and other essential components.
Ensure that the belt follows the correct path outlined in the diagram to prevent premature wear or damage. The serpentine belt should be routed through the various pulleys in a specific order, which guarantees smooth operation of these systems.
If you’re replacing the belt, check for any signs of wear such as cracks or fraying. Replace the belt at regular intervals as recommended by the manufacturer to avoid engine issues. Additionally, always inspect the pulleys for damage, ensuring they align with the new belt for a secure fit.
For an accurate replacement process, use the belt tensioner to release pressure before removing the old belt and install the new one. Double-check the diagram before tightening the tensioner to ensure everything is correctly positioned.
2014 Chrysler 300 5.7 Belt Diagram

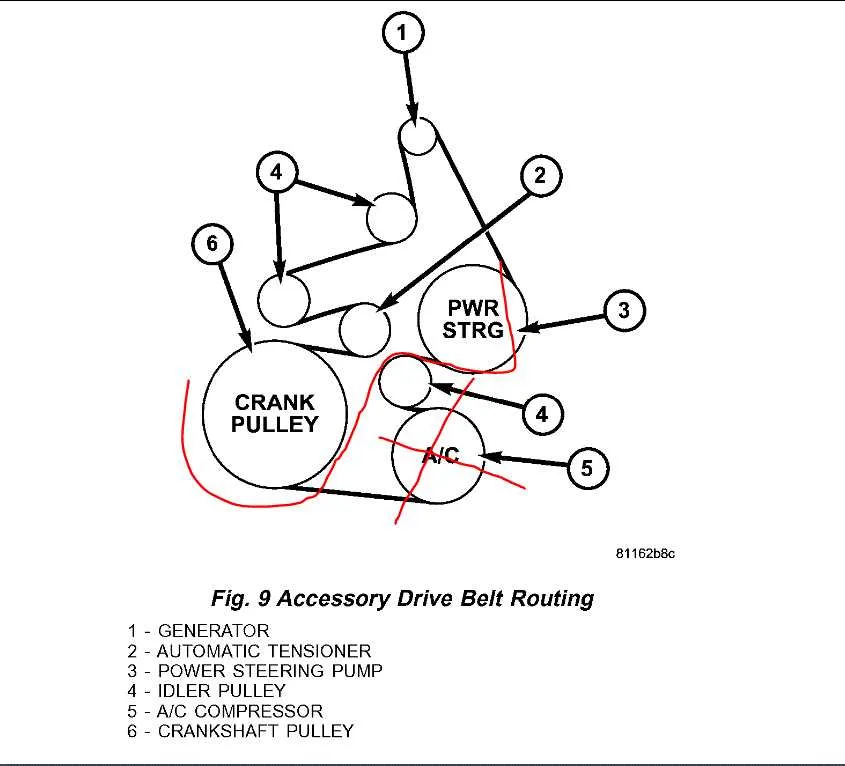

For the 2014 Chrysler 300 5.7, the serpentine belt is a critical component responsible for driving several essential accessories, such as the alternator, power steering pump, and air conditioning compressor. Correct installation and routing are crucial to avoid malfunction or damage. Below is the specific belt routing for the 5.7L engine:
The serpentine belt starts at the crankshaft pulley, running to the tensioner pulley. From there, it loops around the alternator and water pump pulleys. The belt then moves towards the power steering pump and finally around the A/C compressor pulley. Ensure the belt is routed correctly to avoid slipping or misalignment, which could lead to wear or failure.
Before installing the new belt, check the condition of the tensioner. If it’s worn, replace it to ensure proper tensioning of the belt. The belt should sit evenly in the grooves of the pulleys with minimal slack. When tightening, be sure to use the proper tool to release tension from the tensioner and allow for smooth belt installation.
It’s also important to ensure that the belt has the correct length and rib count as specified for the 2014 Chrysler 300 5.7 model. Using a belt of the wrong size could result in improper fitment, causing it to slip off or wear prematurely.
How to Read the Belt Diagram for 2014 Chrysler 300 5.7
First, locate the diagram in your vehicle’s manual or under the hood. This diagram shows the exact path the serpentine belt follows around the pulleys. Begin by identifying the main components: the alternator, power steering pump, water pump, and air conditioning compressor.
Check the rotation direction arrows to ensure the belt moves in the correct direction around the pulleys. The diagram usually includes these arrows to show the proper movement. Verify that the belt follows this exact route, without any twists or misalignments.
Next, observe how the tensioner pulley works. The tensioner maintains the right amount of tension on the belt to prevent slipping. Make sure it is in the correct position relative to the other pulleys, as shown in the diagram.
Examine the position of the idler pulleys and any accessories connected to the belt. If there is a specific order for the components, the diagram will help you place each one in the correct spot. It’s critical to follow the diagram precisely to avoid any damage or malfunction.
Lastly, double-check the number of ribs on the belt. A mismatch in the belt type can lead to improper function. Ensure the belt shown in the diagram matches the specifications for your 2014 Chrysler 300 5.7.
Step-by-Step Guide to Replacing the Serpentine Belt on 2014 Chrysler 300 5.7
1. Disconnect the battery. Begin by removing the negative terminal to avoid any electrical accidents.
2. Locate the serpentine belt. It’s on the front of the engine, running over multiple pulleys. Identify its path to ensure proper reinstallation.
3. Use a wrench on the tensioner. Position the wrench on the tensioner pulley and rotate it to relieve tension from the belt.
4. Remove the belt. Once the tension is released, carefully slip the belt off the pulleys. Make note of its routing for reference when installing the new belt.

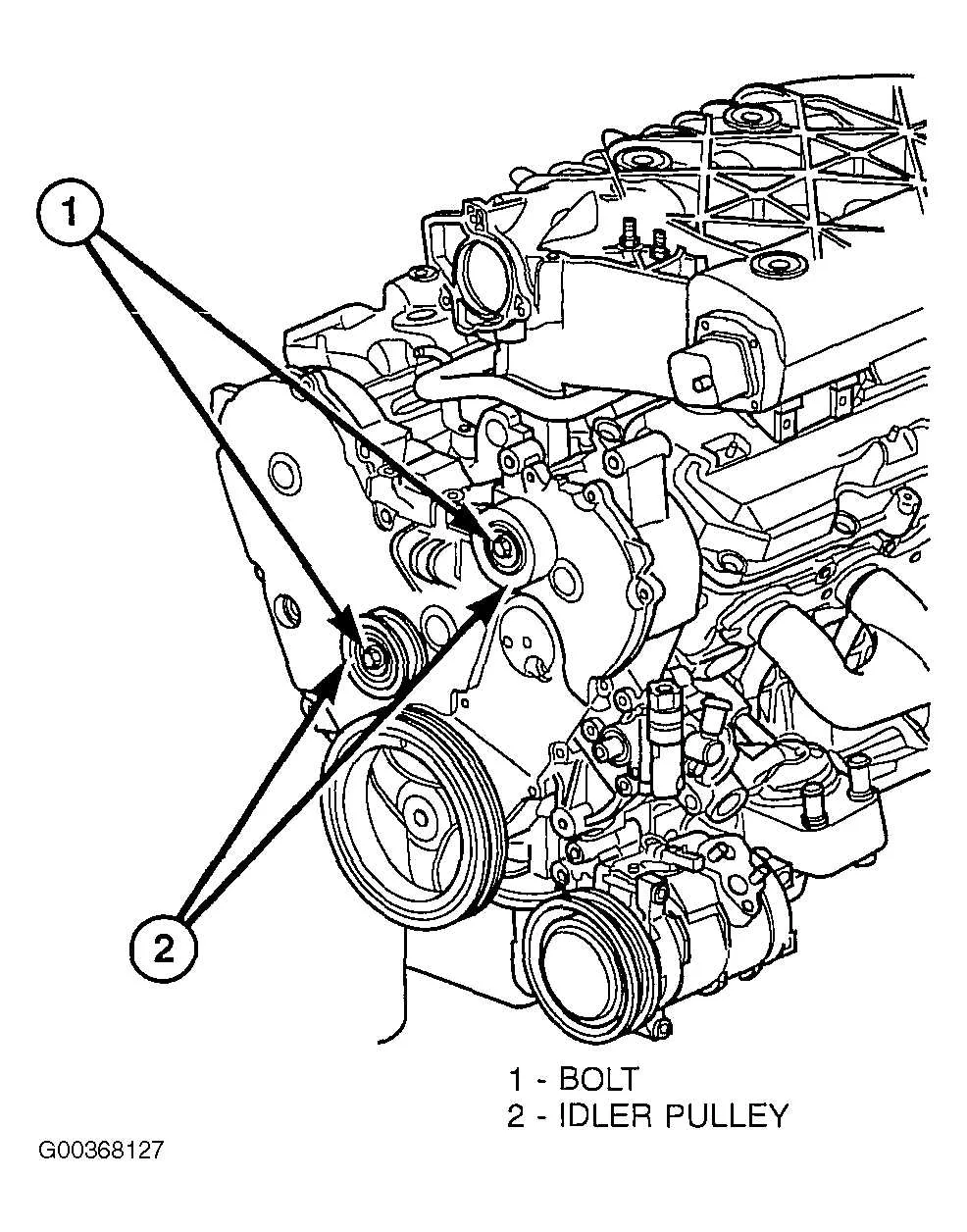

5. Inspect components. Check the pulleys, tensioner, and idler pulley for wear or damage. Replace any parts that seem compromised.
6. Install the new belt. Position the new belt over the pulleys following the routing diagram, ensuring it’s properly aligned on each pulley.
7. Reapply tension. Rotate the tensioner pulley again to allow the belt to slip into place and then release the tensioner to tighten the belt.
8. Reconnect the battery. Secure the negative terminal back to the battery, ensuring a proper connection.
9. Test the installation. Start the engine and check for proper belt alignment and any unusual noises indicating incorrect installation.
Common Belt Issues on 2014 Chrysler 300 5.7 and How to Fix Them
Worn serpentine belts can cause various issues, such as squeaking or slipping, which can affect your vehicle’s performance. Inspect the belt for signs of cracks, fraying, or glazing. Replace it if these signs are visible.
If the belt is misaligned, check the tensioner and pulleys. A faulty tensioner can cause the belt to slip, leading to poor engine performance. Replace the tensioner if it’s not providing adequate tension.
Noisy belts often indicate that the pulleys or belt are in poor condition. If the belt appears worn, replacing it will solve the issue. Ensure all pulleys are in good condition, with no rust or wear on their surfaces.
For a more efficient repair, always use OEM replacement belts and parts. After replacing the belt, ensure it’s routed correctly to avoid further damage. A correct belt routing ensures the smooth operation of all engine components.
If you experience electrical issues or the alternator isn’t charging properly, check the serpentine belt for proper tension. If the alternator belt is loose or worn, replace it immediately to prevent further damage.
