2014 Chevy Malibu Serpentine Belt Routing and Diagram for Engine Components
Use the belt routing diagram located under the hood or in the owner’s manual to replace or inspect the serpentine belt on a 2014 Chevy Malibu. Following the diagram ensures correct tension on the alternator, power steering pump, and air conditioning compressor.
The 2.5L and 2.0L turbo engines have different belt paths. For the 2.5L, the belt wraps around the crankshaft pulley, idler pulleys, and alternator in a clockwise pattern. The 2.0L turbo adds a tensioner near the water pump, requiring careful alignment during installation.
Check all pulleys for wear before installing a new belt. Replace any with visible grooves or wobble to prevent premature belt failure. Use a 3/8-inch ratchet on the tensioner to loosen the belt and guide it along the correct path, following the diagram closely.
Keep a printed or visual copy of the belt diagram on hand during maintenance. This prevents misrouting, which can cause engine noise, overheating, or battery charging issues. Verify each pulley rotation after installation to ensure smooth operation.
2014 Chevy Malibu Belt Diagram Guide

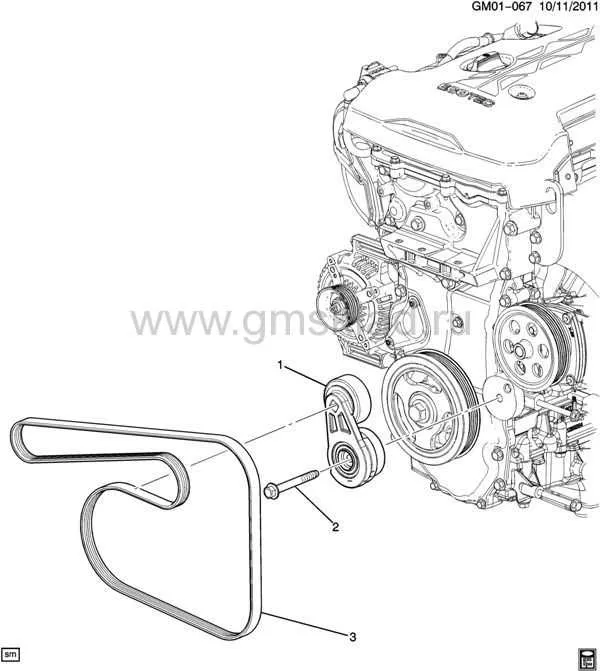

Locate the serpentine belt routing diagram on the driver’s side of the engine compartment or inside the hood panel. For the 2.5L 2014 Chevy Malibu, the belt wraps around the crankshaft pulley, alternator, water pump, power steering pump, and A/C compressor in a clockwise pattern. Follow the diagram carefully to match the exact pulley sequence and avoid misalignment.

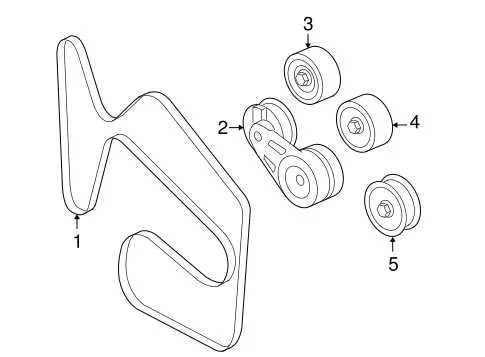

Use a wrench to release tension from the belt tensioner before removing the old belt. Check each pulley for wear or damage, especially the idler and tensioner pulleys, as they can affect belt performance. Replace any worn components before installing the new belt.
Align the new belt according to the diagram, ensuring all grooves fit snugly on the pulleys. Rotate the engine manually by the crankshaft bolt for a few turns to verify correct alignment and tension. Confirm the belt sits properly on each pulley and that the tensioner maintains appropriate tension without slipping.
After installation, start the engine and observe the belt operation for at least a minute. Listen for unusual noises and watch for smooth movement. Adjust the belt if it shows signs of misalignment or unusual vibration. Keep the diagram accessible for future maintenance checks or replacement cycles.
Identifying the Serpentine Belt Routing for 2014 Chevy Malibu
Locate the serpentine belt by first opening the hood and positioning yourself in front of the engine. Identify the alternator, power steering pump, water pump, and crankshaft pulley, as these components dictate the belt’s path. The belt wraps around the crankshaft pulley at the bottom, moves upward around the alternator on the passenger side, then routes over the tensioner pulley before looping around the power steering pump. Follow the path to the water pump and the A/C compressor, completing the loop back to the crankshaft. Check for a belt routing diagram sticker on the radiator support or under the hood; this diagram matches your engine configuration and shows exact pulley sequence. Ensure the tensioner maintains proper belt tension by pressing lightly with a wrench to confirm movement. Inspect each pulley for wear or misalignment while tracing the belt path, adjusting the routing if any deviation appears. Keeping the belt aligned reduces noise and prevents premature wear on both the belt and accessories.
Troubleshooting Common Belt Issues and Noises
Inspect the serpentine belt for visible cracks, fraying, or glazing along the ribs. A worn belt often produces a high-pitched squeal, especially during cold starts or heavy acceleration. Use a flashlight to check the tensioner and pulleys for proper alignment; misaligned pulleys create uneven wear and unusual vibrations. Spray a small amount of water on the belt while the engine is running–squealing that stops indicates slipping caused by insufficient tension or contamination.
Replace any belt that shows more than three cracks per inch or noticeable chunks missing from the ribs. Tighten the tensioner according to the specifications in the 2014 Chevy Malibu belt diagram, ensuring 1/4 inch of deflection under moderate finger pressure. Listen for chirping near the alternator, water pump, or AC compressor, as isolated noises often point to a single pulley bearing failing rather than the belt itself.
Use a pry bar to rotate pulleys slowly and feel for rough spots or binding. If any pulley spins unevenly or produces a grinding noise, remove and replace it immediately. Apply a belt dressing only if the belt surface is contaminated with oil or coolant, as overuse can accelerate wear. Recheck belt routing after every replacement against the official diagram to avoid tension issues that lead to early failure or accessory damage.
