2008 Chevy Silverado Serpentine Belt Routing and Diagram Guide

If you need to replace or inspect the serpentine belt on your 2008 Chevy Silverado, the belt diagram is a critical reference. This diagram shows the exact routing of the belt, ensuring all accessories like the alternator, power steering pump, and air conditioning compressor are correctly powered. A clear diagram makes the process easier, preventing mistakes and saving time during the repair or maintenance.

The 2008 Chevy Silverado uses a serpentine belt system, which drives several components with a single continuous belt. The diagram outlines the path the belt takes over the pulleys and tensioners. It’s important to check the condition of the belt and ensure the tension is correct. If the belt shows signs of wear, replacing it early can prevent further damage to your engine’s accessories.

Following the belt diagram precisely will ensure proper installation and prevent costly damage to the belt or surrounding parts. Misrouting the belt or using an incorrect diagram can lead to component failure. Regularly inspecting the belt and its components will help maintain your truck’s performance and avoid breakdowns.

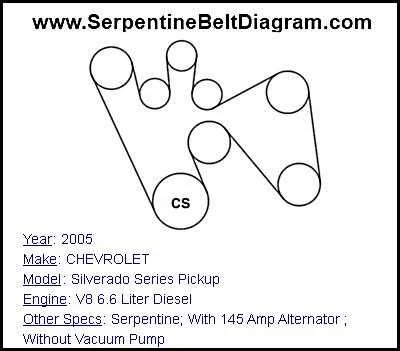

2008 Chevy Silverado Belt Diagram

The 2008 Chevy Silverado uses a serpentine belt to drive multiple components such as the alternator, power steering pump, air conditioning compressor, and water pump. Ensuring the belt is routed correctly is crucial for proper vehicle function. The belt diagram for the 4.3L, 4.8L, 5.3L, 6.0L, and 6.6L engine options varies slightly, but the general layout remains consistent.

For most Silverado engines, the belt routing begins at the crankshaft pulley, looping around components in a clockwise direction. Start by placing the belt over the crankshaft pulley, then pass it over the water pump, followed by the alternator and power steering pump. The belt continues to the air conditioning compressor, and ends back at the tensioner. Be sure to adjust the belt tension to prevent slippage.

Before replacing or adjusting the belt, always refer to the factory service manual for your specific engine type to ensure correct routing and tension. Misrouting can cause premature wear or failure of the components. Check the belt for signs of damage or wear, such as cracking or fraying, and replace it if necessary to prevent breakdowns.

For precise diagrams and a step-by-step guide, always rely on the manufacturer’s service manual or an online resource that provides visual diagrams tailored to your vehicle’s engine model.

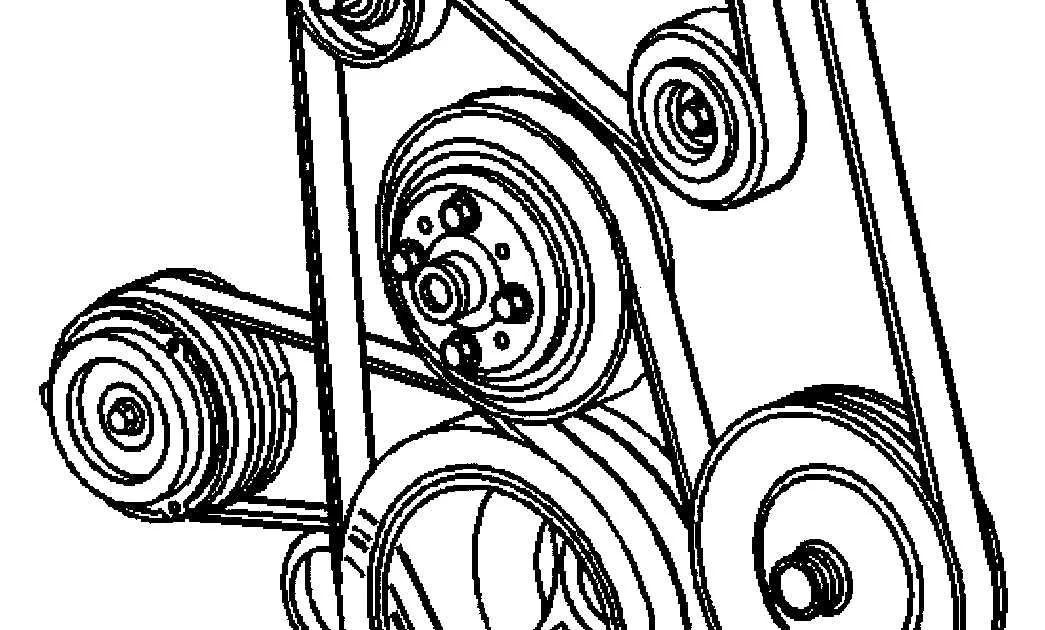

How to Read the 2008 Chevy Silverado Serpentine Belt Diagram

Identify the main components of your 2008 Chevy Silverado’s serpentine belt system by reviewing the diagram. Focus on the direction of the belt’s travel, which loops around various pulleys and components like the alternator, power steering pump, water pump, and air conditioning compressor.

Locate the belt tensioner. It’s usually positioned near the center and plays a key role in keeping the belt taut. The diagram often shows an arrow indicating the direction the tensioner moves when you release the tension to remove the belt.

Pay attention to the direction of rotation for each pulley. Most diagrams include arrows that show whether each pulley rotates clockwise or counterclockwise. This will guide you in placing the belt correctly on each component.

If the diagram includes a number system, it refers to the order in which the belt loops around the pulleys. This can be particularly useful when you’re reinstalling the belt or replacing it after maintenance.

Make sure to check any notations for pulley sizes or additional instructions. Some diagrams will specify pulley size or other details that impact how the belt fits around them, helping avoid installation errors.

Step-by-Step Guide to Replacing the Serpentine Belt on a 2008 Chevy Silverado

Begin by ensuring the vehicle is off, parked on a flat surface, and the engine is cool. Use a jack to lift the front of the truck if necessary, securing it with jack stands. Locate the serpentine belt on the front of the engine. You will find a belt diagram either on the radiator support or near the front of the engine bay for reference.

Next, use a ratchet or breaker bar to relieve tension on the tensioner pulley. This will allow you to slide the belt off the pulleys. If your truck has a manual tensioner, use a wrench to rotate it clockwise. If it’s an automatic tensioner, simply pull it back to release the belt. Carefully remove the old belt from the pulleys, noting its routing as you go.

Compare the old belt to the new one to ensure they are the same size. Lay the new belt in position according to the diagram, following the correct path around each pulley. Be sure the belt sits properly on the grooves of each pulley. Start with the easiest pulley to work with and gradually work your way around the engine.

Once the belt is properly positioned, use the ratchet or breaker bar again to relieve tension from the tensioner pulley, allowing you to slide the belt into its final position. Double-check the belt alignment on all pulleys to ensure it’s seated correctly.

Turn the engine over by hand a couple of times using a wrench on the crankshaft pulley to ensure the belt moves smoothly without slipping. Recheck the belt’s positioning one more time before lowering the vehicle.

Start the engine and let it idle for a few moments. Inspect the belt for any signs of misalignment or unusual noises. If everything looks good, the replacement is complete.

Common Issues with the Belt System on 2008 Chevy Silverado and How to Troubleshoot

If your 2008 Chevy Silverado’s belt system is showing signs of wear or failure, addressing the issue quickly can prevent further damage. Below are some common problems and troubleshooting tips.

1. Worn Serpentine Belt

A worn serpentine belt can slip, causing poor performance of components like the alternator, power steering, and air conditioning. Check for visible cracks or fraying along the edges. Replace the belt if these signs are present.

2. Loose or Misaligned Belt

If the belt is loose or misaligned, it may not drive components effectively, leading to unusual noises and reduced performance. Inspect the tensioner for wear and make sure it’s applying proper tension. Adjust or replace the tensioner if needed.

3. Tensioner Pulley Failure

A failing tensioner pulley can cause the serpentine belt to slip or become misaligned. Listen for a squealing sound and check for excessive movement in the pulley. Replace the pulley if it shows signs of wear or damage.

4. Damaged Idler Pulley

The idler pulley guides the belt, ensuring proper routing. If it becomes damaged or worn, it can cause the belt to slip or break. Check the pulley for signs of wear or rough spinning, and replace it if necessary.

5. Overheating Belt

Overheating can cause the belt to lose its flexibility and crack. This is often due to a malfunctioning water pump or a failing engine cooling system. Ensure that your engine is not overheating and that the water pump is functioning correctly.

How to Troubleshoot:

• Step 1: Visually inspect the belt for any cracks, fraying, or excessive wear.
• Step 2: Check the belt tension using a belt tension gauge to ensure it is properly adjusted.
• Step 3: Listen for squealing or grinding noises while the engine is running.
• Step 4: Manually rotate the pulleys to check for any rough or uneven movement.
• Step 5: Replace any damaged pulleys, belts, or tensioners as needed.

Regular maintenance and inspections can help you identify problems before they lead to bigger issues, saving time and money on repairs.
