Cub Cadet LT1050 Deck Belt Layout and Replacement Guide for Accurate Maintenance

Check the belt routing carefully before attempting any replacement on the Cub Cadet LT1050. The deck belt connects the engine pulley, idler pulleys, and the mower deck blades in a specific sequence that ensures smooth operation. Misalignment can cause premature wear or damage to the belt and pulleys.

Follow the diagram to identify each pulley and the correct belt path. The drive belt wraps around the engine pulley first, passes through the idler pulleys, and loops around the blade spindles. Maintaining proper tension prevents slipping and improves cutting performance.

Inspect the belt for cracks, fraying, or glazing while referencing the diagram. Replacing a worn belt with the correct routing reduces vibration and prevents unexpected breakdowns during mowing. Keep a visual reference of the diagram nearby for quick verification during installation.

Use the diagram to adjust the idler pulley positions if necessary. Proper alignment ensures the belt stays centered on the pulleys and reduces the risk of it coming off during operation. Regular checks using the diagram can extend the life of both the belt and the deck components.

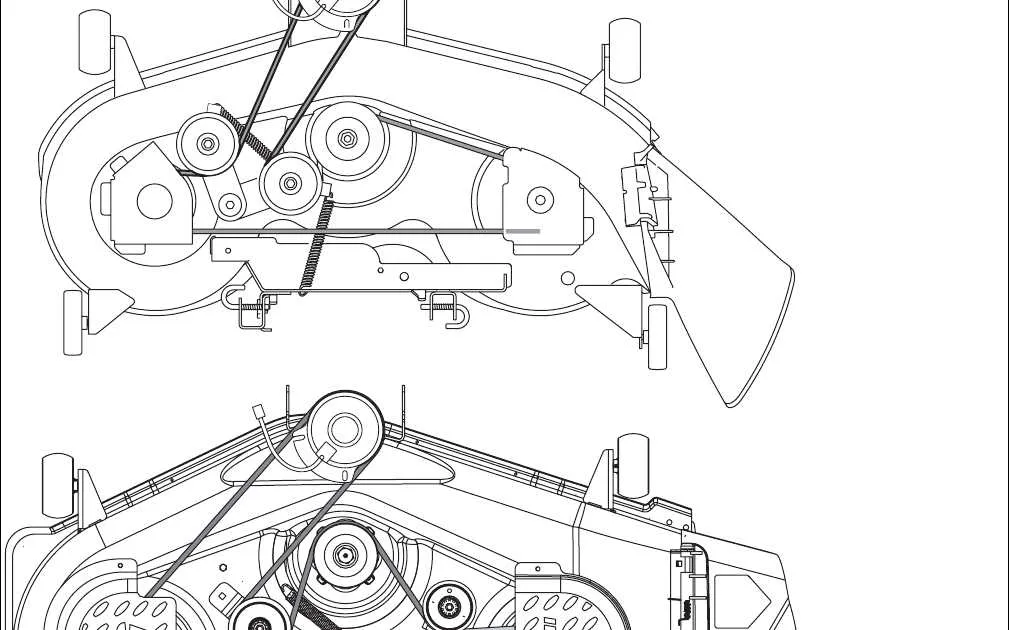

Cub Cadet LT1050 Deck Belt Diagram

Locate the deck belt routing under the mower deck, following the path from the engine pulley to the idler pulleys and then to the spindles. Ensure the belt sits correctly in all pulley grooves to avoid slippage and uneven cutting. For the LT1050, the belt wraps clockwise around the engine pulley, passes under the rear idler, loops over the left spindle, and mirrors on the right spindle before returning to the front idler.

Check tension by pressing the belt midway between pulleys; it should deflect about half an inch. Replace any worn or cracked belt with the exact OEM part number 954-04006 to maintain proper performance. When reinstalling, engage the deck lift lever to raise the deck and allow easier access to pulleys, reducing strain on your back and preventing accidental misalignment.

Mark the belt path with chalk or tape before removal if visual guidance is needed. Confirm all pulleys spin freely and idlers return smoothly to their resting positions. Reassemble in reverse order, double-checking that the belt sits fully in each groove and that tension is uniform across both spindles. This setup ensures smooth operation, prevents premature wear, and maintains consistent cut height across the entire deck.

Identifying Each Belt and Pulley on the LT1050 Deck

Locate the main drive belt first; it runs from the engine pulley directly to the mandrel pulleys beneath the deck. Trace it carefully to distinguish it from the smaller idler belt. The idler pulleys are mounted on spring-loaded brackets and maintain tension on the belts. Observe their orientation: the larger idler sits near the center of the deck, while the smaller idler guides the belt toward the outer edges.

The mandrel pulleys attach to each mower blade spindle. Check for the stamped part numbers or diameters to match them accurately. They are aligned with the deck belt path, so following the belt visually will reveal which pulley drives which blade. Ensure the belt sits snugly in each pulley groove to avoid misidentification.

Next, identify the engine pulley, usually located at the top front of the deck. Its diameter is slightly larger than the idlers, and it directly engages the main belt. From there, the belt routes to the deck spindles via the idlers, creating a triangular path that balances tension across the deck. Observing this triangular configuration simplifies recognizing each component.

For clarity, label each pulley and belt segment as you inspect. The tension spring connection points on idler brackets help determine the belt direction. Rotate the pulleys by hand to confirm the correct routing and engagement. This approach ensures accurate identification and reduces the risk of misassembly during maintenance or replacement.

Step-by-Step Belt Routing for Deck Removal and Replacement

Engage the parking brake and disconnect the spark plug for safety. Lower the mower deck to the service position. Locate the idler pulleys and note their orientation relative to the deck spindles.

Release tension on the deck belt by moving the tensioner pulley away from the belt path. Slide the belt off the engine pulley first, then carefully remove it from each deck spindle pulley, following the exact routing of the old belt.

Inspect all pulleys for wear or debris. Clean surfaces and replace any damaged pulleys to ensure smooth operation. Position the new belt along the same path, starting with the deck spindles and wrapping around each pulley according to the original routing diagram.

Pull the tensioner pulley back to apply tension to the belt. Verify the belt sits properly in all pulley grooves and spins freely without binding. Rotate the spindles by hand to confirm correct alignment before reconnecting the spark plug.

Raise the deck from the service position and check engagement with the drive system. Operate the deck briefly at low throttle to ensure the belt tracks smoothly, making minor adjustments if necessary to prevent slippage or misalignment.

Troubleshooting Common Belt Misalignment and Slippage Issues

Align the deck belt by inspecting all pulleys for wear or damage. Misalignment often occurs when idler pulleys are bent or bearings are failing. Replace any components that show excessive play or wobble.

Check belt tension using a tension gauge or by applying moderate pressure at the midpoint of the belt span. A properly tensioned belt deflects about 1/2 inch. Adjust the tensioner arm or spring if the belt slips under load.

Examine the belt path carefully:

• Ensure the belt sits squarely in all pulley grooves.
• Verify that the belt is not twisted or flipped.
• Confirm that the belt width matches the pulley specification.

Clean pulleys and belt surfaces from debris, grass, or grease. Contaminants reduce friction and cause slippage. Use a soft brush or cloth for thorough cleaning.

Inspect the deck spindle assemblies. Worn spindle shafts or loose blades can cause uneven tension, leading to belt misalignment. Tighten mounting bolts and replace any worn bearings immediately.

Monitor belt condition regularly. Cracks, fraying, or glazing indicate the belt needs replacement. Installing a new belt ensures consistent engagement and reduces slippage.

After adjustments, run the mower at low speed and observe the belt movement. Listen for squealing sounds or unusual vibration, which indicate remaining alignment issues. Fine-tune pulleys and tensioners until smooth operation is achieved.
