2018 Toyota RAV4 Serpentine Belt Diagram and Routing Information
If you’re replacing or inspecting the serpentine belt on your 2018 Toyota RAV4, it’s crucial to have the correct diagram. This helps avoid mistakes during installation and ensures that the belt aligns properly with all components. The serpentine belt drives multiple accessories, such as the alternator, power steering pump, and air conditioning compressor, so getting the routing right is key to your vehicle’s smooth operation.
The serpentine belt in the 2018 Toyota RAV4 follows a specific path around several pulleys. It wraps around the crankshaft pulley, alternator, air conditioning compressor, power steering pump, and idler pulley. This diagram shows the exact routing, making sure the belt operates efficiently without slipping or causing unnecessary wear on other components.
Consulting the diagram will save you time and effort, helping you confirm the proper tension and alignment of the belt after installation. You can find this diagram on the engine cover or in the vehicle’s service manual, or by checking online resources specific to Toyota RAV4 maintenance.
2018 Toyota RAV4 Serpentine Belt Diagram

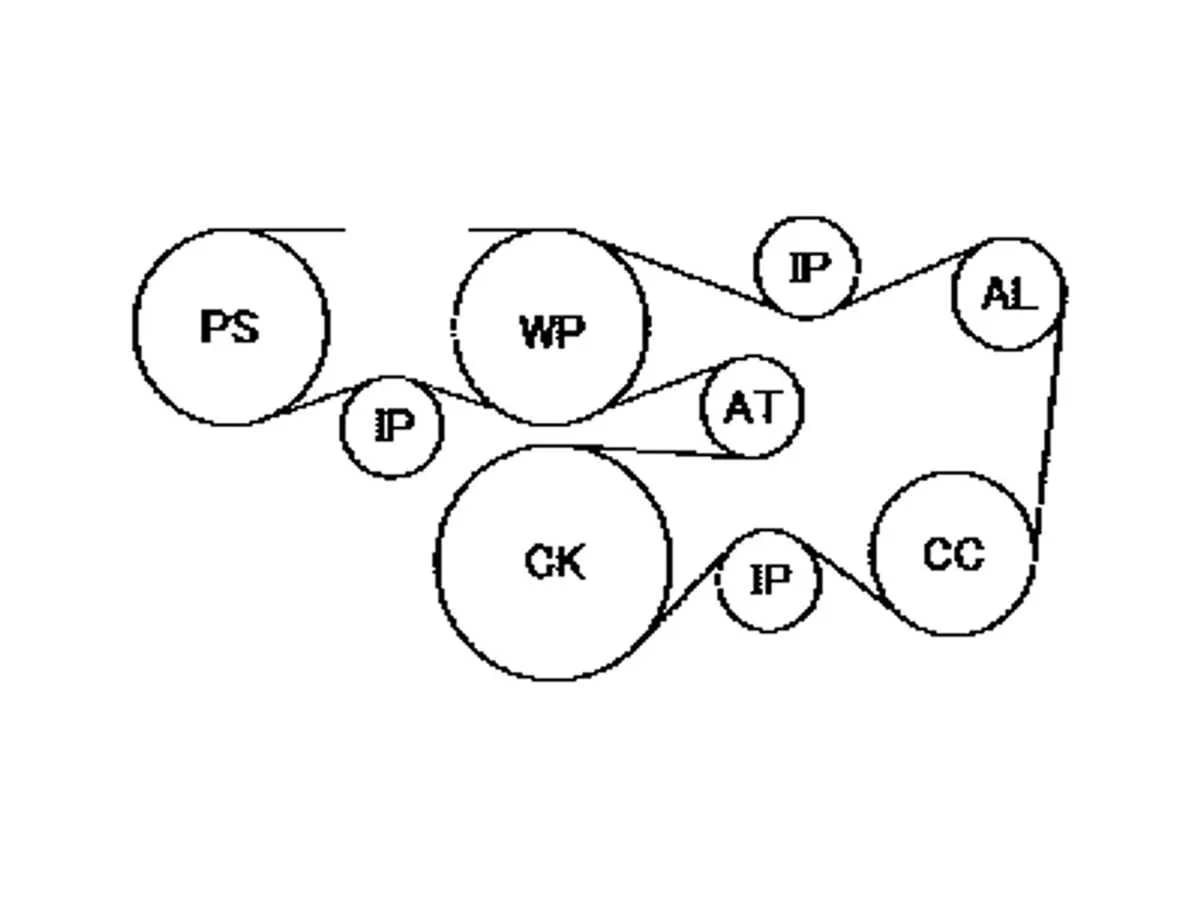

For the 2018 Toyota RAV4, the serpentine belt routing diagram shows a clear path for how the belt interacts with the engine’s components. The belt runs from the crankshaft pulley, wrapping around the alternator, power steering pump, air conditioning compressor, and the water pump, ultimately providing power to these critical parts. The tensioner pulley keeps the belt at the proper tension to avoid slippage and premature wear.
To replace the serpentine belt, first locate the tensioner pulley, which is typically spring-loaded. Use a wrench or ratchet to release the tension, then slide the belt off the pulleys. When installing the new belt, make sure it follows the correct path as shown in the diagram, ensuring it’s seated properly on each pulley. This routing is vital for the belt to run efficiently without causing damage to the system.
If the serpentine belt shows signs of wear, such as cracks or fraying, it’s time to replace it. A damaged belt can affect engine performance, lead to loss of power steering, or even overheat the engine. Regular inspections are recommended to avoid unexpected breakdowns.
How to Read and Interpret the 2018 Toyota RAV4 Serpentine Belt Diagram
The serpentine belt diagram for the 2018 Toyota RAV4 provides a clear view of how the belt routes around the engine’s pulleys. Follow the diagram closely to ensure the belt is routed correctly and avoid operational issues.
First, identify the pulleys involved in the system. The diagram shows the engine components, such as the alternator, power steering pump, water pump, and air conditioning compressor, and how the belt interacts with each. Make sure to check that each pulley is labeled, which helps in aligning them properly when replacing the belt.
Pay attention to the belt’s direction. The arrows on the diagram indicate whether the belt should be installed clockwise or counterclockwise. Following this guidance will prevent the belt from slipping or wearing unevenly.
If you’re replacing the serpentine belt, refer to the tensioner pulley and how it is engaged in the system. This pulley is responsible for keeping the correct tension on the belt. Some tensioners may require specific tools to adjust, so confirm this before attempting installation.
Double-check the alignment of the belt after installation. The diagram also gives a sense of how tight the belt should be. If the belt is too loose or too tight, it can lead to premature wear or failure. Once the belt is routed correctly, manually rotate the engine to ensure smooth operation.
Always verify that the diagram matches your engine model, as variations in engine configuration may exist. For peace of mind, compare the diagram with the actual engine layout or refer to the owner’s manual for confirmation.

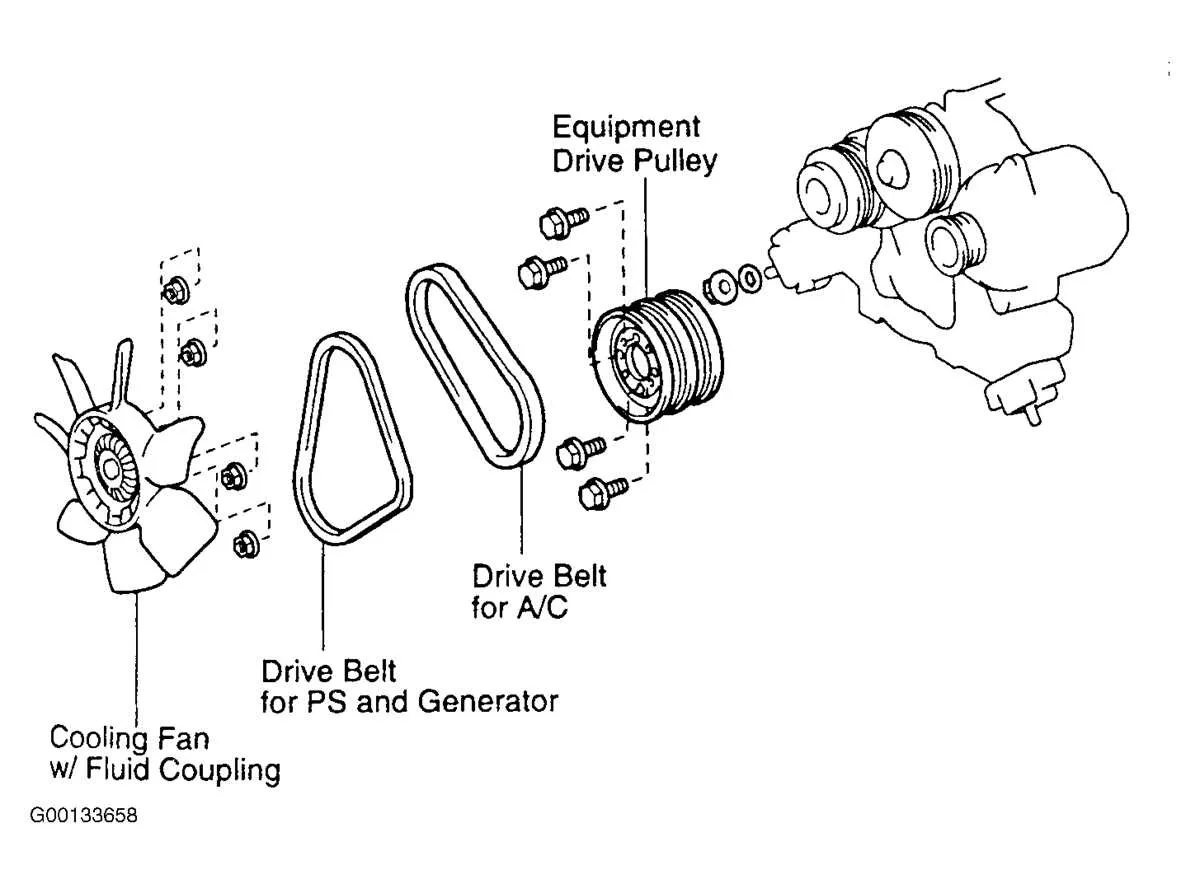

Step-by-Step Guide to Replacing the Serpentine Belt on a 2018 Toyota RAV4
To replace the serpentine belt on your 2018 Toyota RAV4, follow these straightforward steps to ensure a proper installation.
- Lift the Vehicle: Use a jack to lift the front of your RAV4 and secure it with jack stands. This provides better access to the engine bay, especially around the underside of the vehicle.
- Locate the Serpentine Belt: Open the hood and find the serpentine belt. It runs around various components like the alternator, power steering pump, and air conditioning compressor.
- Remove the Engine Cover (if necessary): Some models may have an engine cover obstructing access. Use a socket wrench to remove any screws and take off the cover.
- Loosen the Tensioner: The tensioner keeps the serpentine belt tight. Use a socket wrench to rotate the tensioner pulley and relieve the tension on the belt. Depending on the model, you may need to use a breaker bar for extra leverage.
- Remove the Old Belt: Once the tension is released, carefully slide the belt off the pulleys. Take note of the belt’s routing for reinstallation.
- Install the New Serpentine Belt: Position the new belt on the pulleys, following the same routing pattern as the old one. Make sure the belt fits snugly into the grooves of each pulley.
- Apply Tension to the Belt: Rotate the tensioner pulley again to apply tension on the new belt. Ensure the belt is properly aligned and has the correct amount of slack.
- Check the Installation: Double-check the belt’s position on each pulley. It should sit evenly and be free from twists or misalignment.
- Reinstall the Engine Cover: If you removed the engine cover, reattach it securely using the screws you removed earlier.
- Test the Engine: Start the vehicle and let the engine run for a few minutes. Listen for any unusual noises or squeaks that could indicate improper installation.
Once you’ve confirmed that everything is working properly, lower the vehicle and safely store your tools. The serpentine belt replacement is now complete.
Common Issues and Troubleshooting Tips for the Serpentine Belt System in the 2018 Toyota RAV4
If your 2018 Toyota RAV4’s serpentine belt system starts to show signs of trouble, it’s crucial to address the issue before it affects engine performance. Here are some common problems and solutions:
1. Squeaking or Squealing Noises
Persistent squeaking or squealing noises usually indicate a worn or loose serpentine belt. Inspect the belt for any visible signs of wear, such as cracks, fraying, or glazing. If you notice any of these, replacing the belt is necessary. Tightening the belt may also resolve the issue, but if the belt has become too worn, replacement is the only option.
2. Belt Slippage
Slippage occurs when the belt can’t grip the pulleys properly, often due to a misaligned or damaged pulley. Check the pulleys for any damage, rust, or debris that could prevent proper belt movement. Also, inspect the tensioner to ensure it’s maintaining proper tension. If the tensioner is faulty, replacing it can restore belt tension and prevent further issues.
3. Engine Overheating
If the serpentine belt is worn or broken, the water pump may not function correctly, causing the engine to overheat. Check the belt’s condition and ensure it’s properly connected to the water pump. A damaged belt should be replaced immediately to avoid further engine damage.
4. Power Steering Failure
The serpentine belt drives the power steering pump, so if the belt is loose or broken, you’ll experience difficulty steering. Inspect the belt for tension and integrity. Replacing a worn or damaged belt will restore power steering functionality.
5. Charging System Problems
If the serpentine belt is faulty, the alternator won’t charge the battery properly, leading to a drained battery. Inspect the belt for damage and replace it if necessary. Ensure the alternator is operating correctly and that there are no obstructions in the belt’s path.
Preventive Maintenance Tips
Regularly check the serpentine belt for any signs of wear and tear. If the belt has been on your vehicle for more than 60,000 miles, it’s a good idea to replace it as a preventative measure. Also, ensure the tensioner is in good condition, as a faulty tensioner can cause the belt to wear prematurely.
