2015 Toyota Camry Belt Diagram for Maintenance and Repairs
Accurate belt routing in the 2015 Toyota Camry is critical for maintaining engine performance. Understanding the proper arrangement of belts ensures the functionality of essential systems like the alternator, power steering, and air conditioning. Follow this diagram for clear instructions on how to identify and replace the serpentine belts without errors.
Locate the serpentine belt first. Start by identifying the path it takes over various pulleys. This belt is usually on the passenger side of the engine and drives multiple components simultaneously. It’s a single continuous belt that should be tight enough to prevent slipping but not over-tightened.
Check for wear and tear. Inspect the belt for cracks, fraying, or signs of glazing. These are indicators that the belt may need to be replaced. If you notice any unusual noises, such as squealing, this could be a sign that the belt or one of the pulleys is malfunctioning.
Refer to the diagram for proper routing. Incorrect routing can cause the belt to wear out prematurely or fail to drive components correctly. The diagram outlines the exact path each pulley follows, making it easier to replace the belt or adjust its tension.

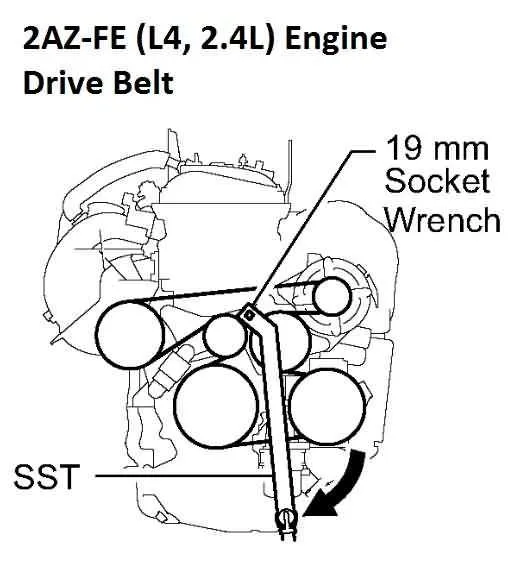

2015 Toyota Camry Belt Diagram
The 2015 Toyota Camry uses several drive belts that connect key engine components. The serpentine belt, often referred to as the main belt, drives accessories like the alternator, power steering pump, air conditioning compressor, and water pump. The timing belt controls the timing of the engine’s valves and is crucial for optimal engine performance. It is critical to replace the timing belt at the recommended interval to prevent engine damage.
For easy reference, the serpentine belt routing for the 2015 Camry typically follows a pattern that starts from the crankshaft pulley, moves around the tensioner, and loops around the various pulleys. The diagram is labeled on the vehicle’s engine compartment to help with reinstallation. Make sure to inspect the belt for wear and cracks during routine maintenance to avoid potential failure.
Use the following steps to inspect and replace the serpentine and timing belts:
1. Locate the belt routing diagram under the hood, usually on the radiator support or the underside of the hood.
2. Release the tension on the serpentine belt by rotating the tensioner pulley.
3. Remove the old belt, ensuring the new one follows the same routing path.
4. For the timing belt, it’s recommended to have a certified technician handle replacement due to its complexity and the need to align engine timing components correctly.
Always use OEM (Original Equipment Manufacturer) parts for replacement to ensure proper fit and function. For maximum belt life, keep the engine components well-maintained and avoid overloading the system.
How to Identify the Main Belts in 2015 Toyota Camry

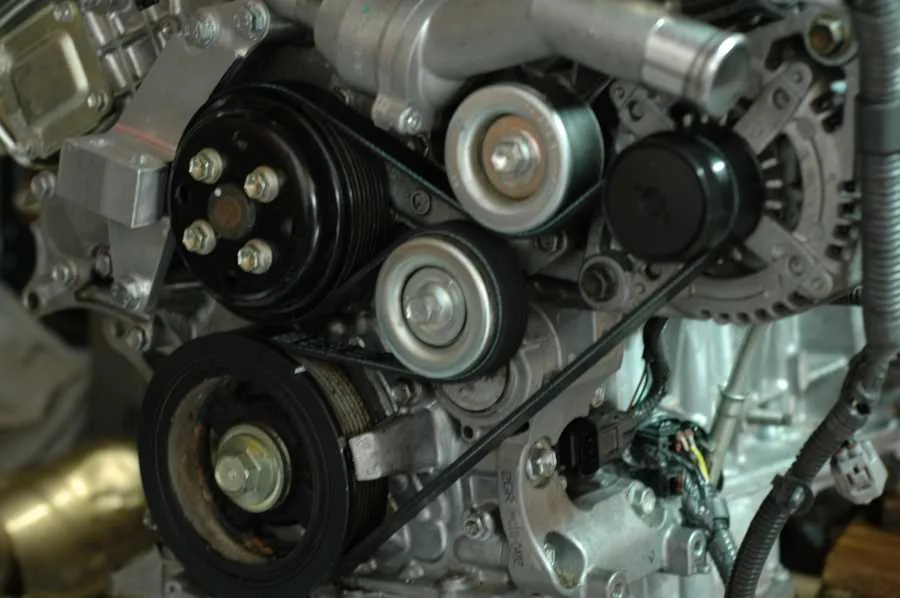

Locate the serpentine belt by following the path of the primary drive belt that powers the alternator, air conditioning compressor, and power steering pump. This belt runs along a series of pulleys and is located at the front of the engine. It is long and typically flat or slightly ribbed. You will easily spot it near the top of the engine bay.
The timing belt, found under the timing cover, drives the camshaft and crankshaft. This belt is critical for engine timing and should not be confused with the serpentine belt. It is located in the lower part of the engine and is typically hidden behind a plastic or metal cover.
Inspect the belts regularly for wear signs such as cracks, fraying, or glazing. These could indicate that the belt is nearing the end of its service life and may need replacing. If unsure about the condition, it’s best to consult the vehicle’s manual or a professional mechanic.
Step-by-Step Guide to Replacing the Drive Belt in 2015 Toyota Camry
To replace the drive belt on a 2015 Toyota Camry, follow these steps carefully to ensure proper installation and functionality.
- Gather Necessary Tools and Parts: You will need a new drive belt, a socket wrench, a belt tensioner tool, and a jack with jack stands.
- Lift the Vehicle: Use a jack to lift the front of the vehicle. Secure it with jack stands to prevent any accidents.
- Locate the Drive Belt: The drive belt is located on the front of the engine. You may need to remove a plastic cover or shield to access it.

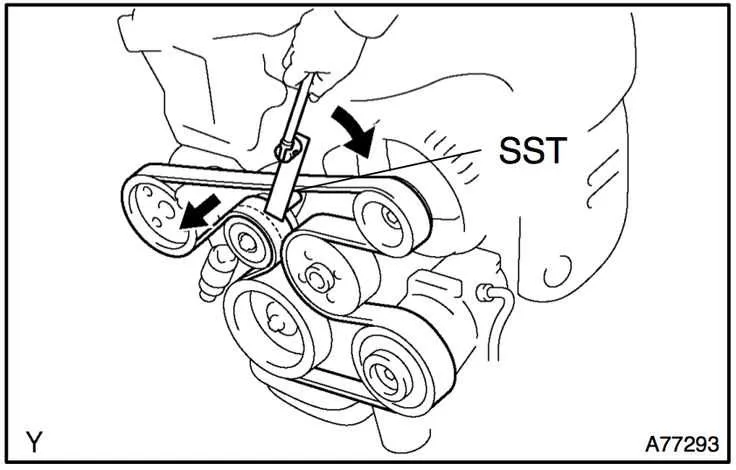

- Release the Tension on the Belt: Use a belt tensioner tool to relieve the tension on the drive belt. Rotate the tensioner counterclockwise to loosen the belt.
- Remove the Old Belt: Once the tension is released, slide the belt off the pulleys. Take note of how it is routed before removing it.
- Install the New Drive Belt: Position the new drive belt over the pulleys, following the same routing as the old belt. Make sure the belt sits correctly on all pulleys.
- Apply Tension to the New Belt: Use the belt tensioner tool again to rotate the tensioner and apply the proper tension to the new belt.
- Check Belt Alignment: Verify that the belt is correctly aligned on the pulleys and that it moves smoothly without any obstruction.
- Reinstall any Covers: If you removed any covers or shields, reinstall them to secure the components.
- Lower the Vehicle: Carefully remove the jack stands and lower the vehicle back to the ground.
- Test the New Belt: Start the engine and listen for any unusual noises. Ensure the belt operates smoothly and that there is no slipping.
Following these steps ensures that your drive belt is replaced correctly, restoring proper function to your Toyota Camry’s engine accessories.
Troubleshooting Common Belt Issues in 2015 Toyota Camry
Check for visible wear or cracks on the drive belts. If you notice any fraying, cracking, or glazing, it’s time to replace the belt. Worn belts can cause slipping, leading to poor performance of the alternator, power steering, and air conditioning.
If you hear squeaking or squealing noises, inspect the tension of the belts. Loosely fitted belts will make noise and may affect the efficiency of your car’s systems. Adjust the tension according to the specifications in the manual.
Pay attention to engine performance. A slipping belt can result in an undercharged battery or poor air conditioning performance. If the belt fails, the alternator may stop working, causing the battery to drain quickly.
Check for belt misalignment. If the belt is not running straight or appears off-center, inspect the pulleys for wear or damage. Misalignment can cause premature belt wear and may lead to a sudden breakdown.
If you notice overheating or reduced power steering response, the drive belt might be slipping. Verify the belt’s condition and tension, and inspect the pulleys for wear. Replace any damaged parts promptly to avoid more severe damage.
