2010 Toyota Camry Serpentine Belt Diagram and Routing Guide

Replacing or inspecting the belts on your 2010 Toyota Camry is a straightforward task that ensures optimal engine performance. Understanding the belt diagram will help you identify the correct routing for the serpentine and timing belts, preventing costly engine damage due to misalignment or wear.

The serpentine belt in the 2010 Toyota Camry is responsible for driving various components like the alternator, power steering pump, and air conditioning compressor. A clear diagram helps in positioning the belt properly, which is vital for maintaining these systems. If the belt is installed incorrectly, it can cause slippage or even snap, leading to engine failure.

Check your belt’s condition regularly for signs of cracks, fraying, or excessive wear. It’s recommended to replace the serpentine belt every 60,000 miles or whenever you notice any symptoms of wear. Following the belt diagram for the 2010 Toyota Camry guarantees that you’re using the correct route and tension.

In the case of the timing belt, it should be replaced at the intervals recommended by the manufacturer, generally around 90,000 miles, depending on your driving conditions. Consult your Camry’s service manual for the exact specifications and keep a record of any maintenance work performed.

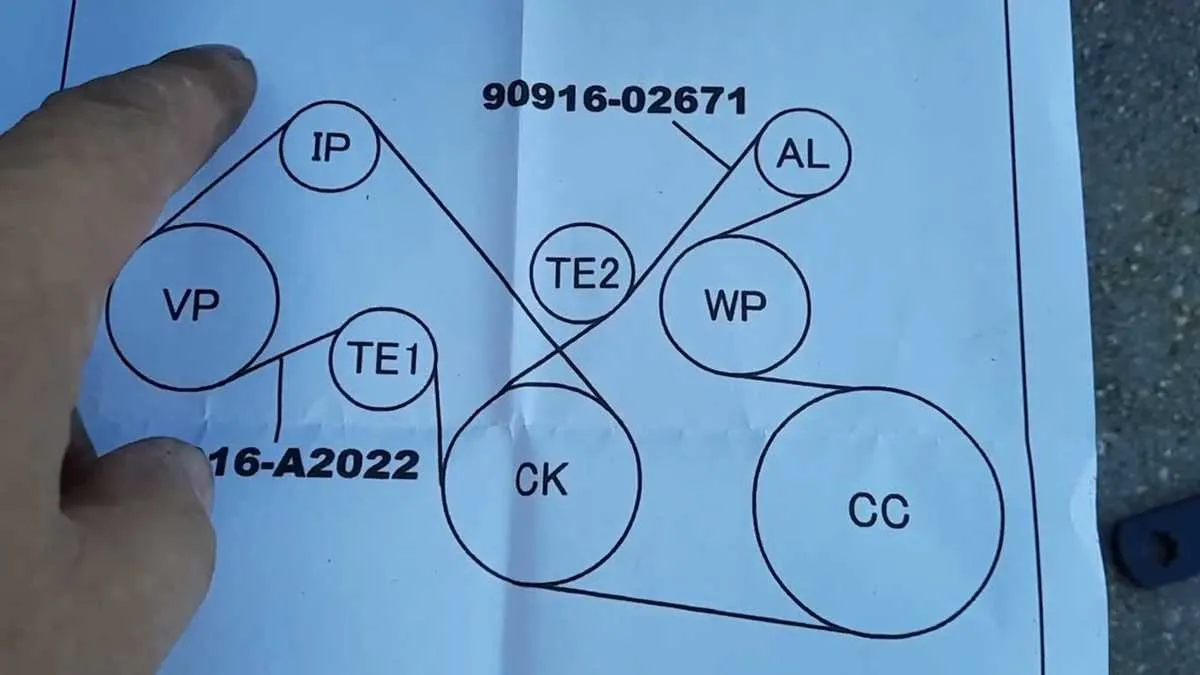

2010 Toyota Camry Belt Diagram

To ensure proper operation of your 2010 Toyota Camry, follow the belt diagram to correctly route the serpentine belt. This diagram displays the placement and alignment of each pulley in the system.

First, inspect the belt for any visible signs of wear or damage, such as cracks or fraying. A damaged belt can lead to a loss of power to vital components like the alternator, air conditioning, and power steering.

Refer to the belt routing diagram for the correct path. The serpentine belt should pass through the crankshaft pulley, alternator, power steering pump, air conditioning compressor, and tensioner. Ensure the belt is tensioned correctly to prevent slipping, which could damage the engine components or reduce efficiency.

If the belt needs replacement, make sure to use a belt that matches the OEM specifications for the 2010 Toyota Camry. Follow the steps in the service manual to safely remove and replace the belt.

How to Identify the Serpentine Belt Layout for 2010 Toyota Camry

To identify the serpentine belt layout for a 2010 Toyota Camry, start by locating the belt routing diagram. This is typically found on a label or sticker on the radiator support, near the front of the engine compartment. The diagram illustrates the exact path the serpentine belt follows around the pulleys, helping you visualize the configuration.

If the diagram is missing or unreadable, consult the vehicle’s owner manual for a detailed description of the belt layout. This will guide you in understanding the belt’s path, including its routing around key components such as the alternator, power steering pump, water pump, and air conditioning compressor.

Follow these steps to identify the layout:

• Ensure the engine is off and cool to avoid any injuries or damage.
• Look for the tensioner pulley, which controls the tightness of the serpentine belt. This pulley is usually spring-loaded and requires a tool like a socket wrench to release the tension.
• Identify the main components driven by the serpentine belt, including the alternator, power steering pump, air conditioning compressor, and water pump. These components will be connected by the belt.
• Use the belt routing diagram to cross-reference the location and direction of the belt on each pulley. Make sure the belt follows the proper sequence to avoid misalignment.

In some cases, a serpentine belt tool or a mirror might be helpful for getting a better view of the routing. Always double-check the alignment of the belt after installation to ensure smooth operation.

Troubleshooting Common Belt Issues in 2010 Toyota Camry

If the serpentine belt in your 2010 Toyota Camry is showing signs of wear or malfunction, follow these steps to troubleshoot common issues:

Check for belt tension. If the belt is too loose, it may slip or squeal. Use a tension gauge to ensure proper tension, or manually check by pressing down on the belt. If it feels loose, adjust the tensioner pulley or replace the belt if it shows signs of wear.

Inspect the belt for visible damage. Cracks, fraying, or glazing are indicators that the belt needs to be replaced. Glazed areas appear shiny and smooth, which means the belt is slipping. If any of these signs are present, replace the serpentine belt promptly to avoid further damage to the engine components.

Examine the pulleys and tensioner. If the pulleys are misaligned or damaged, the belt may not function properly. Ensure that the tensioner is working smoothly. A malfunctioning tensioner can lead to incorrect belt tension, causing the belt to slip or wear prematurely.

Listen for unusual noises. A squealing or chirping sound could mean that the belt is not properly aligned or there is excessive friction due to pulley misalignment. If you hear these sounds, inspect the pulleys and check for any foreign debris that could be obstructing the belt’s movement.

Inspect the belt routing. If the belt is not routed correctly according to the manufacturer’s diagram, it can lead to improper operation and potential damage. Refer to the belt diagram to confirm the correct routing of the serpentine belt.

Step-by-Step Guide to Replacing the Serpentine Belt on 2010 Toyota Camry

Begin by disconnecting the car’s negative battery terminal to ensure safety during the replacement process.

Locate the serpentine belt tensioner. Use a ratchet or breaker bar to rotate the tensioner and relieve tension from the belt. Carefully remove the belt from the pulleys, noting the routing for reinstallation.

Inspect the serpentine belt for signs of wear or damage. If replacing, ensure the new belt matches the specifications for the 2010 Toyota Camry (length, width, and number of grooves).

Install the new serpentine belt by following the belt routing diagram, ensuring each pulley is properly aligned. Double-check that the belt fits snugly on all pulleys.

Rotate the tensioner again to provide tension to the new belt. Ensure the belt is tightly fitted without any slack.

Recheck the belt’s alignment on the pulleys before reconnecting the battery and testing the car. Start the engine and observe the belt’s operation to ensure smooth running and no noise.
