2009 Toyota Tacoma 2.7 Serpentine Belt Diagram and Installation Guide

To properly install or replace the serpentine belt on your 2009 Toyota Tacoma 2.7, it’s crucial to follow the correct routing pattern. The serpentine belt powers multiple components, including the alternator, power steering pump, and air conditioning compressor. Without the proper diagram, misalignment or improper tension could damage these parts.

Start by locating the belt tensioner, which is typically on the passenger side of the engine bay. You will need to release tension from the belt by using a socket wrench on the tensioner pulley. Once the tension is released, remove the belt carefully to avoid damaging any surrounding components.

Before installing the new serpentine belt, compare the new belt’s length with the old one to ensure the correct size. Use the diagram specific to your 2009 Toyota Tacoma 2.7 to guide the installation. The belt should fit snugly around each pulley without being too tight or too loose.

Ensure the belt aligns with each pulley groove to prevent it from slipping off or becoming worn prematurely. Double-check the routing against the diagram and tighten the belt tensioner. This will ensure proper operation of all systems powered by the serpentine belt.

2009 Toyota Tacoma 2.7 Serpentine Belt Diagram

The serpentine belt on the 2009 Toyota Tacoma 2.7 engine is responsible for driving multiple components such as the alternator, power steering pump, water pump, and air conditioning compressor. To ensure proper functionality and avoid premature wear, it’s important to install the belt according to the diagram and inspect it regularly for signs of damage or wear.

Start by identifying the components that the serpentine belt will route through. The diagram shows how the belt loops around the engine’s pulleys, ensuring each component is powered effectively. Pay special attention to the tensioner pulley, which keeps the belt tight. If the belt is too loose or too tight, it can affect the performance of the engine and its components.

Check the belt’s condition at regular intervals. Look for signs of cracks, fraying, or glazing, as these are indications the belt needs replacement. The 2009 Toyota Tacoma 2.7 serpentine belt should be replaced every 60,000 to 100,000 miles, but check the condition earlier if you notice any unusual noise or poor performance from powered accessories.

For a smooth replacement, ensure the engine is off and the battery is disconnected. Use the diagram to guide you when installing the new belt, making sure it fits snugly over all pulleys. Once in place, adjust the tensioner pulley to maintain proper tension. After installation, run the engine briefly to ensure the belt is aligned and functioning correctly.

If you have any doubts about the installation or the condition of the serpentine belt, it’s advisable to seek help from a professional to prevent damage to engine components.

How to Identify the Components in the 2009 Toyota Tacoma Serpentine Belt Diagram

To identify the components in the 2009 Toyota Tacoma serpentine belt diagram, first focus on the main elements shown: the serpentine belt, pulleys, tensioner, and accessories driven by the belt. Each part has a distinct role, which is important for correct installation and maintenance.

The serpentine belt is the long, continuous loop that connects several engine accessories. It transfers power from the engine’s crankshaft pulley to components such as the alternator, power steering pump, air conditioning compressor, and water pump. The diagram clearly shows how the belt routes around these components, ensuring they operate correctly.

The pulleys are metal wheels that guide the serpentine belt. The crankshaft pulley is typically located at the bottom of the engine, and the alternator pulley is often located higher. These pulleys help direct the belt to the appropriate accessories, ensuring smooth operation. Make sure to check the diagram for the direction the belt should be routed around each pulley.

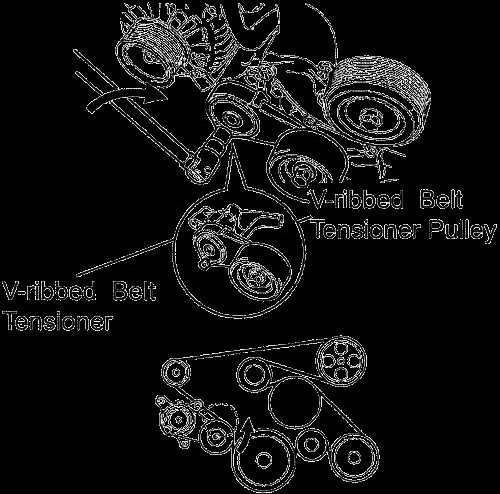

The tensioner pulley maintains the correct tension in the serpentine belt. The tensioner, usually spring-loaded, ensures the belt remains tight and does not slip off the pulleys. Pay attention to the tensioner’s placement on the diagram, as incorrect tension can lead to belt wear and failure.

Lastly, the diagram will highlight which accessories are powered by the serpentine belt. These can include the alternator, air conditioning compressor, power steering pump, and water pump. Identifying each component’s location in the diagram is essential for understanding how the belt operates and which parts may need maintenance or replacement over time.

Step-by-Step Guide to Installing the Serpentine Belt on the 2009 Toyota Tacoma 2.7

To begin installing the serpentine belt on the 2009 Toyota Tacoma 2.7, gather the necessary tools: a socket wrench, a serpentine belt tool or 3/8-inch drive ratchet, and a new belt. Ensure the engine is off and cool before starting the procedure.

1. Locate the serpentine belt routing diagram on the front of the engine. This can usually be found on a sticker near the radiator or under the hood. It shows how the belt should loop around the pulleys.

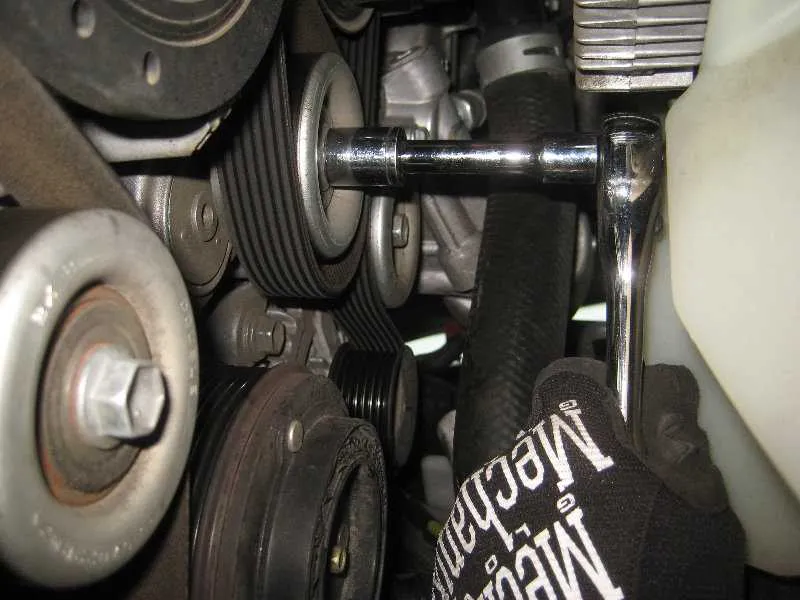

2. Use the serpentine belt tool or a 3/8-inch drive ratchet to relieve tension on the tensioner pulley. Insert the tool into the square hole on the tensioner, and rotate it counterclockwise to loosen the belt.

3. With the tension relieved, carefully slide the old belt off the pulleys. Make sure to note the belt’s routing so you can replicate it with the new belt.

4. Place the new serpentine belt over the pulleys, following the diagram closely. Ensure the belt fits snugly around each pulley and is properly aligned, especially on the crankshaft and alternator pulleys.

5. Once the belt is properly in place, use the serpentine belt tool or ratchet to relieve the tension on the tensioner pulley again, allowing the tensioner to push the belt into place. Verify that the belt is centered on all pulleys and sits in the grooves properly.

6. Double-check the routing and belt positioning one last time. Start the engine and observe the belt to ensure it operates smoothly without any unusual noises or slipping.

7. If everything looks good, you’re done! Dispose of the old belt and clean up your workspace.

Troubleshooting Common Issues with the Serpentine Belt in the 2009 Toyota Tacoma

If you notice unusual noises or poor performance from your 2009 Toyota Tacoma, the serpentine belt could be the cause. Check these common issues and how to address them:

• Squealing or chirping noises: These sounds typically occur when the serpentine belt is worn, misaligned, or loose. Inspect the belt for signs of wear, cracks, or fraying. If you find any damage, replace the belt immediately. Tighten the tensioner pulley to ensure proper tension.
• Slipping belt: A slipping serpentine belt can cause components such as the alternator, power steering pump, or air conditioning to malfunction. Check the condition of the belt and the alignment of the pulleys. If the belt is not worn but still slipping, it could be a sign that the tensioner is failing and needs replacement.
• Belt breaking: A broken serpentine belt will cause immediate engine failure, as it powers essential components. Examine the belt for signs of wear, such as cracks or chunks missing. Replace a worn or damaged belt before it fails to prevent costly repairs.
• Power steering loss: If you lose power steering, check the serpentine belt. A slipping or broken belt will prevent the power steering pump from functioning. Inspect the belt’s condition and replace it if necessary.
• Alternator not charging: If the alternator stops charging the battery, the serpentine belt may not be turning it properly. Inspect the belt for damage or misalignment and replace it if needed. Ensure the tensioner is set correctly to maintain the proper tension.

Regularly inspect the serpentine belt for signs of damage or wear. Replacing the belt at the first sign of trouble can save you from more serious issues down the line.
