2009 Toyota Sienna Serpentine Belt Diagram and Routing Guide
If you’re replacing the serpentine belt on your 2009 Toyota Sienna, referring to a clear diagram is key to ensuring the belt is routed properly. The serpentine belt is crucial for driving multiple engine accessories such as the alternator, power steering pump, and air conditioning compressor. A wrong installation can lead to malfunctioning components and costly repairs.
The diagram for this model shows a straightforward routing path, starting from the crankshaft pulley and looping around several engine pulleys. Pay close attention to the tensioner pulley, which adjusts the belt’s tightness automatically. The diagram will guide you in following the correct sequence for a smooth, efficient installation. It’s also helpful to inspect the belt for signs of wear, such as cracks or fraying, which may require an immediate replacement to avoid engine damage.
Ensure the belt is tight enough to prevent slipping, but not so tight that it places unnecessary strain on the pulleys. If you’re uncertain about the installation, double-check the diagram or consider consulting a professional. This step ensures your vehicle runs smoothly and avoids unnecessary engine repairs.

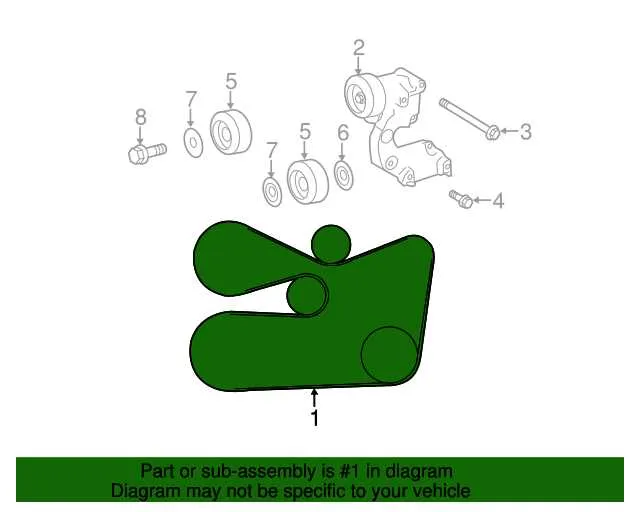

2009 Toyota Sienna Serpentine Belt Diagram
To replace the serpentine belt on a 2009 Toyota Sienna, it’s important to follow the correct routing for proper installation. Refer to the diagram below to ensure the belt runs smoothly and efficiently through the various pulleys. The belt typically runs through the crankshaft pulley, the alternator, the power steering pump, the air conditioning compressor, and the idler pulley.
Start by locating the tensioner pulley on the passenger side of the engine. Use a socket wrench to release tension on the serpentine belt by rotating the tensioner counterclockwise. Once the tension is released, slide the belt off the pulleys. Take note of how the belt is routed before removing it, as the new belt must be installed in the exact same pattern.
Consult the diagram to verify the correct path for the belt. The top part of the belt should pass over the alternator, while the bottom part loops around the crankshaft pulley. The belt should not rub against any surfaces or cause unnecessary tension on any components. When installing the new belt, ensure it sits properly on all pulleys and that there is no slack before releasing the tensioner back into place.
After installation, rotate the crankshaft by hand to make sure the belt is seated correctly. Run the engine briefly and check the belt for any unusual noise or misalignment.
How to Identify the Correct Routing for the 2009 Toyota Sienna Serpentine Belt
Start by locating the belt routing diagram on your vehicle. It is usually found near the front of the engine bay, on the radiator support or the underside of the hood. This diagram provides a clear visual guide to how the serpentine belt should be routed around the pulleys and components.
If the diagram is missing or damaged, use these steps to identify the correct routing:
- Check the belt tensioner: The tensioner should be in its natural position, which is typically towards the bottom of the engine. It plays a crucial role in maintaining the correct tension on the belt.
- Start at the crankshaft pulley: The serpentine belt wraps around the crankshaft pulley first. From there, it will move to the AC compressor pulley, followed by the alternator pulley.
- Route over the idler pulley: The belt will then move to the idler pulley, which ensures the belt is properly aligned and tensioned. This pulley is often located near the tensioner.
- Wrap around the power steering pump: The belt continues to the power steering pump, which is often near the front of the engine.
- Finish at the water pump: Finally, the belt should loop around the water pump before returning to the crankshaft pulley.
Ensure the belt has the correct tension by using the belt tensioner. It should not be too tight or too loose. Double-check that the belt is aligned properly and not rubbing against any components.
If unsure about the routing, it’s always helpful to consult the service manual for your vehicle or consider reaching out to a professional for confirmation.
Common Issues with the Serpentine Belt and How to Diagnose Them in a 2009 Toyota Sienna
Check for visible cracks or wear on the serpentine belt. Over time, exposure to heat, friction, and constant tension can cause the belt to crack, fray, or even break. If you notice these signs, the belt needs replacement.
Listen for squealing noises, especially when starting the engine. These sounds usually indicate a slipping serpentine belt, often due to wear or insufficient tension. A worn-out tensioner might be the cause, leading to inadequate belt tightness.
Check for engine overheating. The serpentine belt powers the water pump in the 2009 Toyota Sienna. If the belt is damaged or slipping, the water pump won’t function properly, causing the engine temperature to rise. If the issue is not addressed, it can lead to serious engine damage.
Examine the belt alignment. Misalignment may occur if the pulleys are damaged, misaligned, or if the belt has stretched over time. If the belt is riding off-center on the pulleys, inspect the pulleys for damage and ensure they’re properly aligned.
Test the tensioner. A faulty tensioner can result in the belt becoming too loose, causing the belt to slip or even come off completely. A simple method to diagnose this is to check if the tensioner arm moves freely when manually adjusted.
If the power steering or alternator isn’t working properly, the serpentine belt could be slipping or broken. Check the belt condition and ensure all components connected to it are functioning smoothly.
Step-by-Step Guide to Replacing the Serpentine Belt on a 2009 Toyota Sienna
Locate the serpentine belt on your 2009 Toyota Sienna by examining the front of the engine. You’ll see it running through multiple pulleys, including the alternator, power steering pump, and air conditioning compressor.
1. Prepare the Vehicle: Start by disconnecting the negative terminal from the battery to prevent any accidental electrical shorts. Raise the front of the vehicle and support it securely with a jack and jack stands.
2. Release the Tension: Find the tensioner pulley on the engine. This is a spring-loaded pulley that keeps the belt tight. Use a socket wrench to rotate the tensioner counterclockwise, releasing tension on the belt. Carefully slide the belt off the pulleys once it is loose.
3. Inspect the Old Belt: Before removing the belt completely, inspect it for signs of wear like cracks or fraying. This will help you spot any issues that may need addressing in the future.
4. Remove the Belt: Once the tension is released, remove the serpentine belt from the pulleys. Take note of how the belt is routed around each pulley. You can either take a picture or consult a diagram for the correct belt routing.
5. Install the New Belt: Start by threading the new belt around the pulleys according to the routing diagram. Ensure the belt is properly seated in all pulley grooves, and check that it aligns correctly with each component.
6. Reapply Tension: Rotate the tensioner pulley counterclockwise again to allow the belt to sit tight. Ensure there’s enough tension on the belt, but don’t overtighten it. The belt should not be too loose or too tight.
7. Check the Installation: Turn the engine by hand to check the belt alignment. Make sure it runs smoothly over all pulleys without slipping or jumping off. If everything looks good, lower the vehicle and reconnect the battery.
8. Test the Engine: Start the engine and observe the belt in action. Listen for any unusual noises or signs of misalignment. If the belt is running smoothly and quietly, the installation is complete.
