2008 Toyota Yaris Serpentine Belt Diagram and Installation Guide

For smooth engine operation in your 2008 Toyota Yaris, the serpentine belt plays a vital role by driving multiple accessories like the alternator, power steering, and air conditioning. To maintain its functionality, it’s crucial to understand how the belt is routed and its connection to various components in the engine bay. The serpentine belt diagram for the 2008 Yaris is your go-to guide for ensuring proper installation and optimal performance.

First, locate the belt routing diagram, usually found on the radiator support or under the hood. This diagram provides a detailed map showing how the serpentine belt loops around pulleys, including the tensioner pulley, idler pulley, and the driven accessories. In the 2008 Yaris, the serpentine belt follows a specific path that must be followed for the belt to function correctly. Any misalignment or incorrect routing could lead to malfunctioning accessories or even damage to the belt itself.

When replacing the serpentine belt, always refer to the diagram to verify the correct configuration. Pay attention to the direction of the belt and ensure it wraps around all the necessary pulleys. If the belt tension seems loose, the automatic tensioner may need adjustment. Keeping the serpentine belt in good condition will ensure all accessories operate seamlessly, helping your Yaris run smoothly and efficiently.

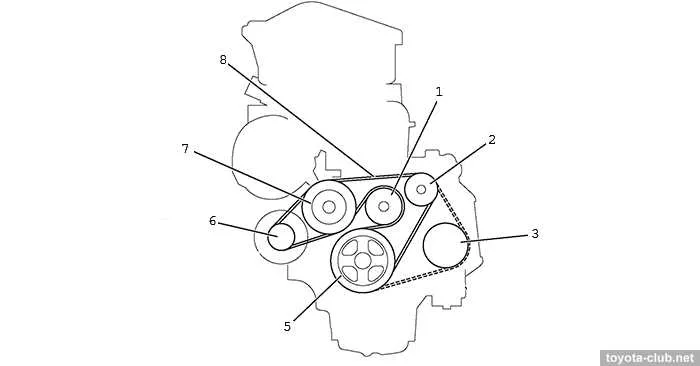

2008 Toyota Yaris Serpentine Belt Diagram

For the 2008 Toyota Yaris, locating and installing the serpentine belt correctly is straightforward with the right diagram. The belt primarily connects several engine components, including the alternator, power steering pump, air conditioning compressor, and the water pump. Ensure the belt is routed properly to avoid any issues with component operation.

The serpentine belt should be routed around the following components in a clockwise direction:

• Crankshaft pulley (bottom left)
• Alternator pulley (top left)
• Power steering pump pulley (bottom right)
• Air conditioning compressor pulley (middle right)
• Tensioner pulley (top right)

Check for any signs of wear or damage on the serpentine belt, such as cracks, fraying, or excessive stretching. A worn belt should be replaced immediately to avoid engine performance issues.

If the belt is being replaced, use a tensioner tool to relieve the pressure from the tensioner pulley. This allows you to easily remove the old belt and install the new one. Double-check the belt routing using the diagram to ensure everything aligns properly.

For the most accurate replacement, always refer to the vehicle’s specific repair manual or the diagram provided on the engine compartment for precise belt routing. This can prevent potential misalignments and ensure proper functioning of the engine components.

How to Identify the Serpentine Belt Components in a 2008 Toyota Yaris

Check the serpentine belt layout in your 2008 Toyota Yaris by locating the belt and identifying the key components it interacts with. Start with the belt itself, a single continuous loop, running across multiple pulleys. The primary components involved include the alternator, power steering pump, air conditioning compressor, and the tensioner. These parts are all connected by the belt and play an essential role in vehicle operation.

The alternator pulley is typically located on the passenger side of the engine, and the belt will loop around it to power the alternator. The power steering pump pulley can be found towards the front of the engine, usually closer to the driver’s side, responsible for assisting with steering fluid circulation. The AC compressor pulley is located near the front of the engine and is driven by the serpentine belt to operate the air conditioning system.

The tensioner pulley ensures the belt maintains the proper tension. It’s typically spring-loaded and positioned somewhere along the belt’s path. Make sure to inspect the condition of the tensioner to avoid any slipping or loosening that could cause premature wear on the belt.

Visually trace the path of the serpentine belt to confirm the correct routing around these components. Look for wear marks, cracks, or fraying along the edges, which can indicate an aging belt in need of replacement. If any components appear damaged, it’s best to replace them along with the belt to maintain proper function.

Step-by-Step Guide to Replacing the Serpentine Belt on a 2008 Toyota Yaris

First, gather the necessary tools: a 14mm socket wrench, a serpentine belt tool or breaker bar, a new serpentine belt, and safety gloves. Make sure the car is parked on a flat surface and the engine is cool.

Next, locate the serpentine belt in the engine bay. The 2008 Toyota Yaris has the belt running across several pulleys. You’ll see the tensioner pulley that keeps the belt tight. Find the small hole on the tensioner, which will allow you to release the tension. Use the serpentine belt tool or breaker bar to rotate the tensioner clockwise to relieve tension on the belt.

Once the tension is off, slide the belt off the pulleys. Pay attention to the routing of the belt so you can install the new one correctly. Take a picture or refer to a diagram of the serpentine belt layout to ensure proper alignment.

Now, remove the old serpentine belt and inspect it for wear or damage. Look for cracks, fraying, or any other signs of excessive wear. Make sure to check the pulleys for any debris or build-up that could affect the belt’s performance.

Install the new belt, following the path you recorded earlier. Begin by threading the belt over the pulleys, making sure it fits snugly in each groove. Once the belt is in place, use the serpentine belt tool to rotate the tensioner and slip the belt into position. Double-check that the belt is properly aligned with all the pulleys and is running smoothly.

Finally, start the engine to verify that the new serpentine belt is working correctly. Listen for any unusual noises, and check the belt’s tension to ensure it is tight but not over-stretched. If everything sounds normal, you’re done.

Common Issues with the Serpentine Belt in the 2008 Toyota Yaris and How to Fix Them

If your 2008 Toyota Yaris is making unusual noises, slipping, or you notice power steering or alternator issues, the serpentine belt might be the cause. Here are the most common problems and their fixes:

• Belt Wear and Cracking: Over time, the serpentine belt can wear out and develop cracks. This reduces its ability to grip and can cause squealing or slipping. To fix this, inspect the belt regularly for visible damage. If cracks or signs of wear are present, replace the belt immediately.
• Misalignment: Misalignment of the serpentine belt can occur if a pulley or tensioner is damaged. This leads to uneven wear, slipping, or squeaking noises. Check for misaligned pulleys and replace any faulty components, ensuring proper alignment before installing a new belt.
• Worn-out Tensioner: A faulty tensioner can lead to improper tension, causing the belt to slip or come off. If you notice that the belt appears loose or the car’s accessories aren’t working correctly, replace the tensioner. It’s usually located near the alternator or power steering pump.
• Incorrect Belt Length or Installation: If the serpentine belt is too long or incorrectly installed, it can slip off or fail to power certain components. Ensure you are using the correct belt size and double-check the routing diagram before installation.
• Oil or Fluid Contamination: Leaking oil, coolant, or power steering fluid can contaminate the belt, causing it to lose its grip and wear faster. Inspect for leaks and fix them promptly. Clean the area thoroughly before replacing the belt.

Regular maintenance, such as checking belt condition and tension, can prevent many of these issues. If you’re uncertain about any of the fixes, it’s best to consult a professional mechanic to avoid further damage.
