2008 Toyota Yaris Serpentine Belt Diagram and Installation Guide
To ensure your 2008 Toyota Yaris runs smoothly, understanding the serpentine belt layout is key. The serpentine belt drives critical engine components such as the alternator, power steering pump, and air conditioning compressor. Familiarizing yourself with its routing can save time during maintenance or repairs.
Locate the belt tensioner. It’s a spring-loaded pulley that maintains proper tension on the serpentine belt. When replacing the belt, first relieve the tension by using a suitable tool to rotate the tensioner. This allows you to remove the old belt and install the new one correctly.
Follow the diagram carefully. The routing of the belt must follow a specific path to ensure all components are powered correctly. Improper routing can cause the belt to slip or wear out prematurely. Refer to the 2008 Toyota Yaris service manual for a clear and accurate belt diagram for the engine model.
Check the pulleys for wear. Inspect all pulleys and the belt for any signs of damage before reassembly. If any pulleys are misaligned or damaged, replace them to avoid putting additional strain on the new belt.

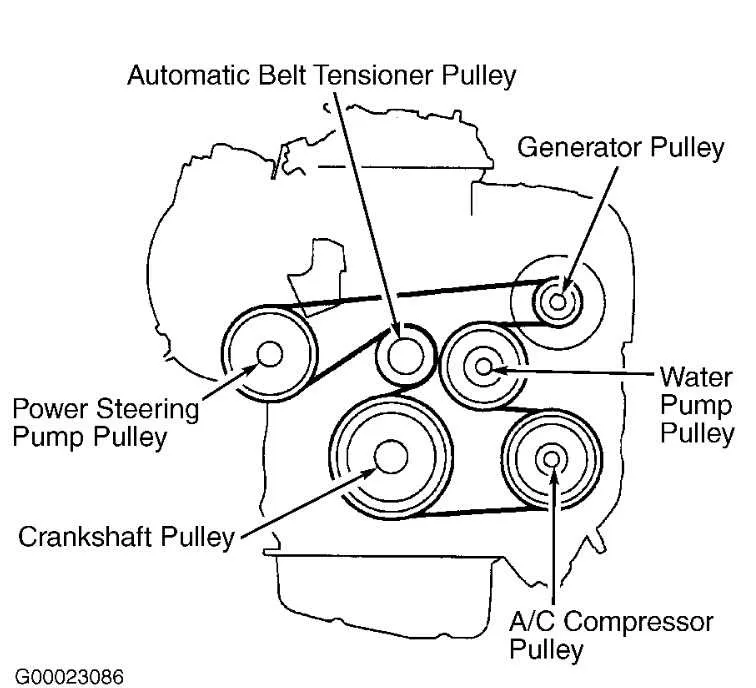

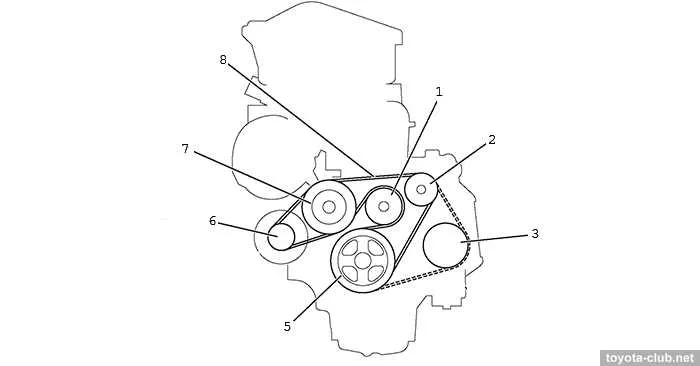

2008 Toyota Yaris Belt Diagram
The 2008 Toyota Yaris uses a serpentine belt to drive essential components such as the alternator, power steering pump, and air conditioning compressor. Understanding the belt routing is key for maintenance and troubleshooting.
To locate the serpentine belt in the engine bay, start by identifying the tensioner pulley. The belt routes around multiple pulleys, including the crankshaft pulley, alternator pulley, and water pump. Check the diagram for the correct routing to avoid installation errors.
If you’re replacing the serpentine belt, make sure to inspect each pulley for wear. A worn-out pulley could cause premature belt failure, leading to costly repairs. Tighten the belt according to the manufacturer’s specifications to ensure optimal performance and prevent slipping.
Keep the diagram handy for reference during repairs. It shows the precise path of the belt, which is crucial when reassembling the system after servicing. Accurate belt installation ensures that all engine components function correctly.
How to Locate the Serpentine Belt on a 2008 Toyota Yaris

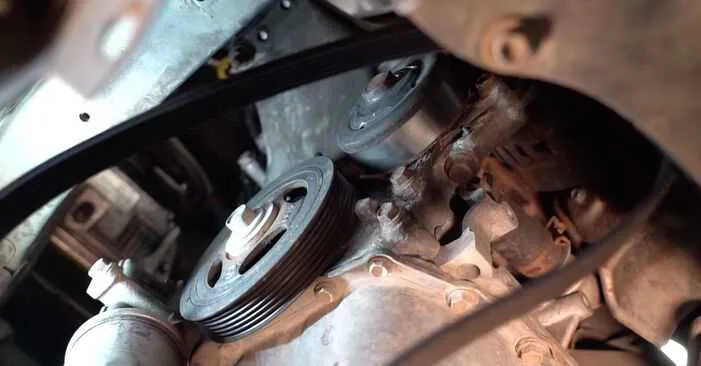

Start by opening the hood of your 2008 Toyota Yaris and locating the engine bay. The serpentine belt is located on the front side of the engine, where it loops around several pulleys.
Look for the tensioner pulley, which is typically the easiest to spot. This pulley keeps the serpentine belt tight and helps guide it around the other components. The serpentine belt itself runs from the crankshaft pulley, through the tensioner, and around other components like the alternator and power steering pump.
To confirm its path, refer to the belt diagram often found on a sticker near the radiator or on the underside of the hood. This diagram will show you exactly how the serpentine belt should be routed around the pulleys.
If needed, use a flashlight to inspect the belt closely, especially if the engine bay is cramped. Look for any signs of wear or damage, such as cracks or fraying, which could indicate the need for replacement.
Step-by-Step Guide to Removing and Replacing the Serpentine Belt
Start by loosening the tension on the serpentine belt. Use a ratchet wrench with a socket that fits the tensioner pulley bolt. Rotate the tensioner counterclockwise to release pressure and remove the belt from the pulleys.
Next, carefully inspect the belt for wear before removing it completely. Check for cracks, fraying, or other signs of damage that could affect its performance.
Once the belt is free, locate the replacement serpentine belt. Ensure the new belt matches the specifications for your 2008 Toyota Yaris. Check the part number and width to confirm compatibility.
Install the new belt by following the same path as the old one. Make sure it runs over all pulleys correctly, aligning it with grooves. Be mindful of the routing diagram to avoid errors.
After positioning the new belt, use the ratchet wrench to rotate the tensioner pulley again, allowing it to apply the correct tension to the belt. Double-check that the belt is securely fitted and centered on all pulleys.
Finally, start the engine and observe the belt’s operation. Listen for unusual noises and verify that the belt is running smoothly without slipping or misaligning.
Common Issues with the Serpentine Belt and How to Fix Them
If your serpentine belt is making a squeaking noise, it could be worn or loose. Inspect the belt for visible signs of wear such as cracks, fraying, or glazing. Tighten or replace the belt if necessary. Check the belt tensioner to ensure it is properly adjusting the belt tension.
Another common issue is slipping. This typically occurs when the belt loses its grip on the pulleys due to wear or improper tension. If the belt is slipping, inspect the pulleys for misalignment or damage. Realign or replace the affected pulleys and adjust the tension accordingly.
A cracked or broken serpentine belt can cause the engine to overheat, as it powers the water pump. If the belt breaks, replace it immediately. Make sure to check all related components, such as the alternator and air conditioning compressor, to ensure they are functioning correctly after replacement.
If the belt is noisy, inspect the pulleys for damage or foreign debris. Clean the pulleys and check for smooth operation. If necessary, replace the pulley or the tensioner that is causing the noise.
To prevent further issues, inspect the belt regularly for wear and ensure the belt tension is properly maintained. Replace the serpentine belt according to the manufacturer’s recommended schedule to avoid unexpected failures.
