2007 Toyota Tacoma 4.0 Serpentine Belt Routing Diagram and Installation Guide

If you’re working on your 2007 Toyota Tacoma 4.0, knowing the serpentine belt routing is crucial for proper maintenance. A clear understanding of how the belt should be installed helps prevent issues like engine overheating or power steering failure. Below is a simple diagram that outlines the correct path for the serpentine belt. Make sure to follow the steps closely to avoid unnecessary complications.

The serpentine belt on your 2007 Tacoma drives multiple components, including the alternator, power steering pump, and air conditioning compressor. If the belt is installed incorrectly, it can cause these systems to fail, leading to more severe engine problems. Refer to the diagram carefully and double-check the tension to ensure smooth operation.

Before you begin, make sure you have the right tools, such as a serpentine belt tool or a breaker bar, to release the tensioner. If you’re replacing the belt, always use a genuine part or a high-quality aftermarket option for the best fit and durability. With the correct belt and a proper installation, your Tacoma will run smoothly for years to come.

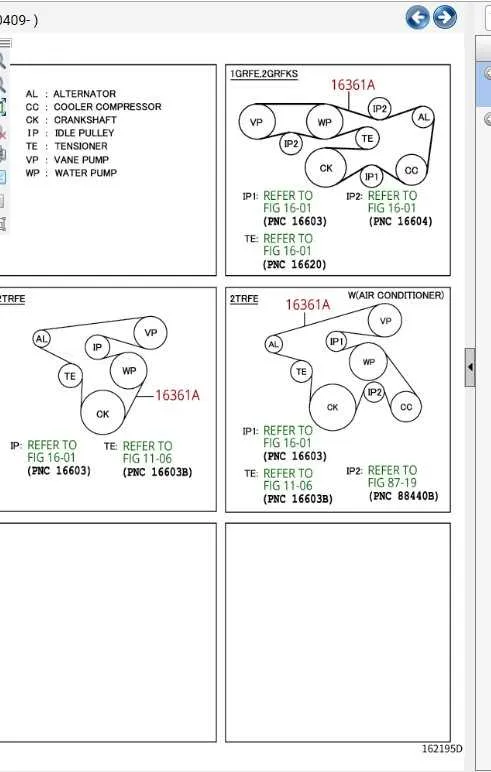

2007 Toyota Tacoma 4.0 Serpentine Belt Diagram

If you’re replacing or inspecting the serpentine belt on your 2007 Toyota Tacoma 4.0, it’s crucial to follow the correct routing. The serpentine belt drives multiple components, including the alternator, power steering pump, and air conditioning compressor.

The belt should pass through the crankshaft pulley, idler pulleys, and tensioner before looping around the other components. Make sure to check the tensioner and pulleys for wear, as these parts can affect the belt’s performance if damaged or worn out.

Ensure that the belt is properly aligned and that there are no twists in the routing. The diagram typically shows the belt running from the crankshaft pulley to the alternator, the power steering pump, the A/C compressor, and then around the idler pulleys and tensioner. The belt tension should be checked regularly to avoid slippage or premature wear.

For the correct diagram, consult your vehicle’s manual or an online resource specific to the 2007 Toyota Tacoma 4.0 model. This ensures that the belt is routed correctly and prevents damage to other components.

How to Identify the Components in the 2007 Toyota Tacoma 4.0 Serpentine Belt System

The 2007 Toyota Tacoma 4.0 serpentine belt system consists of several key components, each serving a specific function to maintain engine efficiency. First, locate the serpentine belt itself, which runs across the various pulleys, powered by the crankshaft pulley. The belt drives essential accessories like the alternator, power steering pump, air conditioning compressor, and water pump.

Start by identifying the tensioner pulley, which maintains the correct tension on the serpentine belt. The tensioner pulley is typically spring-loaded, allowing it to automatically adjust as the belt wears or stretches. Next, find the idler pulley. Unlike the tensioner pulley, the idler pulley does not adjust tension but instead provides additional support for the belt’s routing.

Look for the crankshaft pulley, located at the bottom of the engine. This component connects directly to the engine and provides the driving force for the entire belt system. The alternator pulley, connected to the alternator, is responsible for generating electrical power, while the power steering pulley ensures smooth steering operation by connecting to the power steering pump. The air conditioning compressor pulley drives the air conditioning system, and the water pump pulley helps circulate coolant throughout the engine.

To complete the identification process, verify the routing of the serpentine belt using a diagram specific to your vehicle model. The diagram outlines the path of the belt around each pulley and component, which is helpful when replacing or adjusting the belt. Keep the system clean and inspect for wear or damage to ensure continued performance.

Step-by-Step Guide to Replacing the Serpentine Belt on 2007 Toyota Tacoma 4.0

Begin by ensuring the engine is off and cool. Disconnect the negative terminal of the battery to prevent any electrical mishaps during the replacement.

Locate the serpentine belt. It runs over various pulleys including the alternator, power steering pump, and air conditioning compressor. To make the replacement process easier, note the belt routing by taking a photo or referring to the vehicle’s manual.

Use a socket wrench to loosen the tensioner pulley. This will relieve the tension on the serpentine belt. Rotate the tensioner counterclockwise to create enough slack to remove the belt from the pulleys.

Carefully remove the old serpentine belt from the system. Check for any signs of wear on the belt, pulleys, or tensioner that may require attention. If the tensioner or pulleys appear worn, replace them as well.

Take the new serpentine belt and route it over the pulleys, following the pattern you noted earlier. Ensure it is properly aligned and seated in the grooves of each pulley.

Once the belt is in place, use the socket wrench to rotate the tensioner pulley and slide the belt over it. Release the tensioner slowly, allowing it to apply tension to the new belt.

Double-check the belt’s alignment and ensure it is properly tensioned. Start the engine and observe the belt in motion to confirm everything is running smoothly without any slipping or noise.

Finally, reconnect the battery’s negative terminal, and your serpentine belt replacement is complete.

Troubleshooting Common Issues with the 2007 Toyota Tacoma 4.0 Serpentine Belt

If you notice unusual noises or performance issues, inspect the serpentine belt immediately. A worn or damaged serpentine belt can affect engine performance and lead to costly repairs if not addressed promptly.

• Squeaking or Chirping Noises: These sounds are usually caused by a loose or worn belt. Check the tension of the belt and adjust if needed. A loose belt may also be a sign of a failing tensioner pulley or idler pulley. Replace these components if necessary.
• Cracking or Fraying Belt: If the serpentine belt shows visible cracks or frays, it’s time for a replacement. Running the engine with a damaged belt can cause it to snap, leading to a complete loss of power to critical accessories like the alternator or power steering.
• Flashing Battery Light: A failing serpentine belt can cause the alternator to stop charging the battery. If you see the battery light on your dashboard, check the belt for wear and ensure it’s properly tensioned.
• Power Steering Loss: A slipping serpentine belt can reduce the effectiveness of the power steering system. If turning the steering wheel becomes difficult, inspect the belt and related components, such as the power steering pump pulley.
• Overheating Engine: The serpentine belt is also responsible for driving the water pump. A slipping or broken belt can stop coolant circulation, causing the engine to overheat. This issue should be addressed immediately to avoid engine damage.

Regular maintenance is crucial to avoid unexpected failures. Always replace the serpentine belt at the recommended intervals or if any of the above issues arise. Keeping the belt properly tensioned and free from damage will ensure smooth operation of your Tacoma’s engine accessories.
