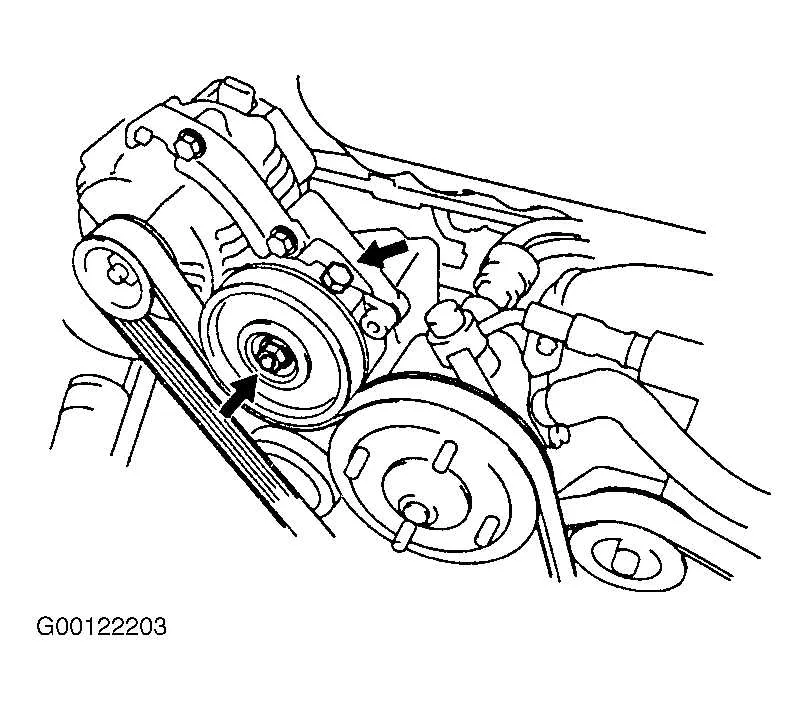

2007 Toyota RAV4 Complete Belt Diagram and Routing Guide

Check the tensioner pulley and routing path before replacing the serpentine belt on a 2007 Toyota RAV4. The belt must follow the exact configuration to prevent slippage or damage to the alternator, power steering pump, and air conditioning compressor.

Use the manufacturer’s diagram to verify the placement of each belt groove around pulleys. Align the belt teeth carefully with the crankshaft pulley, idler pulleys, and accessory drives, ensuring no twists or misalignments occur during installation.

Inspect all pulleys and the tensioner for wear or looseness. Replace any components showing cracks, excessive play, or corrosion. A worn pulley can reduce belt lifespan and affect engine performance.

After routing the belt, rotate the crankshaft by hand to confirm smooth operation. Listen for abnormal noises and verify proper tension. Adjust the tensioner if needed to maintain consistent contact with all pulleys.

Document the routing path or take a photo before removal for future maintenance. Accurate reference ensures correct reinstallation and minimizes the risk of engine accessory failure.

2007 Toyota RAV4 Belt Diagram Practical Guide for Identification and Replacement

Locate the serpentine belt on the front of the engine. Identify the main pulleys: crankshaft, alternator, power steering, and air conditioning. Confirm the belt routing using the diagram printed on the engine cover or service manual.

Inspect the belt for cracks, fraying, or glazing. Check tension using a belt tension gauge or by pressing the belt at mid-span–deflection should be approximately half an inch for a properly tensioned belt.

To remove the belt, rotate the tensioner pulley clockwise using a wrench to release tension. Slide the belt off each pulley in sequence. Compare the old belt with the new one to ensure matching length and rib pattern.

Install the new belt by following the routing diagram in reverse removal order. Ensure the belt seats correctly in all pulley grooves. Release the tensioner slowly, confirming the belt maintains proper alignment.

After installation, start the engine and observe the belt operation. Look for smooth movement and absence of squealing. Recheck the tension after a short drive and adjust if necessary.

Locate and Identify All Drive and Accessory Belts on 2007 RAV4

Begin by opening the hood and securing the vehicle on a level surface. The 2007 Toyota RAV4 uses a serpentine belt system for the engine’s main drive and accessories. Locate the serpentine belt at the front of the engine; it drives the alternator, power steering pump, water pump, and air conditioning compressor.

Identify the tensioner pulley on the passenger side of the engine. This pulley maintains proper tension on the serpentine belt. Use a wrench to rotate the tensioner and relieve belt pressure when inspecting or removing the belt.

Locate the accessory belts if the vehicle has any additional components, such as the alternator for optional equipment or auxiliary systems. Check the engine side panels for smaller V-belts; these typically run the water pump or other minor accessories.

Trace the belt routing carefully. The serpentine belt wraps around each pulley in a specific pattern: crankshaft pulley at the bottom, alternator on the top passenger side, power steering and A/C in between. Mark each pulley or use a printed diagram for precise identification before removal or replacement.

Inspect the belts visually for cracks, fraying, or glazing. Ensure each belt sits fully in the pulley grooves. Confirm the tensioner applies consistent pressure along the belt to prevent slipping during engine operation.

Step-by-Step Belt Routing Instructions with Diagram References

Follow these steps to correctly route the drive and accessory belts on a 2007 Toyota RAV4. Reference the accompanying belt diagram for pulley identification.

1. Ensure the engine is off and cool. Loosen the tensioner using a 14mm wrench to relieve tension on the existing belt.

2. Remove the old belt, noting the path over each pulley: crankshaft, alternator, power steering, and A/C compressor (if equipped).

3. Compare the new belt to the old one to verify length and rib alignment.

4. Route the belt starting at the crankshaft pulley, moving clockwise over the water pump pulley, then under the idler pulley.

5. Continue over the alternator pulley, then around the power steering pulley. For models with A/C, loop the belt over the A/C compressor pulley last.

6. Position the belt correctly on all pulley grooves. Ensure the ribs match each pulley profile and that the belt sits flush without twisting.

7. Apply tension by releasing the tensioner slowly. Verify that the belt maintains proper alignment and tension across all pulleys.

8. Rotate the crankshaft manually two full turns to seat the belt. Recheck tension and alignment.

9. Start the engine briefly to observe belt tracking. Stop immediately if any misalignment or slipping occurs.

Reference the belt diagram to confirm correct routing for your specific engine configuration. Use arrows and labels on the diagram to verify each pulley sequence.

• Crankshaft pulley – drives all accessories.

• Alternator pulley – top right position, connected directly to electrical system.

• Power steering pulley – lower left, loops under idler.

• A/C compressor pulley – top left, only on equipped models.

• Idler pulleys – maintain proper belt tension and alignment.

Troubleshoot Common Belt Wear and Misalignment Issues on RAV4

Inspect the serpentine and accessory belts for cracks, fraying, or glazing on the ribbed side. Replace belts showing wear exceeding 3 mm in depth or visible cords. Check for uneven wear patterns, which indicate misalignment or defective pulleys.

Measure belt tension using a tension gauge or apply moderate pressure to the center span. A belt that deflects more than 10–12 mm under 10 kg of force may be loose, while a belt that barely deflects can indicate over-tightening. Adjust the tensioner to maintain recommended tension.

Examine all pulleys for wobble, noise, or surface damage. Misaligned pulleys can produce rapid belt wear or slipping. Use a straightedge along the pulley faces to confirm alignment. Replace any bent or damaged pulleys immediately.

Check the belt routing against the official 2007 RAV4 belt diagram. Incorrect installation can cause premature wear, squealing, or accessory failure. Confirm the belt engages all idlers, tensioners, and accessory pulleys according to the diagram.

Listen for unusual noises while the engine runs. Squealing or chirping often points to belt misalignment, glazing, or contamination from oil or coolant. Clean pulleys and belts if minor contamination is present, or replace the belt if the glaze is extensive.

Inspect the tensioner spring and arm movement. A weak or sticking tensioner can reduce belt life and affect accessory performance. Replace tensioners that do not maintain consistent tension or show visible corrosion or wear.
