2007 Toyota Corolla Belt Diagram and Routing Guide for Maintenance and Repairs

If you’re working on your 2007 Toyota Corolla’s engine, understanding the belt system is key. The accessory belt diagram will help you ensure proper installation and tension for all components powered by belts, like the alternator, power steering pump, and air conditioning. Correct belt routing and tension are critical to prevent wear and tear or even costly engine damage.

The 2007 Toyota Corolla uses a serpentine belt to drive multiple accessories. Knowing the exact belt routing is necessary for maintenance or repairs. If the belt wears out or if it’s incorrectly routed, it can lead to malfunctioning components and, in the worst case, engine failure. Always refer to the belt diagram specific to your engine model (1.8L, for example) to avoid mistakes.

Once you have the correct diagram, double-check the pulley positions, and ensure that the belt is properly tensioned. Over or under-tensioning can cause excessive wear on the belt or strain on the components. If you’re unsure, it’s always good to consult the owner’s manual or a trusted repair guide to confirm your work.

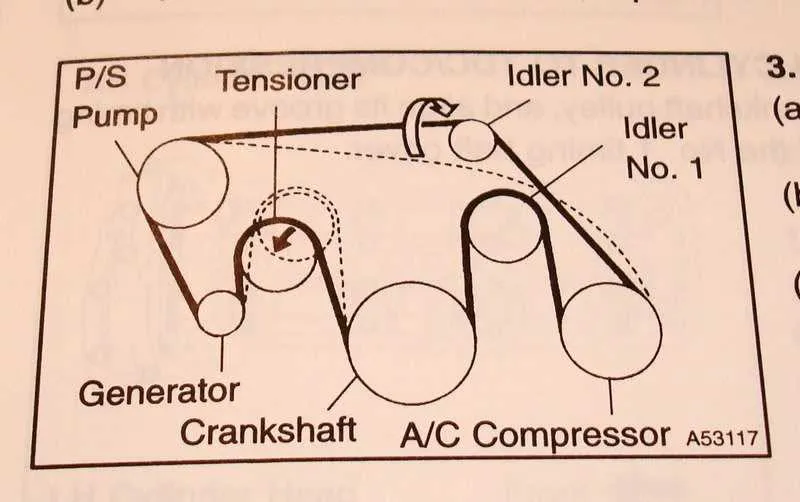

2007 Toyota Corolla Belt Diagram

The 2007 Toyota Corolla uses a serpentine belt to drive several components, including the alternator, power steering pump, air conditioning compressor, and water pump. Understanding how the belt is routed is crucial for troubleshooting and maintenance.

Locate the serpentine belt at the front of the engine. It loops around the crankshaft pulley, driven by the engine’s rotation, and routes over various pulleys that control accessory components. Pay attention to the tensioner pulley–it maintains the proper tension on the belt to ensure smooth operation.

If you need to replace the belt, use the diagram as a guide to avoid misrouting. Misalignment can cause premature wear or even failure of the belt and connected components. A belt diagram is typically located on a sticker under the hood, on the radiator support, or near the engine compartment.

Always check the belt for signs of wear, like cracking or fraying. If the belt is too loose or damaged, replace it immediately to prevent further engine damage. It’s also recommended to inspect the pulleys and tensioner for proper operation during routine maintenance.

How to Read the 2007 Toyota Corolla Belt Diagram for Engine Components

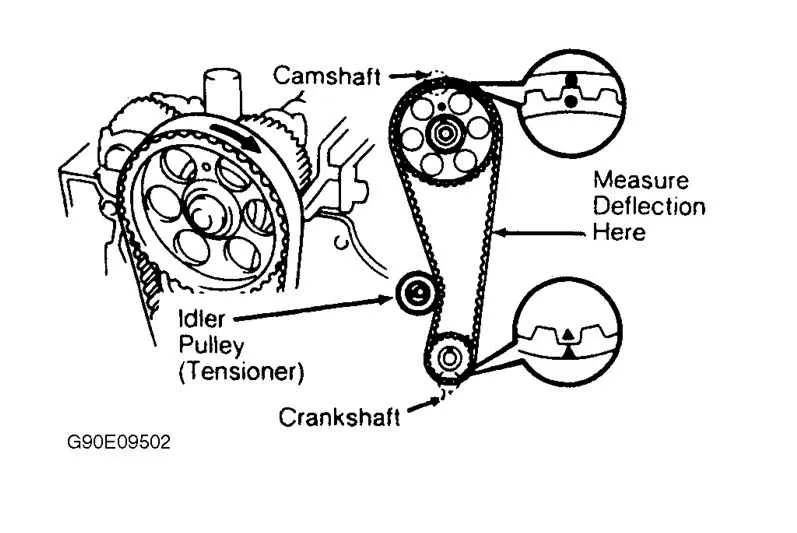

Start by identifying the main components on the diagram. Look for the engine’s accessory belt, typically shown as a solid line. The diagram will indicate the pulleys, including the crankshaft, alternator, power steering, and air conditioning. Some diagrams may also include the water pump and timing belt, depending on the configuration of your engine.

Focus on the direction of the belt’s rotation. Arrows often show how the belt should move. Follow the path from the crankshaft pulley, as it drives the other components. The tensioner pulley will be highlighted, which helps maintain proper belt tension. The diagram will usually show a dotted line for the tensioner, indicating its adjustable nature.

Next, check the alignment of each component. Ensure the belt follows the correct routing. Misalignment can cause wear or damage. If a diagram includes a reverse view, it helps confirm the positioning of the components, especially when the belt routing seems unclear.

• Crankshaft Pulley: The starting point for the belt.
• Alternator: Power source for the electrical system.
• Power Steering Pump: Provides hydraulic pressure for steering.
• Air Conditioning Compressor: Drives the AC system.
• Tensioner Pulley: Keeps belt tight and in place.
• Water Pump: If part of the diagram, drives the cooling system.

Refer to the diagram before replacing the belt or performing any maintenance. Correct routing is crucial for engine performance. If the belt slips or wears unevenly, check the tensioner for proper adjustment or possible replacement.

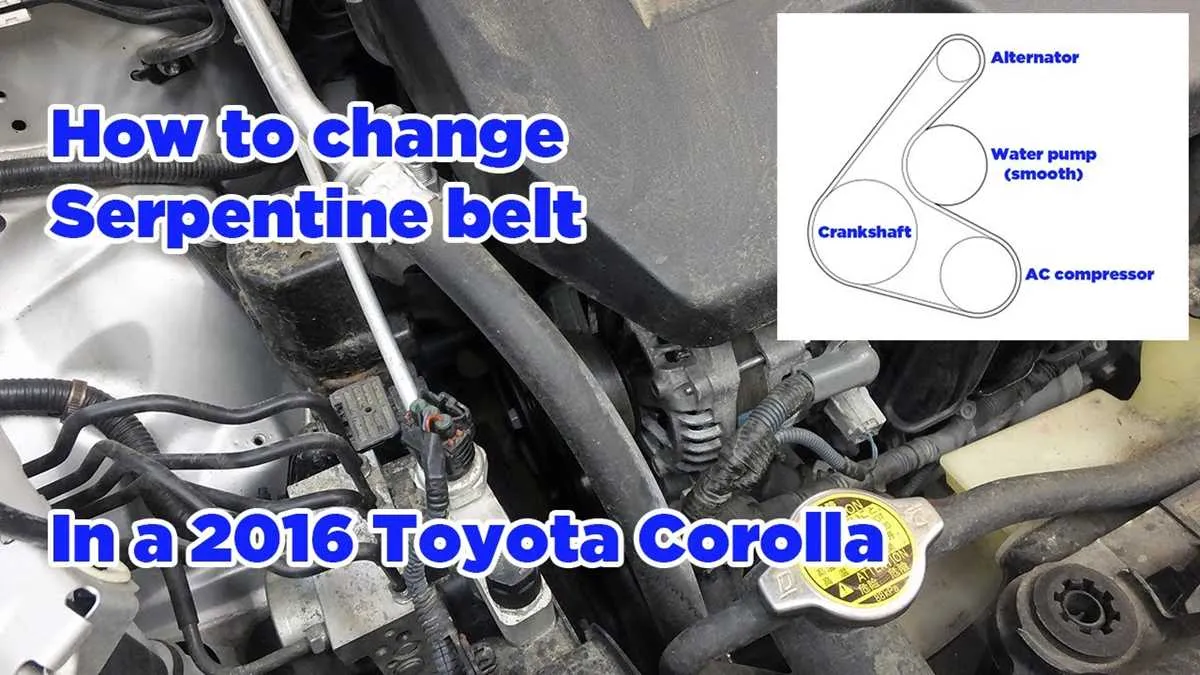

Step-by-Step Guide to Replacing the Serpentine Belt in a 2007 Toyota Corolla

1. Gather Necessary Tools: Before starting, make sure you have the correct replacement serpentine belt, a socket wrench set, a belt tensioner tool (or a 3/8″ drive ratchet), and gloves for protection.

2. Locate the Serpentine Belt: Open the hood and find the serpentine belt on the front of the engine. It wraps around the various components like the alternator, power steering pump, and A/C compressor.

3. Inspect the Belt: Check the belt for signs of wear, cracking, or fraying. If it’s damaged or too worn, replacing it now will prevent further engine issues.

4. Release Tension: Using the appropriate tool (typically a ratchet or a special tensioner tool), apply pressure to the tensioner pulley to release the tension on the belt. This will allow you to remove it without damaging the components.

5. Remove the Old Belt: Slide the belt off the pulleys, starting from the easiest one to reach. Be sure to note the belt’s routing on the pulleys for proper installation of the new one.

6. Compare the New Belt: Before installing the new serpentine belt, ensure that it matches the length and width of the old belt to avoid any fitting issues.

7. Install the New Belt: Begin threading the new belt over the pulleys, carefully following the correct routing pattern. Ensure the belt sits properly in each groove and is fully seated.

8. Apply Tension: Use the tensioner tool again to apply pressure and tighten the belt. Make sure there’s adequate tension by checking that the belt doesn’t have too much slack but also isn’t overly tight.

9. Double Check the Belt’s Routing: Double-check the belt routing to ensure that it follows the correct path, with the grooves matching the pulleys. This will prevent slippage or premature wear.

10. Test the New Belt: Start the engine and watch the belt in operation. Listen for any unusual noises and check that it’s running smoothly across all pulleys. If everything seems normal, the installation is complete.

11. Final Inspection: Once the belt is running smoothly, inspect it once more to confirm it’s seated properly. Tighten any components that may need adjustment. Close the hood, and you’re done!

Troubleshooting Common Belt Issues in a 2007 Toyota Corolla

If your 2007 Toyota Corolla’s belt is squealing, it’s likely a sign of wear or misalignment. Start by checking the tension. A loose belt may cause poor engine performance, especially in accessory components like the alternator or air conditioning. Tighten the tensioner if needed. If the squealing persists, inspect the belt for cracks, frays, or glazing, which indicate it’s time for a replacement.

Another common issue is a slipping belt. This can occur if the belt is too old or the pulleys are misaligned. Check for any worn-out pulleys or bearings that could be causing friction. If you find damage, replace the pulley or the belt immediately. Sometimes, debris can accumulate around the belt, obstructing its movement. Cleaning the area can often resolve this issue.

If the belt appears to be misaligned, verify that all pulleys are mounted correctly and that none of them are loose. A misaligned pulley can lead to excessive wear and cause the belt to slip or even snap. Make sure the belt follows the correct path as outlined in the vehicle’s service manual.

In case of a belt that’s snapped or severely damaged, turn off the engine immediately. Replacing the belt will require you to remove the damaged one and install a new one, ensuring it’s routed as per the manufacturer’s specifications. Always replace a damaged belt as soon as possible to avoid further damage to engine components.
