2006 Toyota Camry Serpentine Belt Routing and Diagram for Maintenance

The serpentine belt in a 2006 Toyota Camry plays a critical role in driving multiple engine components. Understanding the layout of this belt is key to diagnosing any issues and ensuring your car runs smoothly. A well-maintained serpentine belt ensures that systems like the alternator, power steering, air conditioning, and water pump all function properly. Without it, your engine’s performance can be severely impacted.

Referencing the serpentine belt diagram can save time and frustration when replacing or adjusting the belt. The diagram shows the exact path of the belt around pulleys and tensioners, ensuring proper installation and alignment. For the 2006 Camry, this diagram is available in the owner’s manual or can be found on the engine bay for easy reference. It’s important to check the condition of the belt regularly and replace it if signs of wear or cracking appear.

Before starting any work, make sure you have the correct tools and parts. The serpentine belt should be installed with the right amount of tension to prevent slippage or damage to surrounding components. If the belt is too loose or too tight, it can cause premature wear or lead to further mechanical issues. Make sure to also inspect the tensioner and pulleys for any damage that could affect the performance of the serpentine belt.

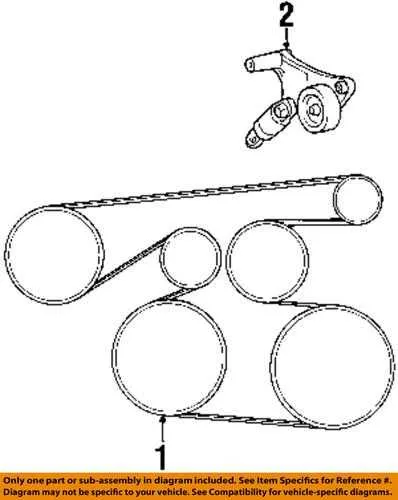

2006 Toyota Camry Serpentine Belt Diagram

To replace or inspect the serpentine belt on a 2006 Toyota Camry, it’s important to know the correct routing. This belt drives multiple accessories such as the alternator, power steering pump, and air conditioning compressor. Incorrect installation can lead to serious engine issues.

Here is the step-by-step belt routing guide for the 2006 Toyota Camry:

• The belt wraps around the crankshaft pulley at the bottom of the engine.
• It loops over the tensioner pulley, which keeps the belt under appropriate tension.
• The belt then moves up to the alternator pulley.
• Next, it passes around the power steering pump pulley.
• It moves up to the air conditioning compressor pulley.
• Lastly, it loops back around the idler pulley before returning to the crankshaft pulley.

Check the diagram for the exact positioning, ensuring the belt tracks correctly along each pulley. Ensure the tensioner maintains proper tension for optimal performance. If the belt is loose or worn, replace it immediately to avoid further damage to the engine components.

How to Read and Understand the Serpentine Belt Diagram for 2006 Toyota Camry

The serpentine belt diagram for the 2006 Toyota Camry shows how the belt loops around various engine components, providing power to accessories like the alternator, power steering pump, and air conditioning compressor. To read the diagram, start by identifying the belt’s path and the components it connects to.

Look for the belt routing, which typically follows a series of pulleys, starting from the crankshaft pulley. The diagram will show the direction of the belt movement and highlight which pulleys are fixed or adjustable. This helps you understand the tensioning system, which keeps the belt tight.

The diagram also indicates the presence of idler pulleys, which guide the belt and help maintain its proper tension. If the diagram shows an automatic tensioner, it means the system will adjust the belt tension without manual intervention.

Be sure to check if there are any special notations, like “reverse direction” or “counterclockwise,” which might alter the normal belt routing. These details can impact how the belt is installed, especially when replacing it.

Finally, if you’re replacing the serpentine belt, use the diagram as a guide to reinstall the new belt in the correct configuration, ensuring it matches the pulley arrangement and tension specifications.

Step-by-Step Guide to Replacing the Serpentine Belt on a 2006 Toyota Camry

To replace the serpentine belt on your 2006 Toyota Camry, follow these clear steps:

1. Gather the Required Tools: You’ll need a 3/8-inch ratchet, a serpentine belt tool or breaker bar, and a replacement belt that matches your Camry’s specifications.

2. Locate the Serpentine Belt Routing Diagram: Before removing the old belt, find the routing diagram under the hood. This will show the path the belt follows around the pulleys. If the diagram is missing, refer to the owner’s manual or search online for a diagram specific to your vehicle.

3. Release Tension from the Belt: Use a serpentine belt tool or a ratchet wrench to rotate the tensioner pulley. The tensioner will move, relieving pressure on the belt. Make sure to rotate it clockwise, then slide the belt off one of the pulleys.

4. Remove the Old Belt: Once the tension is released, slowly slide the belt off the remaining pulleys. Take note of the belt’s routing as you remove it, so you can install the new one correctly.

5. Install the New Belt: Compare the old and new belts to ensure they are the same size. Begin threading the new serpentine belt over the pulleys, following the routing diagram you located earlier. Make sure the belt fits snugly into the grooves of each pulley.

6. Apply Tension: Rotate the tensioner pulley again to allow the belt to slide into place. Ensure the tensioner is holding the belt under the correct tension. The belt should not be too loose or too tight.

7. Double-Check the Installation: Inspect the belt and ensure it’s aligned properly on all pulleys. Give the belt a few manual turns to ensure it moves smoothly across the pulleys without any obstruction.

8. Start the Engine: Turn on the engine and observe the belt as it runs. Listen for any unusual sounds, and check that the belt operates quietly and smoothly.

Replacing the serpentine belt on your 2006 Toyota Camry is a manageable task with the right tools and patience. Regularly inspect the belt for wear and replace it as necessary to keep your engine running efficiently.

Common Issues with the Serpentine Belt System in 2006 Toyota Camry and How to Troubleshoot

If the serpentine belt on your 2006 Toyota Camry is damaged, it can affect several key systems, such as the alternator, air conditioning, and power steering. The most common issues include belt wear, misalignment, or damage to components that the belt drives. Check the belt for cracks, fraying, or missing sections. If any of these are present, replace the belt immediately to avoid further damage to other parts of the engine.

One frequent problem is the belt tensioner failing. The tensioner keeps the belt at the correct tension to prevent slippage or over-tightening. If the tensioner becomes loose or worn, the belt may squeal, lose contact with the pulleys, or wear out faster than usual. You can troubleshoot this by inspecting the tensioner’s pulley for play or abnormal movement. Replace the tensioner if you notice any unusual wear or damage.

Another issue to watch for is the misalignment of pulleys. When pulleys are out of alignment, the belt may travel unevenly, which leads to premature wear and potential snapping. Check the pulleys for signs of wear or bending. If they look off-center or damaged, you’ll need to replace them. You can also check for any unusual noises like squealing or grinding when the engine is running. These noises often indicate that the belt is not moving smoothly across the pulleys.

Sometimes, the serpentine belt may slip due to incorrect installation. Always ensure that the belt is routed correctly according to the manufacturer’s diagram. Misrouting can cause significant damage to the belt or the pulleys. If you’re unsure, refer to the vehicle’s manual or check the belt routing diagram on the engine compartment’s cover.

Finally, if your car’s air conditioning or alternator stops working, it could be linked to the serpentine belt system. These components depend on the belt to function correctly. A quick inspection of the belt’s condition and alignment can help you identify the issue early. If the belt is intact but the accessories aren’t working, it may be a sign of a damaged pulley or the need for a new belt.
