2005 Toyota Highlander Serpentine Belt Diagram and Routing Guide
The serpentine belt in the 2005 Toyota Highlander is a critical component that powers various engine accessories such as the alternator, power steering pump, air conditioning compressor, and water pump. Ensuring the proper installation and routing of the serpentine belt is vital to maintaining the vehicle’s performance and preventing potential damage. In this section, we’ll go over the precise belt routing for your Highlander to help you manage this task with confidence.
First, locate the tensioner pulley on the engine. It’s usually a spring-loaded component designed to keep the belt tight. Make sure that the belt routing follows the correct path along the pulleys. An incorrectly routed belt can lead to excessive wear, poor engine performance, or even belt failure. Use a belt tension tool to check that the tensioner is functioning correctly after the belt is installed.
The diagram for the 2005 Toyota Highlander shows the exact route the belt must take to maintain optimal engine operation. Pay special attention to the orientation of the pulleys, particularly the direction in which the belt moves around each one. Correct routing ensures that the belt doesn’t slip or come off while the engine is running, preventing damage to sensitive components.
Remember to inspect the belt for any signs of wear, such as cracks, fraying, or glazing. If any damage is visible, replace the belt immediately to avoid breakdowns. Regular maintenance and checks can extend the life of the serpentine belt and avoid costly repairs in the future.

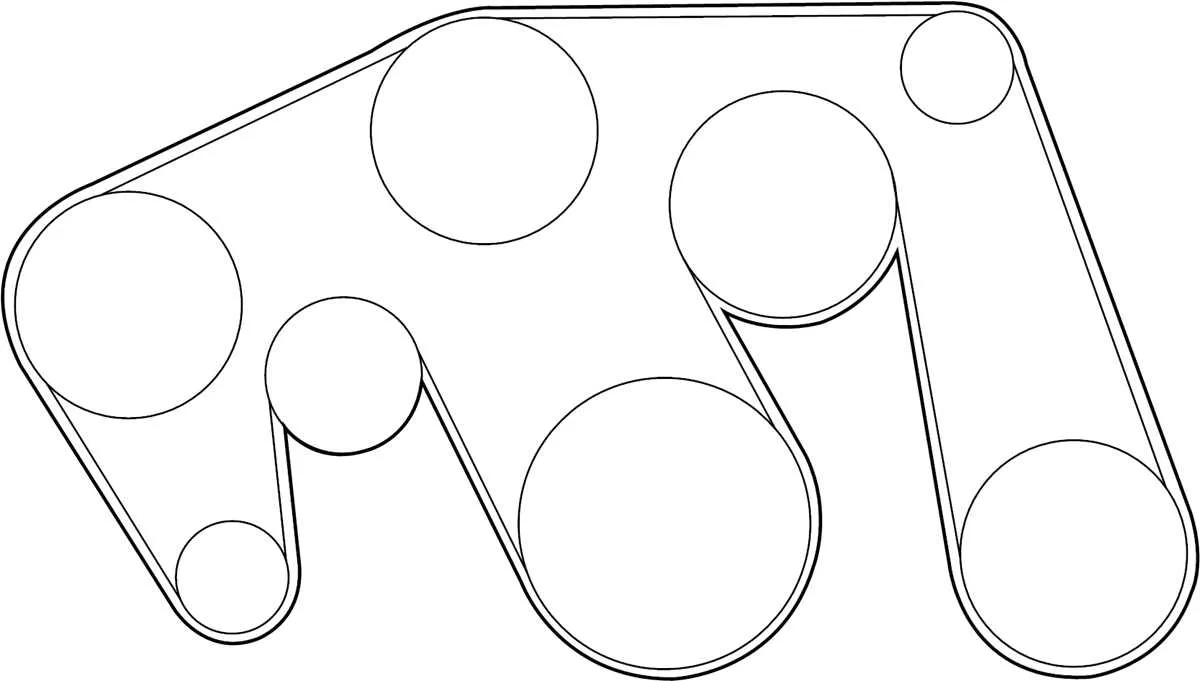

2005 Toyota Highlander Serpentine Belt Diagram
The serpentine belt in the 2005 Toyota Highlander plays a key role in driving multiple engine components, such as the alternator, power steering pump, and air conditioning compressor. To replace or maintain the belt, understanding the exact routing and tensioning is vital.
Begin by locating the serpentine belt tensioner. This component allows you to release tension from the belt, which is crucial when removing or installing a new belt. Use a suitable tool to rotate the tensioner and loosen the belt from the pulleys.
Refer to the specific routing diagram for the 2005 Toyota Highlander. This diagram shows the correct path the belt must follow around various pulleys. Ensure that the belt is aligned properly, as incorrect routing can lead to premature wear or failure of the belt and connected components.
After routing the belt, check the tension. The belt should be tight enough to prevent slipping but not overly tight, as this can damage the components. Once installed, manually rotate the belt to verify it moves freely without any resistance.
If you notice any cracks, fraying, or significant wear on the serpentine belt, replace it immediately to prevent further damage to the engine components. Regular inspection of the belt is recommended to ensure optimal performance and prevent unexpected breakdowns.
How to Read the Serpentine Belt Diagram for a 2005 Toyota Highlander
To read the serpentine belt diagram for a 2005 Toyota Highlander, first locate the diagram under the hood or in the owner’s manual. The diagram shows the routing path of the serpentine belt, including which components it connects to, such as the alternator, power steering pump, and air conditioning compressor.
The diagram typically includes arrows to indicate the direction of the belt and numbers that correspond to specific components. Pay attention to the following steps:
- Locate the belt routing: Identify the components listed in the diagram and their connections. Each pulley should be clearly marked, showing how the belt loops around them.
- Understand the tensioner location: The tensioner is the pulley that keeps the belt tight. It is often placed along the belt’s path and may have a specific mechanism, such as a spring, to maintain the correct tension.
- Check the direction of rotation: The arrows will show you the direction the belt should rotate. This is important when re-installing the belt after maintenance.
- Match the belt size: Ensure the correct length and size of the belt are being used. The diagram may also reference the belt’s specific part number.
Double-check the diagram for any special instructions, such as noting any unusual routing around pulleys or the tensioner. Following the diagram closely will help ensure the belt is installed correctly and operates without issues.
Common Issues with Serpentine Belts in the 2005 Toyota Highlander
Worn-out serpentine belts often result in squealing or high-pitched noises, especially when starting the engine. The rubber material degrades over time due to exposure to heat and friction. Inspect the belt for visible cracks or fraying. If you notice these signs, replacement is necessary.
Poor belt tension can lead to slipping, reducing the belt’s ability to drive the components efficiently. Check the tensioner for proper alignment. A loose belt may also cause erratic power steering or charging issues. If the belt feels loose, consider replacing the tensioner or the belt itself.
Misaligned pulleys contribute to uneven wear on the serpentine belt. A misalignment can cause the belt to jump off the pulleys or wear down faster. Inspect the pulleys and replace any damaged components to ensure smooth belt operation.
Contamination from oil or coolant spills onto the serpentine belt can accelerate wear. Always check for leaks around the engine. Cleaning or replacing the belt is necessary if it’s been exposed to these substances.
Excessive heat from a malfunctioning engine cooling system can cause premature degradation of the serpentine belt. Pay attention to your engine’s temperature gauge and check for overheating issues. If the engine runs hot, address the cooling problem and replace any damaged belts.
Regularly inspect the serpentine belt for these common issues. Addressing them promptly can prevent further damage to engine components and avoid costly repairs.
Step-by-Step Guide to Replacing the Serpentine Belt on a 2005 Toyota Highlander
To replace the serpentine belt on a 2005 Toyota Highlander, gather the necessary tools: a new serpentine belt, a socket set, a ratchet, and a belt tensioner tool. Ensure you have clear access to the engine bay and the belt area.
1. Locate the Serpentine Belt
Start by opening the hood and locating the serpentine belt on the front of the engine. It will run through multiple pulleys, including the alternator, power steering pump, and air conditioning compressor.
2. Release Tension from the Belt
Use the belt tensioner tool to relieve the tension from the serpentine belt. Place the tool onto the tensioner pulley and rotate it counterclockwise. This will loosen the belt, allowing you to remove it from the pulleys.
3. Remove the Old Serpentine Belt
Once the tension is released, slide the belt off the pulleys. Make a note of how the belt is routed around the pulleys, or refer to the diagram in the vehicle’s manual. This will help you route the new belt correctly.
4. Inspect the Pulleys
Before installing the new belt, check each pulley for any signs of damage or wear. Spin each pulley by hand to ensure smooth rotation. Replace any pulleys that show signs of damage or resistance.
5. Install the New Serpentine Belt
Place the new serpentine belt over the pulleys, following the same routing as the old belt. Ensure the belt is seated properly in each groove of the pulleys.
6. Apply Tension to the New Belt
Use the belt tensioner tool again to rotate the tensioner pulley counterclockwise. This will apply the proper tension to the new belt. Double-check that the belt is secure and properly aligned on all pulleys.
7. Test the Belt
Start the engine and observe the new belt while it’s running. Check for any signs of slipping or unusual noise. If everything looks good, close the hood and your replacement is complete.
