2004 Toyota Tacoma Serpentine Belt Diagram and Component Layout Guide

To replace or inspect the serpentine belt on your 2004 Toyota Tacoma, it’s crucial to follow the belt diagram for accurate routing. This ensures the belt runs smoothly through all the pulleys and maintains proper engine performance.

The diagram for the 2004 Tacoma shows the exact path the serpentine belt should take, including the tensioner and each pulley. Incorrect routing can cause belt wear, poor engine performance, or even engine damage. Double-check the alignment and tension of the belt before starting the engine.

If you’re unfamiliar with the process, referring to the diagram while replacing the belt can save you time and prevent mistakes. The proper tension is key–too tight or too loose can both lead to premature belt failure. For extra assurance, consult your vehicle’s manual or a trusted mechanic if needed.

2004 Toyota Tacoma Belt Diagram

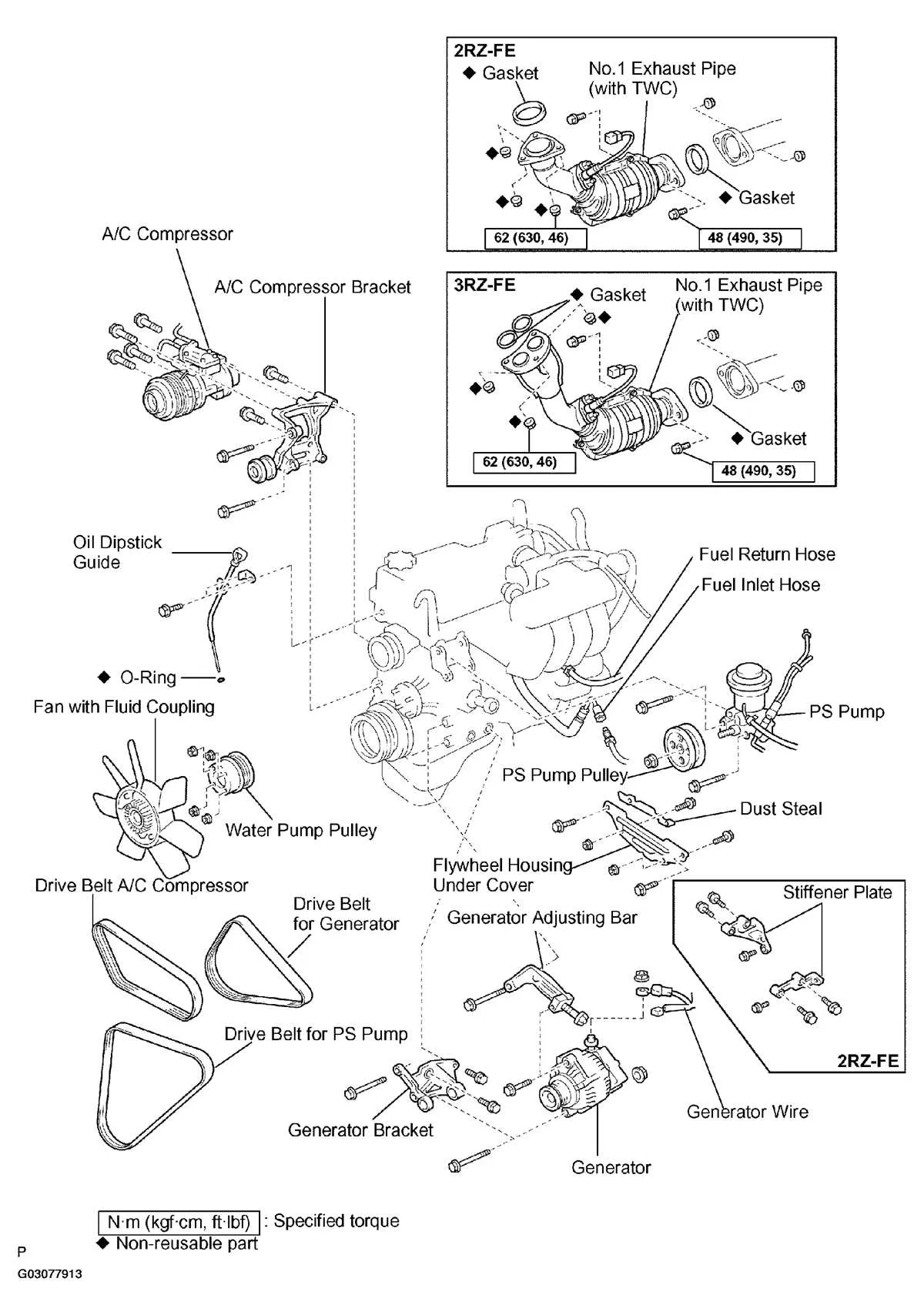

For proper belt routing on a 2004 Toyota Tacoma, refer to the diagram specific to your vehicle’s engine configuration. The main components driven by the belts include the alternator, power steering pump, air conditioning compressor, and water pump. Each of these components requires a separate belt, with a serpentine belt system being most common for this model.

Ensure the belts are routed correctly to prevent any damage or strain on the engine’s accessories. The main serpentine belt should loop around the crankshaft pulley, tensioner, water pump, alternator, and power steering pump. Depending on whether your Tacoma has an air conditioning system, the A/C compressor will also be included in the routing.

Check the tensioner pulley. It maintains the right amount of tension on the belt to ensure proper functioning of all components. A misaligned or loose belt could cause squealing noises, poor performance of accessories, or even premature wear on engine components.

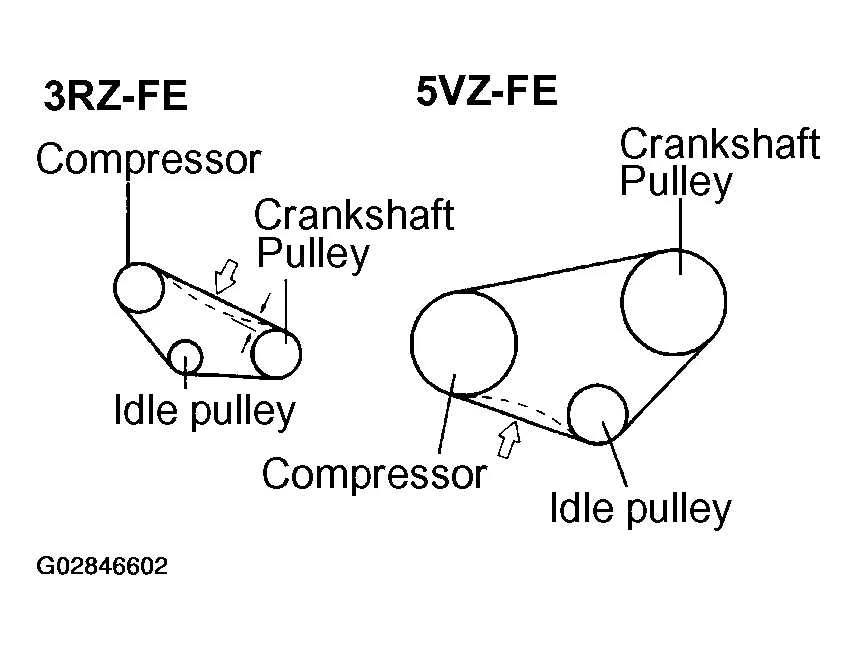

For a quick guide, here’s a general belt diagram for the 2004 Tacoma:

Serpentine Belt Routing:

• Start with the crankshaft pulley at the bottom.
• Loop the belt around the tensioner pulley.
• Route it through the alternator pulley and the power steering pump.
• For A/C-equipped models, include the A/C compressor in the routing.
• End by passing the belt over the water pump pulley.

Before replacing belts, check for wear signs such as cracks, fraying, or glazing. If the belt has any damage, replace it immediately to avoid further engine issues.

Refer to the owner’s manual or a repair guide for specific torque and tension values for your Tacoma’s belt system. This ensures correct installation and long-term durability.

Understanding the Serpentine Belt Routing on a 2004 Toyota Tacoma

The serpentine belt routing on a 2004 Toyota Tacoma is designed to drive multiple accessories, such as the alternator, power steering pump, and air conditioning compressor. It’s important to ensure that the belt is routed correctly to avoid issues like power loss or belt damage.

Start by locating the tensioner pulley. This is where you’ll need to apply force to release tension from the belt. Use a socket wrench to rotate the tensioner clockwise, which will loosen the belt. Once the tension is off, carefully remove the belt from the pulleys, taking note of how it’s positioned.

Pay attention to the path of the serpentine belt as it passes through the pulleys. It should loop around the crankshaft pulley, pass over the alternator pulley, and run under the idler pulley. From there, it wraps around the power steering pump pulley, then around the A/C compressor pulley, and finally around the water pump pulley.

Before installing the new belt, ensure the pulleys are aligned properly. A misaligned pulley could cause premature wear on the new belt or even cause it to slip. Install the new belt following the same routing path and make sure the belt sits correctly in the grooves of each pulley.

Once the belt is in place, rotate the tensioner pulley again to apply tension and secure the belt. Double-check the belt alignment, and turn the engine over briefly to verify the belt is functioning smoothly. If you hear any unusual noises or see the belt moving out of alignment, stop the engine and inspect the routing once more.

How to Identify and Replace a Faulty Belt on the 2004 Toyota Tacoma

Check the belts regularly for signs of wear or damage. If you notice any squealing sounds, visible cracks, fraying, or misalignment, it’s time to inspect the belt further or replace it.

To identify a faulty belt on the 2004 Toyota Tacoma, follow these steps:

• Inspect the serpentine belt for visible cracks, tears, or fraying. Check for any worn spots or uneven wear patterns along the surface.
• Check the belt’s tension. If it feels loose or too tight, it could be worn or misaligned.
• Look for any signs of oil or coolant on the belt. Fluid leaks can degrade the rubber, leading to premature failure.
• Ensure the belt is properly aligned with all pulleys. Misalignment can indicate pulley issues, which should be addressed.
• If you hear squealing or chirping sounds, the belt might be slipping due to wear or improper tension.

If a belt needs replacing, follow these steps:

• Use a wrench or socket to release the tension from the tensioner pulley. This will allow the belt to be removed from the pulleys.
• Take note of the belt routing or refer to the belt diagram for your 2004 Tacoma to ensure correct reinstallation of the new belt.
• Install the new belt, making sure it fits properly on all pulleys and is routed exactly as the old belt was.
• Once the new belt is in place, release the tensioner to apply the proper tension to the belt.
• Check the belt tension again, ensuring it’s not too loose or tight. A belt that’s too tight can cause premature wear, while a loose belt can slip and lead to poor performance.
• Start the engine and listen for any unusual noises or signs that the belt isn’t functioning properly.

Regular belt checks and timely replacement can save you from expensive repairs and ensure your Tacoma runs smoothly.

Troubleshooting Common Belt Issues in a 2004 Toyota Tacoma

If your 2004 Toyota Tacoma is making unusual noises or exhibiting poor performance, check the serpentine belt and its components. A worn or damaged belt can cause various problems, including engine overheating or loss of power steering.

Squeaking or squealing noises often indicate that the belt is loose or has worn grooves. Inspect the belt for visible signs of damage. If it appears cracked or frayed, replace it immediately to prevent further damage to other components.

Hard steering or difficulty turning can be traced to a failing power steering belt. If the power steering pump is not receiving proper drive from the belt, you may feel resistance when turning the wheel. Tighten or replace the power steering belt if necessary.

Overheating might occur if the water pump belt is loose or broken. The water pump needs to be properly driven by the belt to circulate coolant throughout the engine. Inspect the belt for any damage and ensure proper tension. If the pump isn’t functioning, replace the belt and check the pump’s condition.

Another common issue is belt tension problems. If the belt tension is too tight or too loose, it can cause premature wear or excessive stress on the engine components. Use a tension gauge to ensure the belt is at the proper tension level. Adjust the tensioner if needed.

If you notice the engine running roughly or abnormal noises coming from the belt area, it may indicate misalignment of the belt pulleys. Check all pulleys for damage or wear. Misalignment can lead to rapid belt wear, and in some cases, cause the belt to slip off entirely.

Lastly, always check the belt routing diagram for your Tacoma to ensure the belt is properly installed. Incorrect routing can cause the belt to fail prematurely and lead to additional engine issues.
