2010 Toyota Camry 2.5 Liter Belt Diagram for Engine Maintenance

To replace or inspect the serpentine belt on your 2010 Toyota Camry 2.5, it’s important to first understand its configuration. The belt drives several key components, including the alternator, power steering pump, and air conditioning compressor. Ensure the engine is off and cool before beginning any work.

Locate the belt routing diagram. This is often found on the engine bay or in the vehicle’s service manual. The diagram shows the precise routing of the serpentine belt around the pulleys and tensioner. Pay attention to the belt tensioner, as this will need to be adjusted or released when removing the old belt.

For replacement, make sure you use the correct belt size. A misaligned or improperly sized belt can cause premature wear or damage to engine components. Tighten the belt according to the manufacturer’s specifications to prevent slippage.

2010 Toyota Camry 2.5L Belt Diagram

The 2010 Toyota Camry 2.5L engine uses a serpentine belt system that drives multiple components such as the alternator, power steering pump, water pump, and air conditioning compressor. Understanding the belt routing is crucial for both maintenance and repairs.

Start by identifying the components driven by the serpentine belt. These include the alternator at the top left, the power steering pump towards the center, and the air conditioning compressor on the right side of the engine. The water pump is generally located at the bottom, near the crankshaft pulley.

To ensure proper belt tension, use a tensioner pulley. This pulley helps maintain the correct tightness and prevents the belt from slipping. When replacing the belt, verify that the new one matches the correct length and width as specified by Toyota for the 2.5L engine.

For accurate installation, follow the belt routing diagram provided in the vehicle’s manual. This ensures the belt follows the proper path around the pulleys, avoiding any damage to the components. A misaligned belt can cause unnecessary wear or even breakage.

If you’re replacing the belt, it’s advisable to inspect the pulleys and tensioner for any signs of wear or damage. Worn pulleys can cause the new belt to fail prematurely, leading to further issues down the line.

Understanding the Layout of the Serpentine Belt

The serpentine belt in the 2010 Toyota Camry 2.5L is responsible for powering multiple components such as the alternator, power steering pump, air conditioning compressor, and water pump. Understanding its layout can help you diagnose issues more effectively.

To begin, locate the belt routing diagram, which can typically be found near the engine bay or in the owner’s manual. This diagram shows the exact path the belt follows around various pulleys. It’s important to verify the belt is correctly aligned to prevent slippage or premature wear.

• The serpentine belt runs around the crankshaft pulley, driving the components that require power.
• The tensioner pulley ensures the correct amount of tension on the belt, keeping it tight against the pulleys.
• Any deviation in the belt’s position or signs of wear (such as cracking) can indicate misalignment or a failing component.

Regular inspection is recommended to detect wear and tear early. Pay attention to the condition of the belt and ensure it remains in line with the pulleys. If the belt starts to show signs of damage, it should be replaced immediately to prevent further engine complications.

How to Identify the Components of the Belt System

Start by locating the serpentine belt, which connects several engine components like the alternator, power steering pump, air conditioning compressor, and water pump. This long, continuous belt typically runs across the front of the engine. Check for visible labels or markings on the belt itself, which can indicate its routing and orientation.

The tensioner pulley is another key component. It keeps the belt tight and ensures proper contact with each pulley. You’ll usually find the tensioner pulley near the top or side of the engine, identifiable by its spring-loaded mechanism.

Inspect the idler pulleys, which help guide the belt through its path. These pulleys don’t drive any components but are crucial for maintaining proper belt alignment. They’re usually smaller than the other pulleys and can be located in various positions along the serpentine belt route.

The crankshaft pulley is often the largest pulley, located at the bottom of the engine. It drives the belt and serves as the primary point of power transmission from the engine.

Finally, examine the belt’s condition. Look for signs of wear such as cracking, fraying, or glazing. A worn belt can slip off the pulleys, causing engine components to malfunction.

Steps for Replacing the Serpentine Belt on a 2010 Toyota Camry

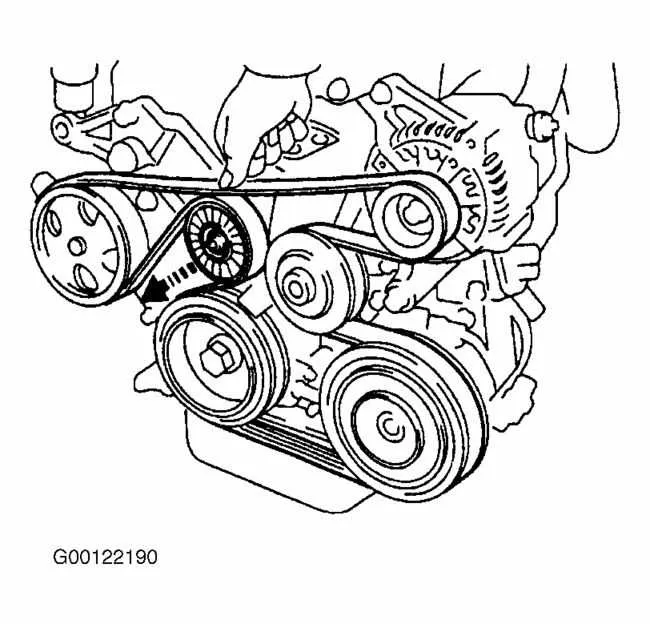

Locate the serpentine belt tensioner and use a ratchet or breaker bar to relieve tension on the belt. Rotate the tensioner clockwise to create enough slack to remove the belt.

Carefully remove the old serpentine belt from the pulleys, noting the routing for installation of the new belt. Refer to the belt diagram specific to the 2010 Toyota Camry to ensure proper routing.

Install the new serpentine belt by following the exact routing as shown in the diagram. Make sure the belt is seated correctly in all pulleys.

Use the tensioner to apply tension to the new belt. Ensure the belt is tight and properly aligned across all pulleys. Double-check the belt’s position to confirm it’s in the correct groove.

Start the engine and inspect the new belt for proper operation. Listen for any unusual sounds and verify that the belt is not slipping or misaligned.

If the belt is working smoothly, you have successfully replaced the serpentine belt on your 2010 Toyota Camry.
