2007 Toyota Camry Belt Diagram and Routing Information
To identify the correct routing for the serpentine belt on a 2007 Toyota Camry, first ensure that you have the right diagram for your engine type. The engine configuration may vary depending on whether your model has a 2.4L 4-cylinder or a 3.5L V6. The belt routing can differ slightly between these two variations, so double-check your vehicle’s specifications before proceeding.
Start by locating the diagram on the radiator support or near the engine bay. Most Toyota Camry models will have a label showing the proper routing of the serpentine belt, which connects multiple engine components such as the alternator, power steering pump, and air conditioning compressor.
If you’re replacing the belt, consider inspecting each component the belt interacts with. Ensure that pulleys are aligned, and no excessive wear or damage is present. After removing the old belt, follow the routing diagram carefully to ensure the new belt fits correctly and operates smoothly.
Tip: When installing the new belt, use a tensioner tool to relieve tension on the belt while securing it. Double-check the routing after installation to ensure it matches the diagram, as improper installation can cause belt slippage and engine damage.
2007 Toyota Camry Belt Diagram
The 2007 Toyota Camry uses a serpentine belt system that powers several critical components, including the alternator, air conditioning compressor, power steering pump, and the water pump. Understanding the belt routing and its components is vital for troubleshooting and maintaining your vehicle’s performance.

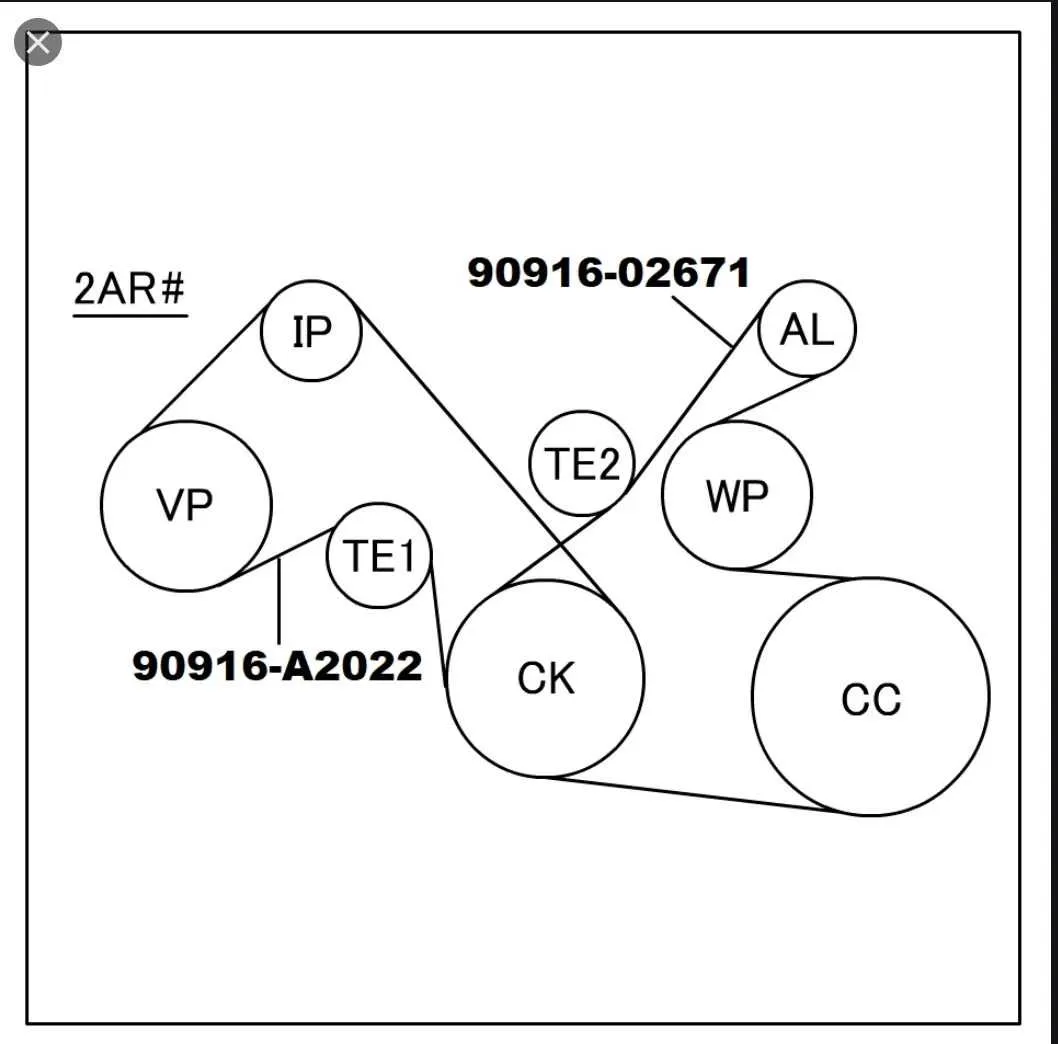

Below is the belt routing diagram for the 2007 Toyota Camry:
| Component | Description |
|---|---|
| Alternator | Charged the battery and powers electrical systems. |
| Power Steering Pump | Assists with steering efforts by pressurizing hydraulic fluid. |
| Water Pump | Circulates coolant through the engine to maintain optimal temperatures. |
| Air Conditioning Compressor | Compresses refrigerant to allow the AC system to cool air inside the cabin. |
Ensure the belt is routed correctly by following the diagram carefully. Any misalignment or failure in the belt system can cause engine overheating, power steering failure, or malfunctioning of electrical systems.
If you’re replacing the serpentine belt, check for any visible signs of wear such as cracks or fraying. Always make sure the belt is properly tensioned to avoid slippage and ensure smooth operation of all components.
Refer to the service manual or consult with a mechanic if you’re unsure about replacing or inspecting the serpentine belt yourself.
Understanding the Serpentine Belt Layout for 2007 Toyota Camry
The serpentine belt system in the 2007 Toyota Camry is designed to drive multiple engine components, such as the alternator, power steering pump, air conditioning compressor, and water pump. To ensure proper function, it is crucial to understand the correct routing and positioning of the belt.
The layout follows a precise pattern, looping around various pulleys and tensioners. Start by positioning the belt on the crankshaft pulley, which serves as the primary driving point. From there, the belt moves through the alternator pulley, the power steering pump, and the air conditioning compressor. It then continues to the tensioner pulley, maintaining the necessary tension for optimal performance. The layout concludes with the water pump pulley, where the belt completes its rotation before returning to the crankshaft pulley.
One key aspect to check is the belt tension. If the serpentine belt is too loose or too tight, it can cause premature wear on the components it drives. Ensure the belt is properly adjusted to avoid any slipping or strain on the system.
If the serpentine belt becomes damaged or starts showing signs of wear, it’s recommended to replace it as soon as possible to prevent failure. Signs of damage include fraying, cracks, or squealing noises from the engine. Regularly inspecting the belt is a proactive step in maintaining the overall health of the vehicle’s engine system.
How to Replace the Serpentine Belt on a 2007 Toyota Camry
To replace the serpentine belt on a 2007 Toyota Camry, begin by disconnecting the vehicle’s negative battery terminal to avoid accidental electrical issues. Use a socket wrench to remove the bolts securing the engine cover, if applicable, for easier access to the belt.
Next, locate the tensioner pulley, which keeps the serpentine belt tight. Using a serpentine belt tool or a ratchet wrench, rotate the tensioner to relieve the belt tension. While holding the tensioner in place, slide the old serpentine belt off the pulleys. Carefully inspect the belt for any signs of wear, such as cracks or fraying, before discarding it.
Now, take the new serpentine belt and align it according to the routing diagram, which can be found on the engine bay or in the vehicle’s manual. Ensure the belt runs smoothly over all pulleys, including the alternator, power steering pump, and air conditioning compressor.
Once in place, rotate the tensioner again to allow the belt to slip over it. Slowly release the tensioner to tighten the new belt. Double-check that the belt is properly aligned and seated on all pulleys.
Lastly, replace the engine cover, reconnect the battery, and start the engine. Listen for any unusual sounds and inspect the belt to ensure it’s running smoothly without slippage. If everything is in order, the replacement is complete.
