Snapper Drive Belt Diagram for Easy Troubleshooting and Maintenance

To replace or maintain the drive belt on your Snapper lawn mower, it’s essential to first understand its layout. The drive belt connects the engine to the wheels and blades, enabling proper movement and operation. Misalignment or wear can lead to poor performance or even mechanical failure, so keeping track of its condition is vital.

Inspect the drive belt regularly to detect any signs of damage or wear. The diagram provides a clear illustration of the belt’s routing and tensioning points. This helps in identifying where the belt should be positioned and which components it interacts with. A correct installation ensures smooth operation, while improper alignment can cause premature wear or malfunction.

The Snapper drive belt diagram shows the exact path the belt should follow. Make sure the belt fits snugly around pulleys and spindles to avoid slipping. Pay attention to any tensioning mechanisms that need adjustment during the replacement process. Following the diagram will help prevent errors and save time on troubleshooting later.

Snapper Drive Belt Diagram

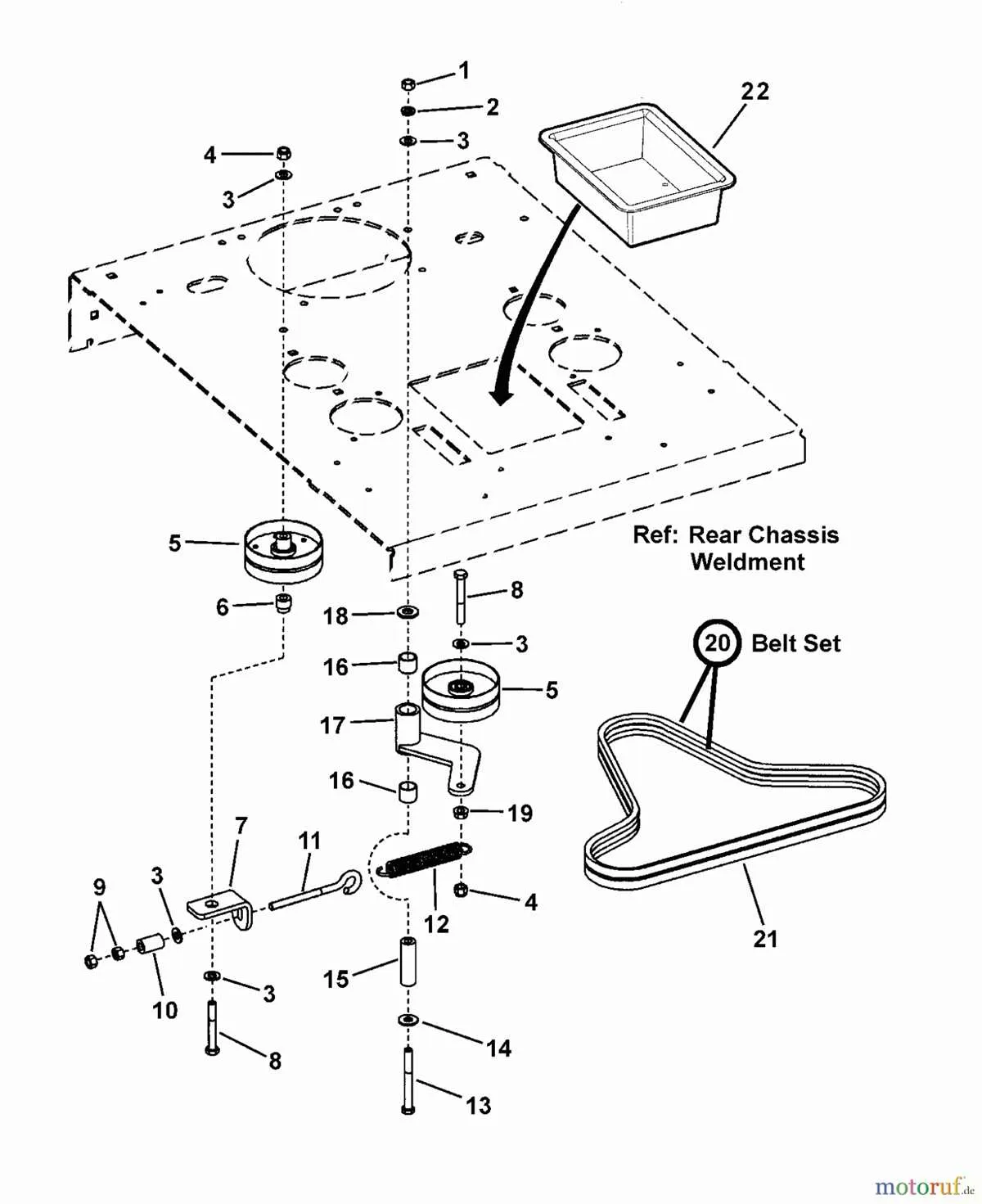

When replacing or servicing the drive belt on a Snapper mower, follow the correct sequence to ensure proper installation. The diagram below shows the layout of the drive belt, which connects the engine to the transmission. Pay close attention to belt tension and routing as shown in the diagram.

First, disconnect the spark plug wire and raise the mower deck. Identify the drive pulley and idler pulley locations. These pulleys control the movement of the belt, so ensuring the correct alignment is critical to prevent slippage or wear.

Place the new belt around the engine pulley, ensuring it fits securely. Move the belt over the idler pulley and guide it through the transmission pulley. Make sure the belt is routed as indicated by the diagram, following the precise path to avoid improper installation.

Check the belt tension by pressing down on the belt midway between pulleys. There should be a slight amount of slack, but it should not sag excessively. If the belt is too loose or too tight, adjust the idler pulley to achieve proper tension.

Finally, verify that the belt is positioned correctly on all pulleys and not rubbing against any components. Once everything is in place, reconnect the spark plug wire and test the mower to ensure smooth operation.

Understanding the Layout of the Snapper Drive Belt

To ensure optimal performance, it’s crucial to understand how the Snapper drive belt is arranged. The layout of the drive belt affects the efficiency of the mower’s operation, so accurate identification of the components is key.

Follow these steps to better grasp the setup:

• Locate the drive pulley: This component is responsible for transmitting power from the engine to the belt system.
• Understand the path: The drive belt runs through the engine pulley, around tensioner pulleys, and ultimately connects to the mower deck, engaging the blades. The routing ensures smooth operation of the mower’s moving parts.
• Check for tensioners: These pulleys regulate the tension of the belt, ensuring it remains tight enough to transfer power without slipping.

Next, it’s important to follow the belt routing diagram provided by Snapper. This diagram will show the exact configuration, including the direction the belt should travel around each pulley. Double-check the routing during reassembly to avoid any operational issues.

Finally, always ensure the belt is free of debris and properly lubricated to avoid unnecessary wear. Regular maintenance checks will extend the life of the drive belt and improve mower performance.

Step-by-Step Guide to Replacing the Snapper Drive Belt

Before starting, ensure that the engine is off and cool. Disconnect the battery to prevent any accidental starts.

1. Raise the Mower
Lift the mower to access the drive belt. If necessary, use a jack to elevate the mower to a safe working height. Make sure it’s stable before proceeding.

2. Remove the Deck
Remove the mower deck by loosening the bolts that secure it to the frame. Carefully slide the deck out from under the mower, making sure not to damage any parts.

3. Identify the Belt Path
Study the drive belt layout carefully. Take note of how the belt loops around the pulleys and components. Refer to the Snapper drive belt diagram if necessary for clarity.

4. Release Tension on the Belt
Locate the spring-loaded idler pulley. Release the tension by using a wrench to loosen the bolt that holds the idler in place. This will allow you to remove the old drive belt.

5. Remove the Old Drive Belt
Slide the belt off the pulleys and remove it from the mower. Ensure that you remember the order of components for when you install the new belt.

6. Install the New Belt
Position the new drive belt around the pulleys, following the original path. Make sure the belt fits snugly on all pulleys and that there are no twists.

7. Reattach the Idler Pulley
Once the new belt is in place, restore tension by securing the idler pulley back into position. Tighten the bolt to ensure it stays in place.

8. Reassemble the Mower Deck
Slide the mower deck back under the frame and secure it with the previously removed bolts. Tighten all fasteners to ensure everything is firmly in place.

9. Test the New Belt
Reconnect the battery and start the mower. Check that the drive belt operates smoothly without any slipping or unusual sounds.

Replace the drive belt every 100-200 hours of use to maintain optimal performance. Regularly inspect the belt for wear and damage to avoid future issues.

Troubleshooting Common Issues with the Snapper Drive Belt

If your Snapper drive belt is not functioning correctly, several common issues could be the cause. Check for visible damage or wear. Cracks, fraying, or missing sections on the belt indicate it needs replacement. If the belt is loose or slipping, it may not be properly tensioned. Tighten the belt or adjust the tensioning mechanism as needed. If the belt is misaligned, inspect the pulleys and ensure they are properly positioned. Any misalignment can cause the belt to slide off or wear unevenly.

Another common problem is if the belt is too tight, which can cause excess strain on the engine. Ensure that the tension is within the recommended range specified in the user manual. If the belt keeps coming off, check for damaged or worn-out pulleys. A faulty pulley can create friction, causing the belt to slip or detach. Also, inspect the idler pulleys and the drive system for any obstructions that could hinder the belt’s movement.

Examine the drive system for any misalignments or loose components. Loose bolts or worn-out bearings in the system can lead to belt wear or malfunction. Regularly clean the system to remove debris, which can also cause the belt to wear prematurely. If the belt is still slipping or causing issues, consider replacing the drive belt with a new one to restore proper functionality.
