Step by Step Guide for Replacing the 42 Inch Snapper Drive Belt with Diagram

Replacing the drive belt on your 42-inch Snapper mower requires attention to detail to ensure smooth operation. The drive belt connects the engine to the wheels, enabling power transmission for movement. If it becomes worn or damaged, it can lead to poor performance or even complete failure. The replacement process is straightforward if you follow the correct steps and reference a reliable diagram.

Start by lifting the mower deck to gain easy access to the drive components. You’ll need a wrench set, a replacement belt, and a diagram to guide the process. The belt routing is a critical part of the replacement, as an incorrect installation can cause it to slip or wear prematurely. Ensure the belt is properly aligned along the pulleys and tensioned correctly to avoid unnecessary strain on the motor.

Consulting the replacement diagram will help clarify the exact path the belt should take around the pulleys and the proper tension settings. Pay attention to the direction of the belt’s rotation and double-check the alignment before reassembling the mower. This simple yet crucial step will keep your mower running smoothly for the next season.

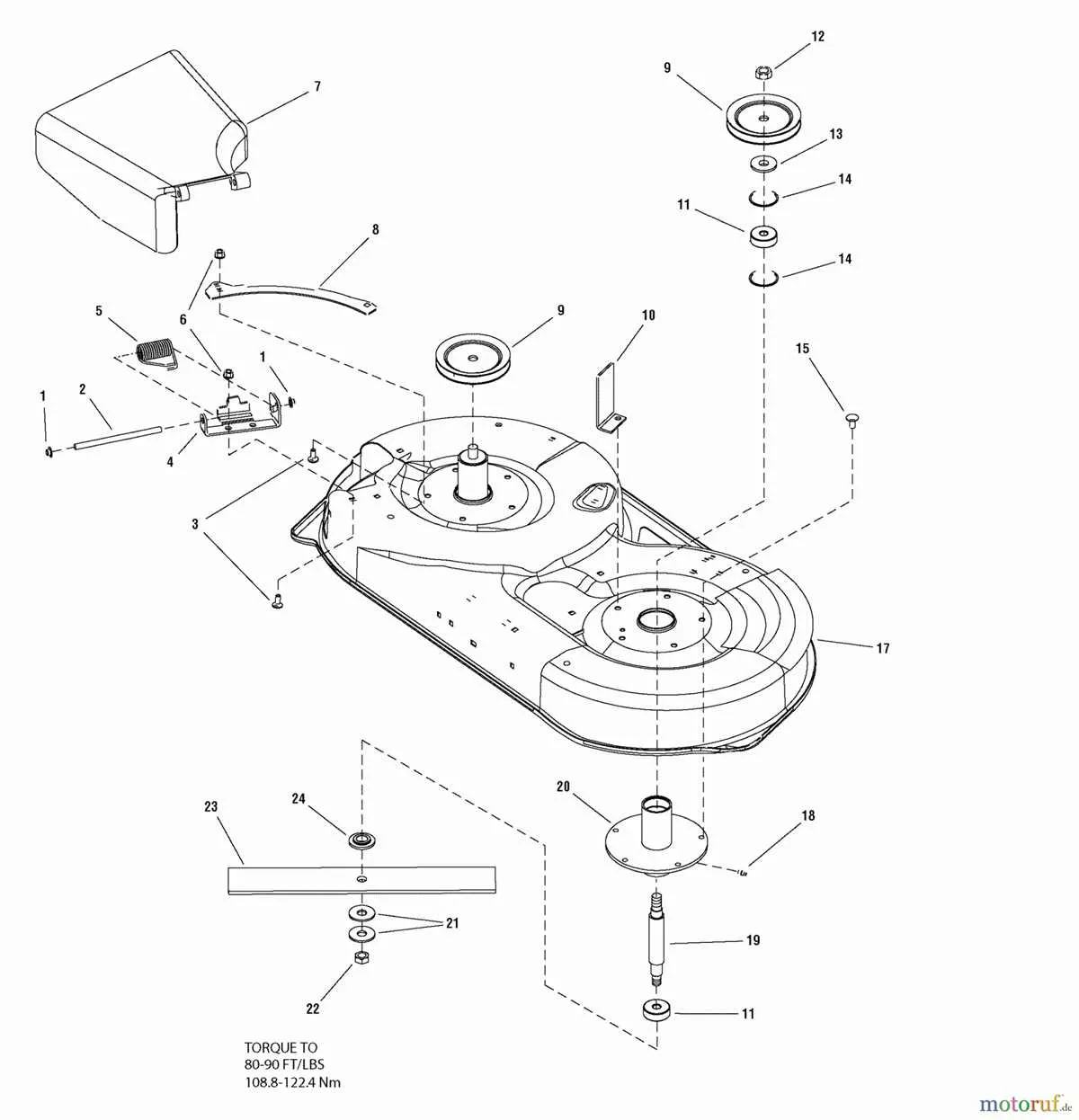

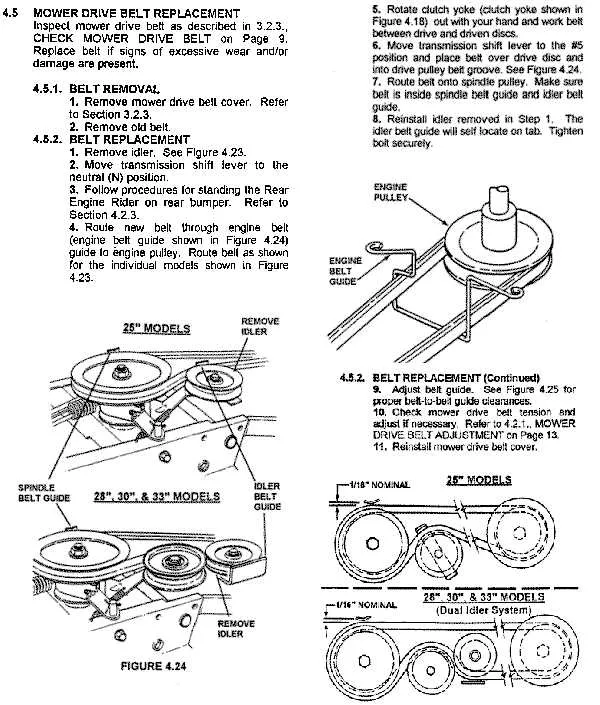

42 Inch Snapper Drive Belt Replacement Diagram

To replace the drive belt on your 42-inch Snapper lawnmower, follow these clear steps to ensure proper installation. First, disconnect the spark plug to prevent accidental starting. Lift the mower deck and remove any safety guards or panels around the belt area for better access.

Locate the old belt and take note of its routing through the pulleys. This step is crucial for correctly installing the new belt. A clear diagram will show the path from the engine pulley to the drive pulley, ensuring everything is aligned properly.

Remove the old belt by releasing tension from the tensioner pulley. This may involve loosening a bolt or nut depending on the model. With the belt off, compare the new replacement belt to the old one to ensure the size matches.

Install the new belt by following the same routing as the original. Begin at the engine pulley and work your way through each of the pulleys, ensuring the belt is seated properly in each groove. Double-check that the tensioner pulley is engaged correctly to maintain proper tension on the belt.

Once the belt is in place, manually rotate the pulleys to make sure the belt moves smoothly without slipping. Reinstall any guards or panels and reconnect the spark plug.

Test the mower on a flat surface to ensure the drive belt is functioning as expected and that there are no unusual noises or issues with the operation.

Step-by-Step Instructions for Removing the Old Drive Belt

Loosen the tension on the drive belt by adjusting the idler pulley. Use a wrench to turn the tensioner bolt counterclockwise until it moves away from the belt, creating slack.

Remove any covers or shields that may be blocking access to the belt. These parts can usually be detached with a screwdriver or wrench, depending on the design of your mower.

Slide the drive belt off the pulley system. Start by detaching it from the main drive pulley. Gently slide the belt off the idler pulley, taking care not to damage the surrounding components.

Check for any remaining debris or dirt around the pulley system and belt. Use a rag to wipe down the pulleys to ensure the new belt will fit smoothly.

Finally, remove the belt completely from the mower by pulling it through the available space. Ensure you don’t force it through tight spots to avoid damage.

How to Properly Install the New Drive Belt on a 42 Inch Snapper

Begin by turning off the mower and disconnecting the spark plug for safety. Tilt the mower back and secure it in a stable position. Locate the old drive belt and assess the path it takes around pulleys and spindles. Take note of its routing for later reference.

Remove any debris from the area around the belt system to prevent obstructions. Next, release the tension on the old belt by either removing the idler pulley or loosening the tension arm, depending on your model. Carefully slide the old belt off the pulleys. Keep it nearby to compare the new belt’s length and size.

Unroll the new drive belt and check for any twists. Start by placing the belt over the first pulley, following the same route as the old one. Pay close attention to its positioning on each pulley. Ensure the belt fits snugly into the grooves of the pulleys, but is not too tight.

Once the belt is in place, reattach any tensioning mechanism, ensuring it applies proper pressure to the belt. Test the movement of the belt by rotating the pulleys manually. There should be no slack or excessive tightness. If the belt moves smoothly, you are ready to proceed.

Double-check the routing one last time before reconnecting the spark plug. Start the mower to test the functionality of the new belt. Listen for any unusual sounds or resistance, which may indicate improper installation. If everything runs smoothly, you’ve successfully installed the new drive belt.

Troubleshooting Common Issues After Drive Belt Replacement

If your Snapper mower is still giving you trouble after replacing the drive belt, start by checking these common issues:

• Incorrect Belt Tension: If the belt is too loose or too tight, it can cause slipping or damage. Adjust the tension according to the manufacturer’s specifications.
• Belt Misalignment: Check the alignment of the belt on the pulleys. A misaligned belt can cause uneven wear, poor performance, and premature failure. Ensure all pulleys are properly aligned and the belt sits evenly on them.
• Damaged Pulleys: Inspect the pulleys for signs of wear, cracks, or debris buildup. Damaged pulleys can affect the belt’s movement and lead to further complications. Replace any pulleys that show damage.
• Incorrect Belt Type: Verify that the replacement belt matches the original one in terms of size, length, and material. Using the wrong belt can lead to improper operation and frequent replacements.
• Friction or Obstruction: Look for any foreign objects obstructing the belt’s path. Grass, dirt, or debris can cause friction, reducing the belt’s efficiency and even causing it to break.
• Improper Installation: Double-check the installation process. If the belt isn’t routed correctly, it may not engage with the drive system as intended, affecting the mower’s ability to function properly.
• Worn Drive Components: Inspect other drive components like the transmission, idler pulleys, and the clutch system. If these parts are worn, they can hinder the belt’s performance even after replacing the belt itself.

By systematically addressing these issues, you can ensure that your Snapper mower runs smoothly after the belt replacement. Make adjustments where needed and keep your equipment in top shape for optimal performance.
