Detailed Simplicity Regent Drive Belt Diagram for Accurate Maintenance and Repair Guidance

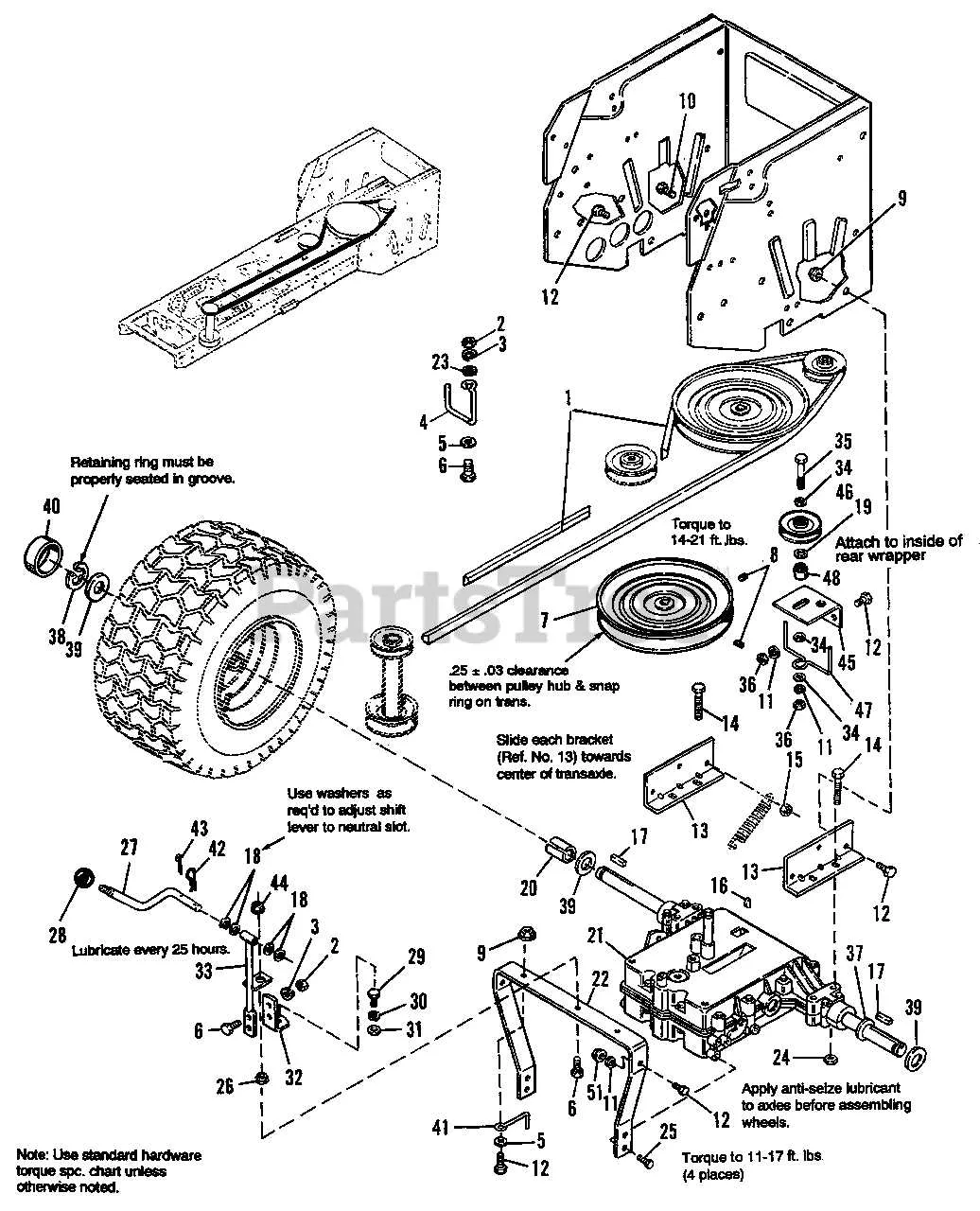

Refer to your Simplicity Regent drive belt diagram before replacing or adjusting the belt to avoid alignment errors and premature wear. The diagram clearly shows belt routing through pulleys, tensioners, and the engine shaft, allowing precise installation without trial-and-error. Keep a printed copy of the diagram during service for quick reference.
Locate key components such as the engine pulley, idler pulley, and mower deck spindles. The diagram identifies each part with exact placement, enabling smooth belt replacement and ensuring proper tension. Incorrect routing can cause reduced cutting efficiency or damage to the mower’s transmission system.
Follow recommended tension specifications from the diagram to prevent belt slippage. Simplicity provides exact measurements for proper tension, reducing strain on the belt and extending its service life. Check tension regularly, especially after the first few hours of operation following a new belt installation.
Keep the belt diagram accessible for maintenance. Store it with the mower’s manual or as a digital file. This practice saves time and reduces mistakes when servicing the mower, ensuring consistent performance and avoiding unnecessary repairs.
Simplicity Regent Drive Belt Diagram
Locate the correct belt routing by consulting the Simplicity Regent model number and year, as variations exist between models. Use the official parts manual or a trusted PDF diagram to avoid incorrect installation.
Follow this sequence: start at the engine pulley, route the belt around the idler pulley, then through the tensioner assembly, and finally to the mower deck pulley. Ensure the belt sits firmly in each groove to prevent slippage.
Check belt tension using the tensioner spring adjustment. For the Simplicity Regent, the correct deflection is typically about 1/2 inch under moderate pressure. Adjust the idler arm bolt if needed to achieve this tension.
Inspect the belt path diagram placed under the mower deck or in the owner’s manual. If unavailable, most diagrams show a clear loop with two to three tension points and a directional arrow for rotation.
Replace worn components such as pulleys or tensioners before installing a new belt to extend its service life. Use only belts that match the manufacturer’s specifications for length and width.
Test operation by running the mower at low speed and checking for smooth engagement of the deck. Stop immediately if you detect unusual noises, vibrations, or slipping.
Locating the Drive Belt on Simplicity Regent Models
Access the drive belt by removing the mower deck and opening the engine access panel. On most Simplicity Regent models, the belt runs between the engine pulley and the transmission pulley.
Follow these steps for accurate location:
- Park the machine on level ground and engage the parking brake.
- Disconnect the spark plug for safety.
- Raise the mower deck to its highest position and remove any debris around the pulleys.
- Locate the belt route diagram, usually found on the inside of the mower deck or in the operator’s manual.
- Identify the engine pulley near the front of the machine and the transmission pulley beneath the deck.
In most configurations, the drive belt wraps around both pulleys with tension provided by an idler pulley. Check for belt guides or clips that secure the belt path.
- Engine pulley: positioned at the front center of the machine.
- Transmission pulley: located underneath, near the center drive shaft.
- Idler pulley: adjustable component that keeps proper tension on the belt.
Use the diagram on the mower deck as a reference. Confirm the belt alignment before reassembling to prevent slippage or premature wear.
If you want, I can now create a matching belt diagram illustration for this section so the reader can visually locate all parts accurately.
Step-by-Step Guide to Interpreting the Drive Belt Diagram
Locate the diagram’s legend first to identify symbols representing pulleys, tensioners, and idlers. Each symbol corresponds to a specific component; matching them ensures correct interpretation.
Trace the belt path visually, following arrows or numbered steps in the diagram. Confirm the belt wraps around all indicated pulleys in the correct order without crossing incorrectly.
Note the pulley labels and compare them to your actual machine. Match shapes and sizes to confirm accuracy before proceeding to installation or maintenance.
Identify the tensioner position in the diagram. Use this reference to release tension safely, following the manufacturer’s torque specifications for reassembly.
Check for any directional arrows that indicate belt rotation. Align your installation accordingly to maintain optimal performance and reduce wear.
Cross-reference the diagram with the machine’s service manual for any component-specific details, such as torque values or alignment marks. This ensures the belt operates without slippage or noise.
After installation, visually verify the belt path against the diagram before starting the machine to avoid operational errors.
Common Drive Belt Issues and Troubleshooting
Replace a worn or cracked drive belt immediately to prevent damage to your Simplicity Regent mower. Check for visible cracks, fraying, or glazing on the belt surface. A belt with shiny areas or missing chunks loses grip and reduces cutting efficiency.
Inspect belt tension regularly. A loose belt causes slippage, uneven cutting, and excessive noise. Tighten according to the mower’s manual specifications, typically around 7–10 pounds of tension. Use a tension gauge for accuracy when possible.
Listen for squealing sounds during operation – this often signals a misaligned pulley or worn belt. Examine pulleys for wear, rust, or debris. Clean pulleys with a cloth and ensure proper alignment to extend belt life.
Check belt tracking to avoid premature wear. If the belt drifts off pulleys, adjust pulley alignment or replace worn idler pulleys. Misalignment increases stress on the belt and other components.
Replace belts on a scheduled basis, even if they appear intact, especially after 100–150 hours of use or annually for frequent mowing. Preventative replacement avoids unexpected breakdowns and costly repairs.
