Simplicity 42 inch mower deck belt diagram and installation guide

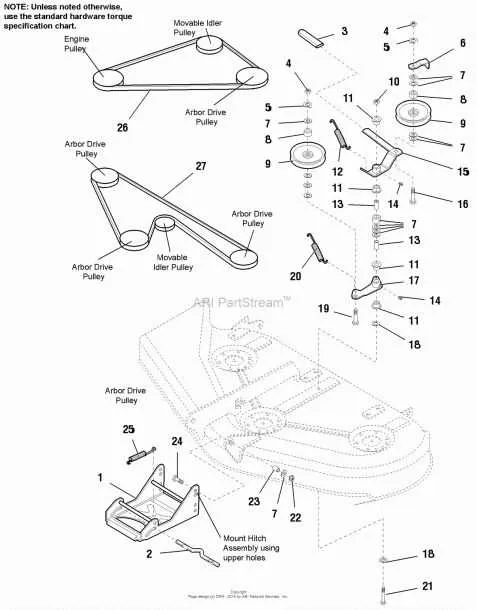

If you’re experiencing issues with your Simplicity 42-inch mower deck belt, refer to this diagram for a straightforward guide to proper installation. It will help you identify the correct routing of the belt and prevent unnecessary wear on the system.

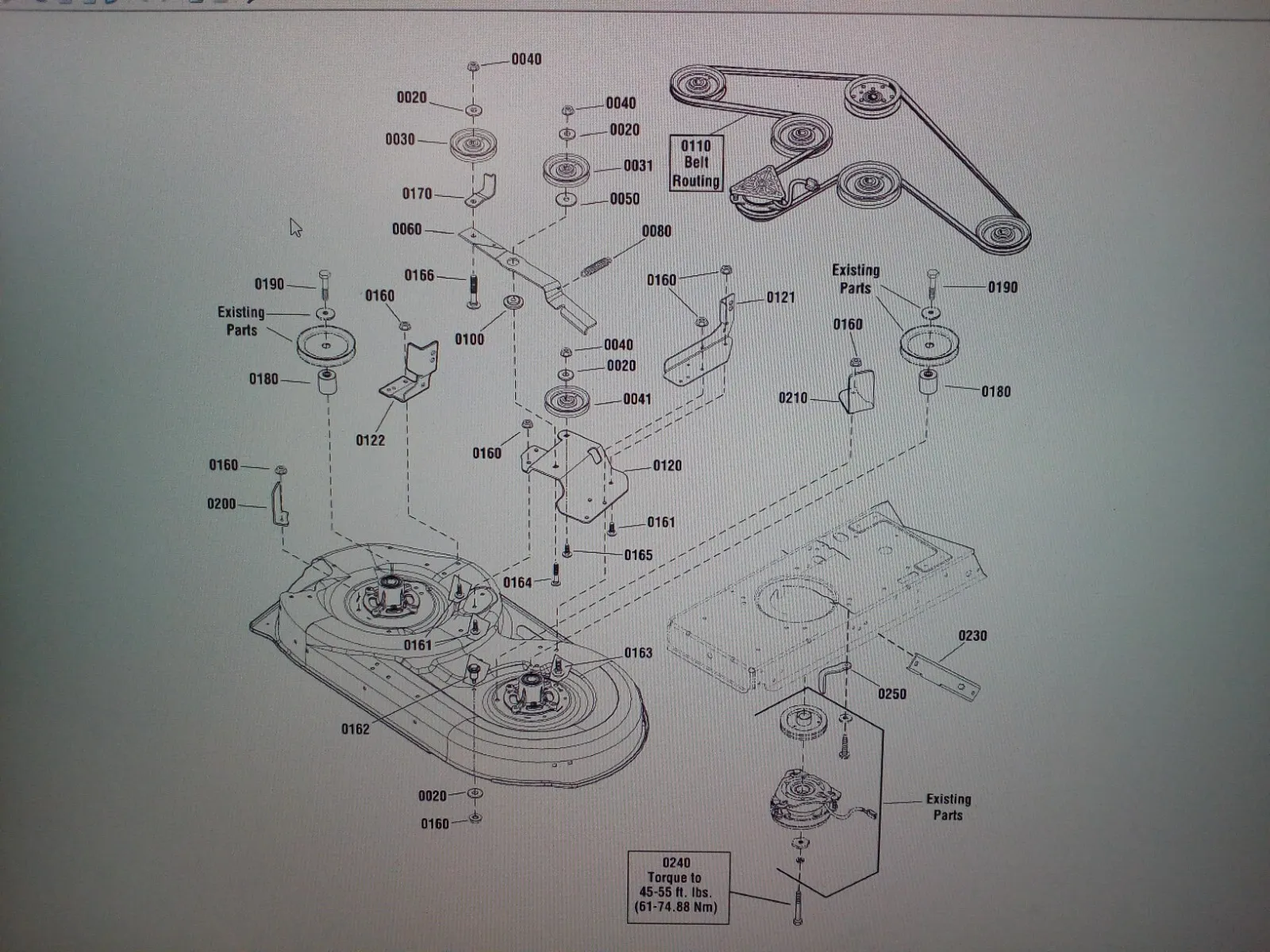

The diagram illustrates the exact path the belt should take, including which pulleys it should wrap around and the correct positioning on the spindle. Start by ensuring the belt is free of twists and kinks before following the steps shown.

It’s important to inspect the belt for signs of damage, such as cracks or fraying, as these can impact the mower’s performance. If you notice any of these signs, replace the belt before reinstalling it according to the diagram.

Use the diagram to confirm that all parts are in their correct positions before you begin mowing. This will ensure smooth operation and help extend the life of your mower deck.

Simplicity 42 Inch Mower Deck Belt Diagram

To replace or adjust the belt on a Simplicity 42-inch mower deck, follow these detailed steps:

• Start by raising the deck to its highest position. This gives you more room to work under the mower.
• Locate the old belt and identify the path it follows. The diagram will help you understand the exact routing.
• Remove the tension from the belt by loosening the idler pulley or removing the spring that applies tension.
• Carefully remove the belt from the pulleys and check for any wear or damage. If necessary, replace the belt with a new one of the correct size (typically part number 1696799 for Simplicity mowers).
• Install the new belt, following the exact routing as shown in the diagram.
• Reapply tension to the belt by adjusting the spring or tightening the idler pulley.

The diagram will show how the belt routes through the pulleys, ensuring that each component functions properly. Double-check the tension after installation to ensure optimal performance. A properly tensioned belt will prevent slipping and maximize cutting efficiency.

Remember, regular maintenance is key to the mower’s longevity. After every season, inspect the belt for signs of wear or stretching and replace it as needed. Refer to the diagram for clarity on belt installation and routing to avoid issues down the road.

Understanding the Belt Routing for Simplicity 42 Inch Mower

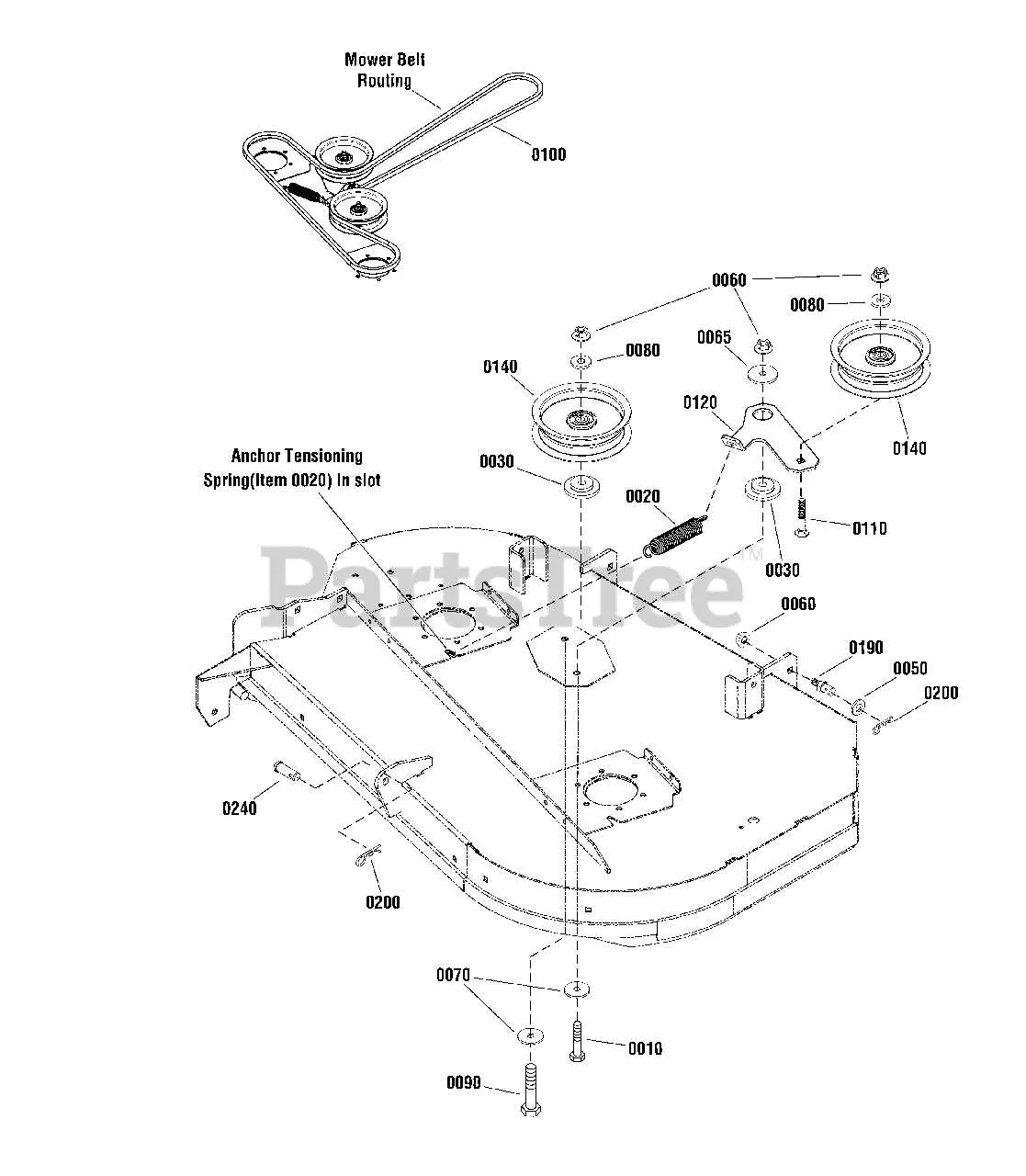

For the Simplicity 42-inch mower, proper belt routing ensures smooth operation and prolongs the life of your mower’s components. Start by routing the belt through the engine pulley, then loop it around the idler pulley. Make sure the belt follows the path around the main blade pulleys without twisting. The belt should also pass through the tensioner arm to maintain proper tension during use.

When placing the belt on the blade pulleys, ensure it’s positioned correctly in the grooves. A misaligned belt can cause uneven blade rotation or premature wear. Pay attention to the placement of the belt on the clutch pulleys and ensure it isn’t over-tightened, as this can lead to unnecessary strain on the engine and other components.

Once the belt is routed properly, check the tension by manually turning the blades. There should be minimal slack while still allowing the belt to move freely. If the belt is too loose or too tight, adjust the idler pulley to get the correct tension.

Regularly inspect the belt for signs of wear, cracks, or fraying. Replace it when necessary to avoid breakdowns and ensure consistent performance. Keep the deck clean and free of debris to prevent damage to the belt and other components.

Step-by-Step Guide to Replacing the Belt on a Simplicity 42 Inch Mower Deck

Before starting, make sure the mower is turned off and the ignition key is removed. Lift the mower deck for easy access to the belt system.

1. Disconnect the Battery

Disconnect the negative terminal of the battery to prevent any accidental starts during the repair process.

2. Remove the Old Belt

Locate the belt tensioner and release the tension by either moving the spring or loosening the bolts that hold it in place. This will allow the belt to come loose. Slide the old belt off the pulleys and discard it.

3. Inspect the Pulleys

Check each pulley for signs of wear or damage. Make sure they rotate smoothly. If any pulleys are defective, replace them before installing the new belt.

4. Install the New Belt

Place the new belt over the pulleys, starting with the idler pulley and working your way to the blades. Ensure the belt follows the correct path as shown in the mower’s diagram. Be sure that the belt is properly aligned and not twisted.

5. Reapply Tension

Once the belt is in place, reattach the belt tensioner to its original position and apply tension. Double-check that the belt has the right amount of tension–too much can cause wear, and too little can affect performance.

6. Reconnect the Battery

After securing the belt, reconnect the battery terminal. Start the mower and test the belt by running the blades briefly to ensure everything functions smoothly.

Make sure to follow these steps carefully, and always refer to the mower’s specific belt diagram for accurate installation details.

Common Issues with Mower Deck Belts and How to Fix Them

Check the belt tension regularly. A loose belt will slip, causing the mower to lose power and cut unevenly. To fix this, tighten the belt by adjusting the tensioner or replacing worn components like pulleys.

If you notice the mower deck vibrating or making unusual noises, inspect the belt for wear and cracks. A worn belt can slip off or fail, leading to uneven cutting or damage to other mower parts. Replace any damaged belts promptly to maintain smooth operation.

A misaligned belt is another common issue. This can occur if pulleys or the deck are not positioned correctly. Misalignment can cause the belt to wear prematurely or even break. Adjust the deck or pulley positions and ensure they are aligned to keep the belt in place.

Debris buildup around the belt can cause friction, resulting in premature wear. Clean the area around the belt regularly, removing grass clippings or other debris to prevent unnecessary stress on the belt.

If the mower’s deck is not engaging properly, it could be due to a faulty belt or pulley. Inspect the entire system for signs of wear. If you find issues, replace the affected parts to restore proper function.
