Serpentine Belt Diagram for 2007 Buick Lacrosse and Installation Guide
Understanding the serpentine belt routing diagram for the 2007 Buick LaCrosse is key for any car owner or technician looking to replace or troubleshoot the belt system. The serpentine belt connects multiple engine components, including the alternator, power steering pump, and air conditioning compressor. Ensure the proper belt alignment and tension to avoid any operational issues.
Locate the diagram in the vehicle’s service manual or on a label typically found under the hood. The diagram will guide you in understanding the exact path the serpentine belt follows, helping you avoid mistakes during installation or replacement.
Proper installation ensures the smooth functioning of essential engine components. Pay close attention to the tensioner and idler pulleys, as these often wear out first and can affect the belt’s performance. Inspect these components while replacing the belt for any signs of wear or damage.

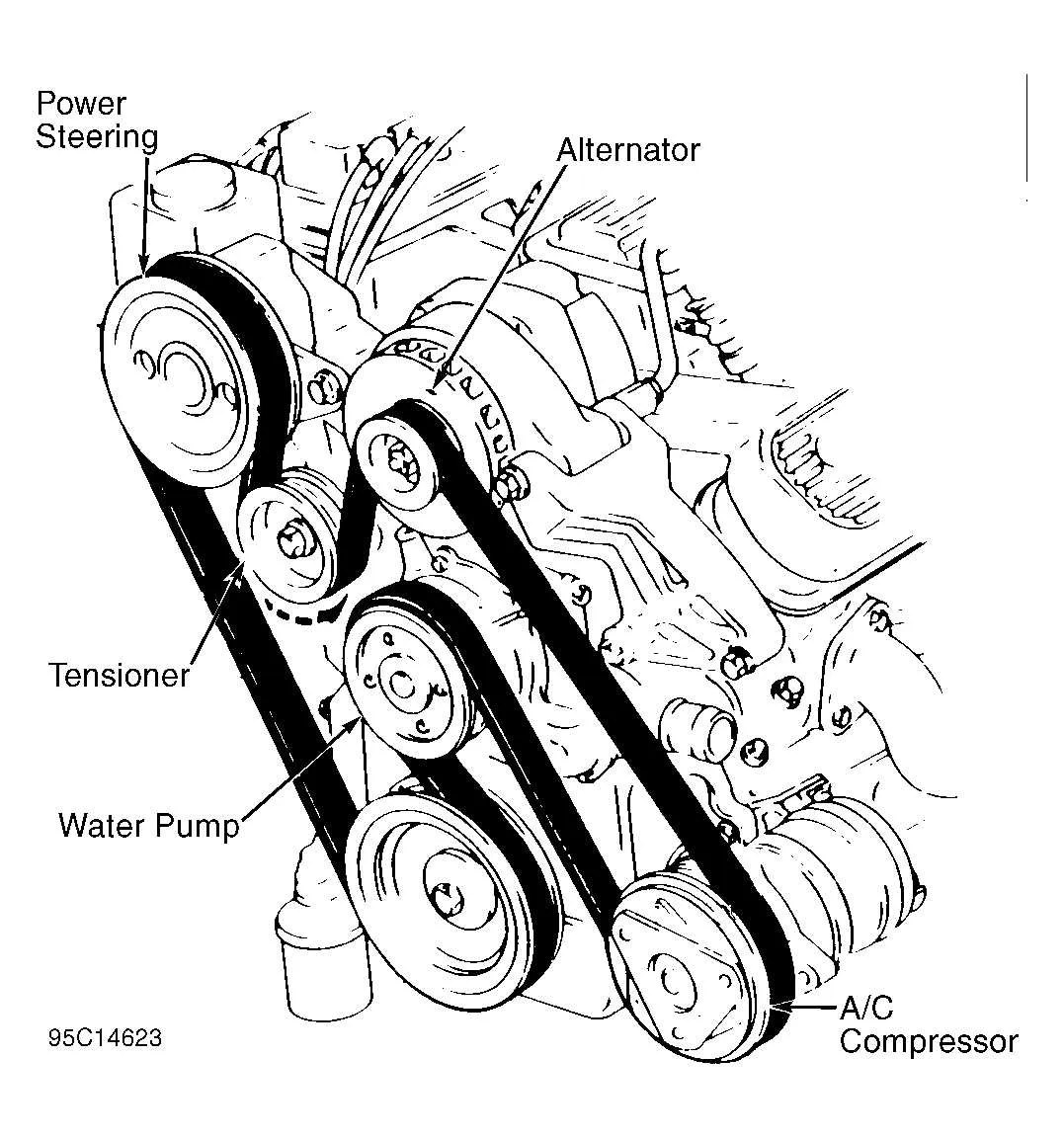

Serpentine Belt Diagram 2007 Buick Lacrosse
The serpentine belt in the 2007 Buick Lacrosse plays a critical role in driving various engine components such as the alternator, power steering pump, air conditioning compressor, and water pump. Understanding the serpentine belt diagram is crucial for ensuring proper belt installation and efficient engine operation.
To replace or inspect the serpentine belt, follow the specific routing pattern provided in the diagram. This diagram outlines how the belt should loop around the pulleys, ensuring each component is properly powered. The diagram also indicates the tensioner pulley, which is responsible for maintaining correct belt tension during operation.
When working with the serpentine belt, ensure the belt is routed correctly by following the arrows and numbering sequence shown in the diagram. Pay attention to the orientation of the belt on the tensioner pulley, as improper alignment can lead to premature wear or slipping, affecting engine performance.
Refer to the owner’s manual for the exact specifications and tensioning instructions to avoid damage to the belt or associated components. Regular inspection of the serpentine belt will help prevent issues such as cracking, fraying, or loss of tension, which could lead to engine failure or overheating.
How to Read the Serpentine Belt Diagram for 2007 Buick Lacrosse
Start by identifying the key components shown in the diagram: the serpentine belt itself, pulleys, tensioner, and idler pulley. The diagram will typically include arrows to indicate the direction in which the belt should move, along with labels for each component.
Next, locate the routing path. This will show how the belt wraps around the pulleys and components in the engine. Pay attention to the number of twists and turns the belt takes, as well as the pulleys it interacts with, such as the alternator, power steering pump, or air conditioning compressor.
Examine the tensioner placement in the diagram. It’s essential to know how the belt interacts with the tensioner, as it maintains the proper tension. If the tensioner is spring-loaded, the diagram may indicate how to release or apply pressure to loosen or tighten the belt.
If any component is marked as an idler pulley, note its position. The idler pulley serves to guide and redirect the belt, ensuring it runs smoothly across all necessary components.
Once you have the diagram, verify it against your vehicle. Compare the routing path shown in the diagram with the physical configuration in the engine bay to ensure accuracy.
If replacing the serpentine belt, ensure the new belt matches the length and pattern indicated in the diagram. The right tension is critical to avoid slipping or premature wear.
Identifying Common Belt Issues on the 2007 Buick Lacrosse
Inspect the serpentine belt regularly for signs of wear, cracks, or fraying. These issues can lead to poor performance or a complete belt failure. If you notice any visible damage, replace the belt immediately to avoid further complications.
Another common problem is belt slippage. This occurs when the belt fails to maintain proper tension, causing it to slip on the pulleys. Slippage can result in reduced power to the engine’s components, such as the alternator or air conditioning. If you hear squealing noises or notice a loss of power, inspect the belt tensioner and pulley alignment for possible wear.
Misalignment of the serpentine belt is also frequent. A misaligned belt can cause uneven wear and damage to the belt and other components. This often occurs when the pulleys are not positioned correctly or when the belt tensioner is malfunctioning. Check the alignment of all pulleys and ensure the belt is properly routed according to the manufacturer’s diagram.
Overheating can further impact the serpentine belt’s lifespan. Excessive heat from the engine can cause the belt to weaken and crack. This can be exacerbated if the cooling system is not functioning optimally. Always ensure the engine is running within the proper temperature range to prevent overheating issues that may affect the belt.
If you experience loss of power steering, air conditioning, or alternator charging, inspect the belt immediately. A slipping or broken belt can directly impact these systems, leading to difficulties in driving or electrical issues. Regular maintenance of the serpentine belt can prevent such disruptions.
Step-by-Step Guide to Replacing the Serpentine Belt on the 2007 Buick Lacrosse
To replace the serpentine belt on your 2007 Buick Lacrosse, follow these steps:
- Locate the serpentine belt and tensioner: The serpentine belt runs across the front of the engine. Find the belt tensioner, which is a pulley that helps maintain the proper tension of the belt.
- Release the tension on the belt: Use a wrench or ratchet to rotate the tensioner pulley counterclockwise. This will relieve tension on the belt, allowing you to remove it.
- Remove the old serpentine belt: Once the tensioner is relieved, carefully slide the belt off the pulleys. Make sure to take note of the belt routing for proper installation of the new belt.
- Inspect the pulleys and tensioner: Check the condition of the pulleys, idler pulley, and the tensioner. If they show signs of wear, consider replacing them to avoid future issues.
- Install the new serpentine belt: Place the new belt over the pulleys according to the diagram, starting from the crankshaft pulley and working your way around. Ensure the belt is properly seated on all pulleys.
- Re-engage the tensioner: Rotate the tensioner pulley again using your wrench or ratchet to allow the new belt to slip into place. Double-check that the belt is aligned and tensioned correctly.
- Check the belt’s alignment: Make sure the serpentine belt is aligned properly with all pulleys. The belt should be flush against the pulleys and not be misaligned or twisted.
- Start the engine: Turn on the engine and visually inspect the belt while the engine is running. Ensure there are no abnormal sounds, and the belt runs smoothly.
- Test drive: Take the vehicle for a short drive to ensure everything is functioning as expected. Listen for any unusual sounds, and make sure the belt is properly tensioned.
